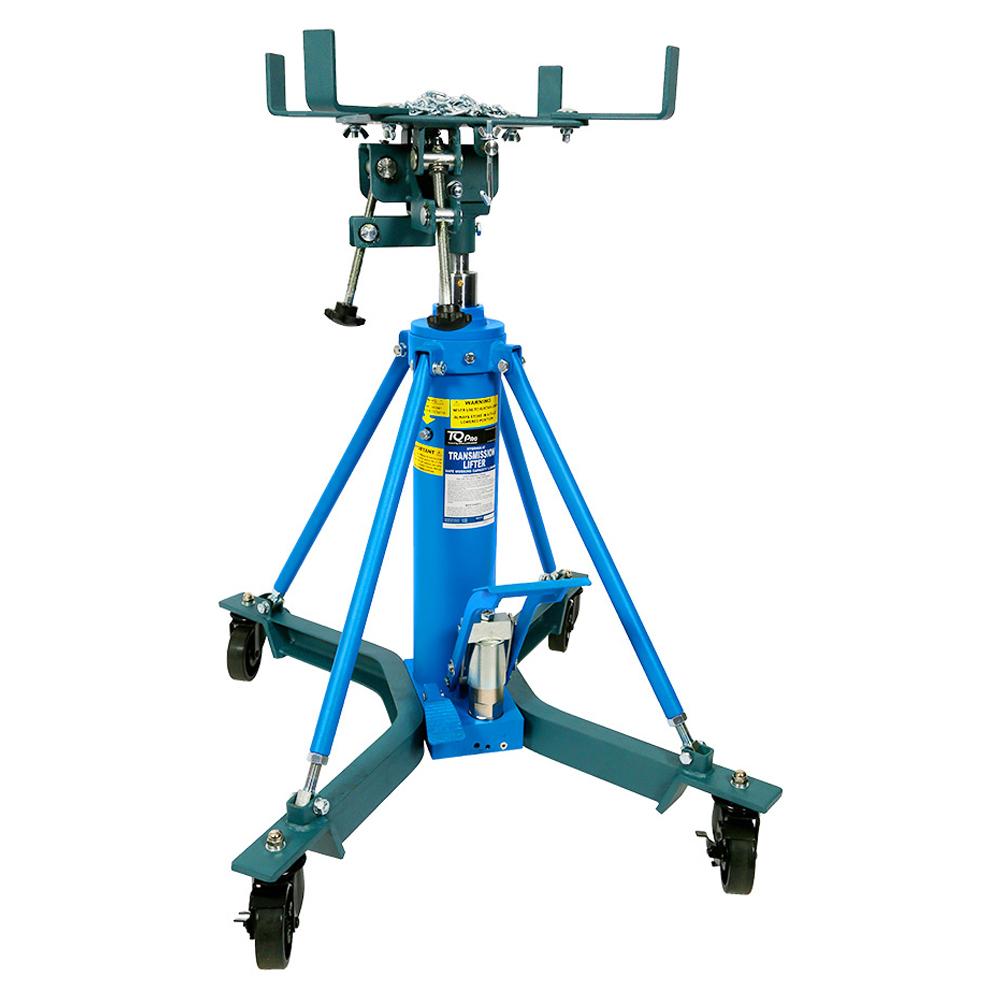

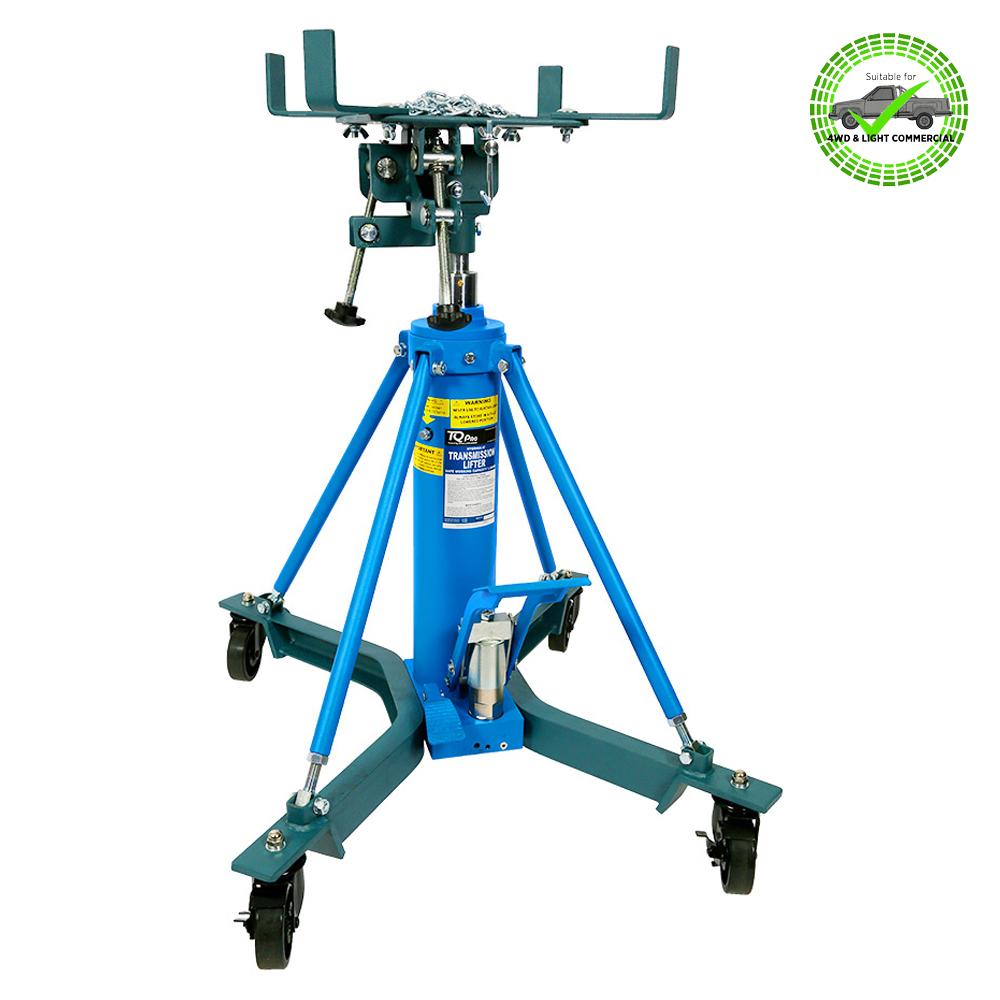

TQ Pro PROTL1000 1000kg Transmission Jack 4x4/SUV/Light Commercial

TQ Pro PROTL1000 1000kg Transmission Jack 4x4/SUV/Light Commercial

This TQ Pro "Latest Applied Technologies" 2-Stage 1,000kg Hydraulic Telescopic Transmission Lifter offers a wide range of versatility designed to help increase workshop productivity. Designed For use with passenger, SUV, 4x4 and Light Commercial with GVM of less than 3,500kg, this Transmission Lifter features a universal "oversized" lifting platform that provides a wide 4 way tilt range. The telescopic 2-stage design is ideal for reduced clearance lifts and the high speed foot pedal operation keeps hands free during lowering. The manually operated hydraulic system includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design features four premium quality 'braked' nylon swivel castors for easy maneuverability around the workshop.

Features:

• Using CNC technology, the chassis and frame is constructed of superior-grade steel and built to premium standards for professional quality and durability
• High quality large diameter hydraulic steel cylinder with precision tolerances and in-ram bleeding and lubricating mechanism
• Piston-ram is precision machined, treated and polished to minimise wear and extend service life
• Premium quality (twin) O rings with anti-dust ring, reduce wear and substantially increase durability
• Concealed double staged pump core
• Rapid lift without load
• Slow descent with load
• Overload safety valve
• Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting and durable finish
• Paint is oil, grease and dirt-resistant for easy cleanup
• Oversize mounting cradle provides a broad 4 way adjustment / tilt range
• Premium quality lockable nylon swivel castors
• 4 Way Tilting Cradle Offers The Perfect Mounting Angle
• The oversize design of the mounting cradle design provides a wide fore and aft tilt range to get the load in the perfect position..
• Versatility And Portability To Match Your Needs
• Positioning this transmission lifter is just a one-person job.

Intended use:

• Designed For use with passenger, SUV, 4x4 and Light Commercial with GVM of less than 3,500kg

Specifications :

• Safe Working Capacity: 1,000kg
• Maximum Height: 1940 mm
• Minimum Height: 940mm
• 2 Stage Lift Ram travel:
  • 1: 490mm
  • 2: 510mm
• Cradle Dimensions (L x W):
• Minimum: 280mm x 280mm
• Maximum: 480mm x 480mm
• Tilt:
  • Forward Tilt: 55°
  • Rearward Tilt: 91°
  • Left Tilt: 55°
  • Right Tilt: 16°
• Dimensions (L x W x H): 610mm x 740mm x 949mm
• Weight: 76.5kg
• Carton: 850 x 385 x 560mm
• Gross Weight: 87.5kg
