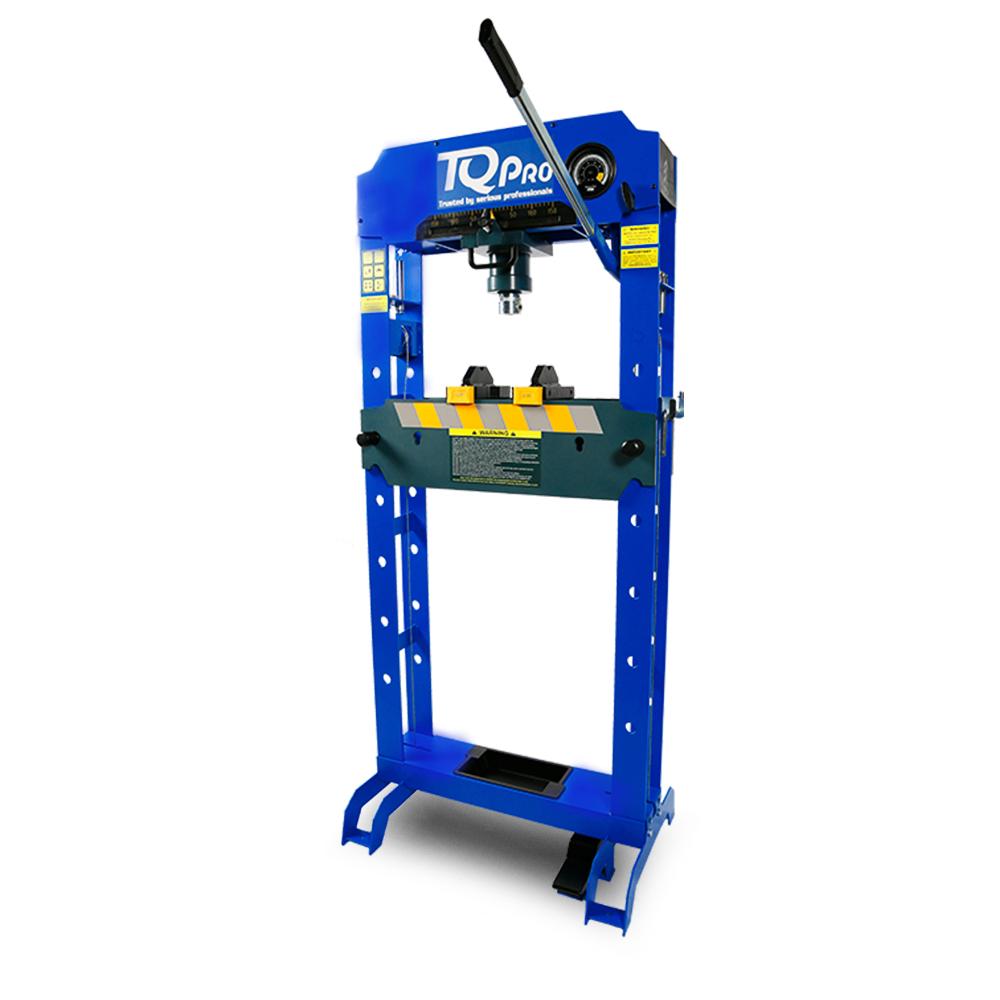

TQ Pro PROSHPR30TA 30T Hydraulic Press

TQ Pro PROSHPR30TA 30T Hydraulic Press

TQ Pro 30,000kg Air Hydraulic Workshop Press is capable of bending, pressing or extruding and makes light work of installing ball joints, U-joints and pulleys - making it ideal for many automotive and industrial applications.

Includes:

• 1 x Dial Gauge
• 1 x Set of Mandrill Pressing Attachments

Features:

• Premium-grade steel built to exacting standards for quality and durability
• Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
• Paint is oil, grease and dirt-resistant for easy clean up
• High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
• Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility
• Foot Operated air trigger ram travel control
• Bed winch with swivel handle
• Integrated overload protection valve keeps from overloading the system
• Extra-long handle included for easy pumping force
• Foot pedal for pneumatic operation
• Handy removable parts tray
•  Dial gauge: dual metric/tons pressure readings

Specifications:

• Safe Working Capacity: 30,000kg
• Working Range: 25mm - 850mm
• Bed Outside: 164mm
• Bed Inside: 148mm
• Bed Width: 600mm
• Piston Ram Stroke: 200mm
• Screw Adjustment: 75mm
• Ram Diameter: 58mm
• Bed Height Settings: 6
• Dimensions (L x W x H): 505mm x 770mm x 1800mm
• Weight: 163kg
