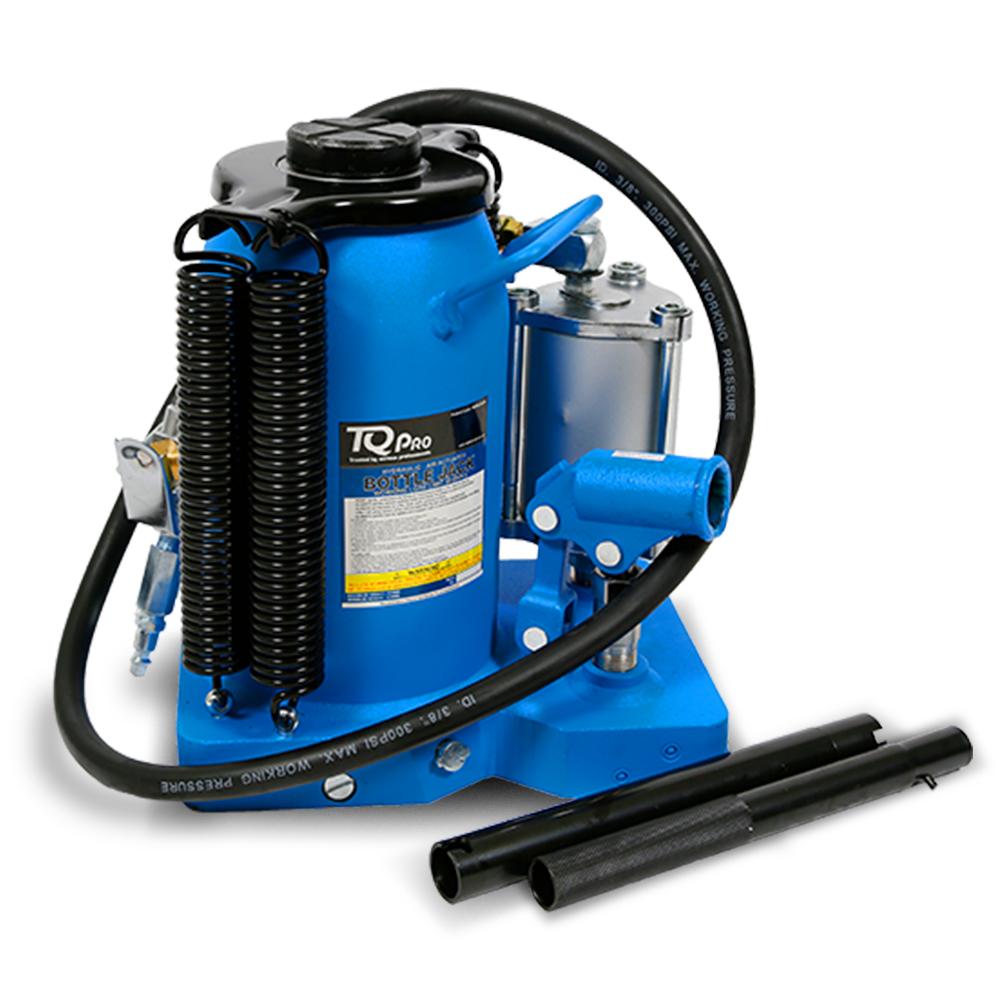

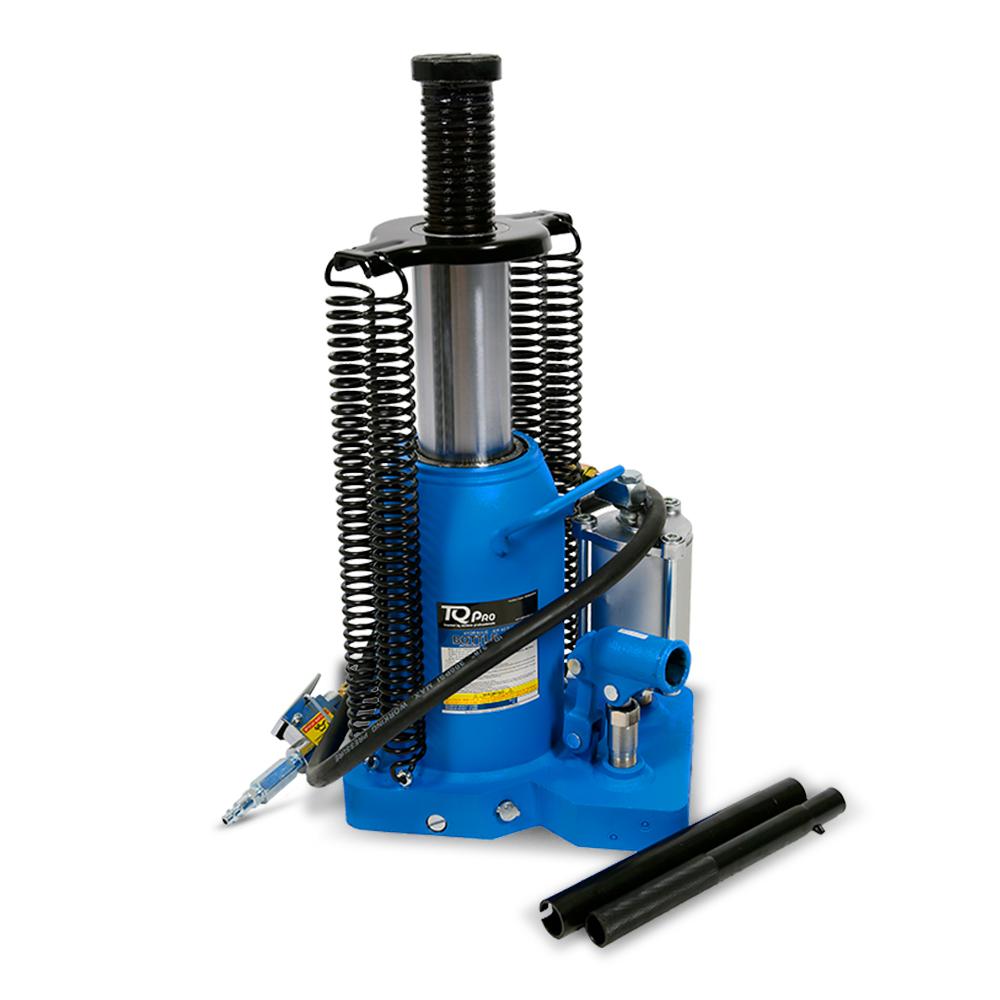

TQ Pro PROBJ30TA 30,000kg Air/ Hydraulic Actuated Bottle Jack

TQ Pro PROBJ30TA 30,000kg Air/ Hydraulic Actuated Bottle Jack

The 30,000kg Air/Hydraulic Bottle Jack is constructed of superior grade steel and built to premium standards for quality and durability. The premium-quality, large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load. A built-in bypass device protects the hydraulic system from over-pumping damage. The sturdy and stable design features a welded base and cylinder to assure strength and eliminate leaks.

Features:

• Frame is constructed using superior-grade steel
• Premium quality large diameter hydraulic steel cylinder with precision tolerances
• Piston-ram is treated and polished to minimise wear and extend service life
• High capability premium quality seal system efficiently protects internal hydraulics keeping it free from contaminants
• Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting premium finish
• Paint is oil, grease and dirt-resistant for easy cleanup
• Thick Base Design: Provides the firmest footprint reducing flex. This substantially increases the life of the hydraulic ram under the toughest lifting and lowering circumstances.
• Welded Reservoir: A welded reservoir instead of the screw base results in a substantial increase in durability.
• The completely sealed hydraulic system, wear and tear and internal contamination is dramatically reduced.

Specifications:

• Safe Working Capacity: 30,000kg
• Maximum Height: 521mm
• Minimum Height: 276mm
• Hydraulic Lift: 150mm
• Operating Air Pressure: 110-125psi
• Air Inlet Fitting: 1/4"
• Base Dimensions: 250mm x 180mm x 40mm
• Carton: 270mm x 240mm x 290mm
• Net Weight: 29kg
