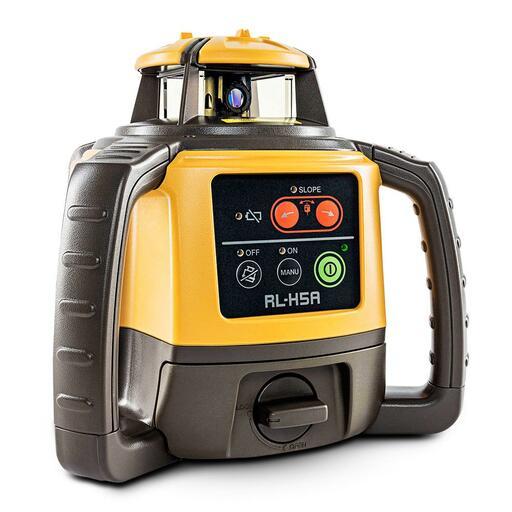

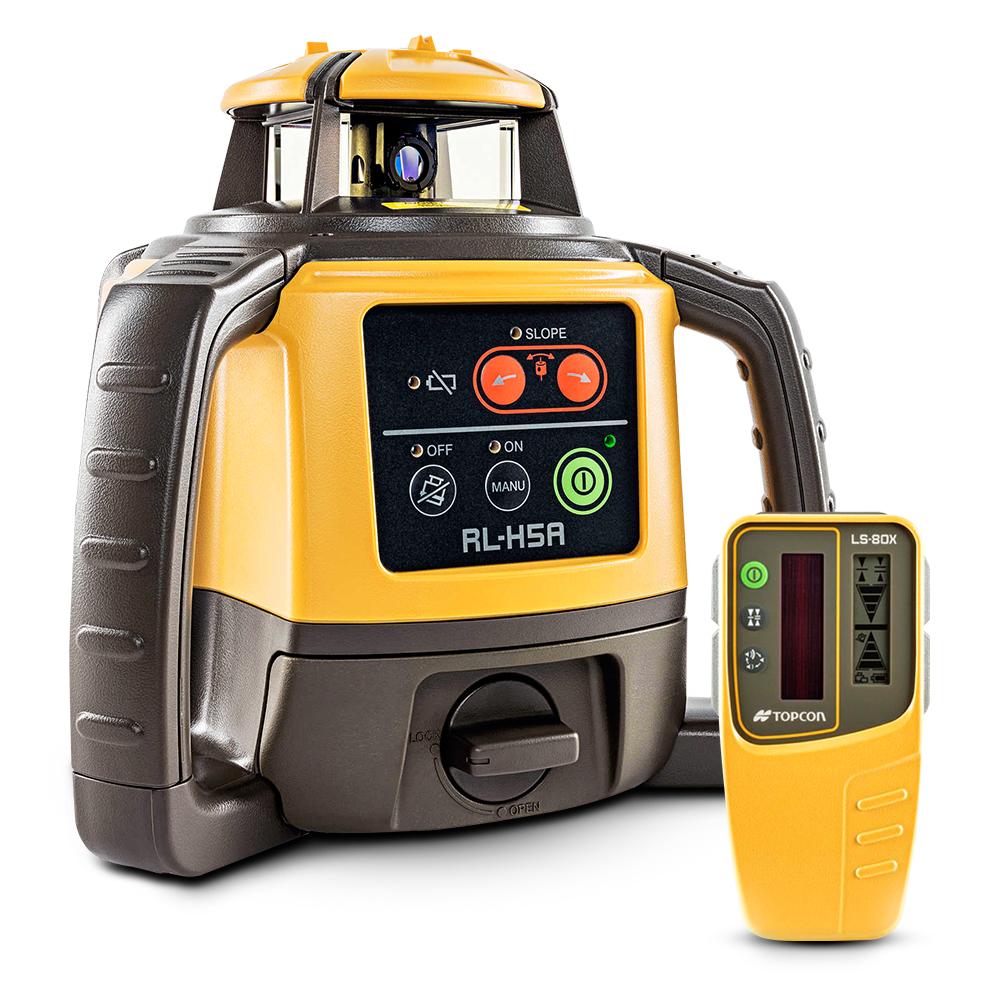

Topcon RL-H5A (1021200-46) Red Beam Self-Leveling Rotary Grade Laser Level Kit with LS-80X Receiver

Topcon RL-H5A (1021200-46) Red Beam Self-Leveling Rotary Grade Laser Level Kit with LS-80X Receiver

The RL-H5A is the self levelling, accurate, reliable, multi-purpose construction laser produced by Topcon Laser is accurate and reliable long-range, multi-purpose construction laser level. Ideal for a broad scope of applications such as grading, drainage, site set-up, excavation, drainage, concreting, earthworks and general construction, the Topcon RL-H5A laser is incredibly versatile.

Includes:

• 1 x RL-H5A Laser
• 1 x LS-80X Receiver
• 1 x Sensor Holder
• 1 x Carry Case

Features:

• Long-range operation (800 m)
• Smart long-range receiver
• Simple, intuitive manual slope capability
• With great distance and high-accuracy, the RL-H5 Series is simple to use for checking elevations
• With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it relevels itself automatically.
• With the IP66 rating, the RL-H5A is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.

Specifications:

• Accuracy: ±10 arc seconds
• Self-Levelling Range (Horizontal): ±5°
• Working Area: 800m
• Rotation Speed: 600rpm
• Dust & Water Rating: IP66
• Operating Time:
  • Alkaline: 100h
  • Ni-MH: 60h
• Operating Temperature: -20°C to 50°C
• Dimensions (L x W x H): 205mm x 211mm x 172mm

Warranty:

• 5 years Warranty covered by Topcon
