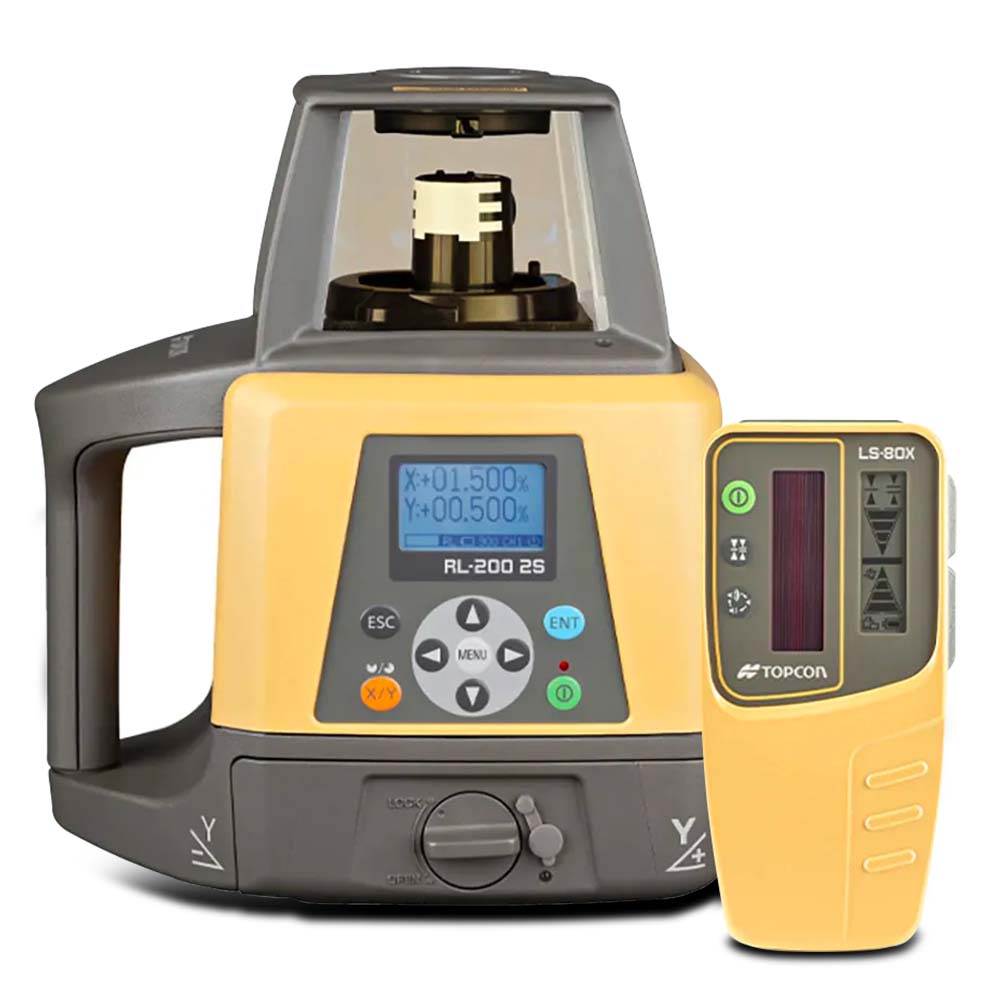

Topcon RL-200 2S (314920853) 1100m Dual Grade Rechargeable Rotary Laser Level with LS-80X Receiver & Remote Control

Topcon RL-200 2S (314920853) 1100m Dual Grade Rechargeable Rotary Laser Level with LS-80X Receiver & Remote Control

Topcon’s RL-200 2S Dual Grade Rotating Laser provides a high grade repeatability of 7 arc seconds. Setup after setup, time after time, you’re always right on grade.

The RL-200 2S can be used over long distances (up to 1,100m) and can measure up to a 25% slope, allowing you to set the cross slope and elevation values you need to measure. The RL-200 2S provides dual slopes up to ±10% in the X axis, or up to -5 to +25% in the Y axis.

Features:

• Working Range 1100m
• Wide Dual Grade (Up to 25%)
• Accuracy ±1mm @ 30m
• Dust/Water Rating IP66
• LS-80X Hand Receiver
• Full Function Remote
• High graphic Display

Suitable For:

• Construction Exercises
• Site Preperation
• Drainage
• Earthworks
• 2D Machine Control Applications

Specifications:

• Accuracy H: ±7 arc seconds
• Auto-Level Range Horizontal ±5°
• Grade: Dual ±10% / -5% to +25%
• Working Area 1100 m (Diameter)
• Rotation Speed 300, 600, 900 rpm
• Dust/Water Rating IP66
• Operating Temp. -20ºC to 50ºC
• Operating Time NIMH Rechargeable (90 hours)
• LS-80X Hand) Receiver (±1mm & 2mm)
• RC-400 Remote: Up to 300m
• Dimensions: 255mm x 220mm x 175mm
