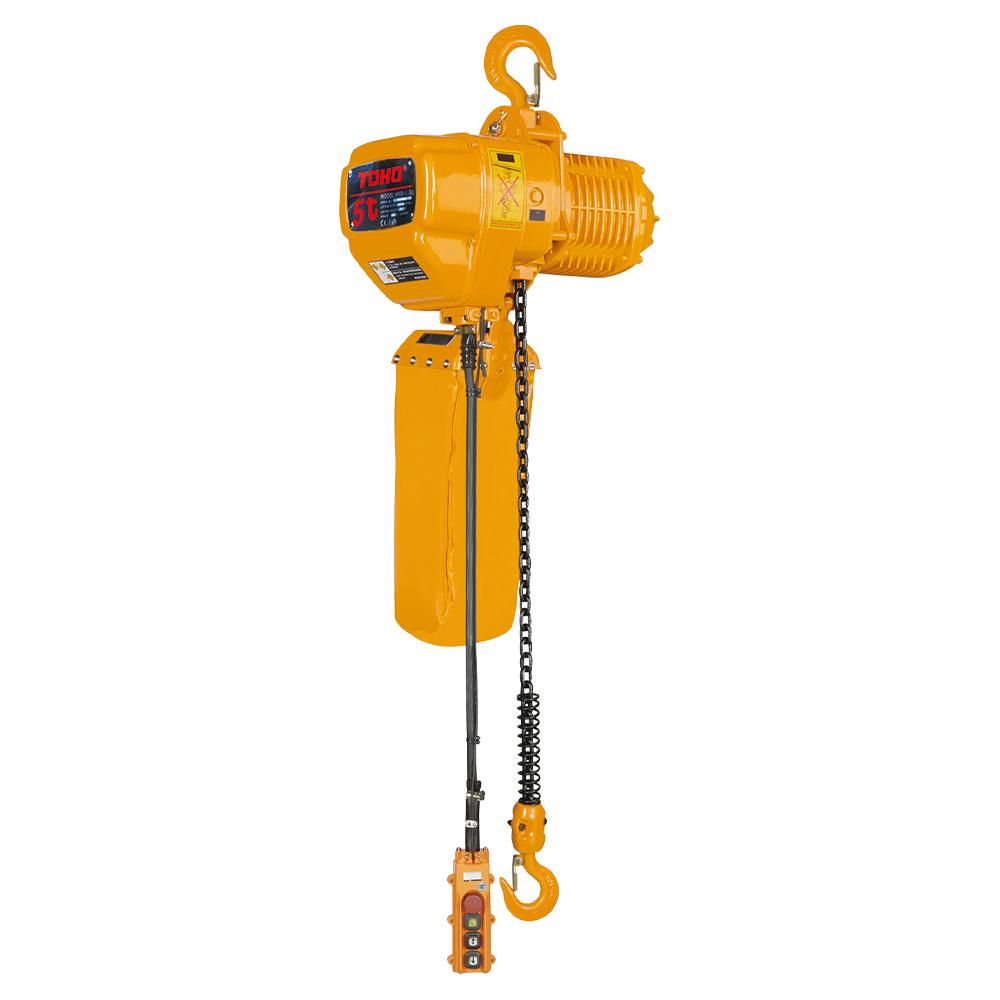

Toho TECH-3PH-2SP-0503 5T 3m Electric Chain Hoist

Toho TECH-3PH-2SP-0503 5T 3m Electric Chain Hoist

Features:

• Load Limit
• Thermal Prevention Device
• Light Weight, Compact Design with high efficiency motor
• Pressed steel structure, high strength body
• High tensile alloy steel top & bottom hooks
• Grade 80-7.1mm Alloy Steel load chain
• Limit switched fitted at top and bottom ends to prevent chain runout
• Complies with ASNZS1418.2 standard
• Hoists can be re-chained to your required length
• IP Rating Hoist: IP54 Control IP65

Specifications:

• Capacity: 5 Ton
• Standard Lift: 3m
• Running Test Load: 62.5kN
• Motor Power: 3.0kW
• No. of Chain: 2
• Diameter of Chain: 11.2mm
• Lifting Speed: 2.7/0.9 m/min
• Net Weight: 151kg
• Extra Weight per Meter of Extra Lift: 2.6kg
