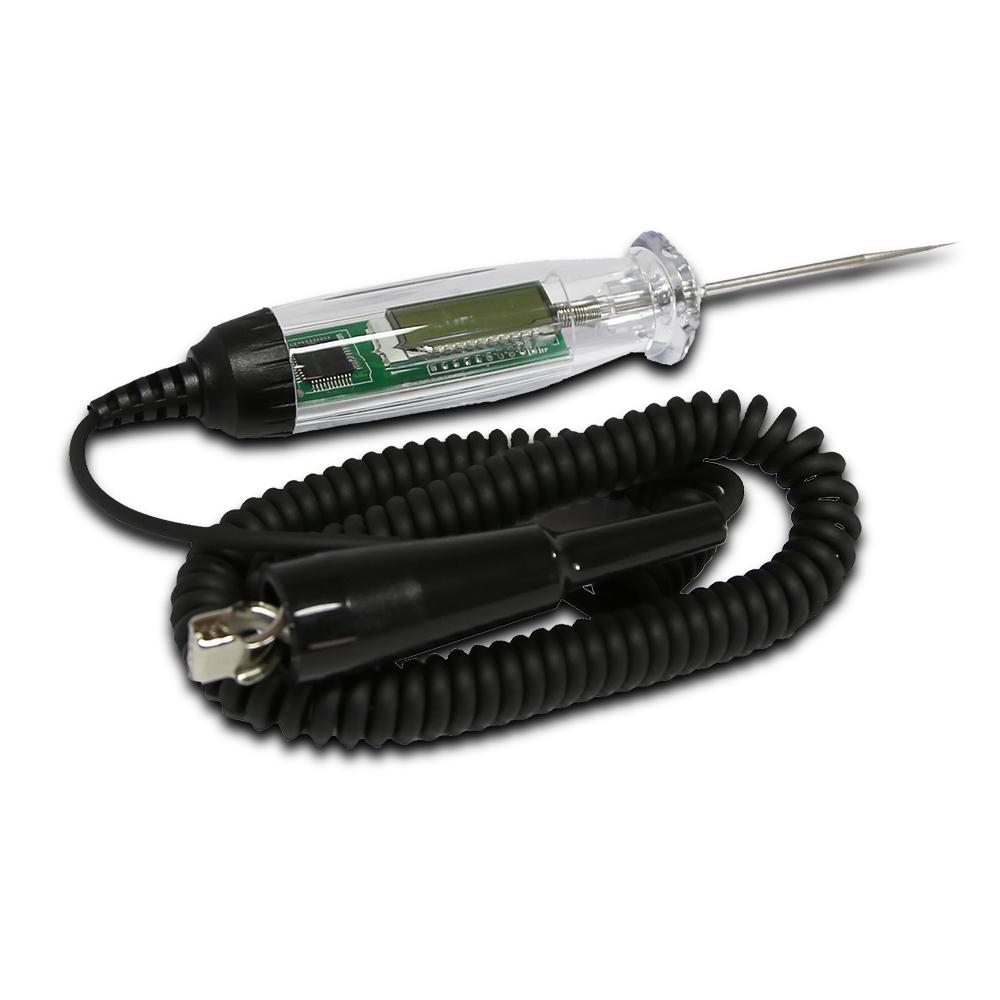

T&E Tools 3015 4-60V Digital LCD Circuit Tester

T&E Tools 3015 4-60V Digital LCD Circuit Tester

This circuit tester is a simple but extremely useful tool. If you are trying to diagnose and troubleshoot an electrical problem, sometimes a circuit tester can help you rule out possible causes much more quickly and easily than a digital multi-meter. It's quick, easy and very versatile, so the test light style of the circuit tester can be a lifesaver. You can use it to check any positive circuit. Headlights not coming on? If the fuse is good, you can use a circuit tester to trace the wiring path and find out what's gone wrong. If the positive path is intact, you can also use the test light to check the grounding points of the circuit.

Features:

• Digital display to read the accurate voltage value
• LED indication for power (Red) and ground (Green)
• Stainless steel testing probe
• Voltage measurement from 4 to 60 Volts DC
• Spring cable, which is able to extend to 3 meters
• Small testing current < 10mA

Specifications:

• Voltage: 4-60V DC
• Testing Current: <10mA
• Display: LCD
• Resolution: 0.1V
• Accuracy:
  • 4-10 VDC: +/- (1%+5 Digits)
  • 10-60 VDC: +/- (1%+3 Digits)
• LED Indication:
  • Green: Negative (-)
  • Red: Positive (+)
• Cable Type: Spring
• Maximum Cable Length: 3m
• Operating Temperature: -10°C to 50°C
• Operating Humidity: <80
