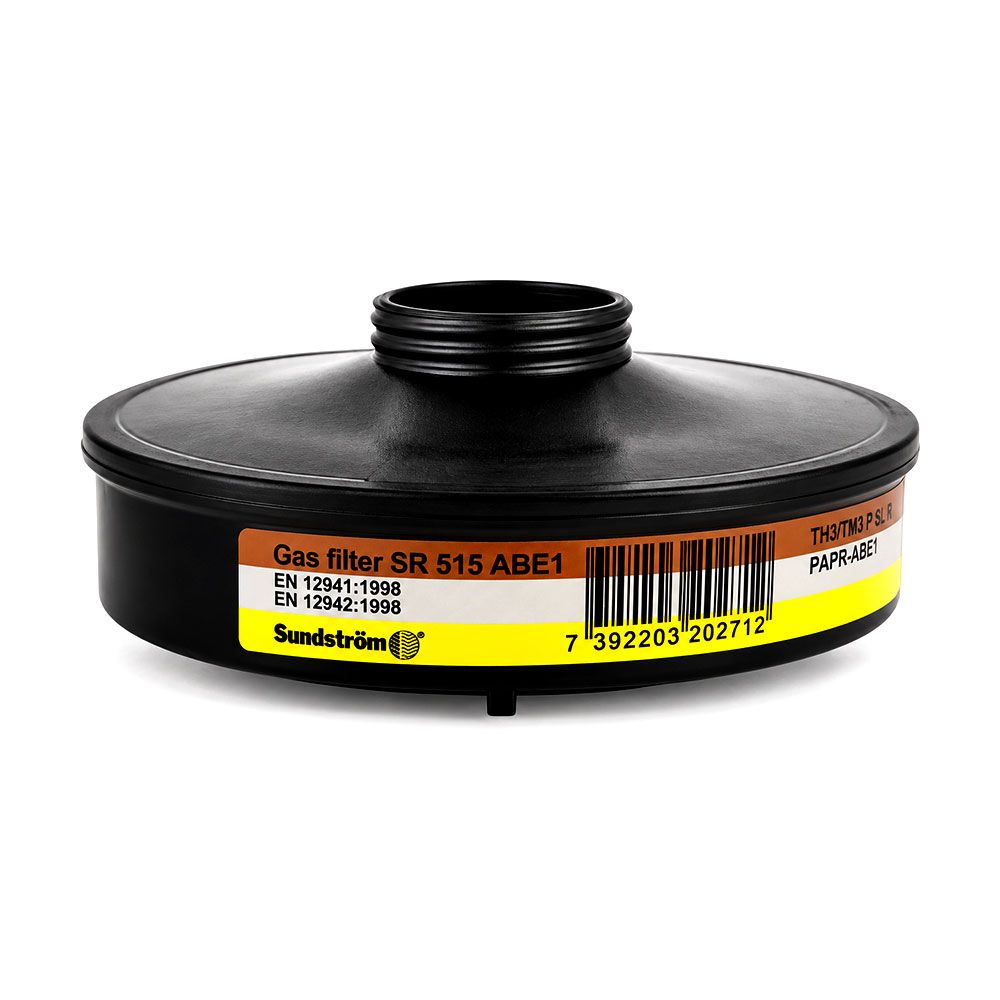

Sundstrom SR515 (192-04995) Gas Filter ABE1

Sundstrom SR515 (192-04995) Gas Filter ABE1

The Sundström SR515 ABE1 Gas Filter is designed for use with the Sundström SR500 and SR500EX Powered Air Purifying Respirator (PAPR) systems. It provides protection against organic, inorganic and acid gases and vapours, making it ideal for construction, manufacturing, chemical handling and other demanding industrial environments.

Features:

• Designed for use with Sundström SR500 and SR500EX PAPR systems
• ABE1 gas filter protects against organic, inorganic and acid gases and vapours
• Organic gas protection against solvents with boiling points above 65°C
• Inorganic gas protection against chlorine, hydrogen sulphide and hydrogen cyanide
• Acid gas protection against sulphur dioxide and hydrogen fluoride
• Threads directly into the SR500 or SR500EX fan unit
• Compatible with the Sundström SR510 P3 particle filter for combined gas and particulate protection
• Low breathing resistance for improved user comfort
• Store at room temperature in a clean and dry place
• If opened, store in an airtight container away from contaminants
• Suitable for construction and demolition applications
• Suitable for manufacturing and industrial environments
• Suitable for chemical handling
• Suitable for military applications
• Suitable for agricultural applications
• Suitable for laboratory environments

Specifications:

• Type: ABE1 Gas Filter
• Compatible With: Sundström SR500 and SR500EX PAPR
• Material: Polypropylene plastic with no metal parts
• Thread: 44 x 1/7"
• Compliance: AS/NZS 1716:2012
• Pressure Drop at 30L/min: 70–80Pa
• Pressure Drop at 95L/min: 270–300Pa
• Operating Temperature: -10°C to +55°C (<90% RH)
• Storage Temperature: -20°C to +40°C (<90% RH)
• Dimensions (L x W x H): 108mm x 108mm x 57mm
• Weight: Approx. 285g

Warranty:

• 12 Months Warranty covered by Sundström
