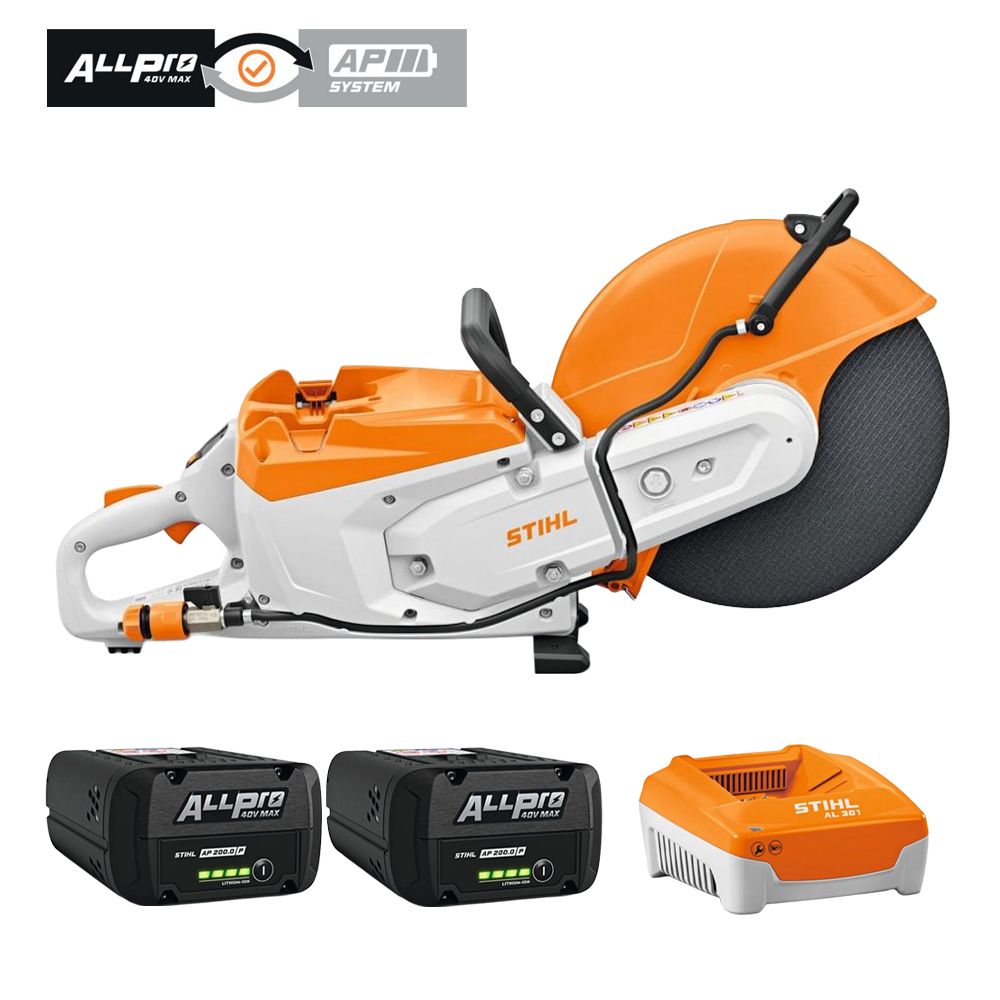

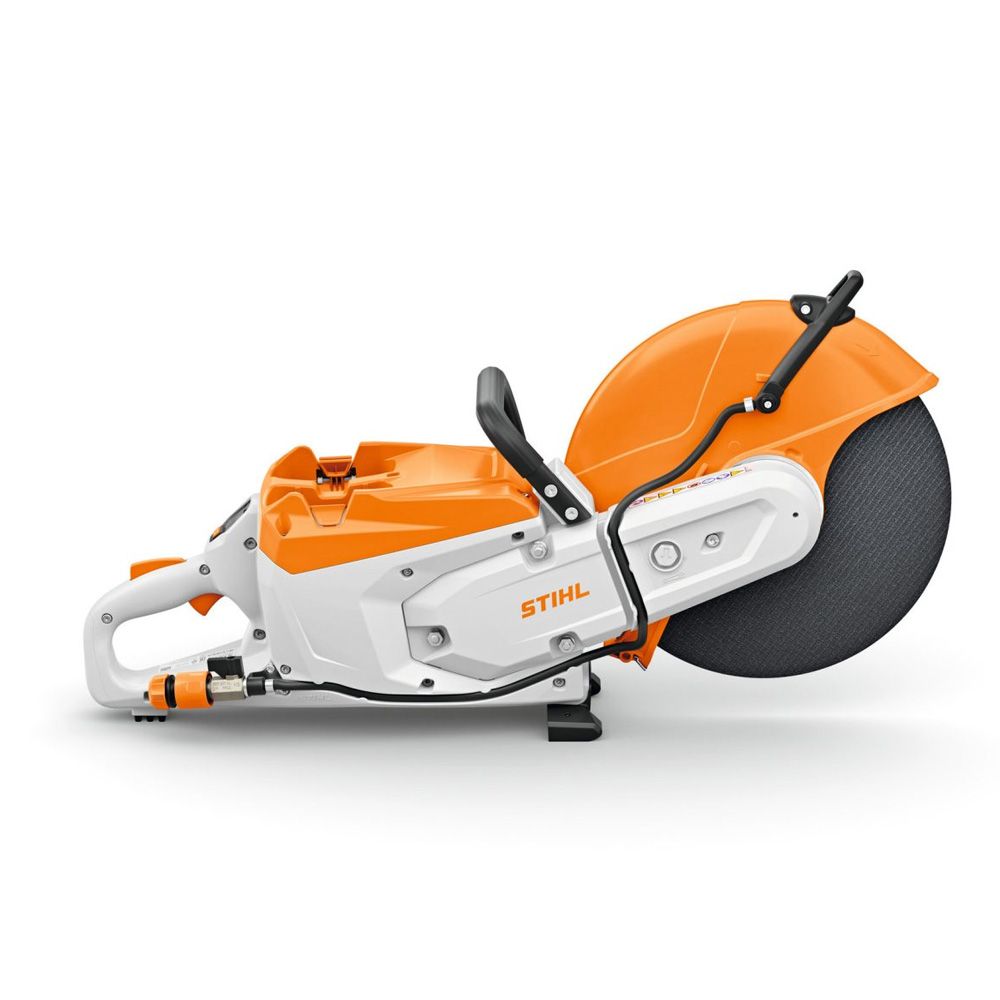

STIHL TSA500-KIT 72V 8.5Ah Li-ion Cordless 350mm (14") Cut-Off Machine Combo Kit

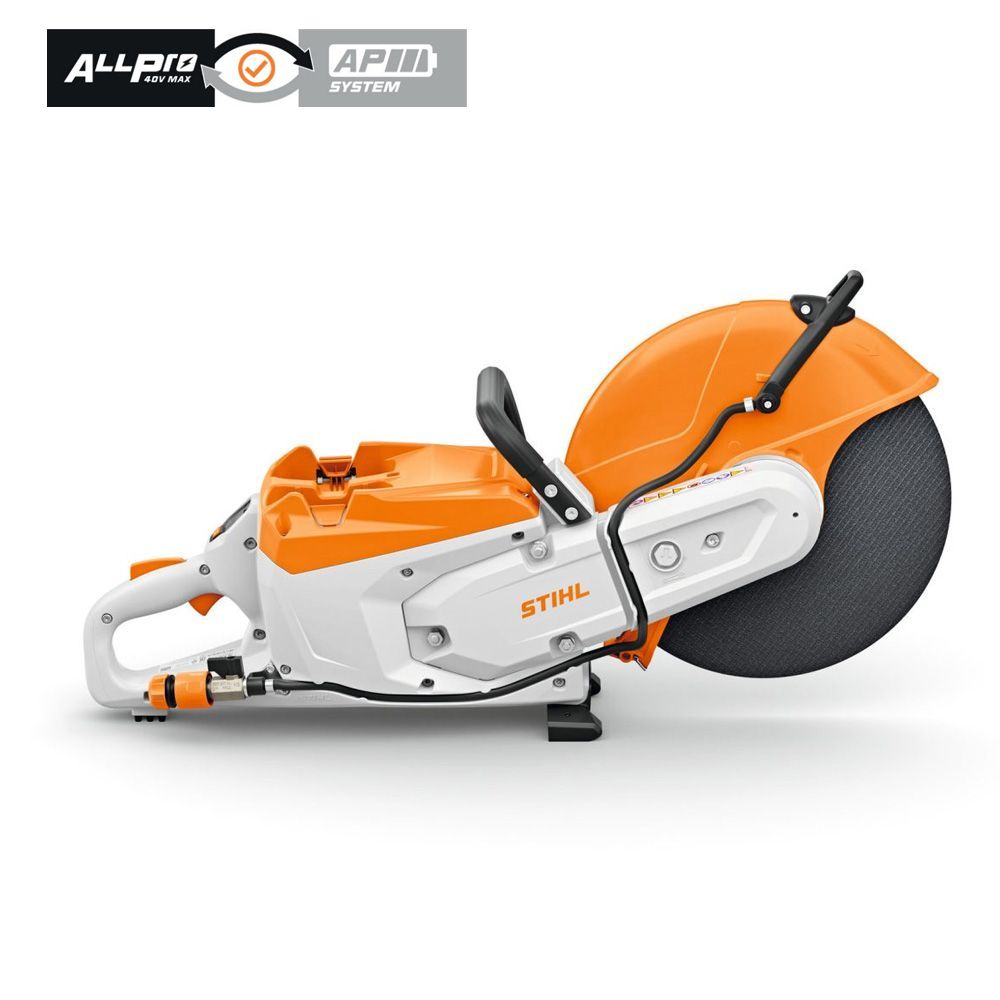

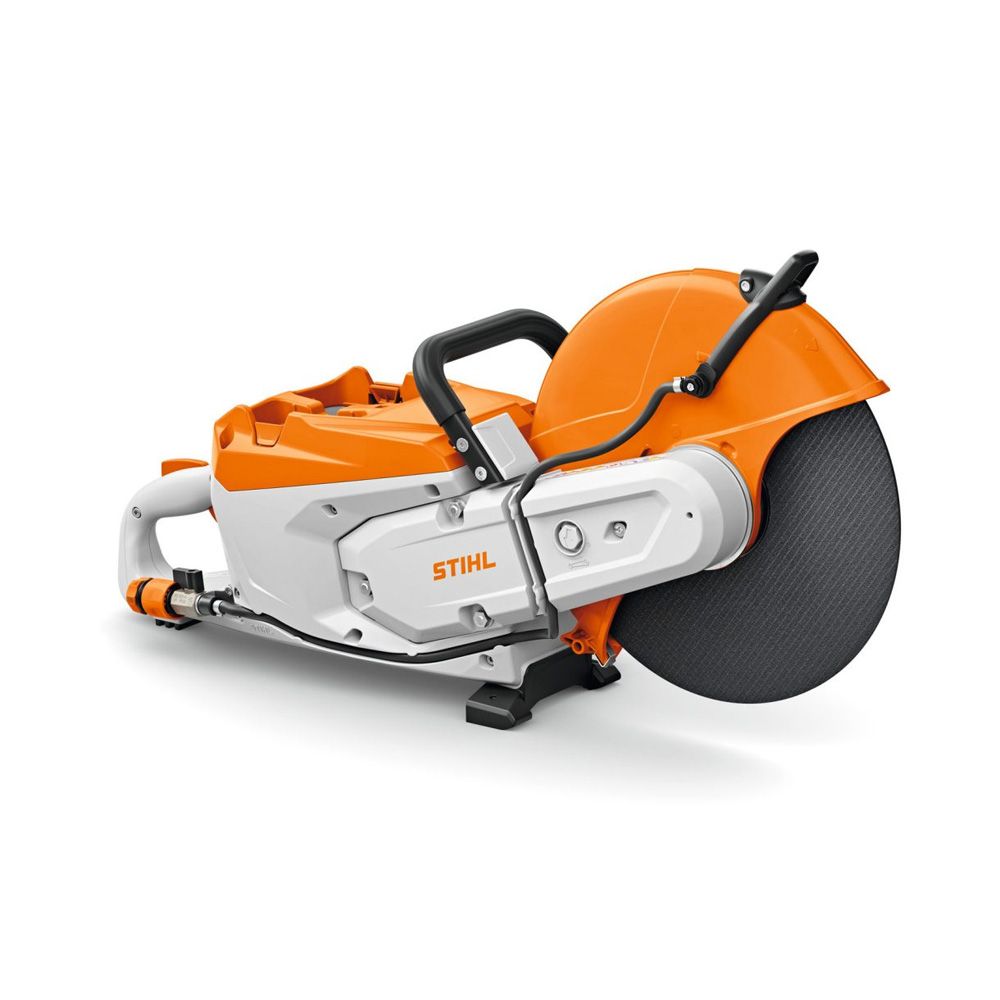

The STIHL TSA 500 B is a powerful professional cordless cut-off machine engineered for demanding construction, landscaping, civil works and emergency-service applications. Delivering consistent high-performance cutting without exhaust emissions, it is suitable for cutting steel, concrete, brick and natural stone—including work in enclosed or poorly ventilated areas.

Powered by two STIHL AP batteries, the TSA 500 B combines a high-output brushless EC motor with precise handling, low vibration and an integrated water connection for effective dust suppression. Its HMI ADVANCE PLUS control module provides convenient access to operating information, while the integrated STIHL Smart Connector enables digital equipment management through STIHL Connected.

Features:

• Powerful professional cordless cut-off machine for steel, concrete, brick and natural stone
• High-output 4.2kW brushless EC motor provides efficient, low-maintenance performance
• Constant Power electronics maintain consistent cutting performance as the batteries discharge
• Operates using two STIHL AP batteries for high power and extended runtime
• Accepts 350mm cutting wheels for cuts up to 125mm deep
• HMI ADVANCE PLUS digital control module with integrated LED display

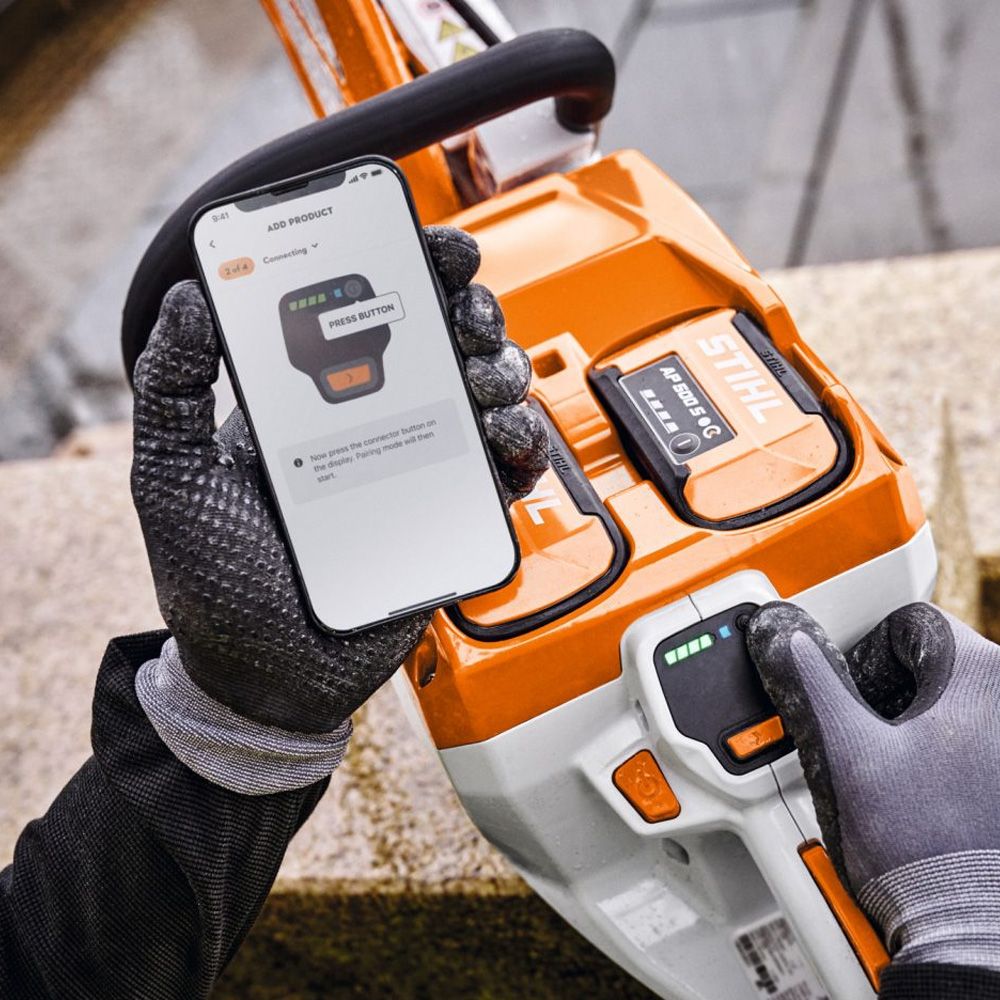

• Integrated STIHL Smart Connector supports connected equipment management
• Magnetic Filter helps protect the motor from fine metallic dust and particles
• Coasting brake rapidly slows the cutting wheel after the trigger is released
• Recuperation function converts braking energy and feeds it back into the batteries
• Adjustable magnesium wheel guard with an integrated water channel
• Standard water connection assists with dust suppression during wet cutting
• Ergonomic handle design and rigid construction support accurate, controlled cutting
• Low-vibration operation helps improve comfort during extended use
• Exhaust-emission-free operation makes it suitable for indoor and outdoor applications
• IPX4-rated splash resistance for professional use in adverse weather conditions
• Compatible with the STIHL AP battery system

Specifications:

• Rated Voltage 72V
• Maximum Voltage 80V
• Power Consumption 5kW
• Power Output 4.20kW
• Cordless Power System ALLPRO/AP
• Recommended Battery AP 300.0 P
• Battery Discharge Simultaneous
• Cutting Disc Diameter 350mm
• Maximum Cutting Depth 125mm
• Battery Working Time:
  • Runtime With AP 200 S:
    • Min: 8 Minutes
    • Maximum: 16 Minutes
  • Runtime With AP 200.0 P:
    • Min: 12 Minutes
    • Maximum: 24 Minutes
  • Runtime With AP 300 S:
    • Min: 15 Minutes
    • Maximum: 30 Minutes
  • Runtime With AP 300.0 P:
    • Min: 20 Minutes
    • Maximum: 40 Minutes
  • Runtime With AP 500 S:
    • Min: 20 Minutes
    • Maximum: 40 Minutes
• Overall Length With Cutting Disc 82.1cm
• Sound Pressure Level 106dB(A)
• Sound Power Level 117dB(A)
• IP Rating IPX4
• Dimensions (L x W x H): 866mm x 280mm x 481mm
• Weight Without Batteries 9.1kg

Warranty:

• 2 Year Warranty for Personal, Domestic, Household or Farming use Covered by STIHL When Registered via STIHL
• 1 Year Warranty for Commercial, Government Use Covered by STIHL When Registered Via STIHL

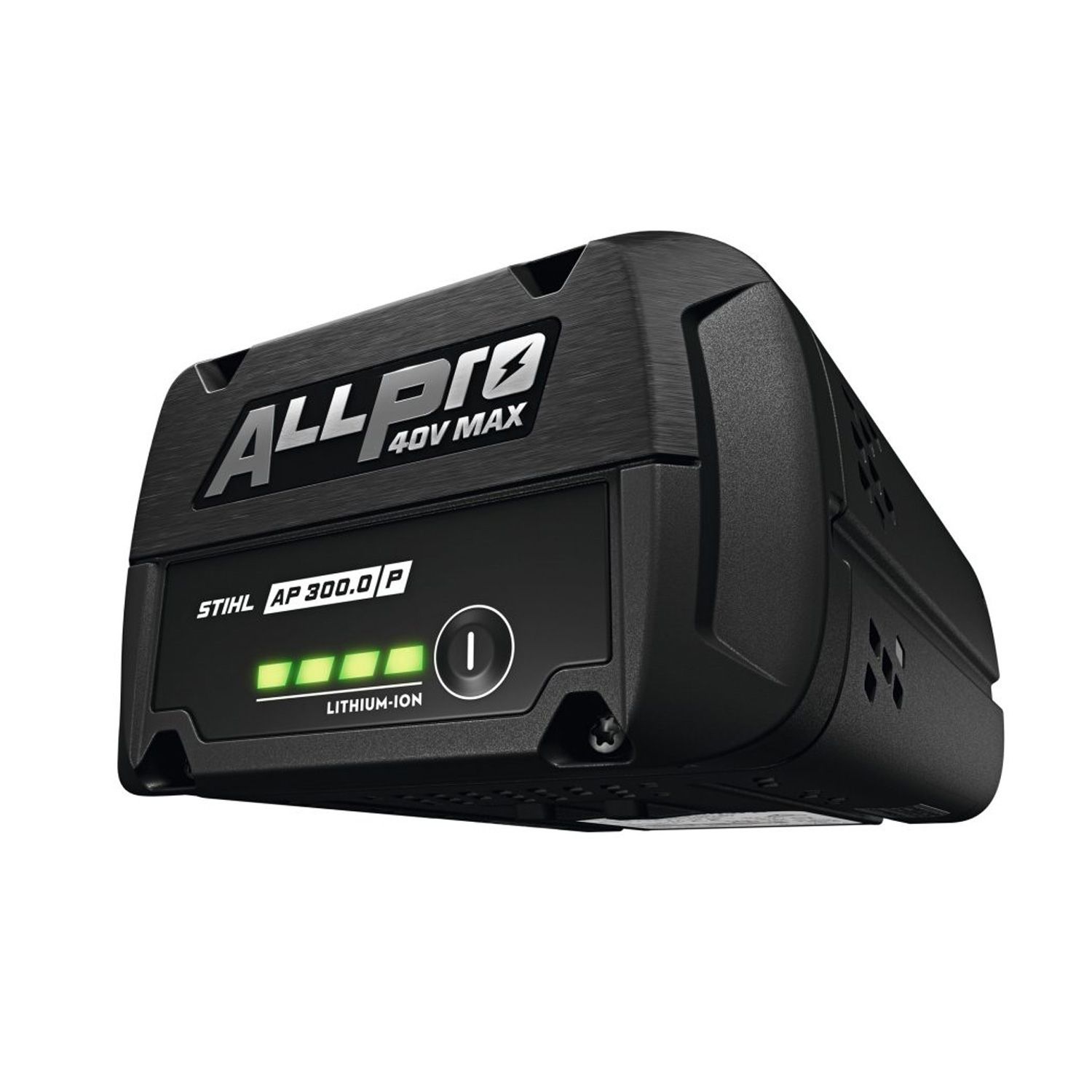

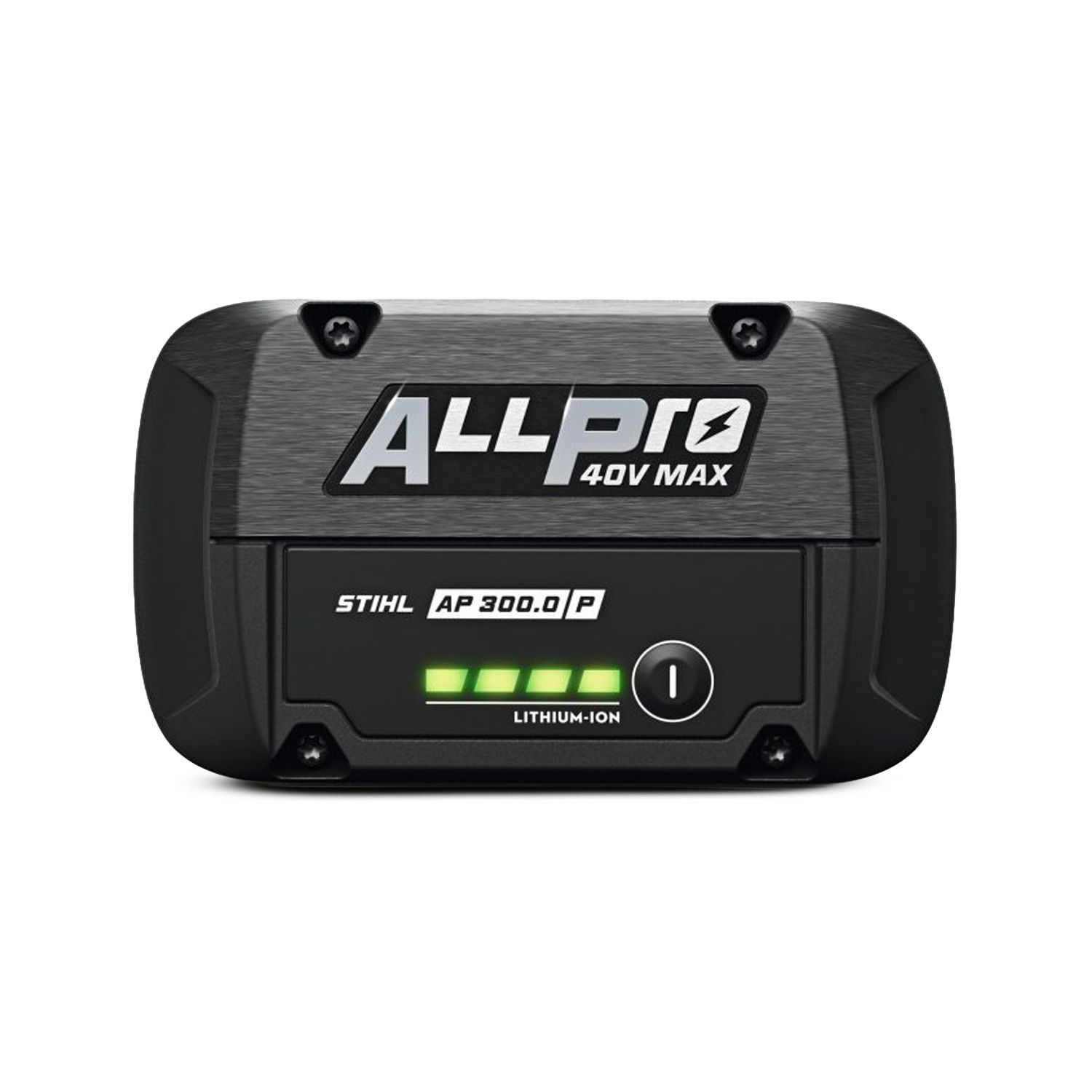

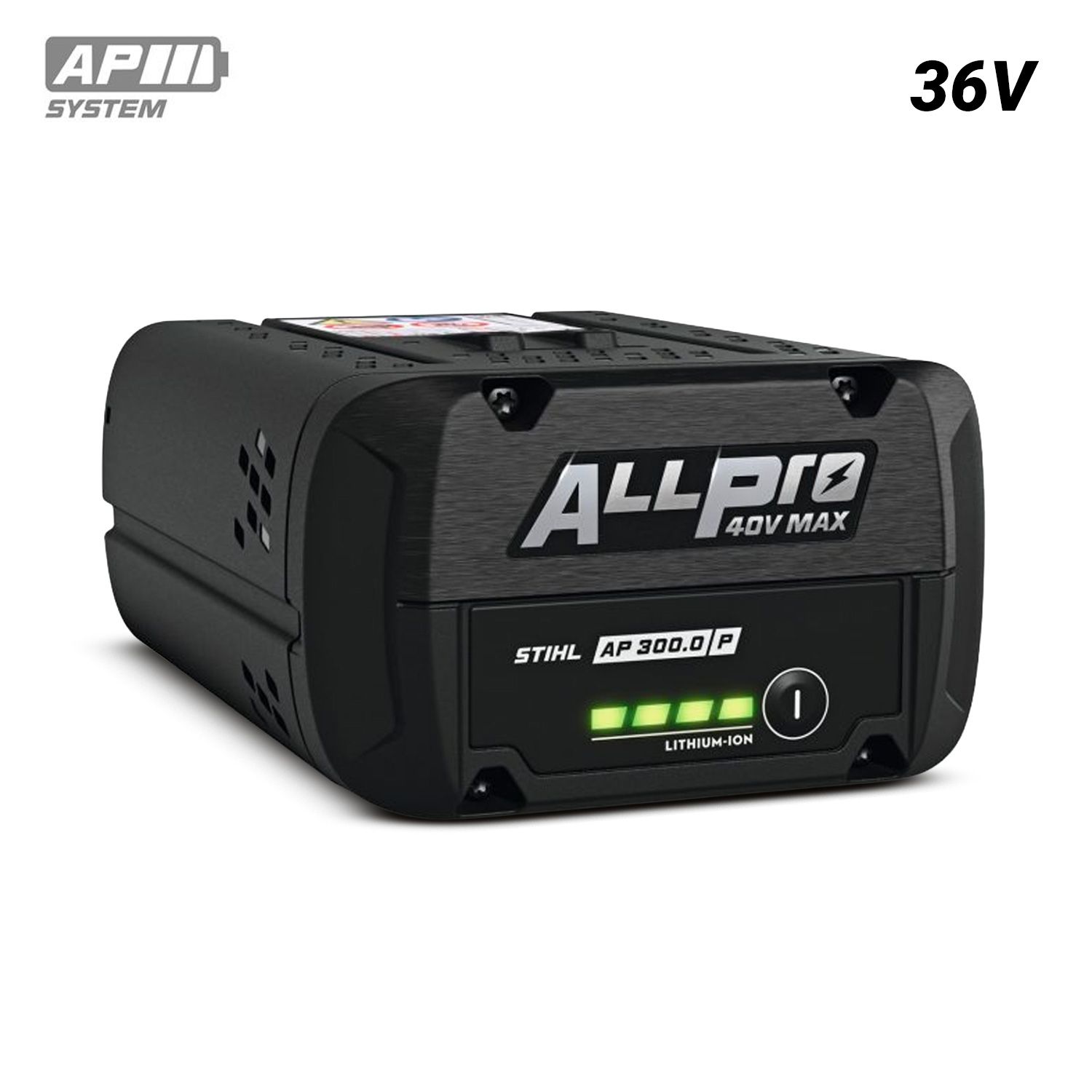

Developed for professional and demanding work: The powerful STIHL AP 300.0 P offers sustained high performance across the entire charge level and maximum efficiency. This advantage is particularly useful for demanding tasks in garden and landscape maintenance, municipal operations and forestry environments. With up to 60 percent more peak power (compared to AP 300.0 P and AP 300 S), the system delivers the necessary power for the most demanding tasks. Tabless cell technology ensures optimised energy flow, less heating and thus higher overall performance. With the high-speed charge function, you can reach an 80% charge level after just 9 minutes (when using the STIHL AL 1802 MO high-speed charger), which enables uninterrupted work with just a few packs. The built-in power boost function automatically provides extra power for particularly demanding tasks. If the temperature rises or the application becomes too intensive, the system automatically reduces the power. This ensures that the battery remains protected, powerful and reliable throughout its long service life. Thanks to IPX5 certification, the AP 300.0 P is ideally suited for work in rain and wet conditions. It also offers an exceptionally long service life, with more than 3,000 charge cycles (up to 3,000 charge cycles without any noticeable loss of performance. It remains usable thereafter.). Thanks to its robust housing and optimised cooling, the battery remains reliably operational even under intensive continuous load.

Features:

• MAXIMUM PERFORMANCE INCREASE: Thanks to intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively
• CONSTANT POWER: When using other brands of battery tools, the performance can sometimes decrease during work as the battery discharges. This isn't the case with STIHL battery-powered tools. Thanks to the intelligent electronics, your tool will work with consistently high power across the entire battery charge, until there is no energy left in the battery.
• COLD START FUNCTION: Reliable starting in cold temperatures. Batteries only work at full power in ideal temperatures. If it is too cold, it usually takes time for the battery to warm up. Thanks to the cold start function, the tool is ready to start immediately, even at low temperatures down to -20°C, and offers almost the same output as at ideal temperatures.
• VERY LONG BATTERY LIFE: STIHL AP system batteries are extremely durable and resistant. They are designed for particularly high demands, as can typically occur in very intensive applications with high power requirements in the professional sector. The is based not only the exceptionally robust design, but also the special, particularly long-lasting battery cell technology. Thanks to their intelligent electronics, these STIHL batteries can also be charged more often and faster than average.
• SMART CONTROL: Battery power tools, batteries and chargers from STIHL continuously exchange information with each other so that the energy supply can be optimised during work and charging. At the same time, this protects the battery from deep discharge or overcharging, guarantees thermal stability and protects the battery in the best possible way. Smart Control ensures precise monitoring and control of all important battery parameters: this means, for example, that potential overheating is detected at an early stage and the power of the battery power tool is reduced accordingly. In most cases, you can then finish the work you have started with reduced performance.
• SUPPORTS BATTERY DURABILITY: Maintaining an optimal operating temperature is crucial for the most efficient operation of batteries. For this reason, air is directed through the housing to cool STIHL batteries. In addition, the cells in the battery are thermally connected in such a way that heat can be dissipated efficiently. This allows heat to be dissipated quickly and effectively, and excessive temperature differences can be avoided.
• GENTLE AND FAST CHARGING: Innovative cell technology and intelligent charging profiles mean that STIHL batteries can be charged particularly quickly, but that is not all. Our charging system also offers the advantage of fast-charging the batteries in a particularly gentle manner. In addition, extended charging temperature ranges for STIHL batteries improve charging time, as cooling breaks can be significantly reduced
• PROTECTION FROM SPRAYING WATER. The IPX protection ratings define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX5 certifies protection against spraying water from all sides. As such, battery tools with this certification are designed for daily use, even in rainy conditions.

Specifications:

• Rated Voltage: 36V
• Max. Voltage: 40V
• Cordless Power System: ALLPRO/AP
• Battery Cell Technology: Li-Ion
• Energy Content: 333 Wh
• Capacity: 8.5Ah
• # of LEDs: 4
• IP Rating: IPX5
• Dimensions (L x W x H): 70mm x 116mm x 164mm
• Weight: 1.9kg

Warranty:

• 2 Year Warranty for Personal, Domestic, Household or Farming use Covered by STIHL When Registered via STIHL
• 1 Year Warranty for Commercial, Government Use Covered by STIHL When Registered Via STIHL

The STIHL AL 301 quick charger is compatible with all batteries in the STIHL AK-System, STIHL AP-System and the STIHL AR-System. This battery charger weighs only 1.1 kg and operates with a nominal voltage of 220 to 240 V. With the AL 301 quick charger, you can charge STIHL batteries while knowing they are protected. From a charge level of approx. 80%, the charger automatically switches to charging with a very low and gentle current. Passive battery cooling also protects the battery during charging. The LED operating status display on the battery allows you to see at a glance how far the charging process has progressed. The STIHL AL 301 quick charger with practical cable rewind can also be attached to the wall.

Features:

• With a jig for practical wall mounting and cable winding
• Safe battery charging thanks to the active cooling system
• 6.5 A charging current for quick charging
• Suitable for all STIHL AK, AP and AR batteries

Specifications:

• Rated Voltage: 220-240v
• Rated Current: 2.3A
• Power Consumption: 300W
• Weight: 1.1kg

Warranty:

• 2 Year Warranty for Personal, Domestic, Household or Farming use Covered by STIHL When Registered via STIHL
• 1 Year Warranty for Commercial, Government Use Covered by STIHL When Registered Via STIHL
