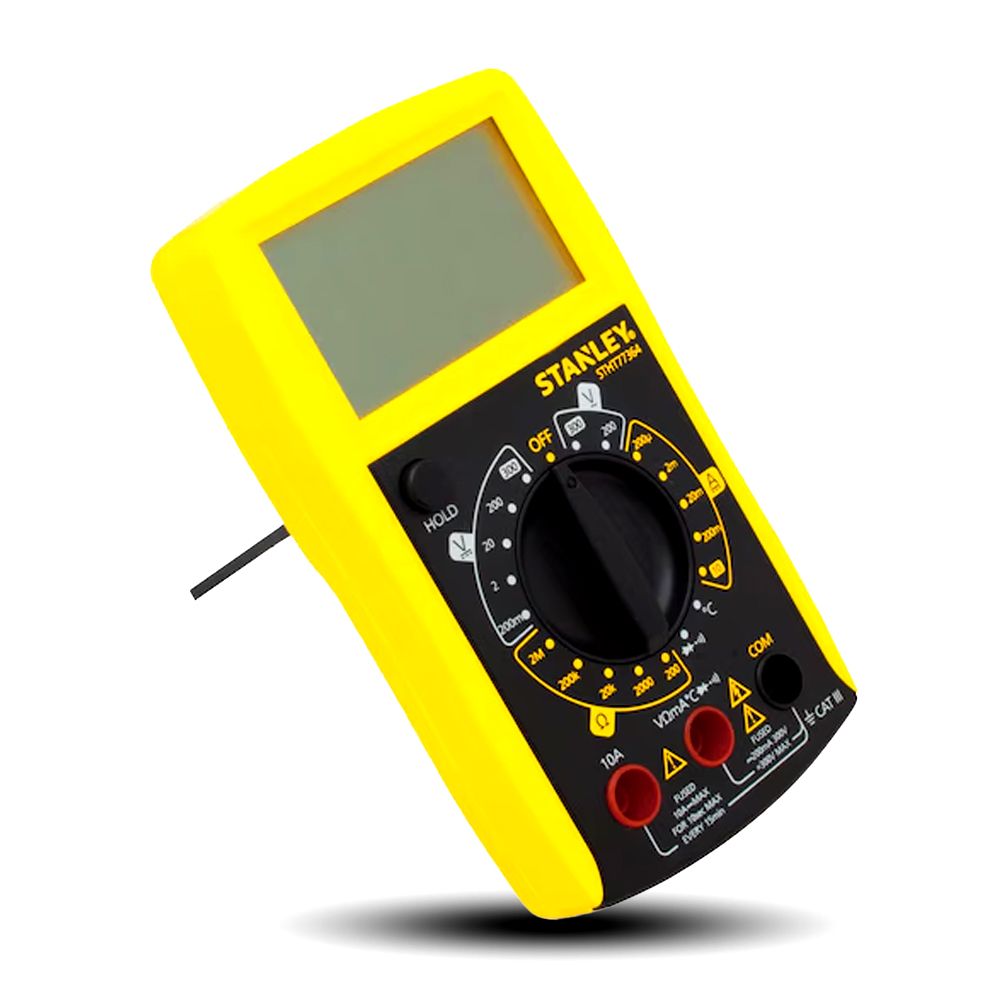

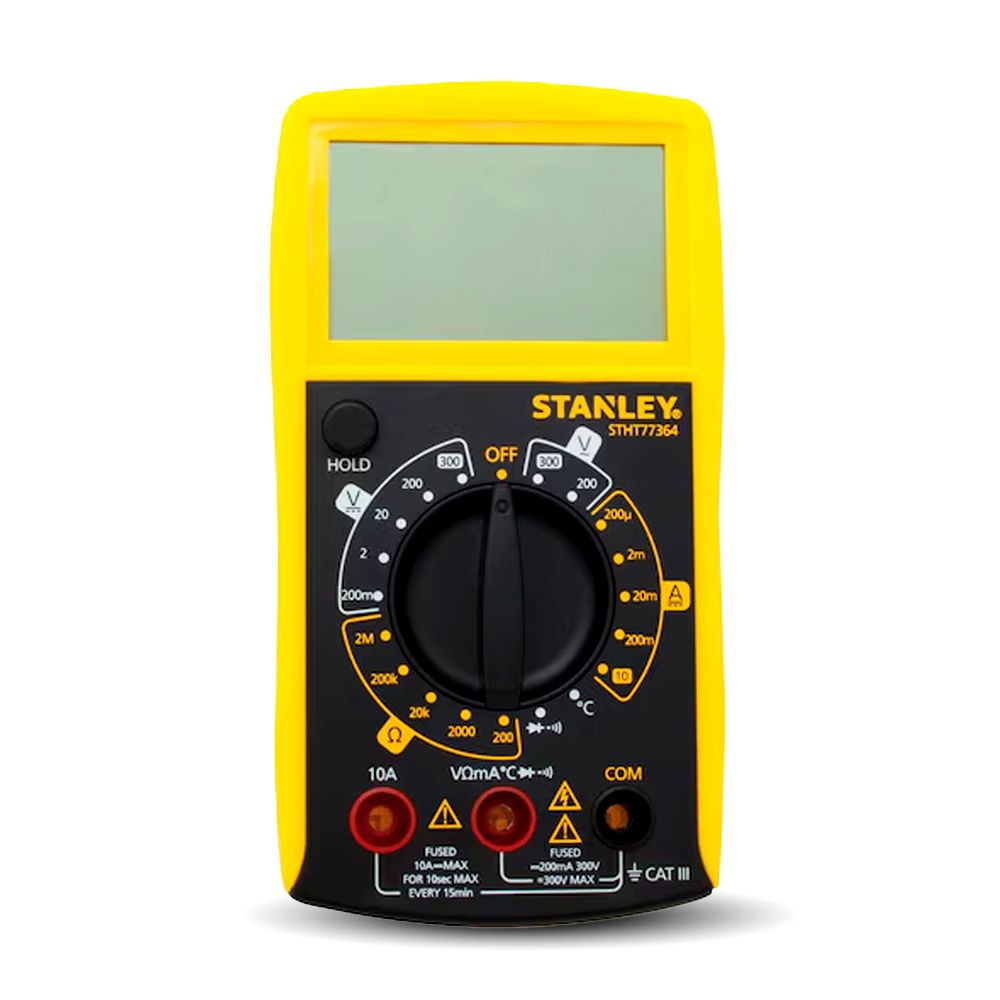

Stanley STHT0-77364 200V-300V Digital Multi-Meter

Stanley STHT0-77364 200V-300V Digital Multi-Meter

Featuring 7 functions and 20 ranges, the STANLEY® Multi-Meter is designed to meet Category 3 standards CAT III. The LCD screen with large numbers ensures easy readability, while the rugged over molded housing provides shock resistance. With a frequency range of 40Hz-400Hz, this multi-meter can test different types of batteries and offers voltage, continuity, current, diode check, and resistance functions. It operates on a single 9V battery, making it a reliable tool for a range of tasks.

Features:

• Frequency Range: 40Hz-400Hz
• Temperature Range: 0°C - 1000°C
• Battery Testing: Tests AAA, AA, C, D, 1.5 volt, button cell, and 9 volt batteries
• Voltage AC: 200V/300V Voltage DC: 200mV/2000mV/20V/200V/300V
• Continuity: <30Ω
• Current DC: 200μ/2000μ/20m/200m/10A
• Diode Check: 2,8V/1mA
• Resistance: 200Ω/2000Ω/20kΩ/200kΩ/2000kΩ
• Runs On: 1 x 9V battery (supplied)

Specifications:

• Voltage: 200V-300V
• Tester & Multimeter Type: Automatic Multimeter
• CE Mark: Yes
• Battery Supplied: Yes
• Standard/Norms: 2011/65/EU (RoHS), 2014/30/EU (EMC), 2014/35/EU (LVD)
• Ohmmeter Range: 2 MΩ
• Automatic: Yes
• Dimensions (L x W x H): 157mm x 40mm x 240mm
• Weight: 0.259kg

Warranty:

• 1 Year Warranty Covered by Stanley
