Stabila LAX300G (19033) Green Beam Cross Line and Plumb Point Laser Level

Stabila LAX300G (19033) Green Beam Cross Line and Plumb Point Laser Level

The LAX 300 G is the ideal partner for interior construction professionals who need accurate laser lines with optimum visibility. The innovative STABILA GREENBEAM technology provides razor-sharp, extremely bright, long laser lines to make your work even more efficient and productive. You can perform plumb-line and levelling work on the floor, wall and ceiling at the same time – making the laser a true all-rounder with numerous areas of application

Applications:

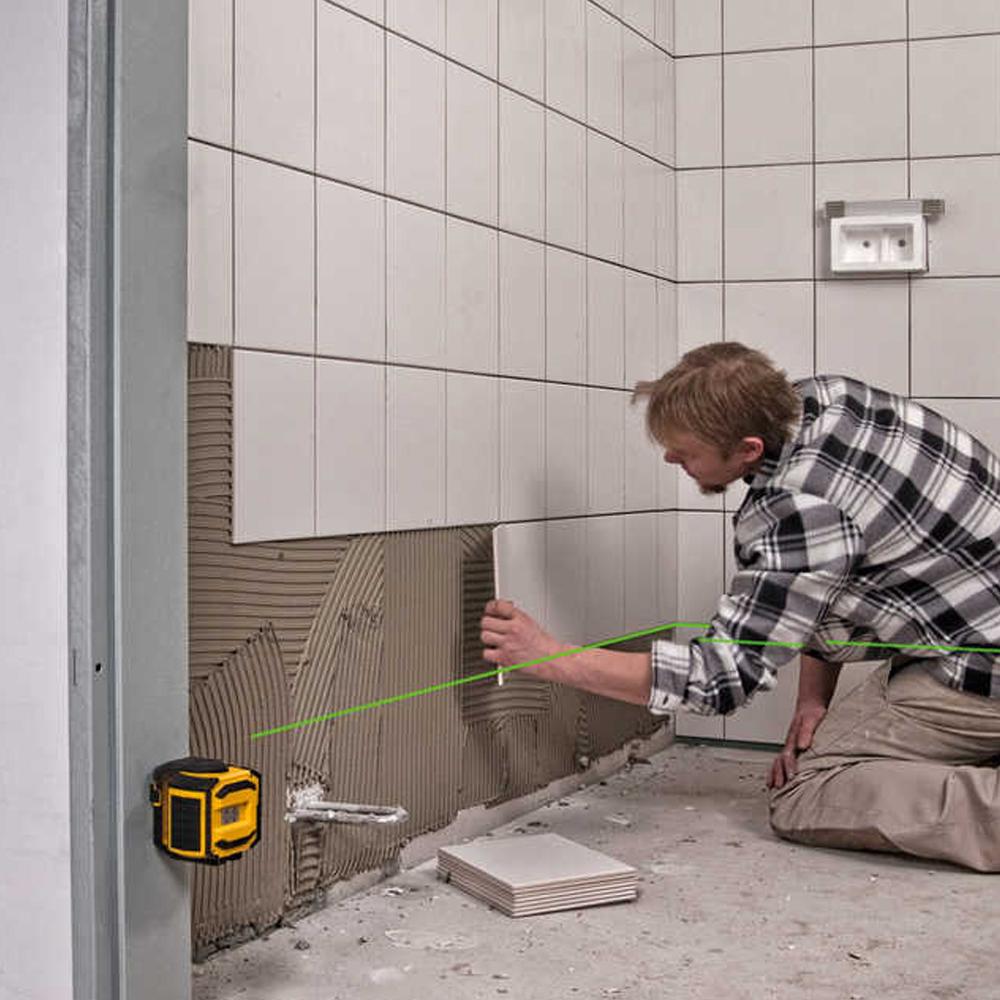

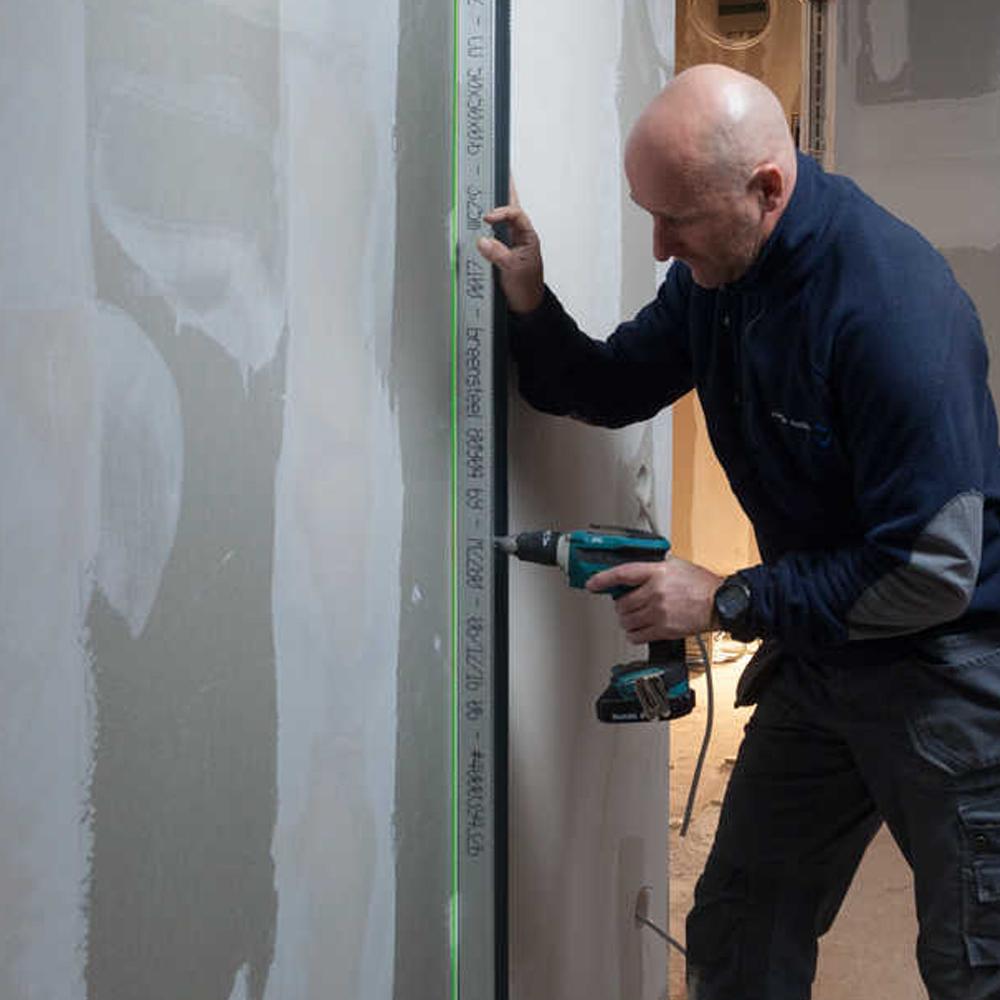

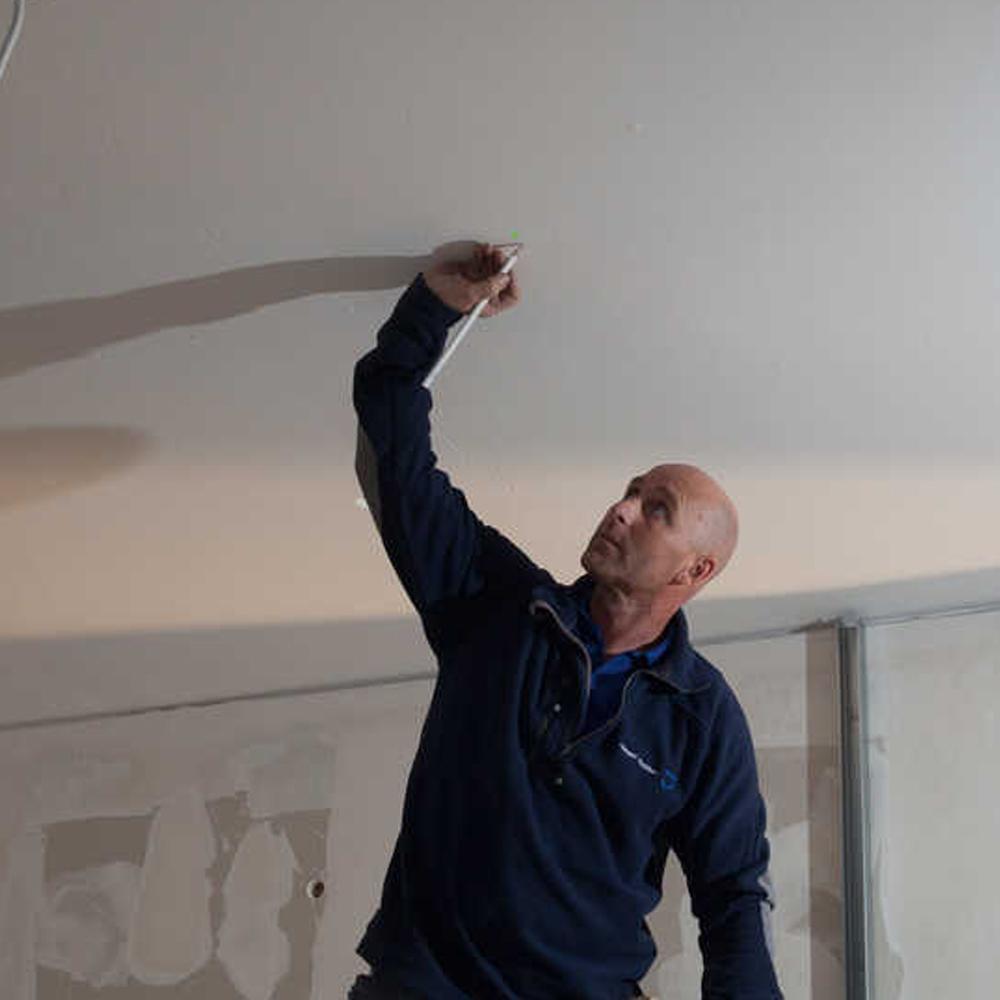

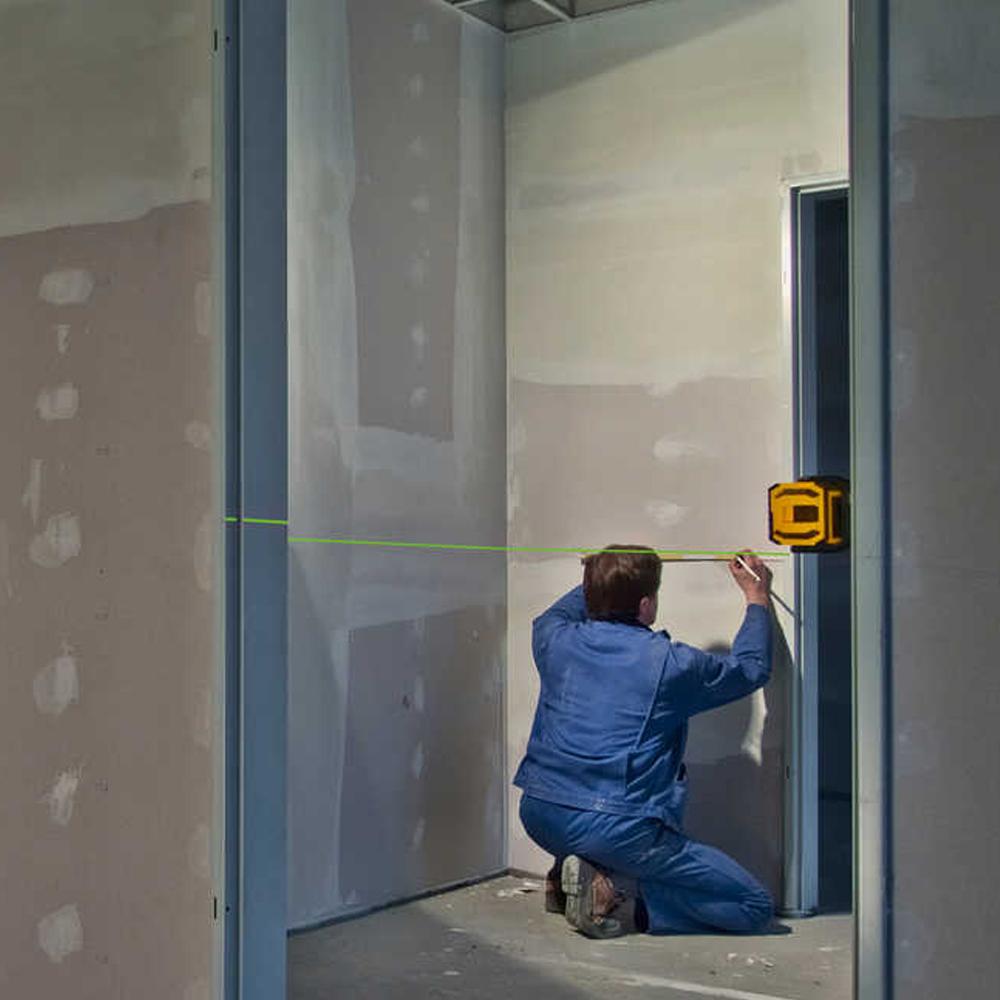

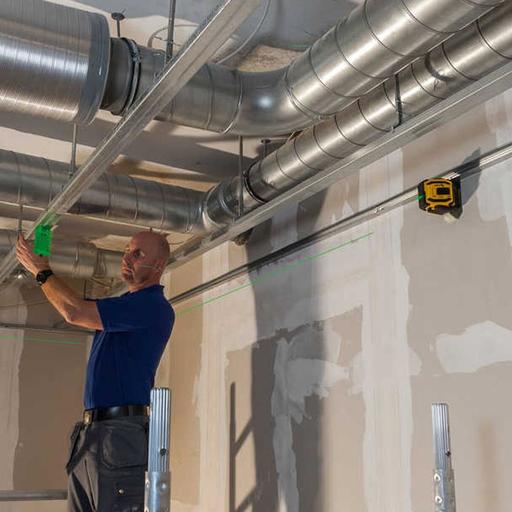

• In drywall construction – suspending ceilings, positioning interior and partition walls, fitting U-profiles and transferring layouts from the floor to the ceiling. In electrical installation work – fitting and aligning electrical installations. For tiling work – marking out the tile layout. In window fitting – for levelling the window height. For joinery – construction of kitchen cupboards, aligning the worktops

Features:

• Self-levelling line laser with plumb-line dots
• Work quickly and directly on the fine laser lines using STABILA GREENBEAM technology – with optimum visibility up to 30 m

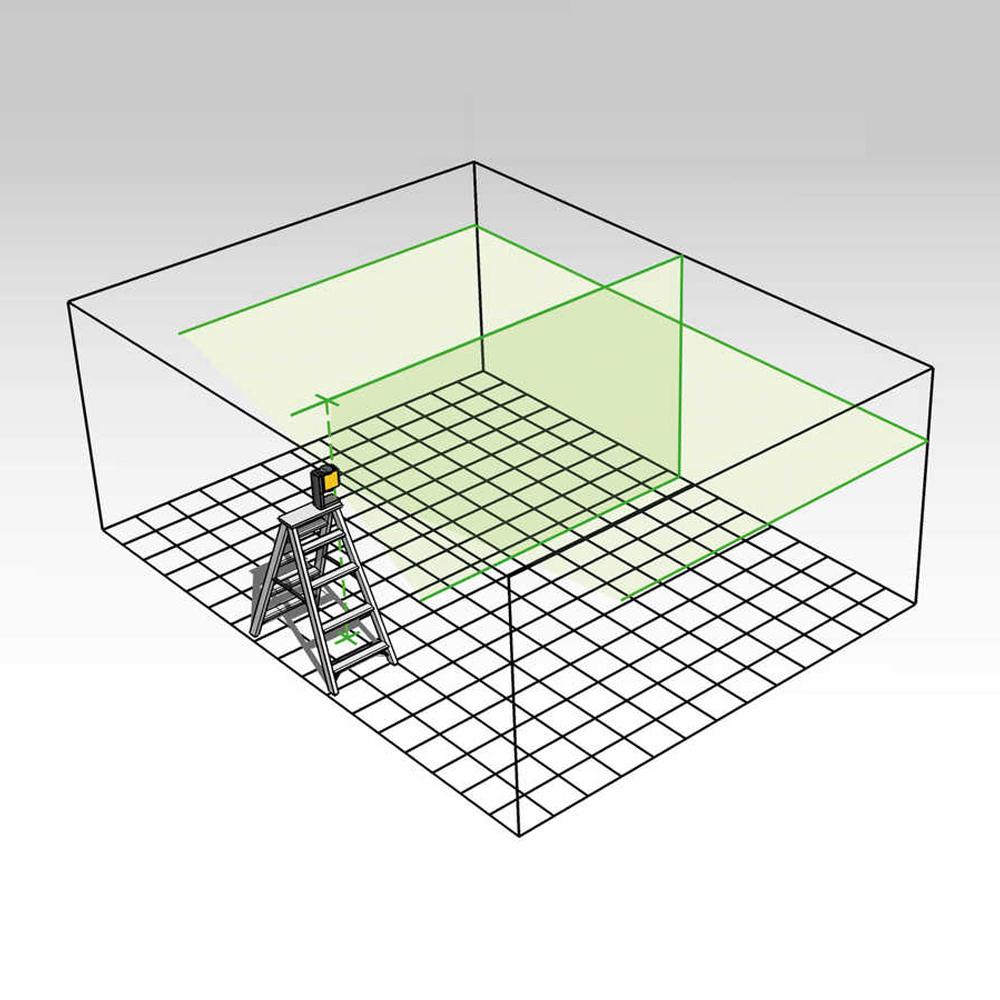

• The versatile technology provides 1 horizontal line, 1 vertical line and plumb-line dots upwards and downwards
• The vertical line almost covers the entire room
• The latest generation of energy-saving laser diodes enables an operating time of up to 15 hours
• Quick self-levelling function thanks to pendulum technology designed for the construction site
• Easy to change functions using single-button operation
• Compact housing with extendable foot for height adjustment for working directly on U-profiles
• Versatile use: can be used on the floor, on a tripod (1/4“ thread), with rare-earth magnets on metallic objects or on the wall bracket
• Shock-absorbent STABILA soft grip casing
• The laser can be pivoted 360° inside the housing
• Protection of the optics against dust and scratches in park position
• Protection class IP 54
• Belt pouch

Specifications:

• Laser class: 2
• Output: < 1 mW
• Laser wavelength: 510 - 530 nm
• Self-levelling range +/-: 4.50°
• Levelling accuracy +/-: 0.30 mm/m
• Line straightness +/-: 0.20 mm/m
• Laser beam accuracy (up) +/-: 0.30 mm/m
• Laser beam accuracy (down) +/-: 0.40 mm/m
• Measuring range of visible line: 30 m
• Operating life: 15 h
• Protection class: IP 54
• Tripod connection: 1/4"

Warranty:

• 2 Year Warranty Guarantee covered by Stabila Australia
