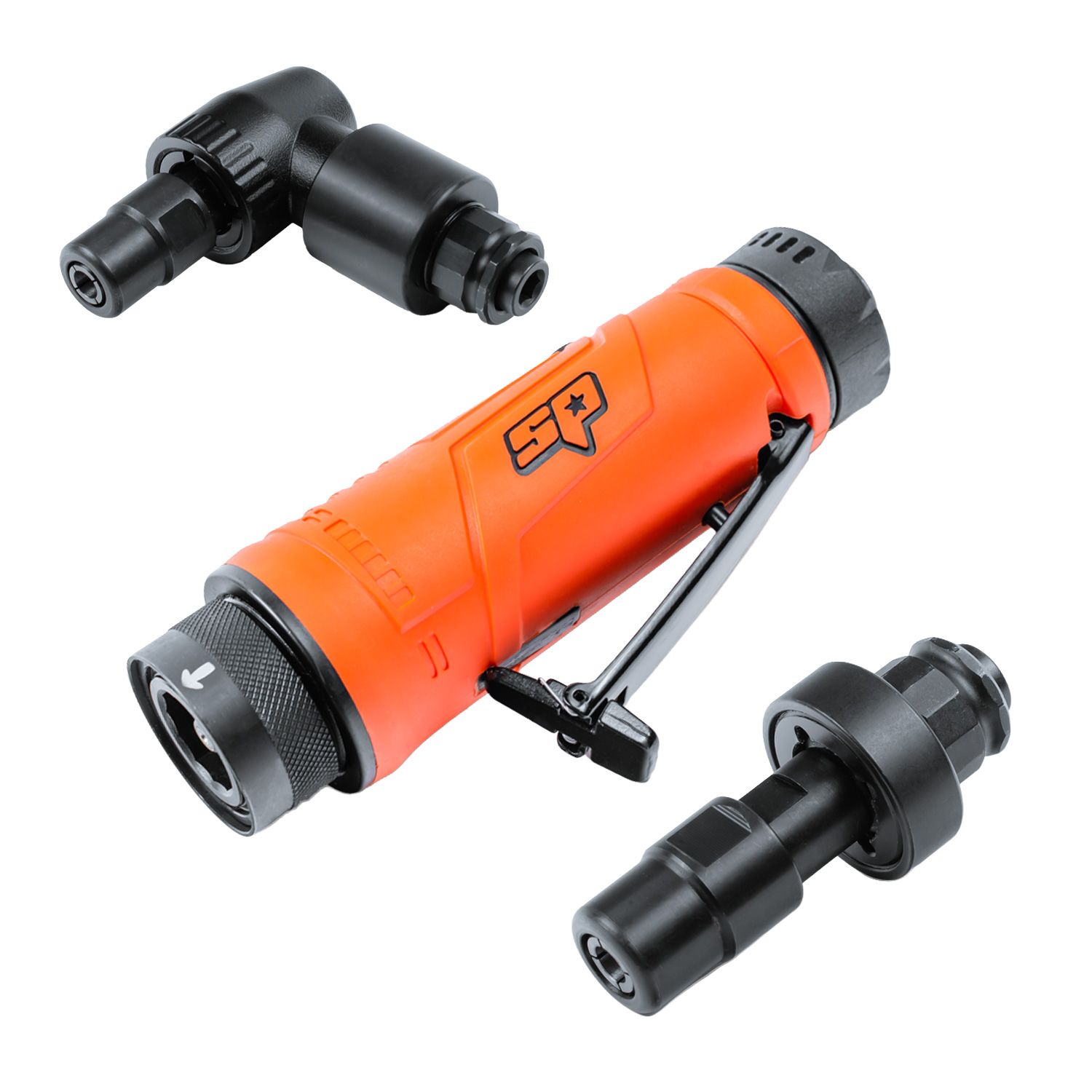

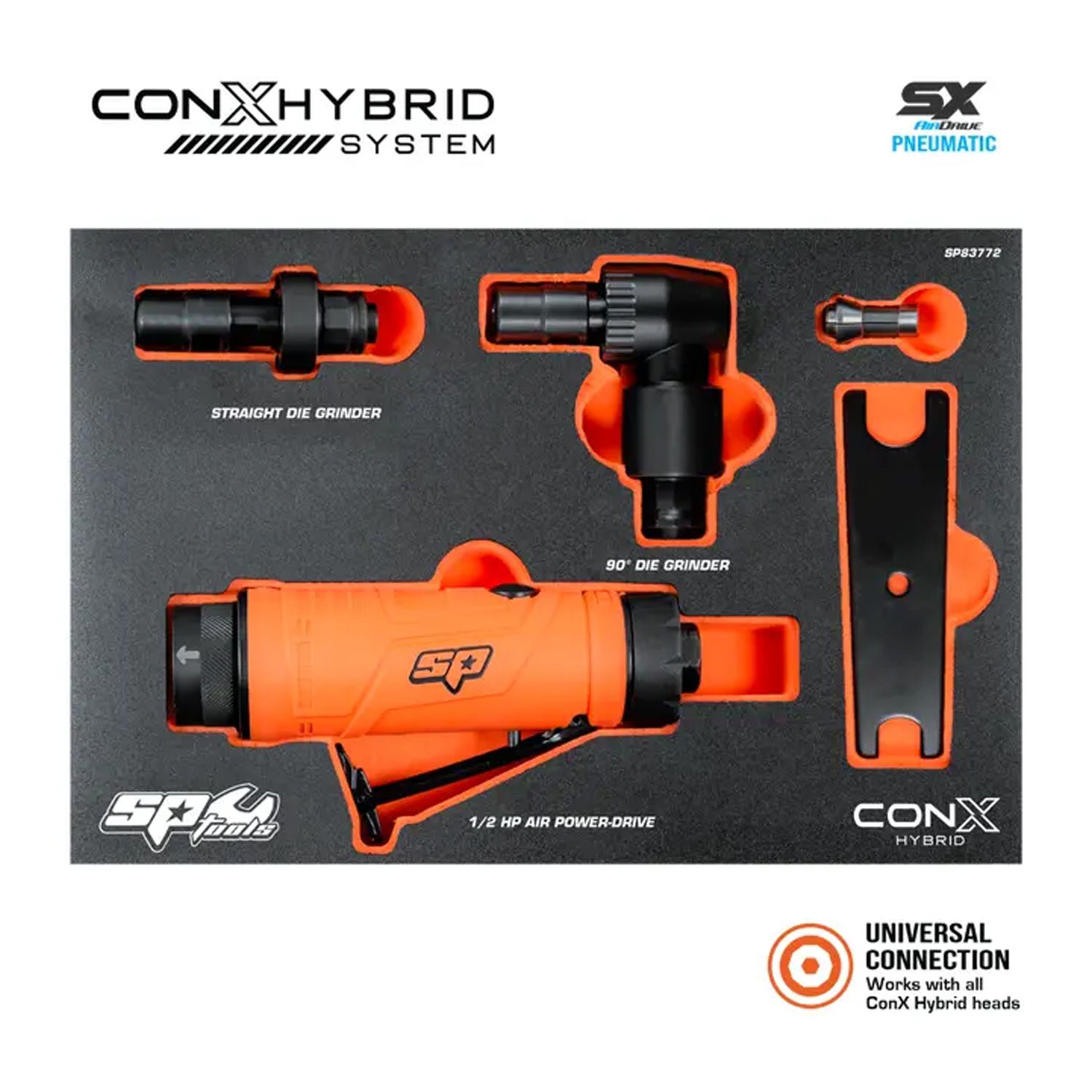

SP Tools SP83772 1/2HP Pneumatic SX AIRDRIVE Power-Drive Body CONX Hybrid Grind Air System Kit

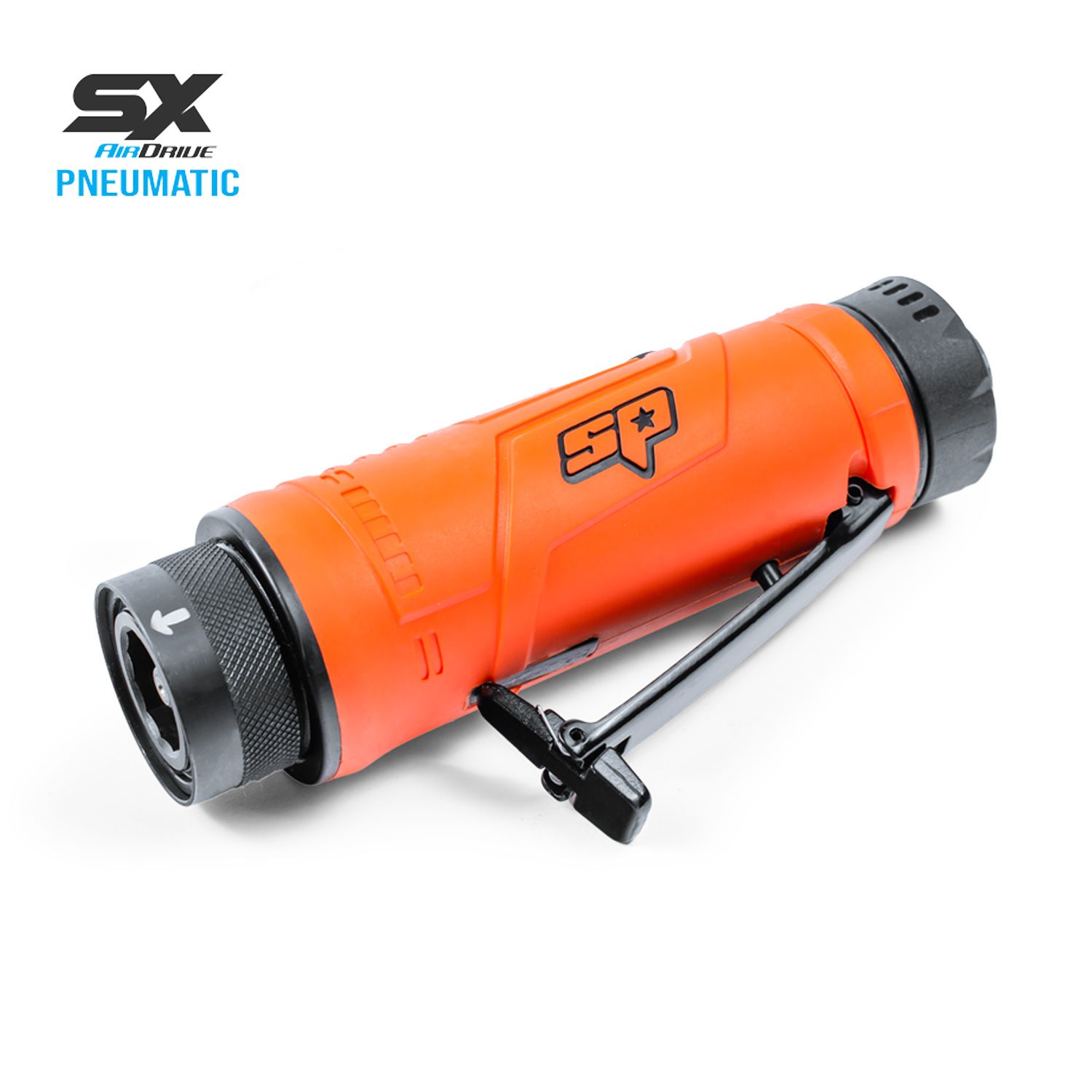

The SP Tools SP83703BU 1/2HP Pneumatic SX AirDrive Power-Drive Body is a compact, air-powered drive unit designed for the CONX Hybrid System. Featuring a reliable 1/2HP pneumatic motor, heavy-duty composite construction and a quick-change connection, it provides professional mechanics with a versatile power source for a range of interchangeable tool heads. The ergonomic grip and lever-operated throttle offer controlled, comfortable operation during extended workshop use.

Features:

• 1/2HP pneumatic motor delivers reliable air-powered performance
• Designed for the SP Tools CONX Hybrid System
• Quick-change connection for rapid swapping of compatible interchangeable heads
• Compact, lightweight design provides excellent access in confined work areas
• Heavy-duty composite body provides durability without unnecessary weight
• Ergonomic grip helps reduce fatigue during extended use
• Lever handle provides precise throttle control
• Compatible with a range of CONX Hybrid interchangeable heads
• Ideal for professional automotive servicing, repairs and workshop applications

Specifications:

• Type: Pneumatic – SX AirDrive
• Horsepower: 0.2 HP
• No-Load Speed: 0–18,000 RPM
• Maximum Pressure: 90 PSI
• Air Inlet: 1/4" NPT
• Motor Type: High-Speed Air Vane
• Length: 153mm (6")
• Weight: 0.58kg

Warranty:

• 3 Year Warranty Covered by SP Tools

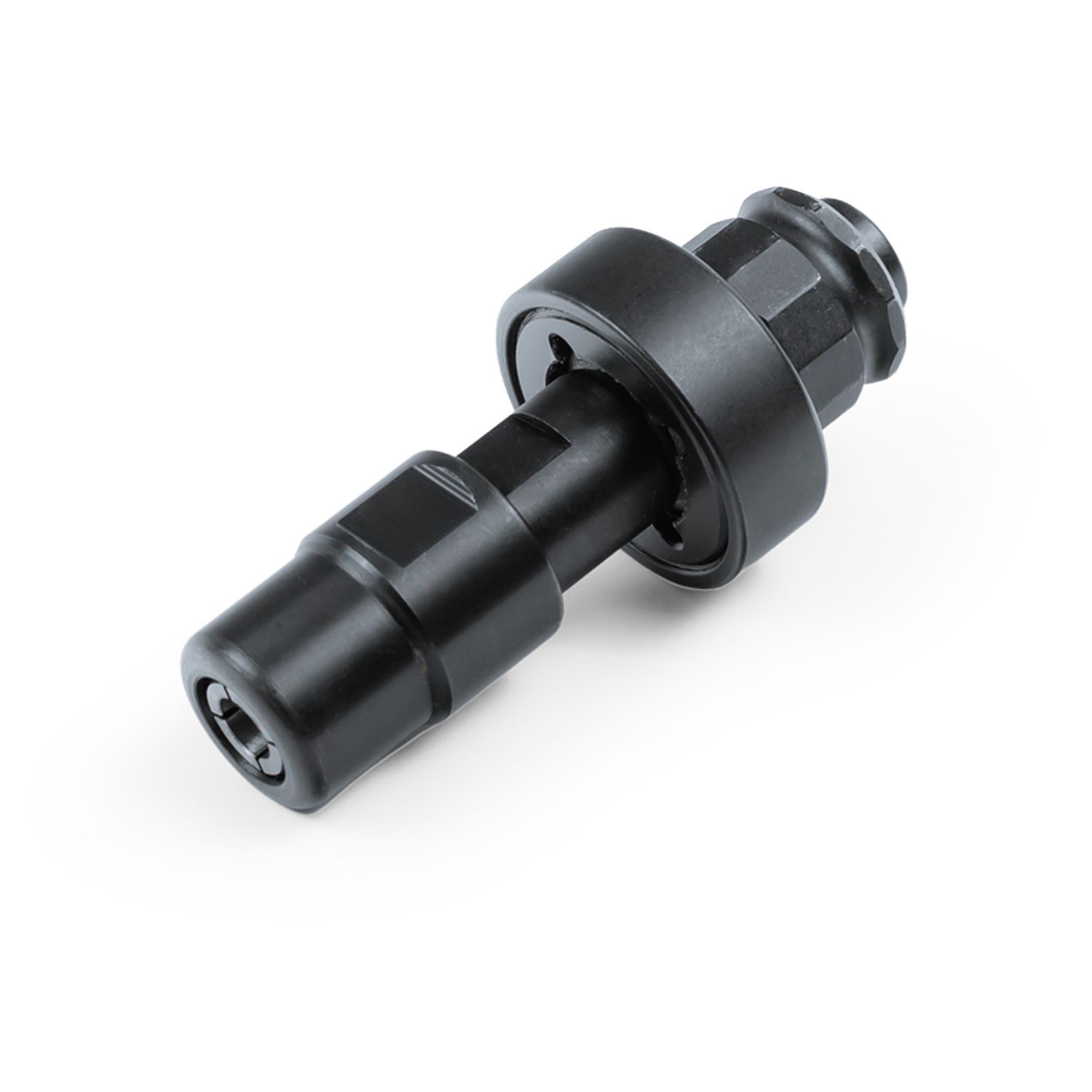

The SP Tools SP83742 Straight 1/4" Die Grinder Head is a compact grinding attachment designed for the ConX Hybrid System. Its straight, lightweight design provides excellent control and access in confined areas, making it ideal for grinding, deburring, polishing and surface preparation in automotive, fabrication and general workshop applications.

Features:

• Straight 1/4" die grinder head for the SP Tools ConX Hybrid System
• Compact design provides improved access in tight and confined spaces
• 1/4" collet accommodates a wide range of compatible grinding accessories
• Ideal for grinding, deburring and surface preparation
• Suitable for polishing and finishing applications
• Quick and convenient connection to compatible ConX Hybrid power-drive bodies
• Lightweight construction for improved control and reduced user fatigue
• Ideal for automotive servicing and mechanical repairs
• Suitable for fabrication and general workshop applications
• Reduces the need for a separate dedicated die grinder

Specifications:

• System: ConX Hybrid
• Tool Type: Straight Die Grinder Head
• Collet Size: 1/4"
• Configuration: Straight
• Compatible With: SP Tools ConX Hybrid Power-Drive Bodies
• Dimensions (L x W x H): 120mm x 30mm x 215mm
• Weight: 0.28kg

Warranty:

• 3 Year Warranty Covered by SP Tools

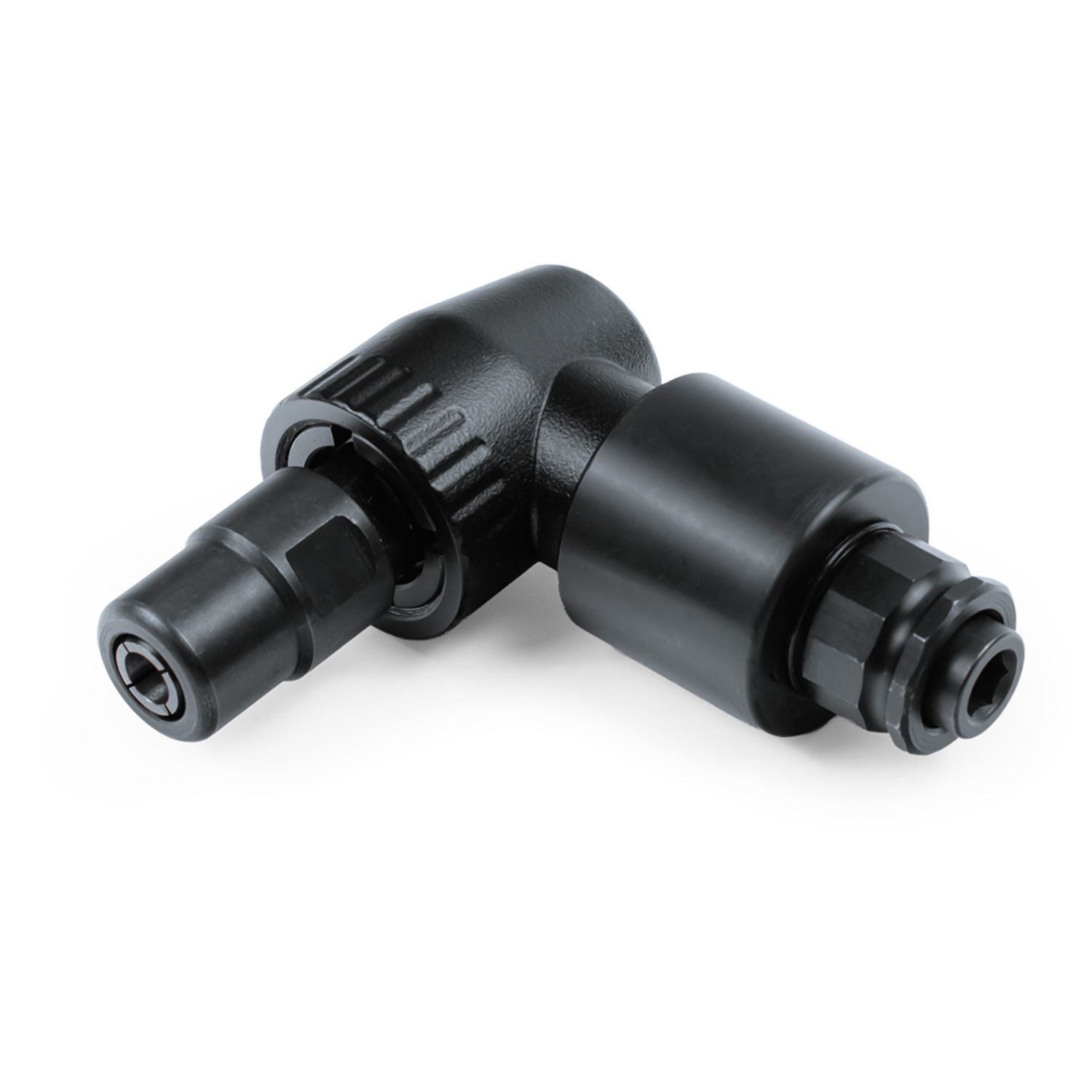

The SP Tools SP83746 90° 1/4" Die Grinder Head is a compact right-angle grinding attachment designed for the ConX Hybrid System. Its 90° configuration provides improved access to tight and difficult-to-reach areas, making it ideal for grinding, deburring, polishing and surface preparation in automotive, fabrication and professional workshop applications.

Features:

• 90° 1/4" die grinder head designed for the SP Tools ConX Hybrid System
• Right-angle configuration provides excellent access in tight and confined spaces
• 1/4" collet accommodates a wide range of compatible grinding accessories
• Ideal for grinding, deburring and surface preparation
• Suitable for polishing and finishing applications
• Quick and convenient connection to compatible ConX Hybrid power-drive bodies
• Compact design provides improved manoeuvrability and control
• Ideal for automotive servicing and mechanical repairs
• Suitable for fabrication and general workshop applications
• Reduces the need for a separate dedicated right-angle die grinder

Specifications:

• System: ConX Hybrid
• Tool Type: 90° Die Grinder Head
• Collet Size: 1/4"
• Configuration: 90° Right Angle
• Compatible With: SP Tools ConX Hybrid Power-Drive Bodies
• Dimensions (L x W x H): 120mm x 30mm x 215mm
• Weight: 0.41kg

Warranty:

• 3 Year Warranty Covered by SP Tools
