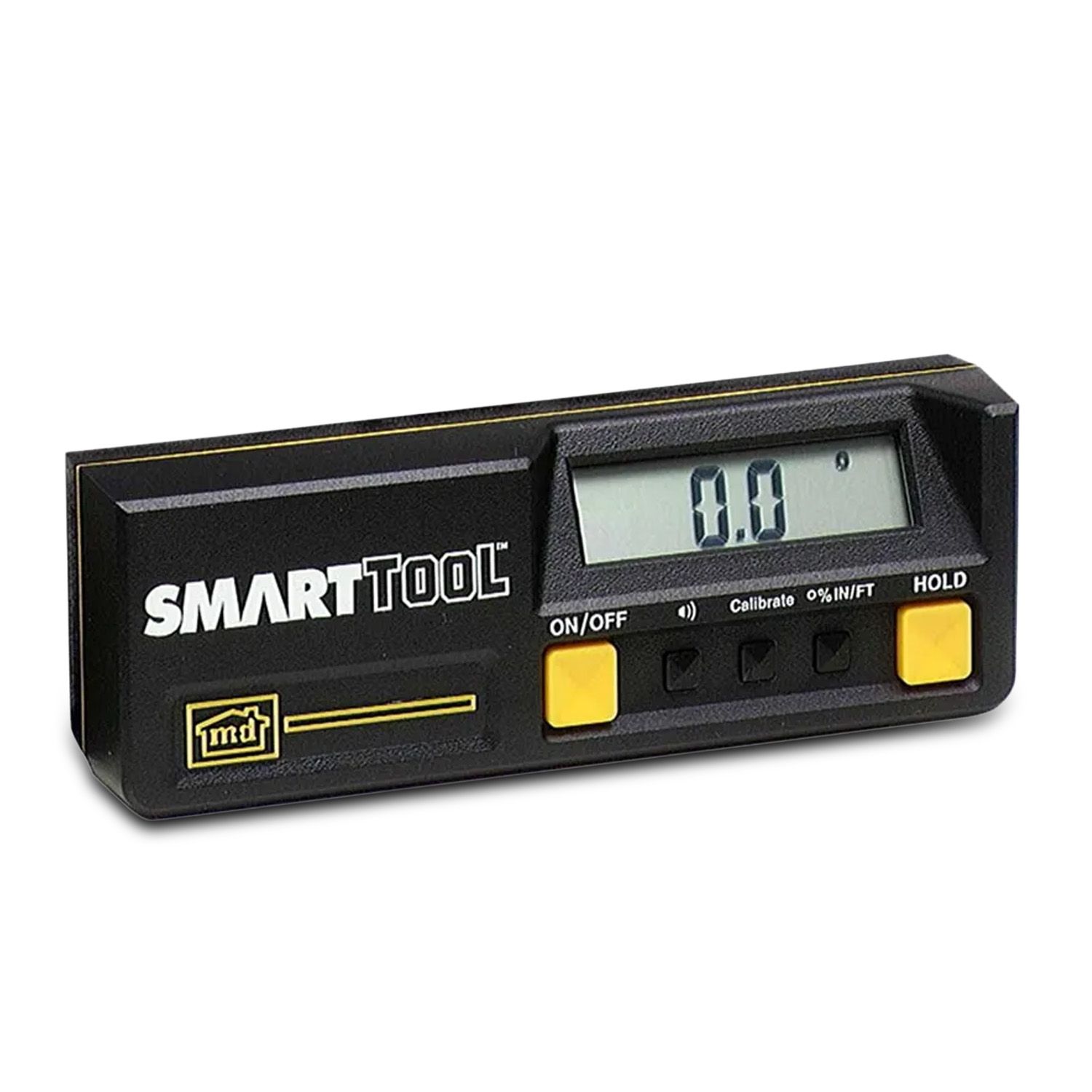

If you can imagine times you'd like to have both a small digital torpedo level and a longer level, the SmartTool Module fills the need.  The SmartTool Module can be used as a stand alone level or it can be placed in the optional American I-beam level in lengths of 24 inches, 48 inches or 96 inches. M-D's top-quality red aluminum I-beam levels have been assured of excellence among construction professionals for more than three-quarters of a century. Easily attached or removed using only a screwdriver or coin, the versatility of this product can be appreciated in almost any application. The simple, SmartTool patented field calibration procedure can be performed using one button, any reasonably level surface, and just a couple of minutes. When used with the optional magnetic bracket, the SmartTool Module will stay on saw blades, metal pipes, buildings, machinery or anything made of iron or steel allowing hands free measurement.

Features:

• Simple and easy to use for both quick checks and precise measurements
• Measures level, plumb, and all other angles using bubble vials or a digital display accurate to 0.1 degrees
• Displays angles in three formats: degrees, percent slope, and pitch (rise over run)
• Allows highly accurate degree readings for precise cuts, stair angles, and perfectly aligned joints
• Shows percent slope and roof pitch directly on the display for compliance and accuracy without calculations
• Includes an audio beeper that signals when level or plumb, even when you can’t see the tool
• Features a hold button to capture measurements when the display is out of view

Specifications:

• Accuracy:
  • 0 and 90: 0.05
  • Other Angles: 0.2
• Resolution:
  • -.05 to +.05: 0.05°
  • 1 to 90: 0.1°
  • Range: 360°
• Temperature:
  • Operating: -10°C to 50°C
  • Storage: -20°C to 65°C
• Battery: 9v alkaline (included)
• Dimensions: 200mm x 25.4mm x 59.2mm
• Weight: 0.79kg

Warranty:

• 12 Month Warranty covered by SmartTool
