Simpson Strong-Tie SDWC15450-KT 50-Pack 114mm Carbon Steel SDWC Truss Screw

Simpson Strong-Tie SDWC15450-KT 50-Pack 114mm Carbon Steel SDWC Truss Screw

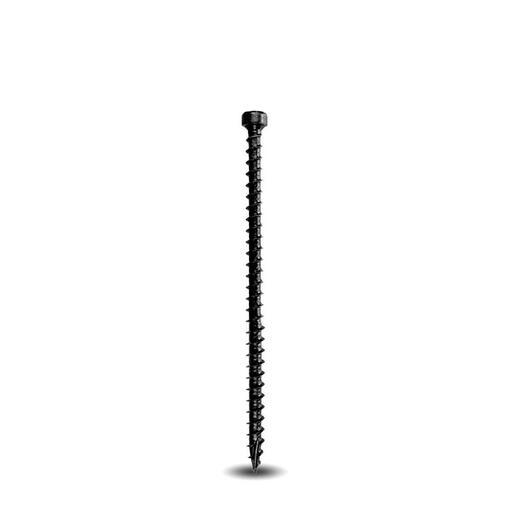

The Strong‑Drive^® SDWC Truss Screw provides a truss and rafter-to-top plate connection as well as a method to fasten stud-to-top and bottom plate. The fully-threaded shank engages the entire length of the fastener providing a secure connection.

The SDWC uplift values listed were analysed and calculated based on the characteristic values determined following AS1649-2001 (Timber-Methods of Test for Mechanical Fasteners and Connectors-Basic Working Loads and Characteristic Strength). The SDWC has also been tested in accordance with ICC-ES AC233 (screw) and AC13 (wall assembly and roof-to-wall assembly) for uplift and lateral loads between wall plates and vertical wall framing and between the top plate and the roof rafters or trusses.

Applications:

• Truss/Rafter-to-Top Plate connection
• Stud-to-Top and Bottom Plate connection

Features:

• Cap Head countersinks fully into the double top plate to avoid interference with plasterboard or finish trades
• Orange colour for easy inspection of 152 mm screws
• Fully-threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members
• Type-17 Point for faster starts and easier driving

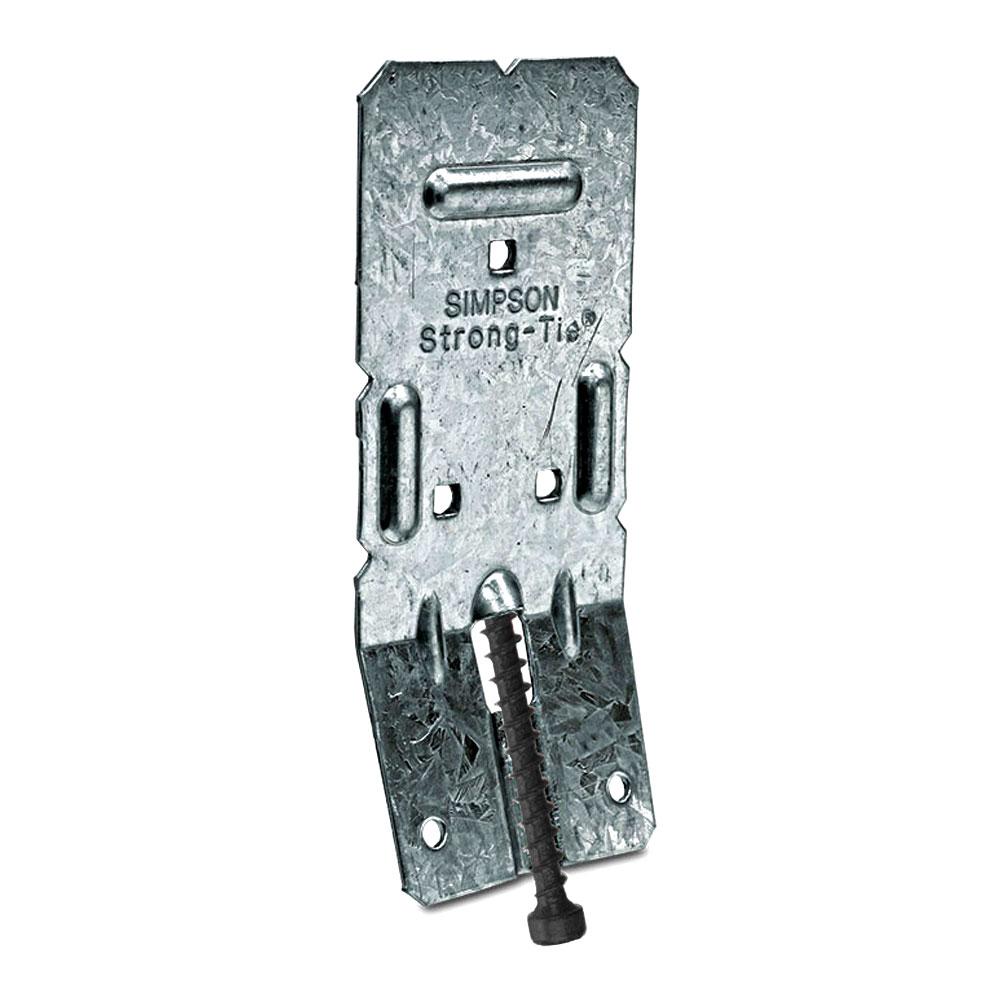

• Wide tolerance on installation angle makes it easy to install the SDWC correctly — Installation guide included to help ensure proper installation angle
• Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
• Fastening can be performed before or after exterior sheathing is applied for added flexibility
• Installation guide included in pack to help ensure proper installation angle

Specifications:

• Quantity: 50-Pack
• Material: Carbon Steel
• Finish: E‑Coat™
• Fastener Length: 114mm
• Thread Length: 108mm
• Diameter:
  • Head: 8.31mm
  • Major: 5.97mm
  • Minor: 3.86mm
• Bending Yield Strength: 1345MPa
• Fastener Strength:
  • Tension: 15.5kN
  • Shear: 10.9kN
