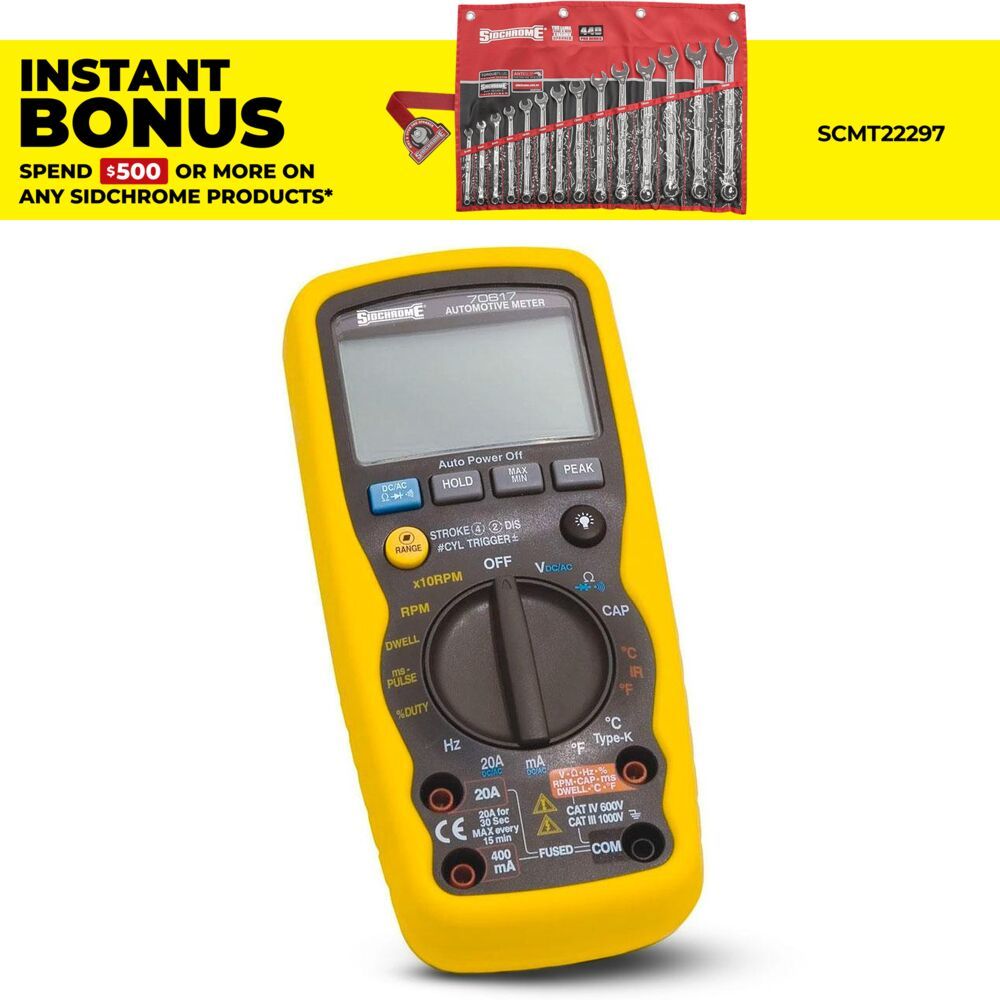

Sidchrome SCMT70617 Digital Automotive Multimeter

Sidchrome SCMT70617 Digital Automotive Multimeter

Includes:

• Automotive multimeter with built in stand
• Test leads
• Temperature probe
• Inductive RPM clamp
• 9V Battery
• Case with lead holders
• Instruction manual

Features:

• 10Meg OHM impedance - computer safe
• MS Pulse width to test injectors, IAC motors & controls
• Auto/Manual ranging + Bargraph display
• DIS (Distributorless Dual Ignition System) RPM function
• Inductive RPM clamp
• Functions - Volts AC/DC, OHMS, Capacitance, Current AC/DC,
• 20 Amp fused circuit, Diode check, Audible continuity,
• RPM, Duty cycle, Pulse Width, Dwell, Frequency, Temperature.
• Meets CATIII1000V/CATIV600V specifications
• Oversize LCD display 4000 counts with backlight
• Polarity: Automatic, (-) negative polarity indication.
• Low battery indication - Auto Power off
• Data hold & Peak Hold functions
• IP67 Dust proof & waterproof to 1 Meter

Specifications:

• Voltage: 600 Volts AC/DC
• Current: 20 Amps DC
• Polarity: Automatic (-) negative polarity indication
• Diode Test: 1mA typical
• Display: Oversize LCD (4000 counts) with function
• indication and backlight
• Temperature Range: -50° – 250° Celsius
• Dimensions (L x W x H): 182mm x 82mm x 55mm
• Weight: 0.375kg
