The u-LOCATE+ is a professional-grade utility locating system designed for quick, accurate identification and tracing of underground utilities, helping to reduce utility strikes, service outages, and costly damage. Operating at an 82 kHz active frequency with passive power locating (50/60 Hz), it is ideal for 811 mark verification, private locates, and single-utility identification in congested areas.

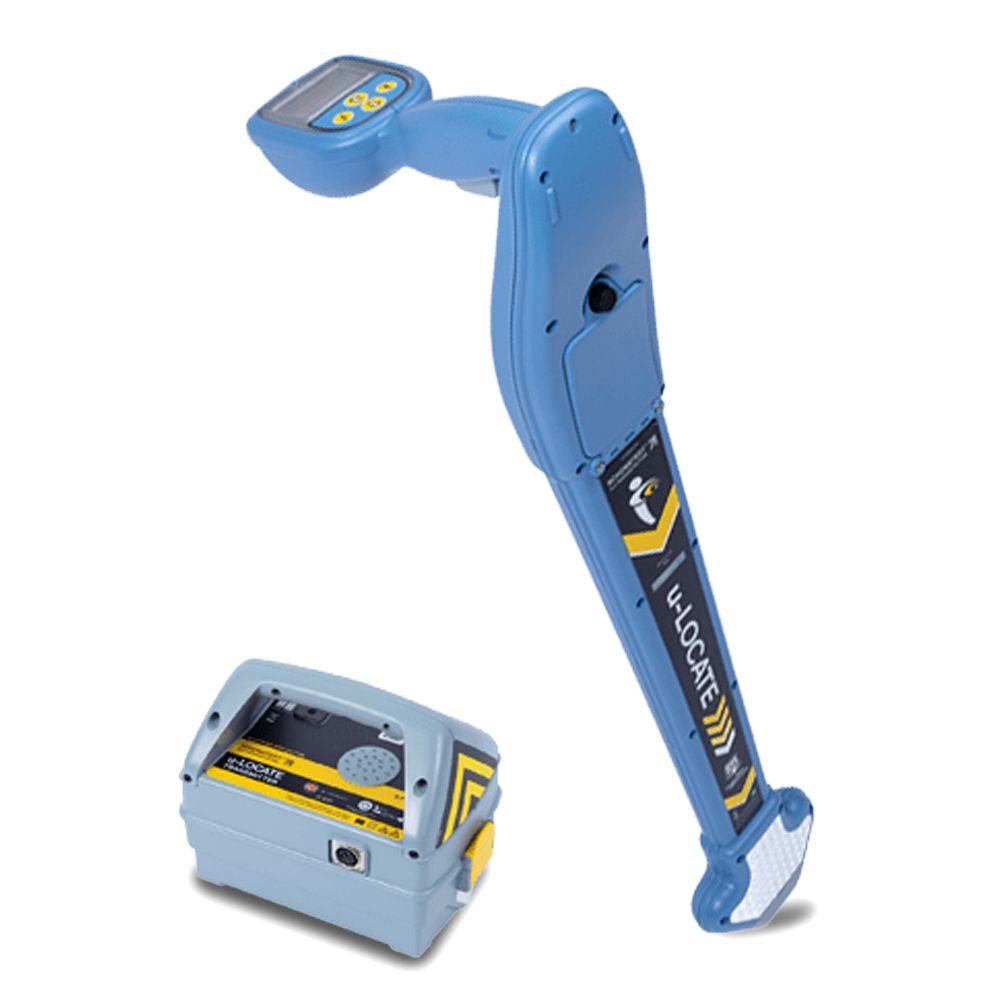

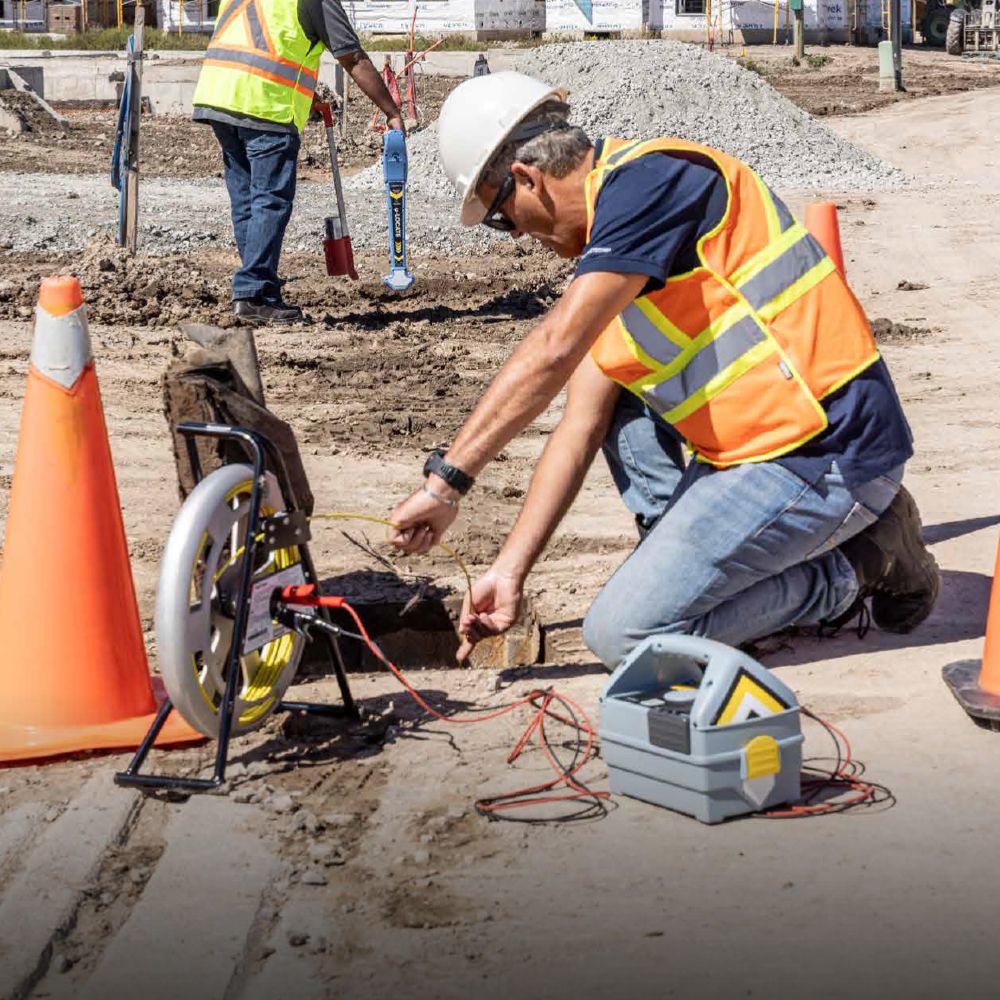

The system includes a transmitter and receiver with manual gain control, intuitive one-handed operation, directional guidance arrows, and depth estimation up to 5.8 m (19 ft) for reliable horizontal and vertical tracing. Featuring 33 kHz and 82 kHz transmitter frequencies, multiple operating modes, and a 1 W boost for extended tracing distances, the u-LOCATE+ delivers dependable performance across water, sewer, gas, power, telecom, construction, and facilities management applications, backed by SCHONSTEDT’s proven build quality and warranty support.

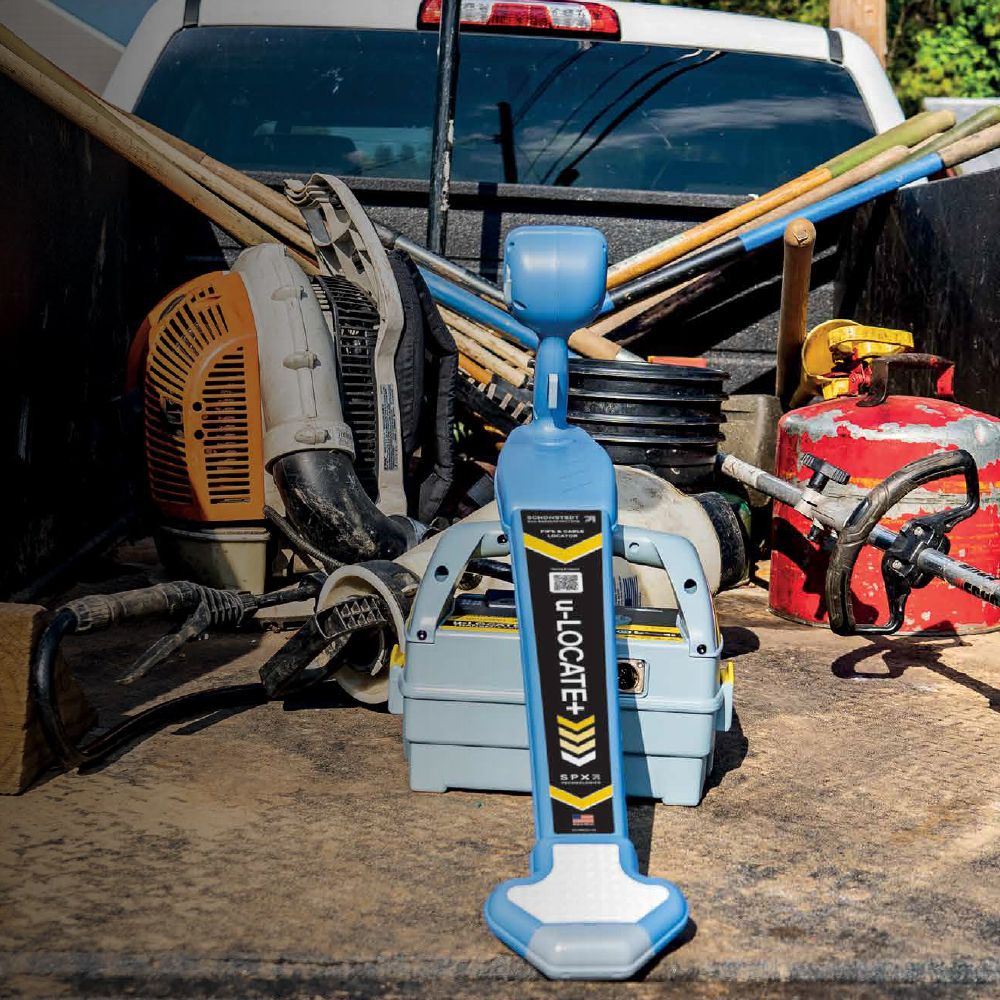

Includes:

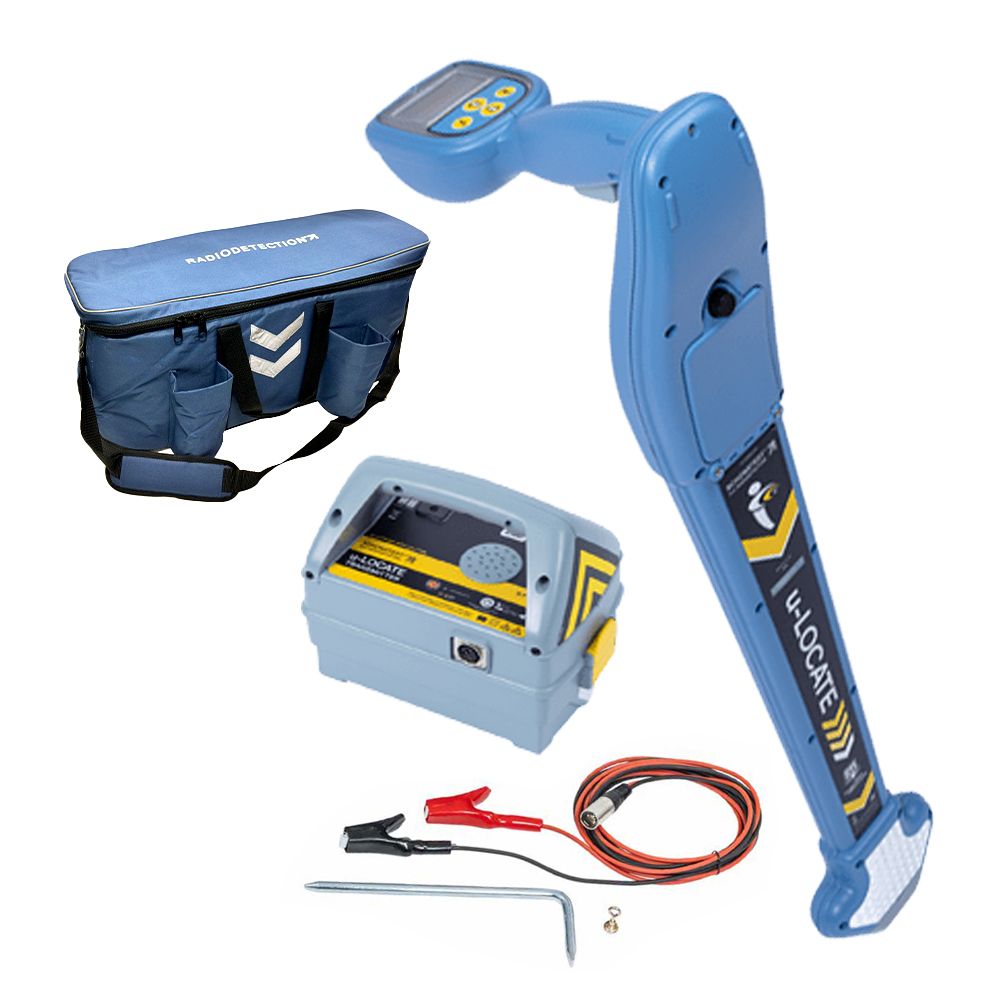

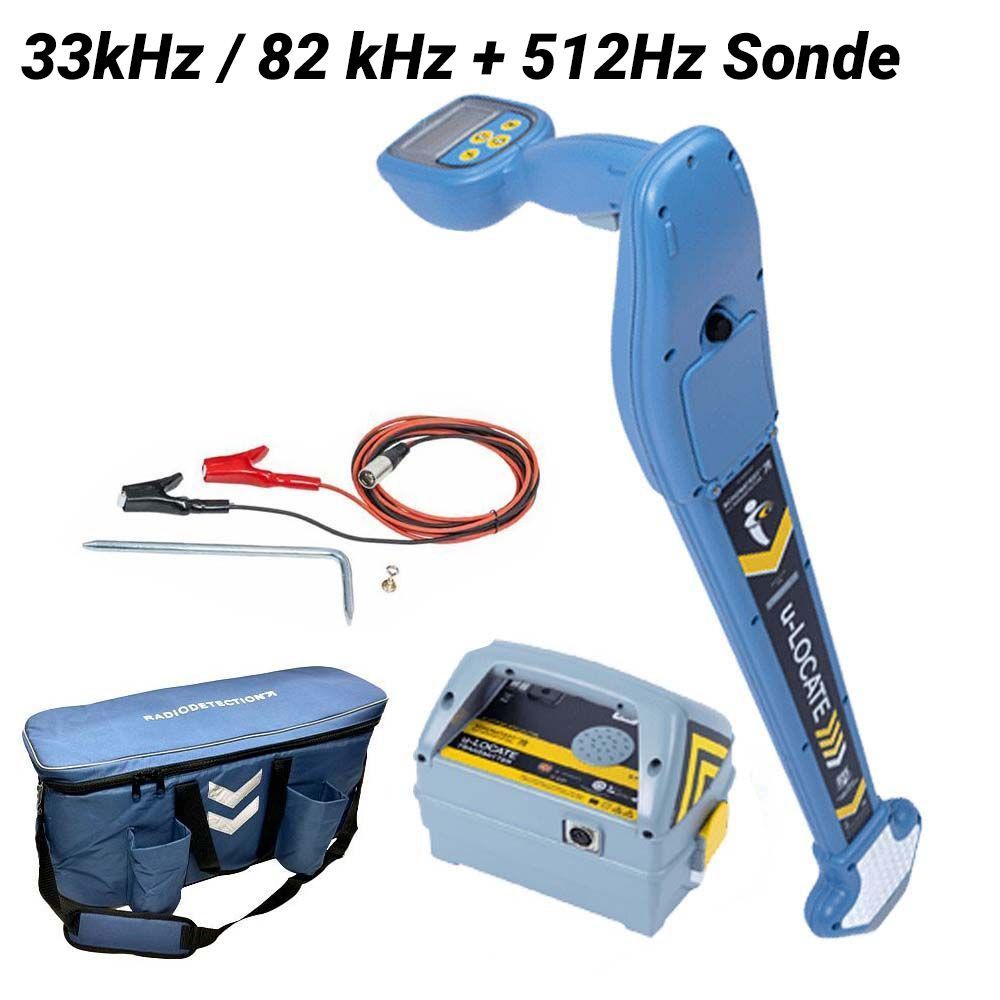

• 1 x u-LOCATE+ Receiver with batteries
• 1 x u-LOCATE Transmitter with batteries
• 1 x Conductive Clips
• 1 x Soft Carrying Case
• 1 x Ground Stake & Magnet
• 1 x Welcome Placard to download the manual, register the unit, and watch training videos
• 1 Year warranty (with an option to extend to 3 years at the point of purchase)

Features:

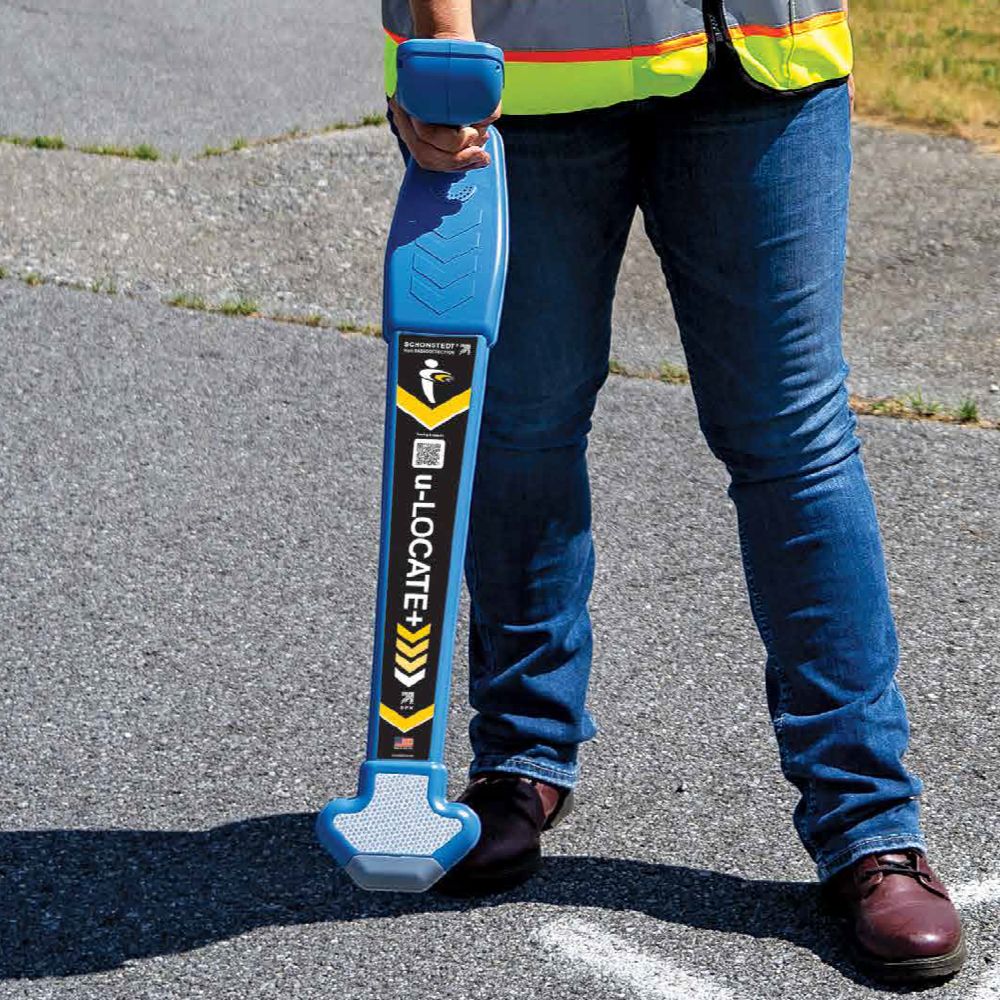

• u-LOCATE+ delivers the premium build quality, reliability and ergonomics our customers demand and rely on.
• Ideal for 811 mark verification and Private Locates
• Passive mode enables the safe identification and tracing of power cables carrying current.
• Accurate power cable identification
• Left / right guidance arrows on the display, allow fast and easy location and tracing of buried utilities
• High frequency signal ideal for water, gas and telecom networks
• Long distance tracing of buried utilities and pipelines

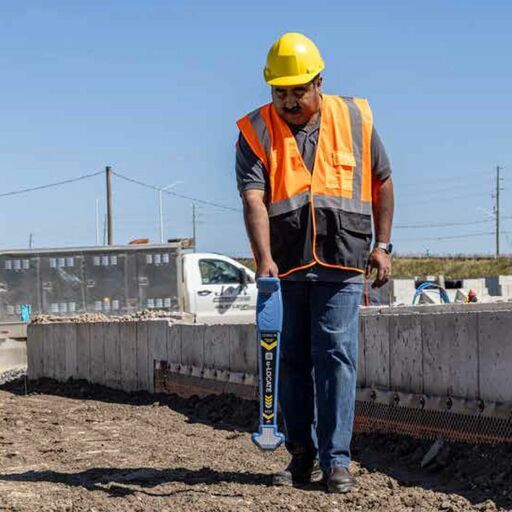

• Depth estimation enables tracing of utilities in both horizontal and vertical planes
• Minimize downtime with online training videos and support
• Sonde Mode: Ideal for tracing 512Hz sondes or inspection cameras in non-metallic pipes, ducts and concrete conduits
• Extended Range: Extended frequency range enables detection of more utilities over longer distances
• Enhanced Capabilities: Advanced features for superior performance

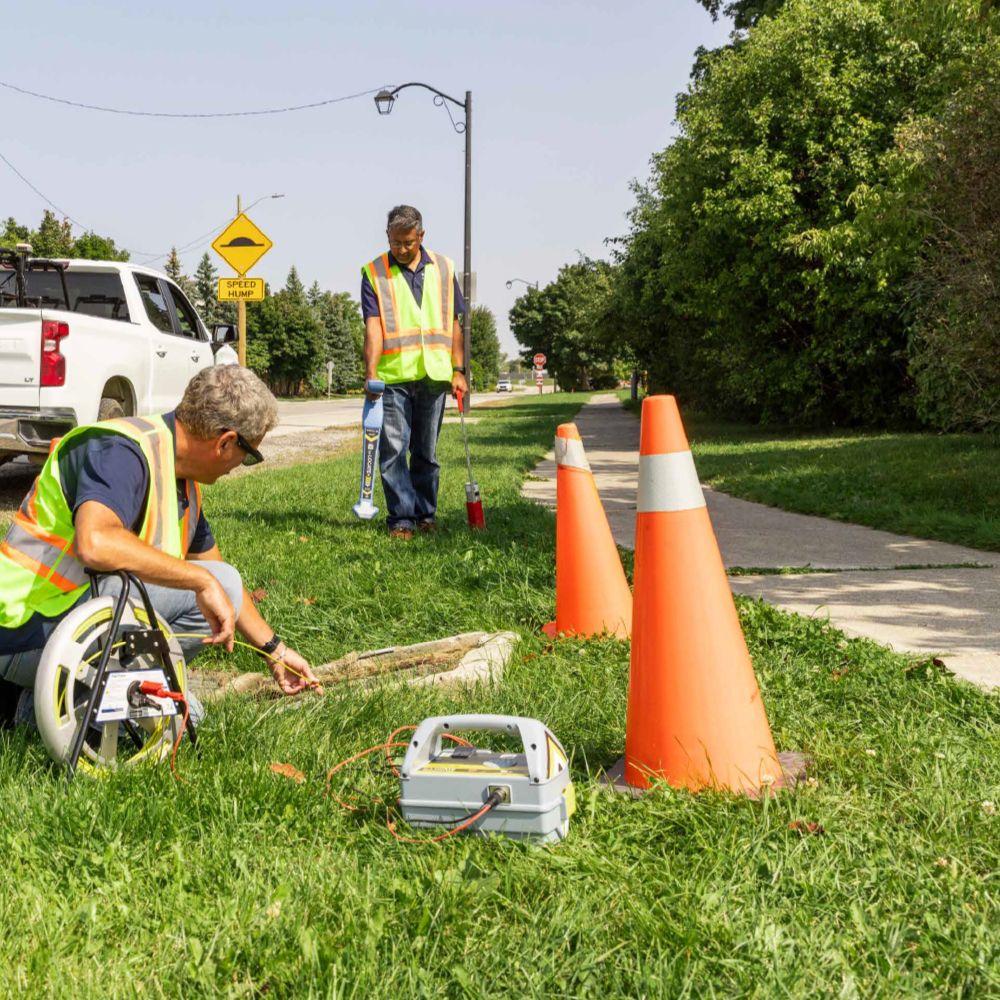

Applications:

• Water and Sewer
• Construction and Excavation
• Roads and Transportation
• Power and Electric
• Telecom and Cable
• Facilities Management

Specifications:

• u-Locate Locator Specificatons:
  • Operating Frequencies: 82kHz
  • Passive Mode: 50/60 Hz
  • Max Depth Active Mode: 5.8m (19')
  • Positional Accuracy: 5%
  • Battery Requirements: 6 x AA Receiver
  • Usage Hours: 20 hours
  • Audio Output:
    • 10 to 1500 Hz ( determined by signal strength)
    • 0 to 70 dB SPL (volume controlled)
  • Ingress Protection Rating: Weatherproof to NEMA3S and IP65
  • Construction High Impact: ABS Plastic
  • Operating Temperature: 10 to + 50°C
  • Overall Dimensions: 651mm x 99mm x 221mm
  • Weight Including Batteries: 1.1kg
• u-Locate Transmitter Specifications:
  • Operating Frequencies: 33 kHz and 82 kHz
  • Operating Modes:
  • Direct Connect, Inductive frequencies
  • Direct Connect 33 kHz and 82 kHz
  • Inductive, 82 kHz only
  • Accessory Connection, 33 kHz and 82 kHz
  • Maximum Output Power: (direct Connect Mode, @ 1000 O Load): 1 W (boost)
  • Maximum Output Voltage: 23 V RMS into open circuit
  • Max Output Current: 66 mA into short circuit
  • Battery Type: 4 x D (LR20) cell or equivalent
  • Battery Life: Boost v standard:
    • DC mode 15/40 hours
    • Induction mode 9/28 hours
  • Accessory Connection:
    • a) 3 Pin XLR Jack Output:
    • Inductive clamp
    • Direct Connect Leads
  • Operating Temperature: -4 to 122°F (-10 to 50°C)
  • Water And Dust Resistance: Rated IP54
  • Dimensions: 170mm x 275mm x 20mm
  • Weight: 2.75kg

Warranty:

• 1 Year Warranty Covered by SCHONSTEDT
