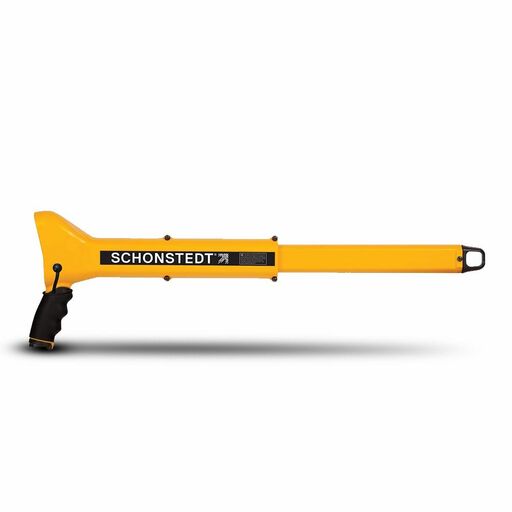

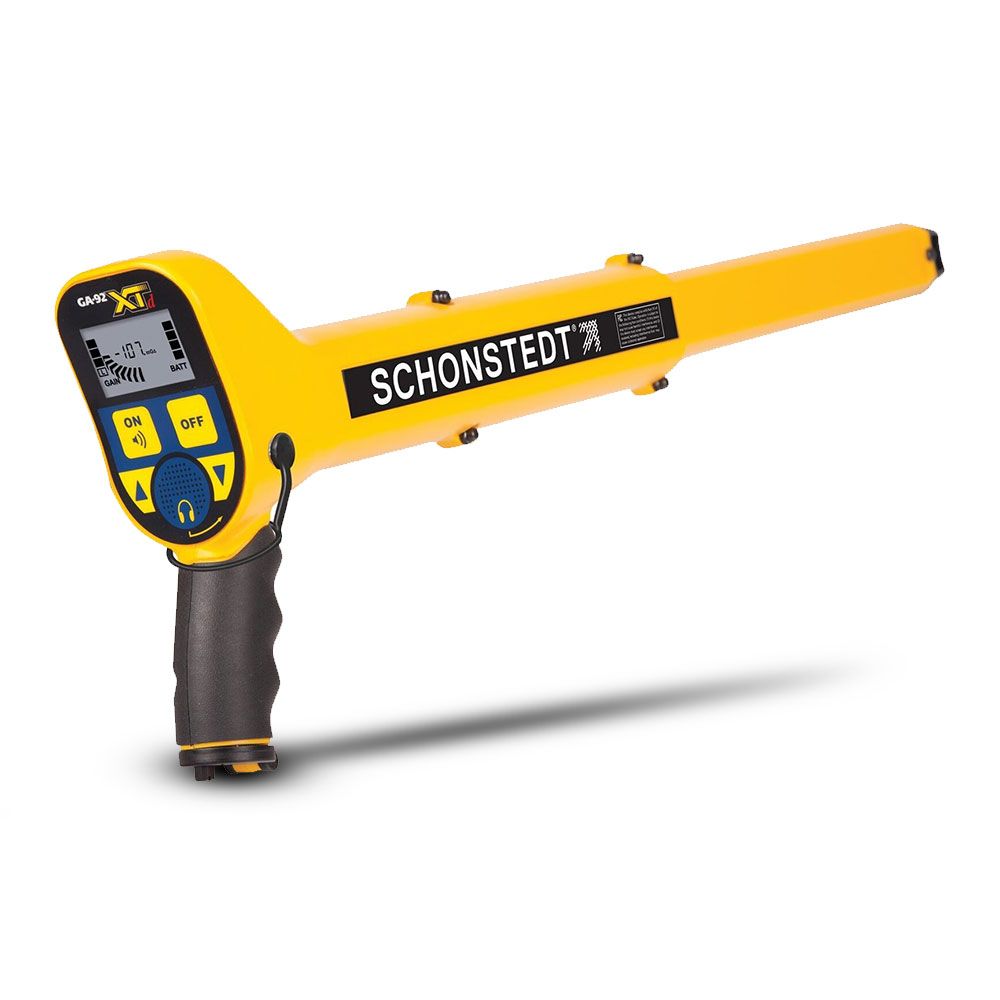

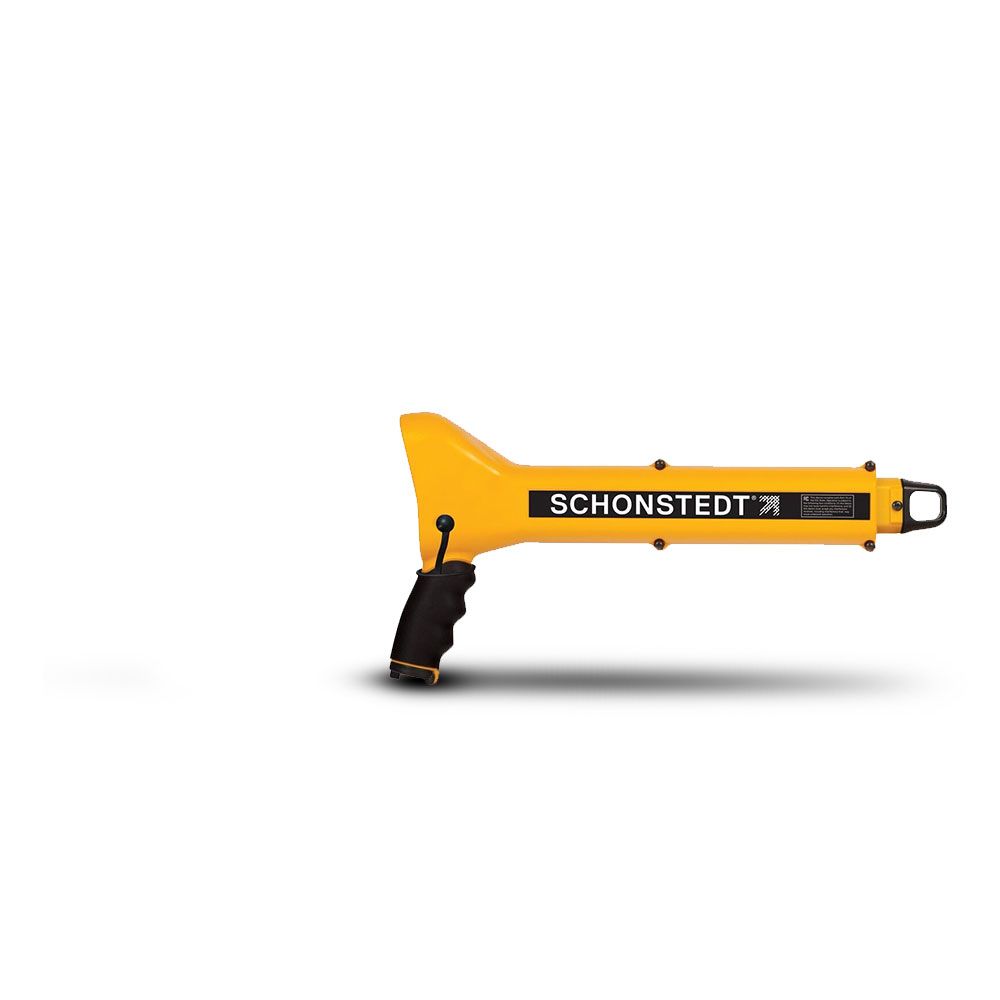

SCHONSTEDT 10/GA-92XTd Collapsible Magnetic Locator with Display Holster and Plastic Case

SCHONSTEDT 10/GA-92XTd Collapsible Magnetic Locator with Display Holster and Plastic Case

The GA-92XTd is a compact, one-handed magnetic locator for detecting ferrous metal objects up to 5m deep. With fingertip control, audio/visual feedback, and a retractable design for easy carrying, it’s ideal for utilities, surveying, construction, and public works.

Key Features

• One-Hand Operation – Membrane keypad for on/off, volume, and gain
• Compact & Portable – Extends to 66cm for accuracy, retracts to 39cm for storage

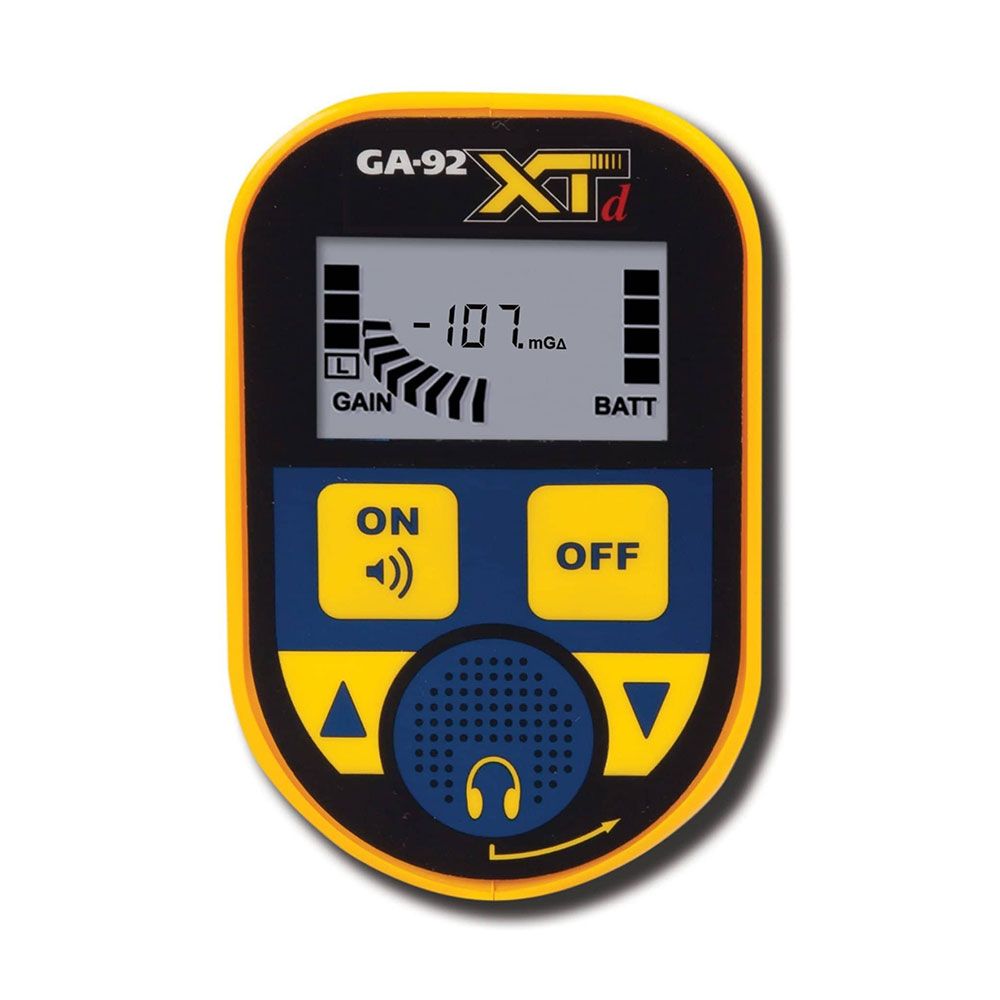

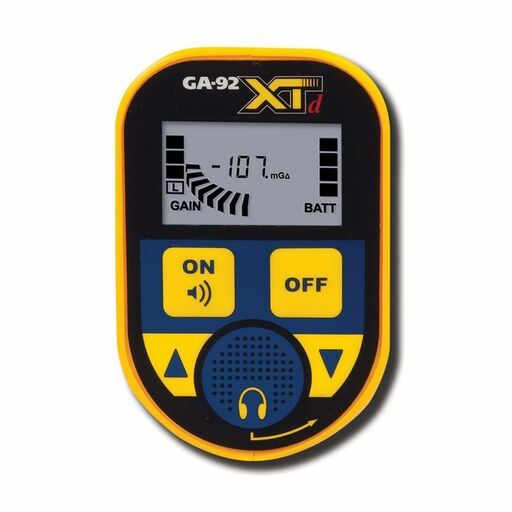

• Dual Feedback – Audio tones plus bar graph display with polarity and signal strength
• HeliFlux® Sensor Technology – Superior sensitivity for deep and precise locating
• Weather-Resistant – IP54-rated for dust and water splash protection
• Quick Battery Swap – 9V battery compartment in grip; no tools needed
• Versatile Applications – Locates manholes, valve boxes, cast iron pipes, septic tanks, property markers, steel drums, UXO, and more
• Durable Build – High-impact ABS and glass-filled nylon construction

Specifications

• Detection Depth: Up to 5m
• Sensor Spacing: 24cm
• Audio Output: Frequency increases with signal strength
• Volume Levels: Muted, medium, maximum
• Gain Levels: L, M, H, XH
• Battery: One 9V (24hrs intermittent use)
• Operating Temp: −25 °C to +60 °C
• Construction: Glass-filled nylon & high-impact ABS
• Water/Dust Resistance: IP54
• Length: 66cm open / 39cm closed
• Weight: 1.1kg

Warranty

• 7 Year Warranty Covered by Schonstedt
