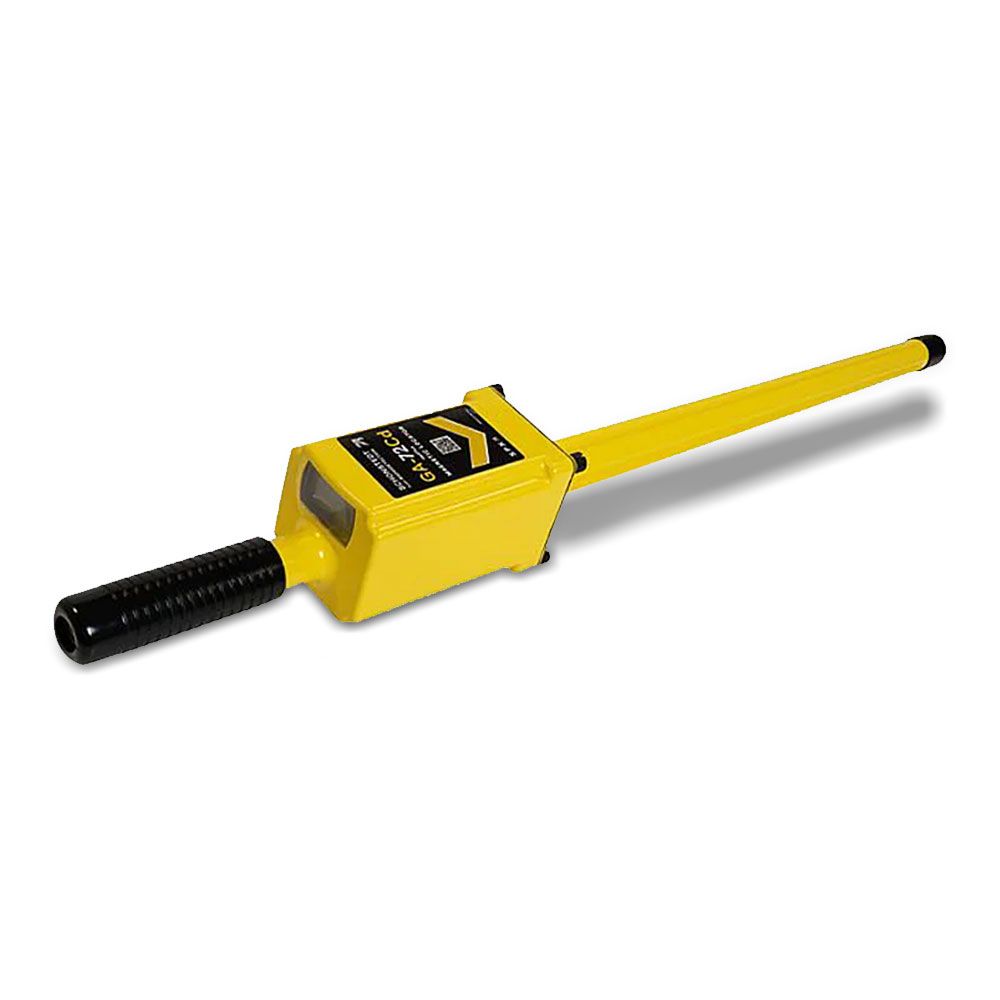

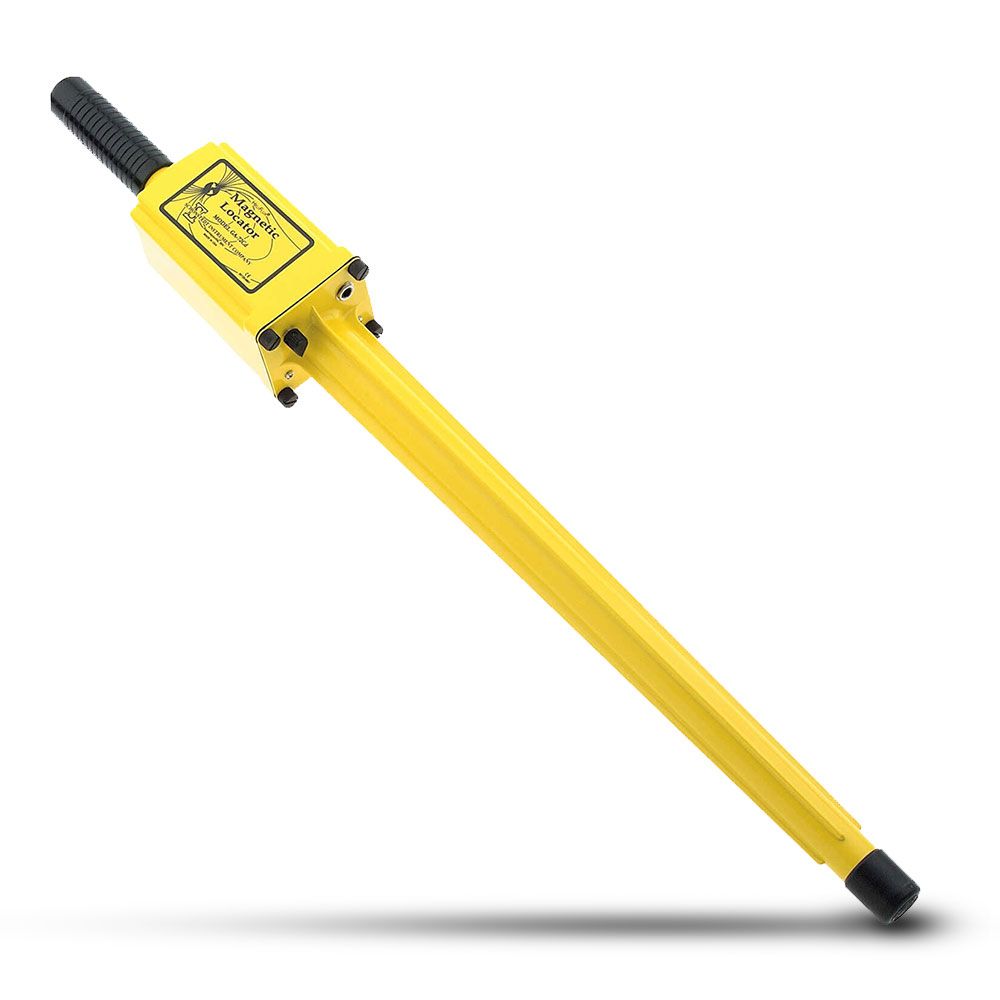

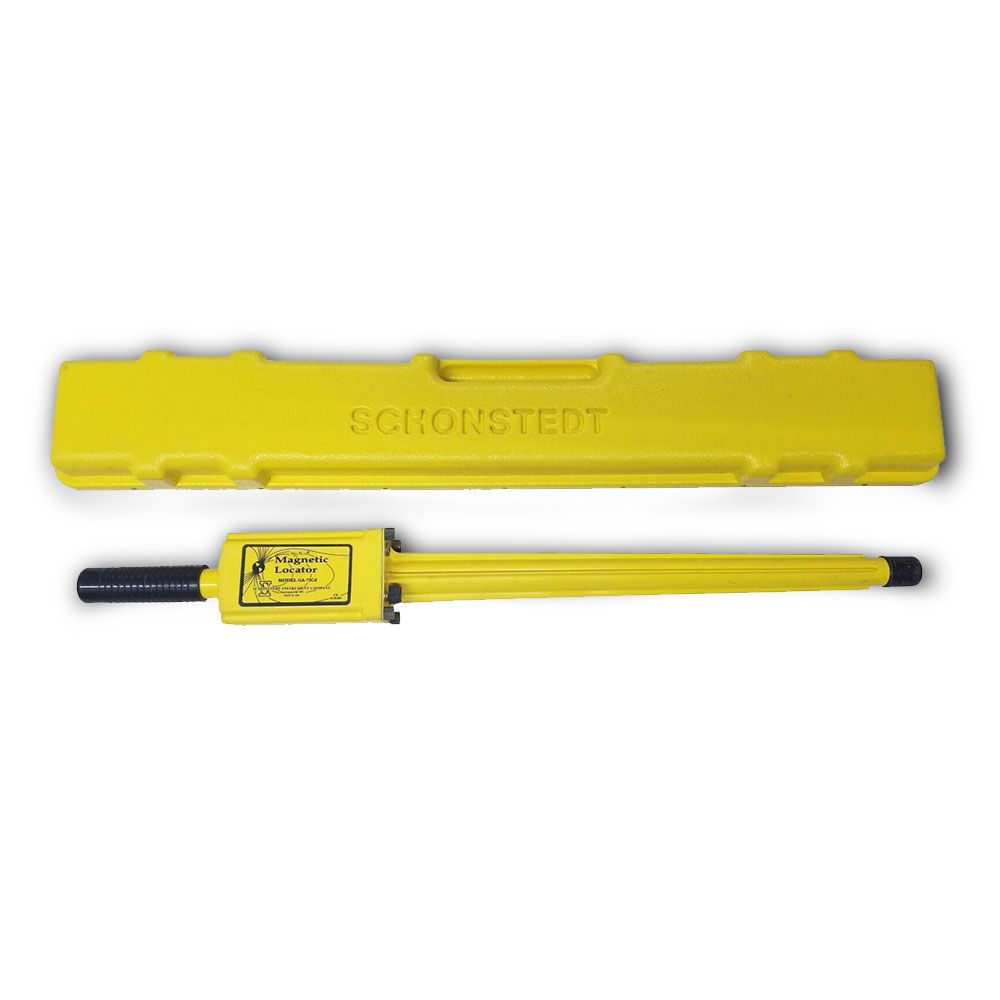

SCHONSTEDT 10/GA-72Cd Metered Magnetic Locator and Plastic Case

SCHONSTEDT 10/GA-72Cd Metered Magnetic Locator and Plastic Case

The Schonstedt GA-72Cd is a rugged, high-sensitivity magnetic locator designed to detect iron and steel objects up to 5 m (16 ft) deep. It’s widely trusted in utility locating, surveying, construction, archaeology, and UXO detection for its precision, durability, and ease of use.

Features:

• Ferrous-Only Detection – Ignores aluminium, brass, and copper for fewer false locates

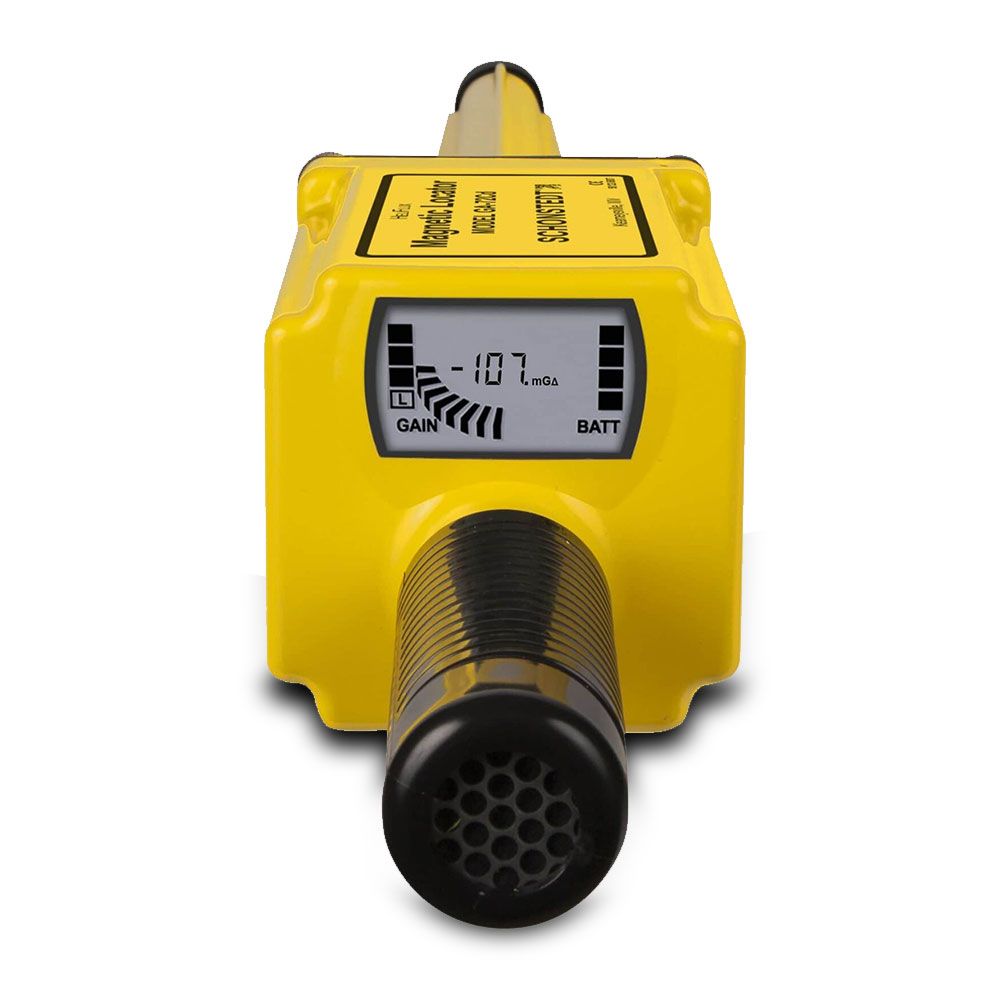

• Dual Feedback – Audio tones plus a 3-digit LCD with signal strength and polarity indication
• HeliFlux® Sensor Technology – Industry-leading sensitivity for deep and accurate detection
• Audio Modes – Peak or null response with three tone frequencies (40Hz, 77Hz, 110Hz)
• Rugged Build – IP54 splash/dust resistance, durable polycarbonate & aluminium housing
• Easy Operation – Two simple controls for sensitivity/volume; ready to use without menus
• Long Battery Life – Up to 40 hours from two 9V alkaline batteries

Specifications:

• Detection Depth: Up to 5m (object-dependent)
• Targets: Iron, steel, drums, tanks, valve boxes, survey pins, UXO
• Audio Output: 3 tone levels; volume or frequency change with target strength
• Power: 2 × 9V alkaline batteries
• Battery Life: 35–40 hours
• Length: 87.6cm
• Weight: 1.36kg
• Waterproof Rating: IP54
• Operating Temp: −25 °C to +60 °C

Warranty

• 7 Year Warranty Covered by Schonstedt
