Ridgid 916 (45007) Roll Groover

Ridgid 916 (45007) Roll Groover

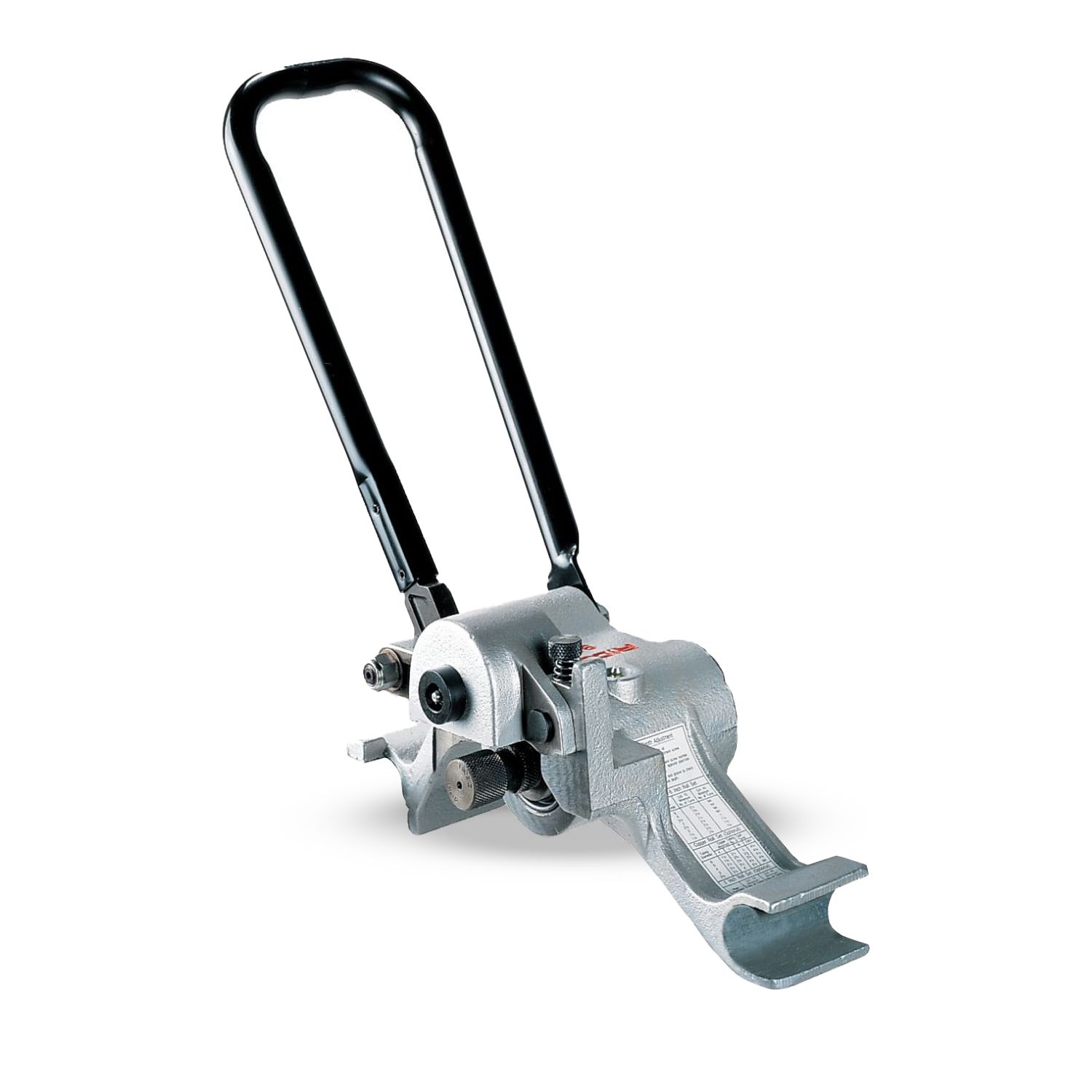

The Ridgid 916 Roll Groover (Cat No. 45007) is a portable, power-driven grooving tool designed for on-site pipe fabrication. Built to mount easily onto Ridgid Power Drives such as the 300, it produces precise, uniform roll grooves in steel, stainless steel, and with optional sets, copper pipe. Its rugged build and accurate depth control make it ideal for contractors working in fire protection, mechanical services, and fabrication.

Features:

• Heavy-duty cast-iron housing for long service life in demanding environments
• Quick and easy mounting to Ridgid 300 Power Drive and compatible threading machines
• Cam-type feed actuation for smooth, single-stroke operation with minimal effort
• Independent depth adjustment for consistent groove accuracy
• Interchangeable roll sets for different pipe sizes and materials
• Compact, lightweight, and portable design for field or workshop use
• Backed by Ridgid’s lifetime warranty against defects in material and workmanship

Specifications:

• Grooving Capacity (Standard Roll Set):
  • 1¼″ to 6″ Schedule 10 steel and stainless steel
  • 1¼″ to 3″ Schedule 40 steel and stainless steel
• Optional Roll Sets: For copper tubing (2″–6″ Types K, L, M, DWV) and 1″ Schedule steel
• Mounting: Attaches to front carriage of compatible Ridgid Power Drive units
• Weight: Approx. 15.5 kg
• Construction: Cast-iron housing with precision-machined roll shafts

Warranty:

• Full Lifetime Warranty Covered by Ridgid
