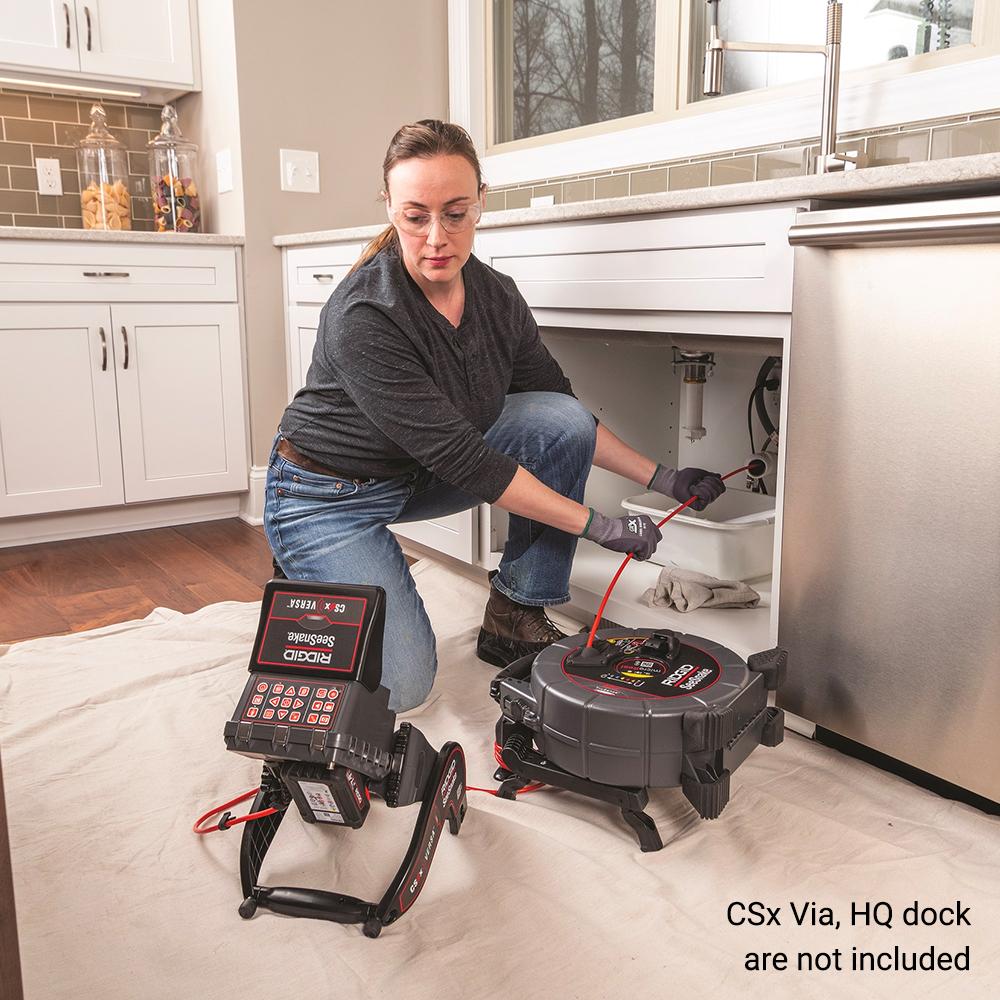

Ridgid 70808 + 64943 30m SeeSnake MicroReel APX with TruSense Technology and Digital Recording Monitor with Wi-Fi

Improving jobsite ergonomics, the CS6x Versa has high and low monitor mounting positions and a unique pivoting frame that lets users tilt the monitor to the desired angle for optimal viewing efficiency. This design allows the sunshade to remain open in all usage situations for maximum glare reduction.

Includes:

• 1 x AC Adapter
• 1 x 8 GB USB Drive (with HQ preloaded)

Features:

• The CS6x Versa has a 5.7” daylight viewable screen, direct USB recording, full TruSense™ compatibility, and Wi-Fi connectivity for remote viewing and recording on a phone or tablet.
• The frame docks to the Compact 2/C40/M40 and can be used mounted or unmounted.
• Pivoting frame with high and low mounting positions allow flexible placement and optimal viewing
• Docks to the Compact 2/C40/M40 camera reels for efficient transport, storage, and operation

Specifications:

• Power source: 18V Battery (not included) or AC adapter
• Power rating: 15-25VDC, 25W
• Display:
• Type: Colour LCD
• Size: 145mm
• Resolution: VGA 640 x 480 pixels
• Brightness: 460cd/m²
• Media:
• Standard video: MPEG4 (H.264)
• Autolog video: MPEG4 (H.264) Low, variable frame rate for decreased file size
• Photo: JPG
• PhotoTalk: MPEG4 (H.264) Single image with audio commentary
• Audio: Integrated microphone and speaker
• Transfer method: 2.0 USB
• USB port: 1 x 1.5A
• Connectivity:
• Bluetooth: 4.0
• Wi-Fi: 802.11 a/b/g/n
• Operating environment:
• Temperature: -10°C to 50°C
• Storage temperature: -10°C to 70°C
• Ingress protection: IPx5
• Relative humidity: 5 to 95%
• Altitude: 4000m
• Dimensions (L x W x H): 332mm x 233mm x 309mm
• Weight: 2.2kg

The RIDGID SeeSnake microReel APX with TruSense is a lightweight, compact and portable diagnostic inspection camera. It offers enhanced camera functionality including TruSense technology and auto-image rotation for bright, clear in-pipe images and on-screen camera angle and image orientation feedback. The microReel APX includes a kickstand for use with the CSx Via™, and offers enhanced stability and usability when positioned at a 45° angle.

Features:

• Enhanced Camera - APX with TruSense technology offers an HDR image sensor for superior in-pipe viewing & TiltSense™
• Visibility - Enhanced high-efficiency LEDs deliver better in pipe visibility and higher colour accuracy
• Auto-image flip - Ensures the bottom of pipe remains on the bottom of the monitor
• Durability - Hardened stainless steel camera head for long service life
• Portability - Lightweight and compact carrying case design
• Versatility - Kickstand offers improved stability and usage with CSX Via
• Traceability - Integrated 512 Hz sonde allows for easy line tracing and locating
• Easy navigation - Mid-flex push cable ideal for small diameter (1 1/2" to 5") and tight-turn radius inspections up to 30m

Specifications:

• Drum diameter: 305mm
• Camer:
  • Diameter: 25mm
  • Type: fixed
  • Resolution: 640 x 480
• Line capacity: 40mm to 101mm
• Push cable:
  • LEngth: 30m
  • Diameter: 6.7mm
  • Min bend radius: 64mm
• Sonde: 512 Hz, Integrated
• Dimensions (L x W x H): 337mm x 224mm x 411mm
• Weight: 5.8kg
