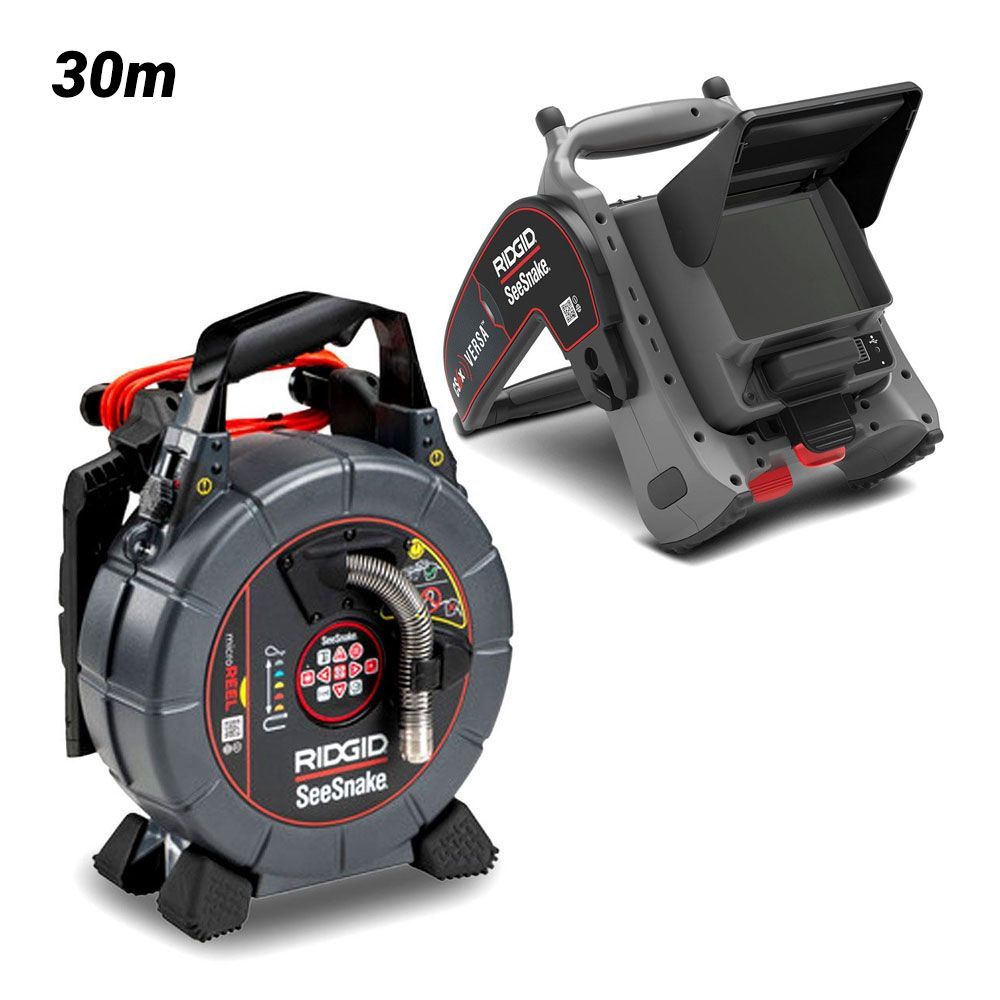

Ridgid 70803 + 6CS6x VERSA (64943) SeeSnake 30m MicroREEL CA-350 Video Inspection System Reel & Digital Recording Monitor with Wi-Fi

Improving jobsite ergonomics, the CS6x Versa has high and low monitor mounting positions and a unique pivoting frame that lets users tilt the monitor to the desired angle for optimal viewing efficiency. This design allows the sunshade to remain open in all usage situations for maximum glare reduction.

Includes:

• 1 x AC Adapter
• 1 x 8 GB USB Drive (with HQ preloaded)

Features:

• The CS6x Versa has a 5.7” daylight viewable screen, direct USB recording, full TruSense™ compatibility, and Wi-Fi connectivity for remote viewing and recording on a phone or tablet.
• The frame docks to the Compact 2/C40/M40 and can be used mounted or unmounted.
• Pivoting frame with high and low mounting positions allow flexible placement and optimal viewing
• Docks to the Compact 2/C40/M40 camera reels for efficient transport, storage, and operation

Specifications:

• Power source: 18V Battery (not included) or AC adapter
• Power rating: 15-25VDC, 25W
• Display:
• Type: Colour LCD
• Size: 145mm
• Resolution: VGA 640 x 480 pixels
• Brightness: 460cd/m²
• Media:
• Standard video: MPEG4 (H.264)
• Autolog video: MPEG4 (H.264) Low, variable frame rate for decreased file size
• Photo: JPG
• PhotoTalk: MPEG4 (H.264) Single image with audio commentary
• Audio: Integrated microphone and speaker
• Transfer method: 2.0 USB
• USB port: 1 x 1.5A
• Connectivity:
• Bluetooth: 4.0
• Wi-Fi: 802.11 a/b/g/n
• Operating environment:
• Temperature: -10°C to 50°C
• Storage temperature: -10°C to 70°C
• Ingress protection: IPx5
• Relative humidity: 5 to 95%
• Altitude: 4000m
• Dimensions (L x W x H): 332mm x 233mm x 309mm
• Weight: 2.2kg

The RIDGID SeeSnake® microREEL CA-350 video inspection system allows you to perform inspections quicker and easier than ever. This lightweight and compact system has the ability to inspect lines up to 100'. The docking handle is designed to transport the micro CA-350 monitor with ease. This system includes an adapter so that your micro CA-350 Inspection Camera can be connected (inspection camera sold separately).

Features:

• Simplification - Already equipped with the micro CA-350 adaptor for inspection and documentation with the micro CA-350 inspection camera (micro CA-350 sold separately)
• Portability - The added CA-350 docking handing is designed to easily transfer of equipment from jobsites
• Easy navigation - Mid-flex push cable ideal for small diameter (1 1/2" to 4", 40 to 101 mm) and tight-turn radius inspections up to 100' (30 m)
• Durability - Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life
• Flexibility - Built-in kickstand can be used upright for tight spaces, at an angle for added leverage or on four feet to provide stability while pushing or receiving
• Traceability - Integrated 512 Hz sonde allows for easy line tracing and locating
• Versatility - Use with any SeeSnake monitor or Wi-Fi Hub

Specifications:

• Camera Diameter: 25mm
• Camera Type: Fixed
• Self-Leveling: None
• Resolution: 640 x 280 pixels
• Line Capacity: 40mm to 101mm
• Push Cable Length: 30m
• Push Cable Diameter: 6.7mm
• Cable Flexibility: Mid Flex
• Push Cable Minimum Bend Radius: 64mm
• Sonde: 512Hz, Integrated
• Dimensions (L x W x H): 337mm x 224mm x 411mm
• Weight: 5.8kg

Warranty:

• Full Lifetime Warranty Covered by Rigid
