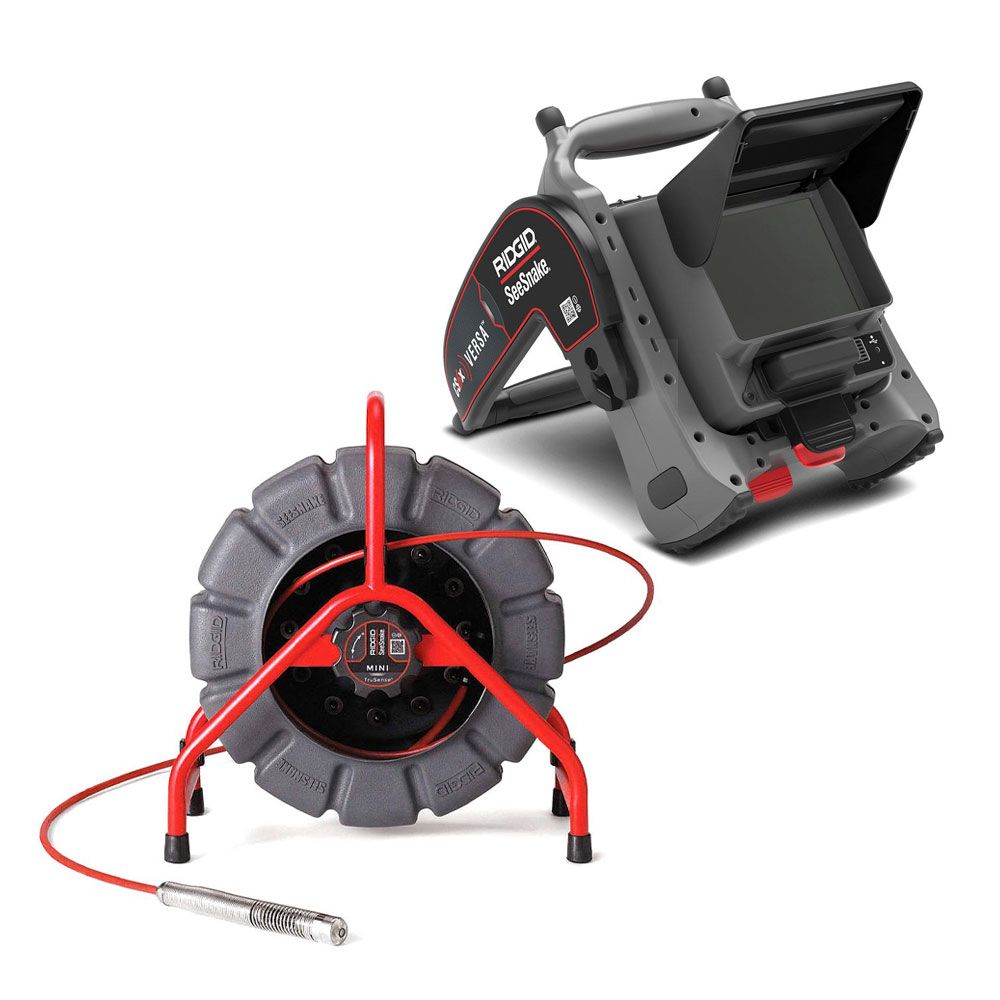

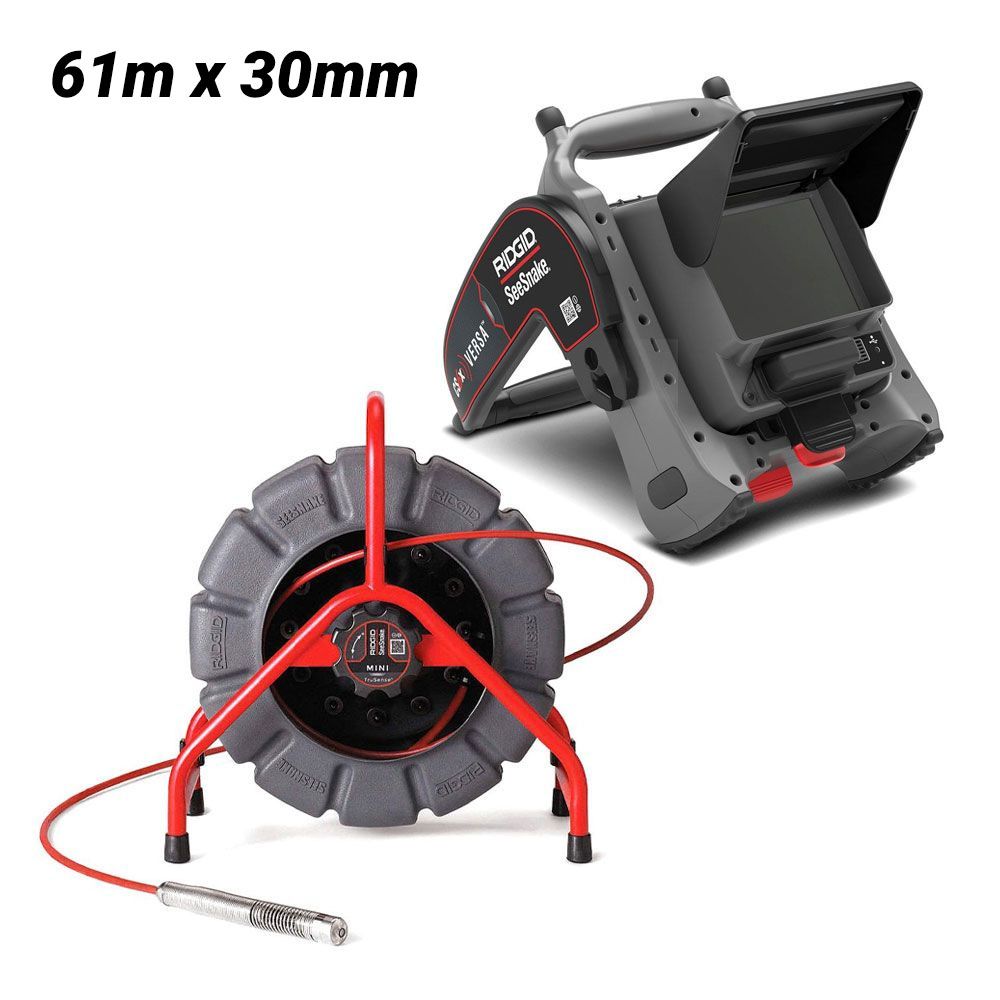

Ridgid 63633 + CS6x VERSA (64943) 61m x 30mm SeeSnake Mini Camera with TruSense & SeeSnake Digital Recording Monitor with Wi-Fi

Improving jobsite ergonomics, the CS6x Versa has high and low monitor mounting positions and a unique pivoting frame that lets users tilt the monitor to the desired angle for optimal viewing efficiency. This design allows the sunshade to remain open in all usage situations for maximum glare reduction.

Includes:

• 1 x AC Adapter
• 1 x 8 GB USB Drive (with HQ preloaded)

Features:

• The CS6x Versa has a 5.7” daylight viewable screen, direct USB recording, full TruSense™ compatibility, and Wi-Fi connectivity for remote viewing and recording on a phone or tablet.
• The frame docks to the Compact 2/C40/M40 and can be used mounted or unmounted.
• Pivoting frame with high and low mounting positions allow flexible placement and optimal viewing
• Docks to the Compact 2/C40/M40 camera reels for efficient transport, storage, and operation

Specifications:

• Power source: 18V Battery (not included) or AC adapter
• Power rating: 15-25VDC, 25W
• Display:
• Type: Colour LCD
• Size: 145mm
• Resolution: VGA 640 x 480 pixels
• Brightness: 460cd/m²
• Media:
• Standard video: MPEG4 (H.264)
• Autolog video: MPEG4 (H.264) Low, variable frame rate for decreased file size
• Photo: JPG
• PhotoTalk: MPEG4 (H.264) Single image with audio commentary
• Audio: Integrated microphone and speaker
• Transfer method: 2.0 USB
• USB port: 1 x 1.5A
• Connectivity:
• Bluetooth: 4.0
• Wi-Fi: 802.11 a/b/g/n
• Operating environment:
• Temperature: -10°C to 50°C
• Storage temperature: -10°C to 70°C
• Ingress protection: IPx5
• Relative humidity: 5 to 95%
• Altitude: 4000m
• Dimensions (L x W x H): 332mm x 233mm x 309mm
• Weight: 2.2kg

The SeeSnake Mini with TruSense provides down pipe visibility, vastly improved with High Dynamic Range (HDR), giving more clearly defined details of the pipe characteristics. The rugged, high-intensity LEDs provide exceptional viewing and longer life. High Dynamic Range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.

Features:

• The SeeSnake Mini camera reel is the smaller version of the SeeSnake Standard system
• Now available with TruSense™ technology
• The Mini's moderately stiff 200' (61m) push cable strikes a good balance between stiffness and the ability to navigate turns
• Rugged, high-intensity LEDs for exceptional viewing and long life.
• Powerful FleXmitter® sonde has long range and preserves the camera's ability to make turns.
• High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions
• TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.
• Please note: This model is not self leveling, for self leveling please see Ridgid 63628 61m x 30mm Self Levelling SeeSnake Mini Camera with TruSense

Specifications:

• Line Capacity: 40 - 200mm
• Maximum Run: 61m
• Sonde: 512 Hz
• Camera Diameter: 30mm
• Camera Length: 42mm
• Push Cable Diameter: 8mm
• Operating Temperature: -20˚ to 40˚C
• Waterproof Depth: 100m
• Video Resolution (H x V): 656 x 492
• Number of Pixels: 323K
• Reel Frame Diameter: 510mm
• Weight (without monitor): 11.1kg
