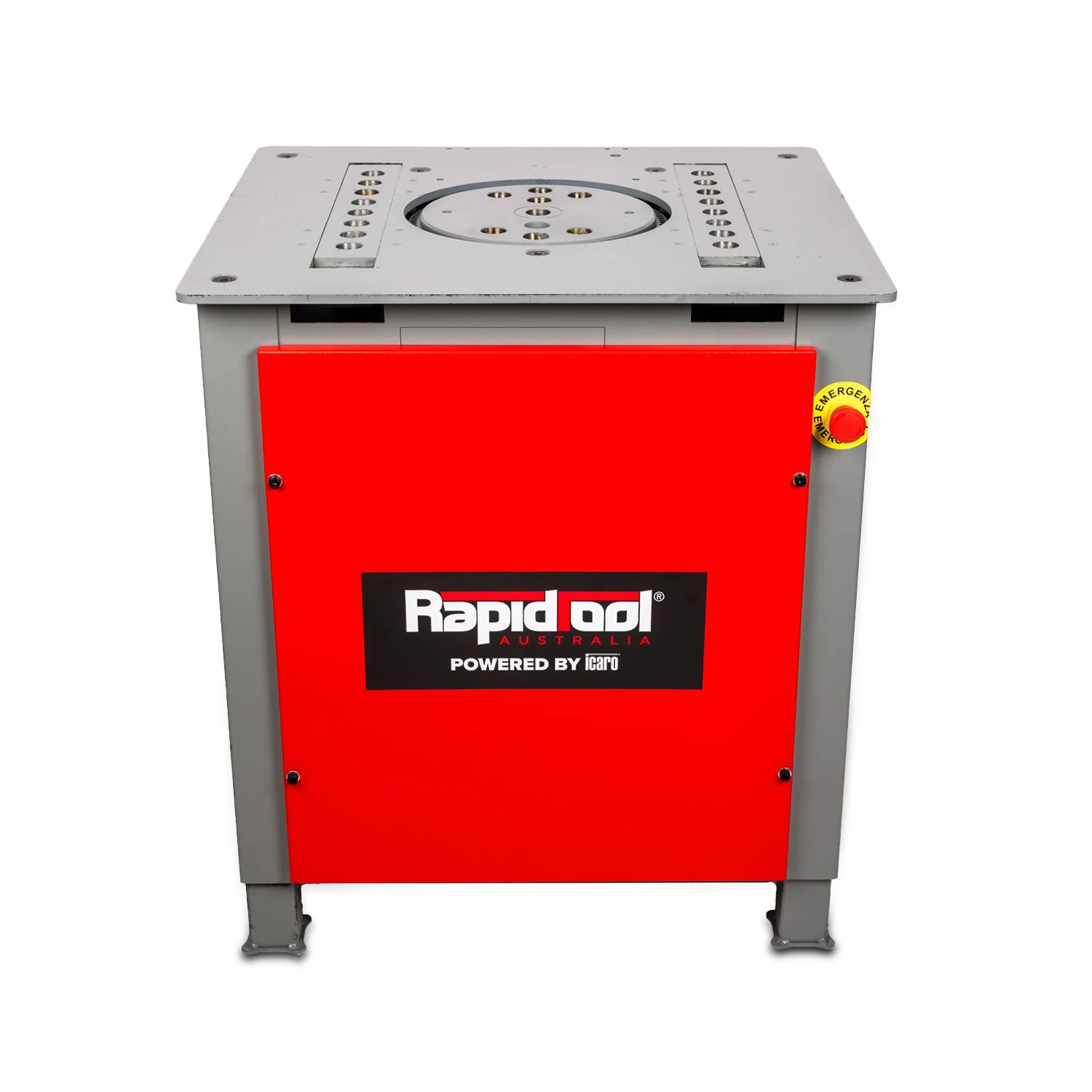

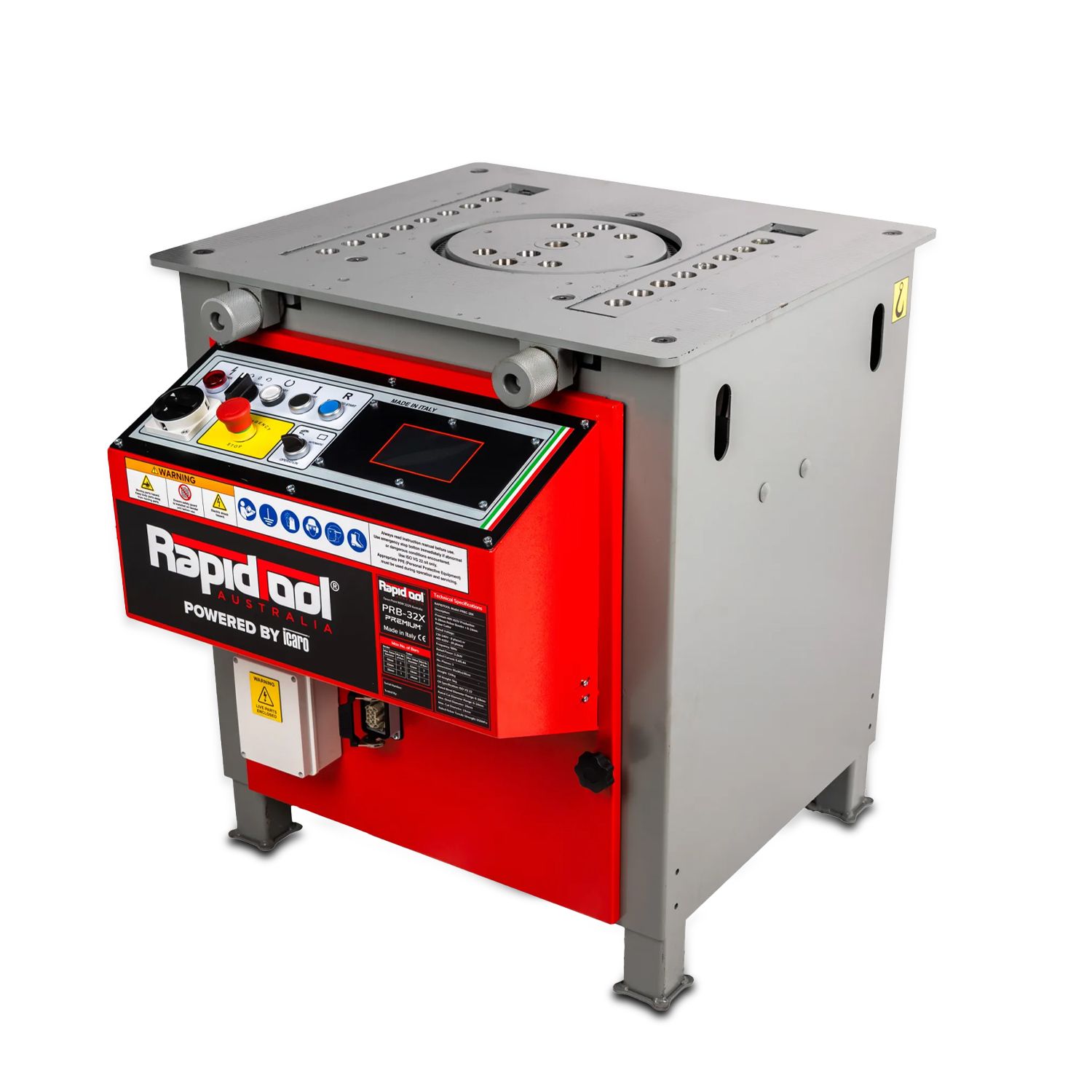

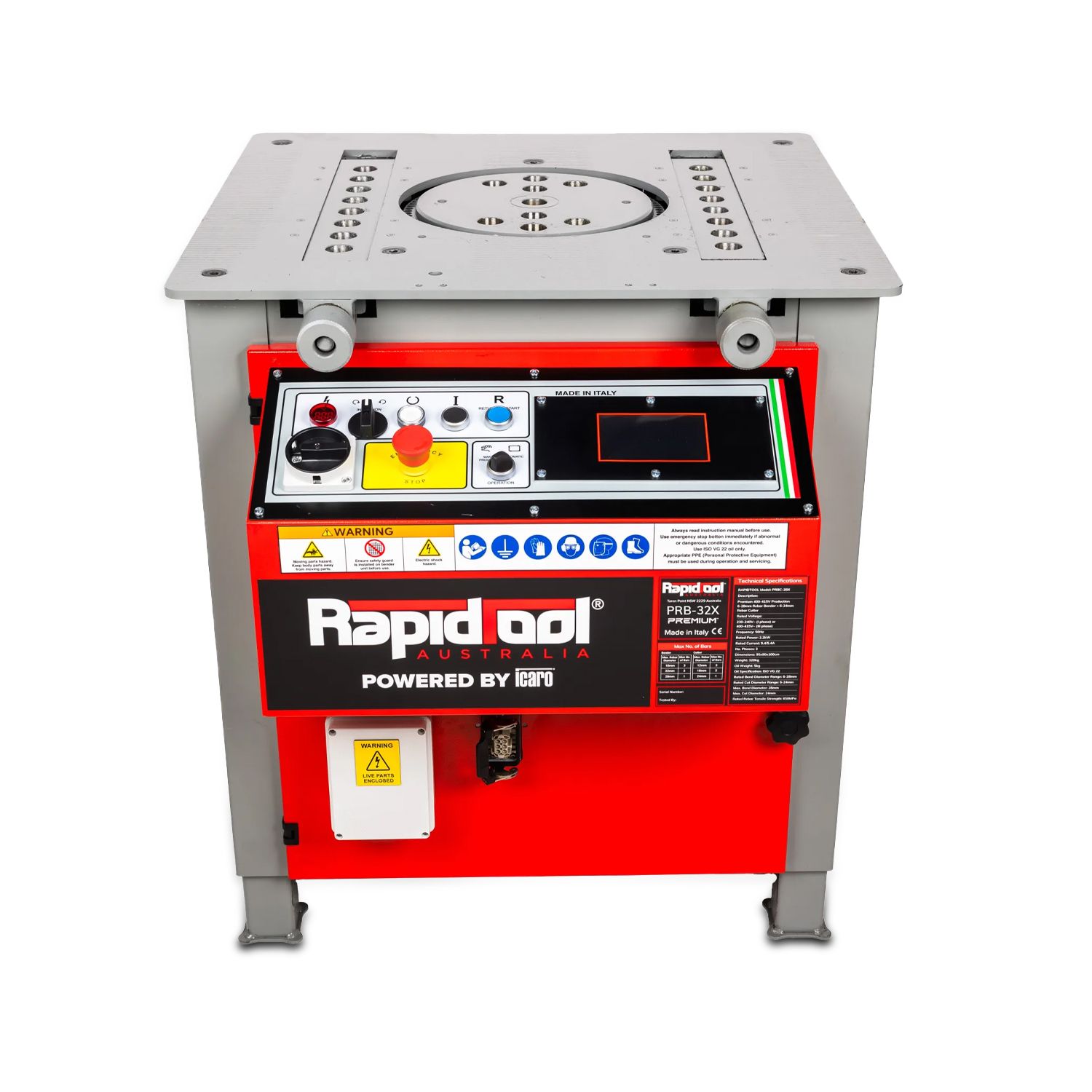

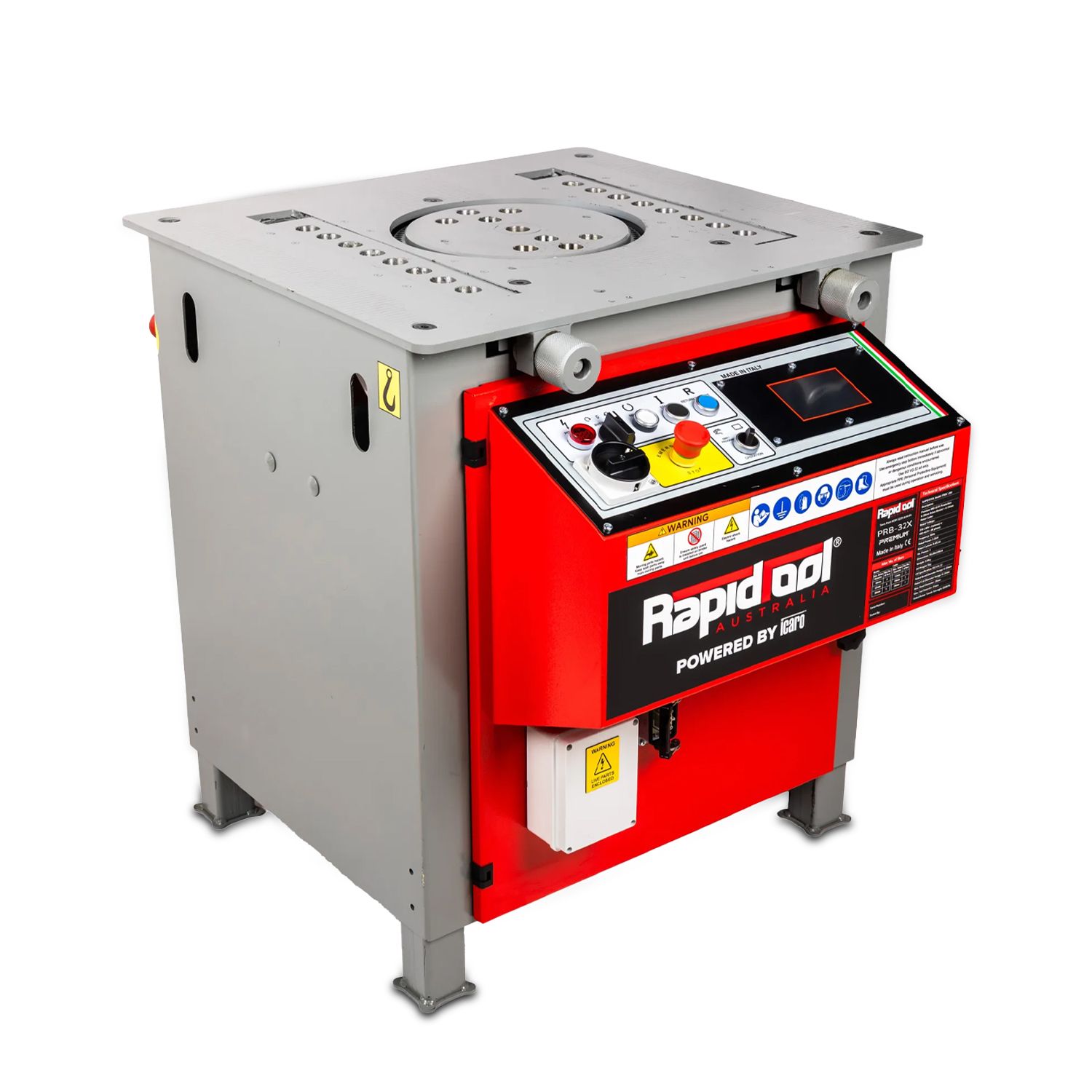

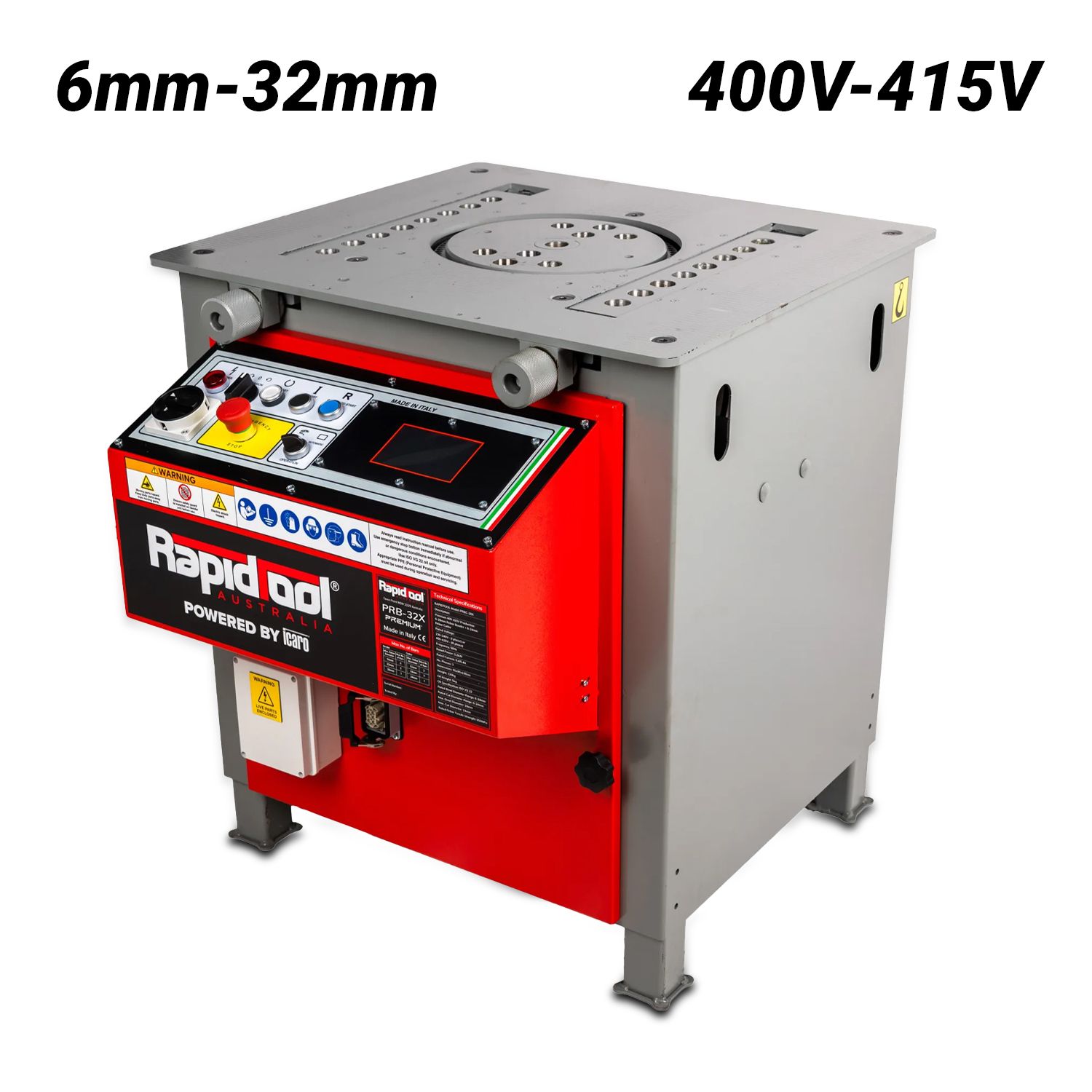

RAPIDTOOL PRB-32X Premium 400-415V Heavy Duty 6-32mm Rebar Bender

RAPIDTOOL PRB-32X Premium 400-415V Heavy Duty 6-32mm Rebar Bender

The RAPIDTOOL PRB-32X is a robust, industrial-grade rebar bender engineered for high-performance bending in demanding construction environments. Delivering precision, durability, and efficiency, this premium unit handles rebar diameters from 6mm to 32mm, making it an ideal choice for contractors working on commercial, residential, and infrastructure projects.

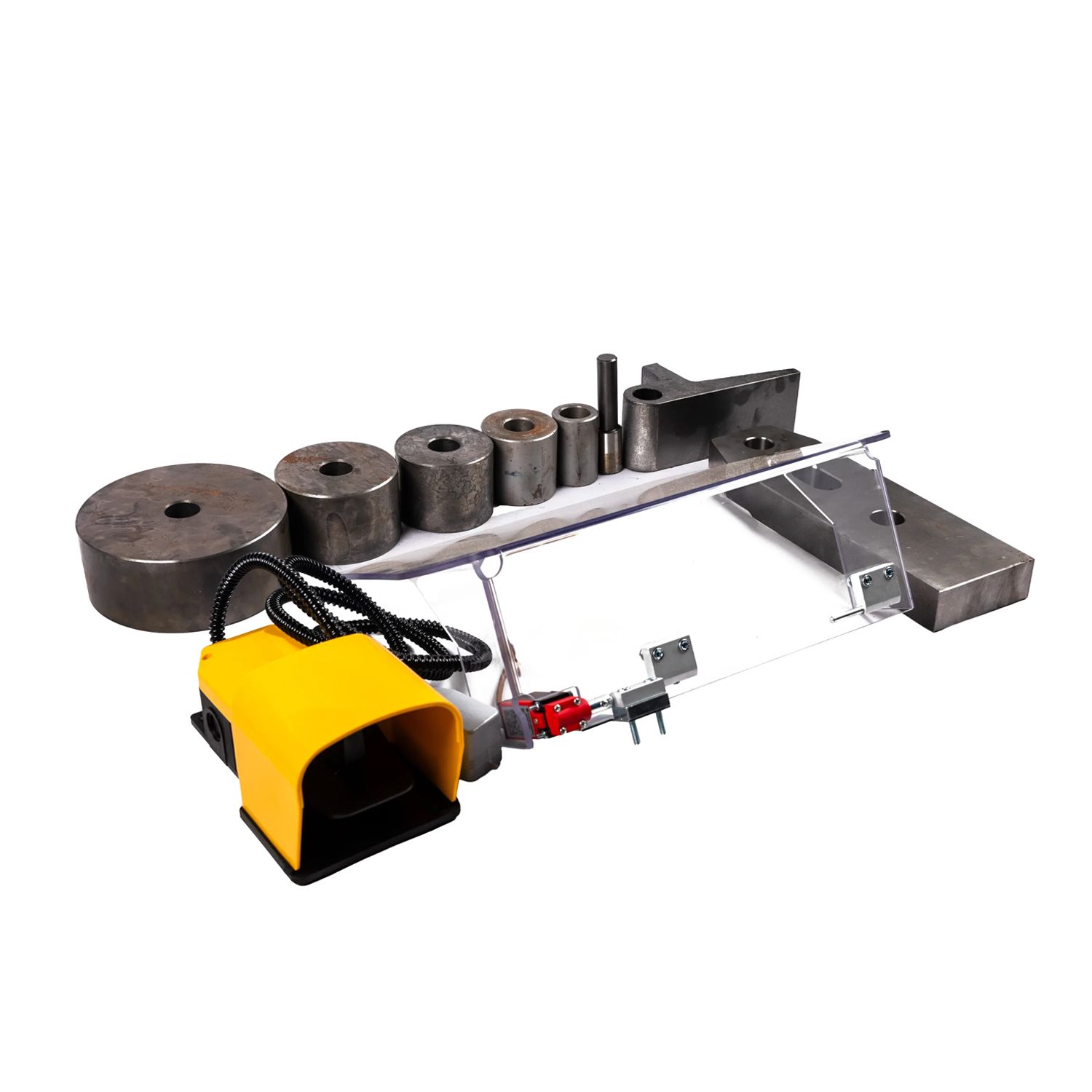

Includes:

• 1 x Squaring Arm Set

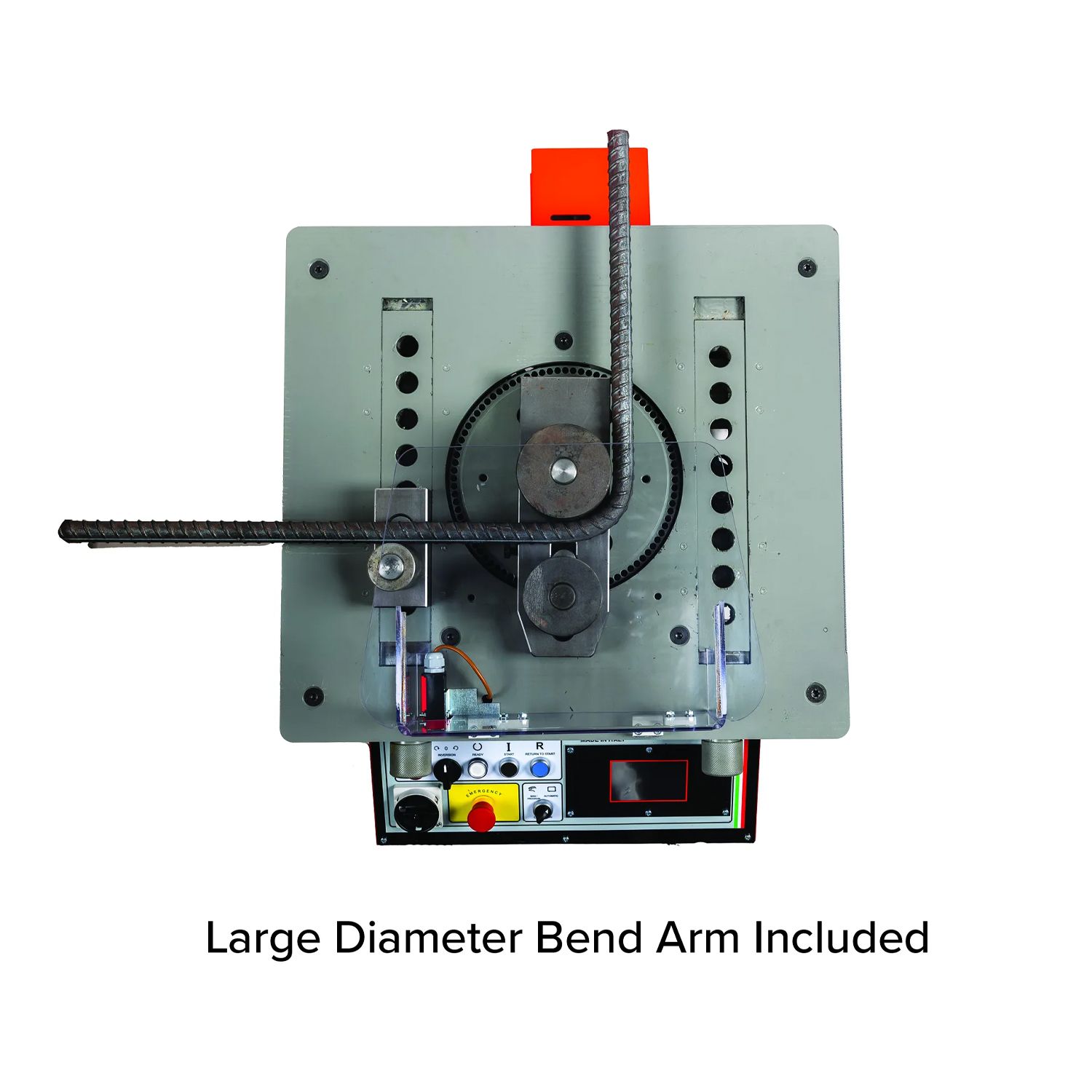

• 1 x Large Diameter Arm*
• 1 x Foot Pedal
• 1 x Safety Guard
• Pins
• Bushings

Features:

• Fast, Clean Bends: Ideal for high-volume production

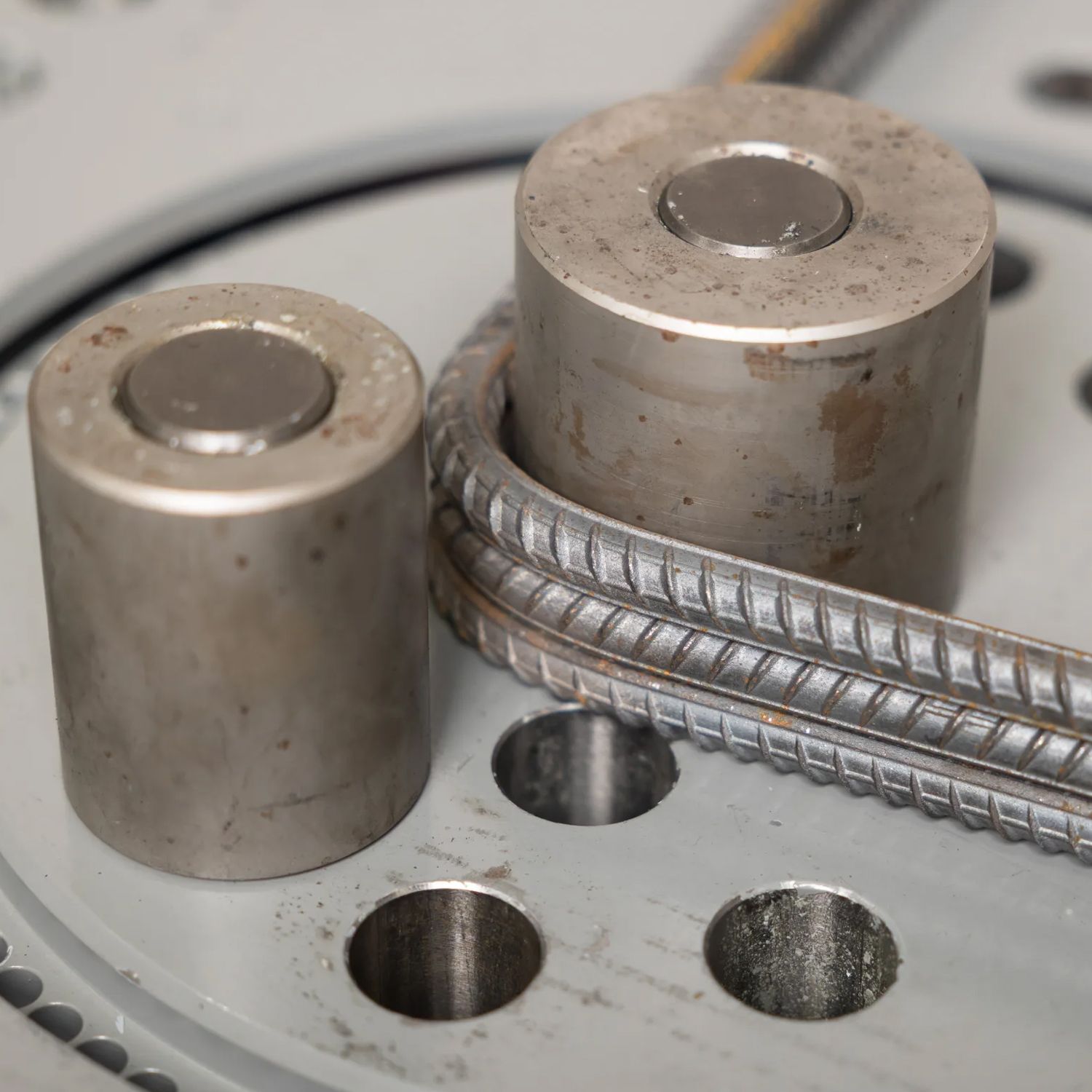

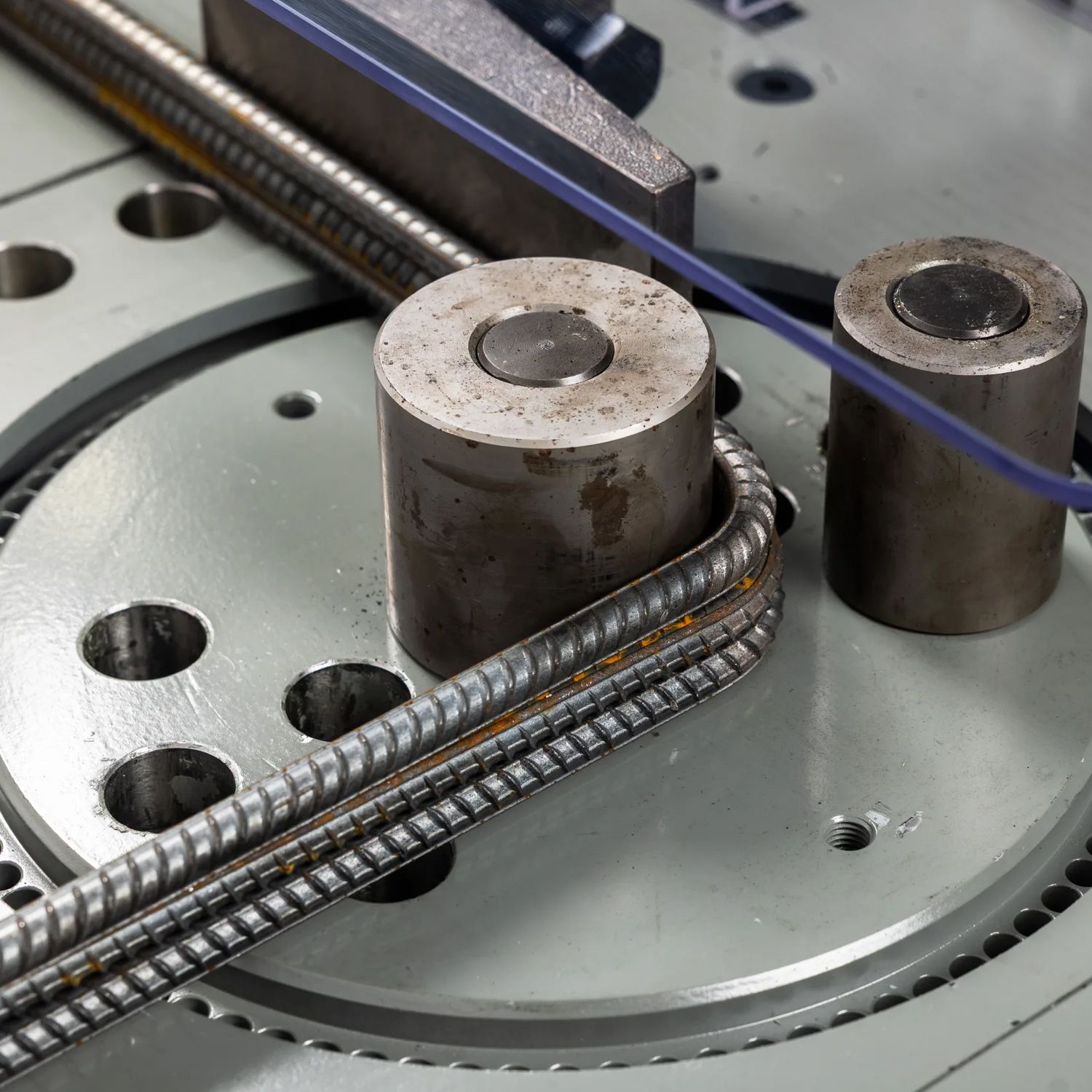

• Multi-Bar Processing: High-efficiency bending
• Bending Capacity: 6-32mm rebar (D500N)
• Advanced Digital Controls: Digitally preset multiple bend angles + built-in bend counter
• Bidirectional Bend Table: Enhanced flexibility and efficiency
• Heavy-Duty Three-Phase Motor: Built for continuous, high-output performance
• Foot Pedal Control: Flexible, ergonomic, and operator-safe
• Safety-First Design: Interlocked guards and door sensors
• Optional Tools: Ligature/stirrup, spiral and rebar ring forming tools available
• Industrial Frame: Maximum durability and long service life
• Precision and Speed: Production-grade performance
• European Engineering, Local Support: Built for Australia with parts and full servicing in Australia

Specifications:

• Poles: 4
• Rated Voltage: 400–415V 3~
• Rated Frequency: 50Hz
• Rated Power: 3kW
• Rated Current: 7.1A
• Number of Phases: 3
• Full Load Motor Speed: 1415 RPM
• Average Bend Cycle Speed: 10 RPM
• Rated Bending Diameter Range: 6–32mm (650MPa)
• Max Diameter of Bar & Number of Bars:
  • 32mm – 1 bar
  • 24mm – 2 bars
  • 18mm – 3 bars
• Machine Dimensions (L x W x H): 900mm x 750mm x 850mm
• Weight: 375kg
