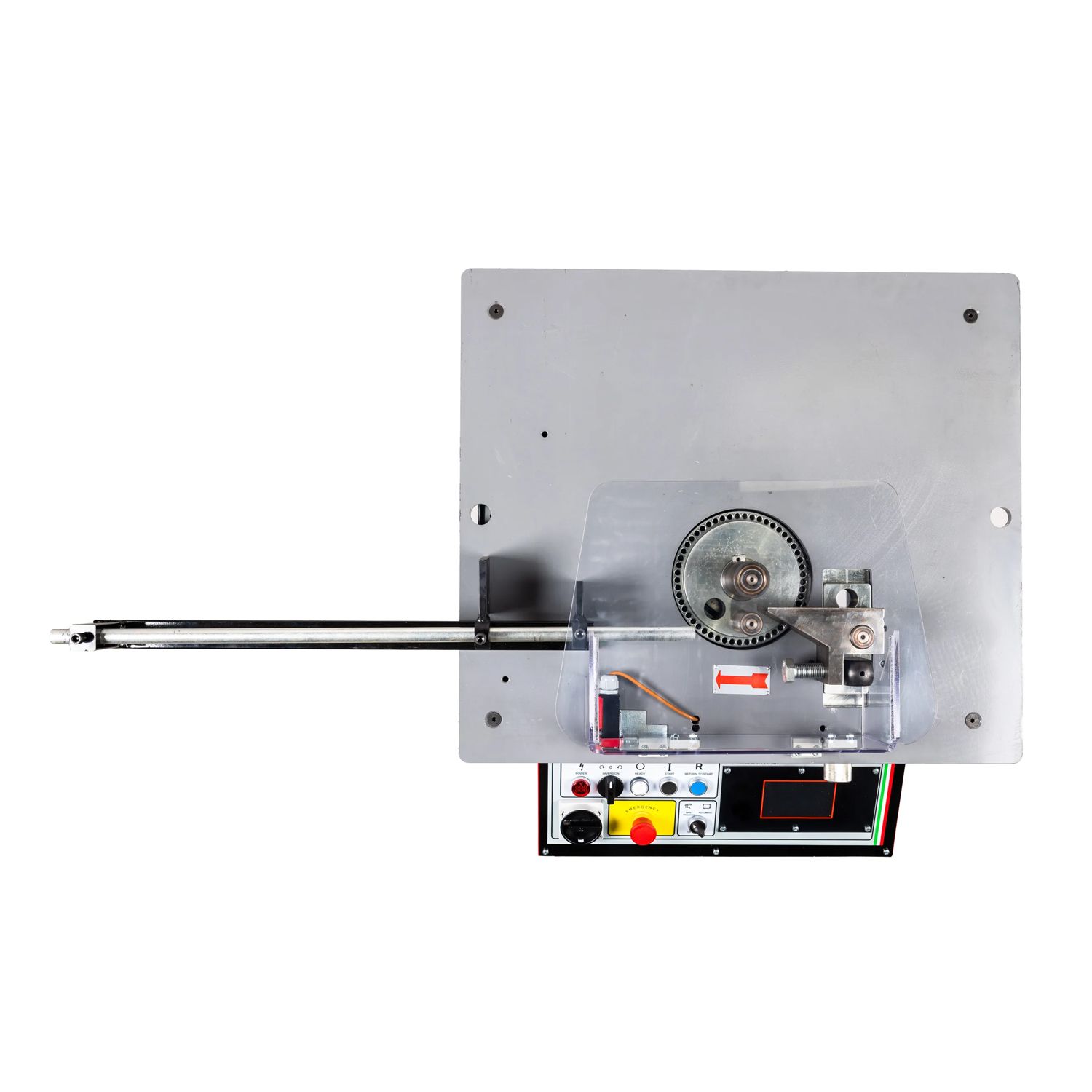

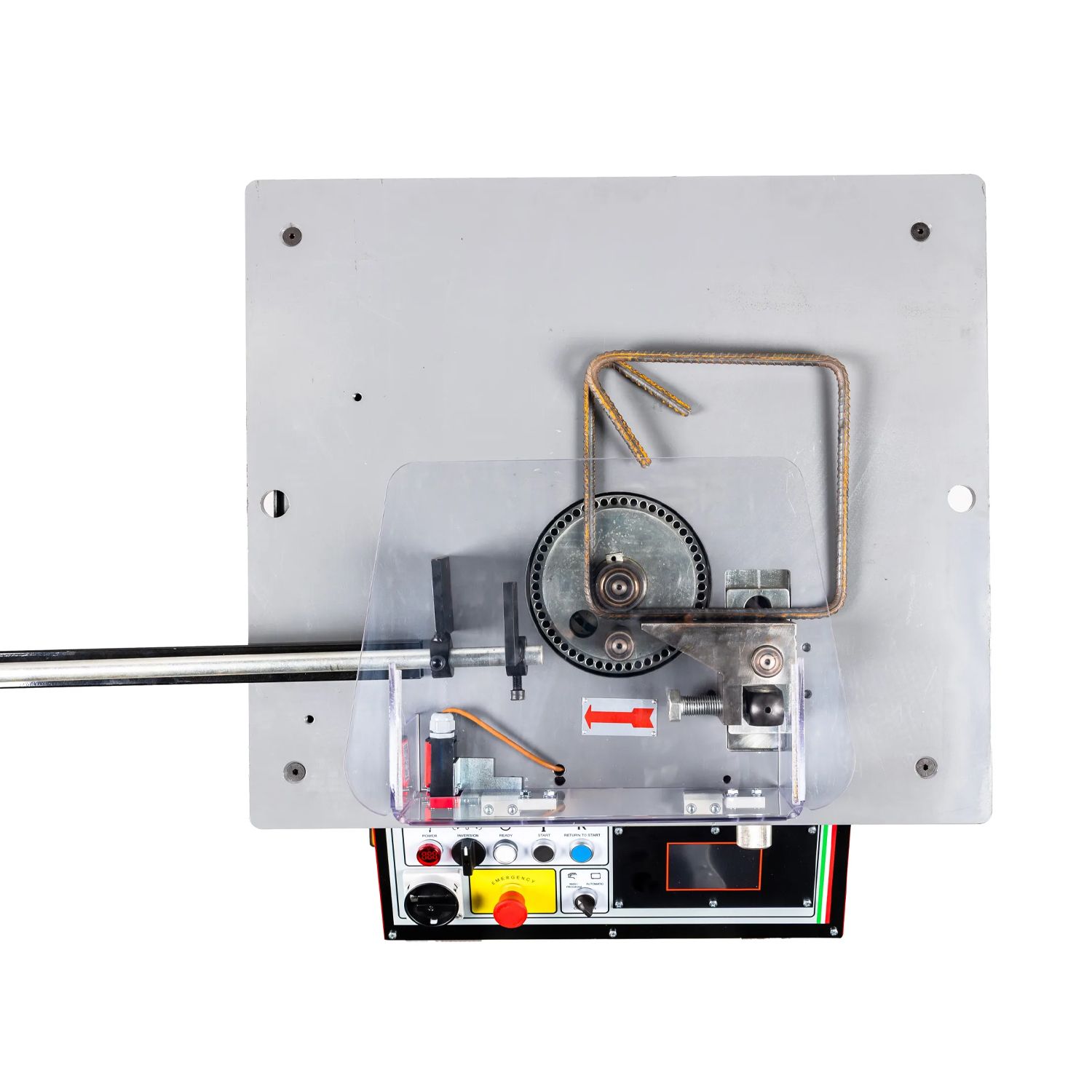

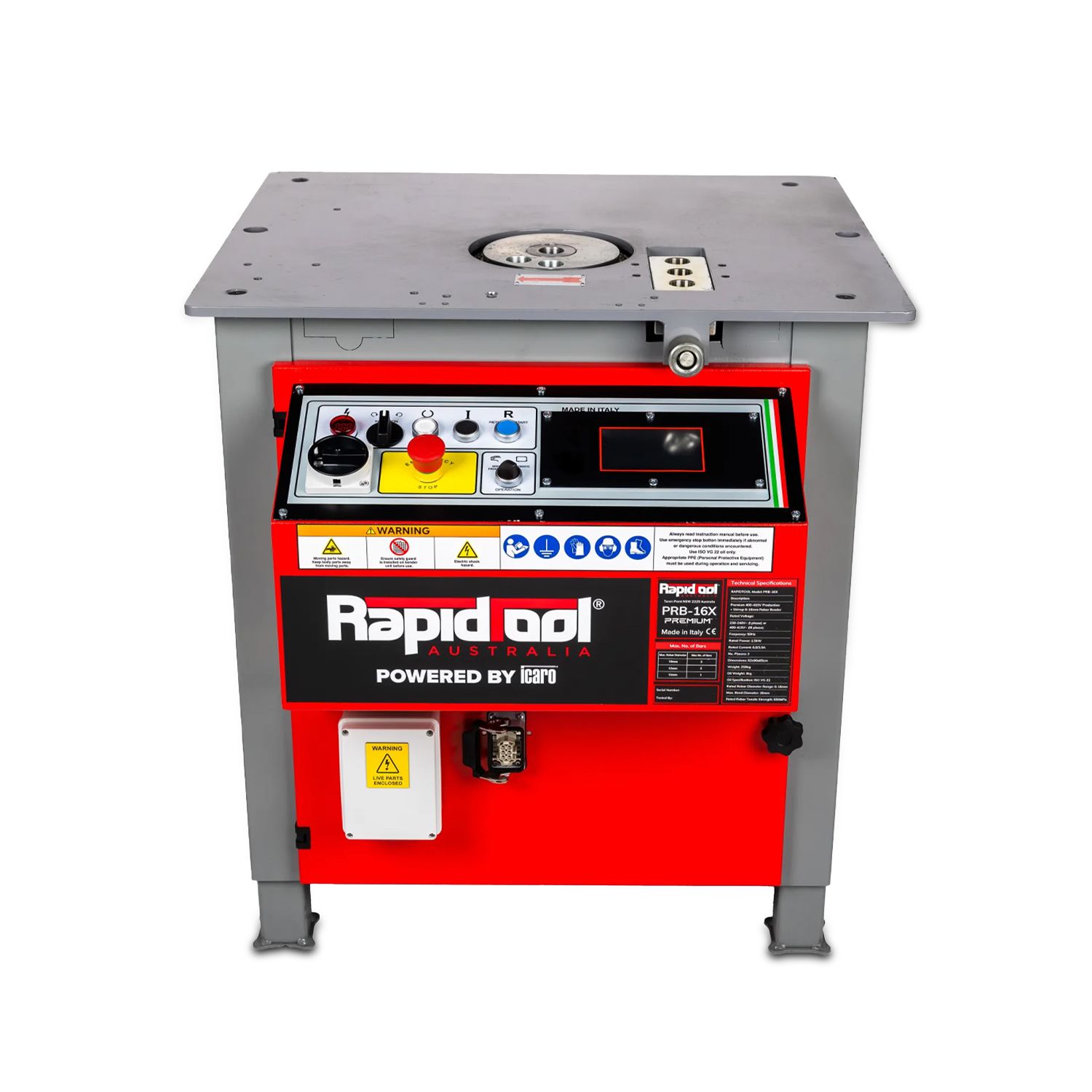

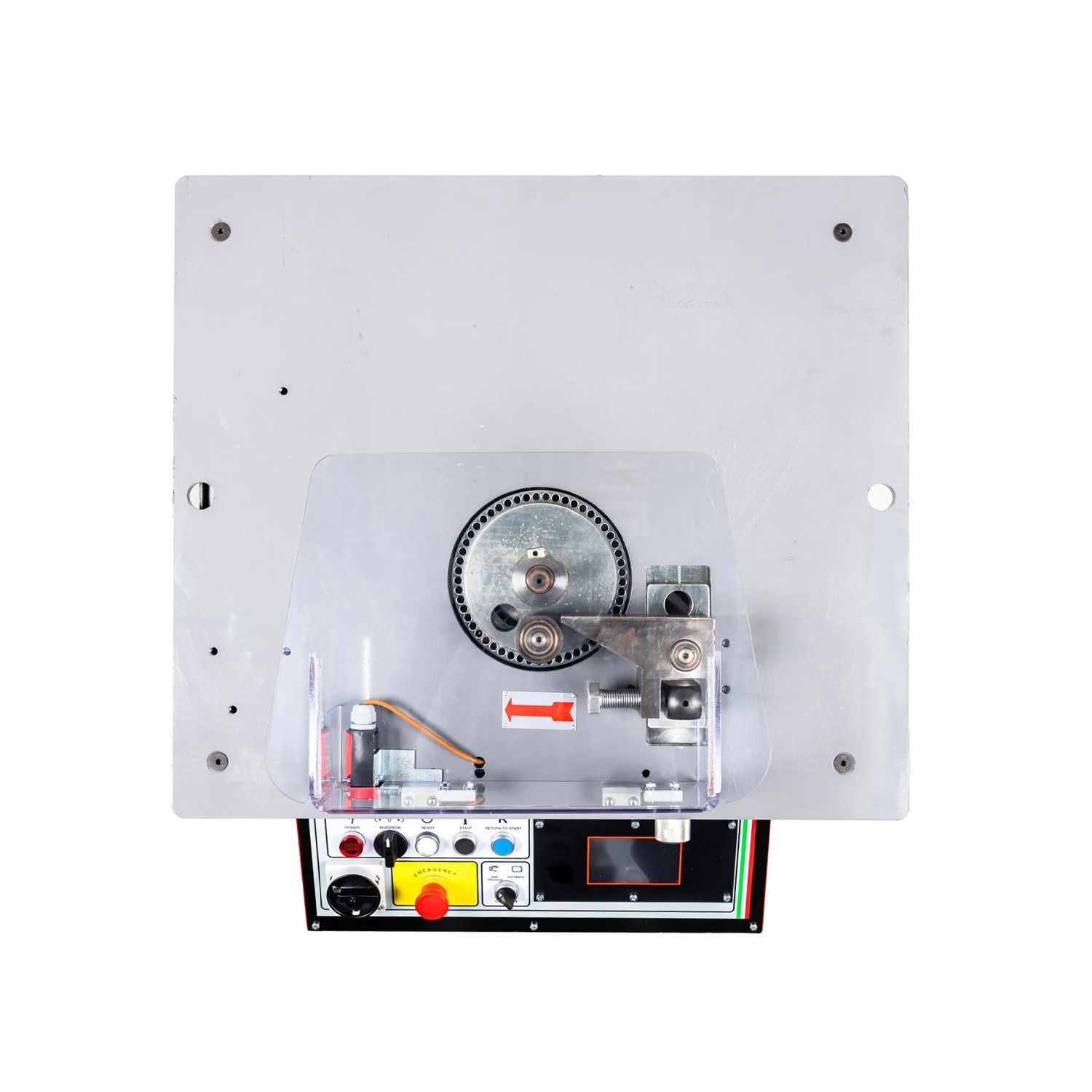

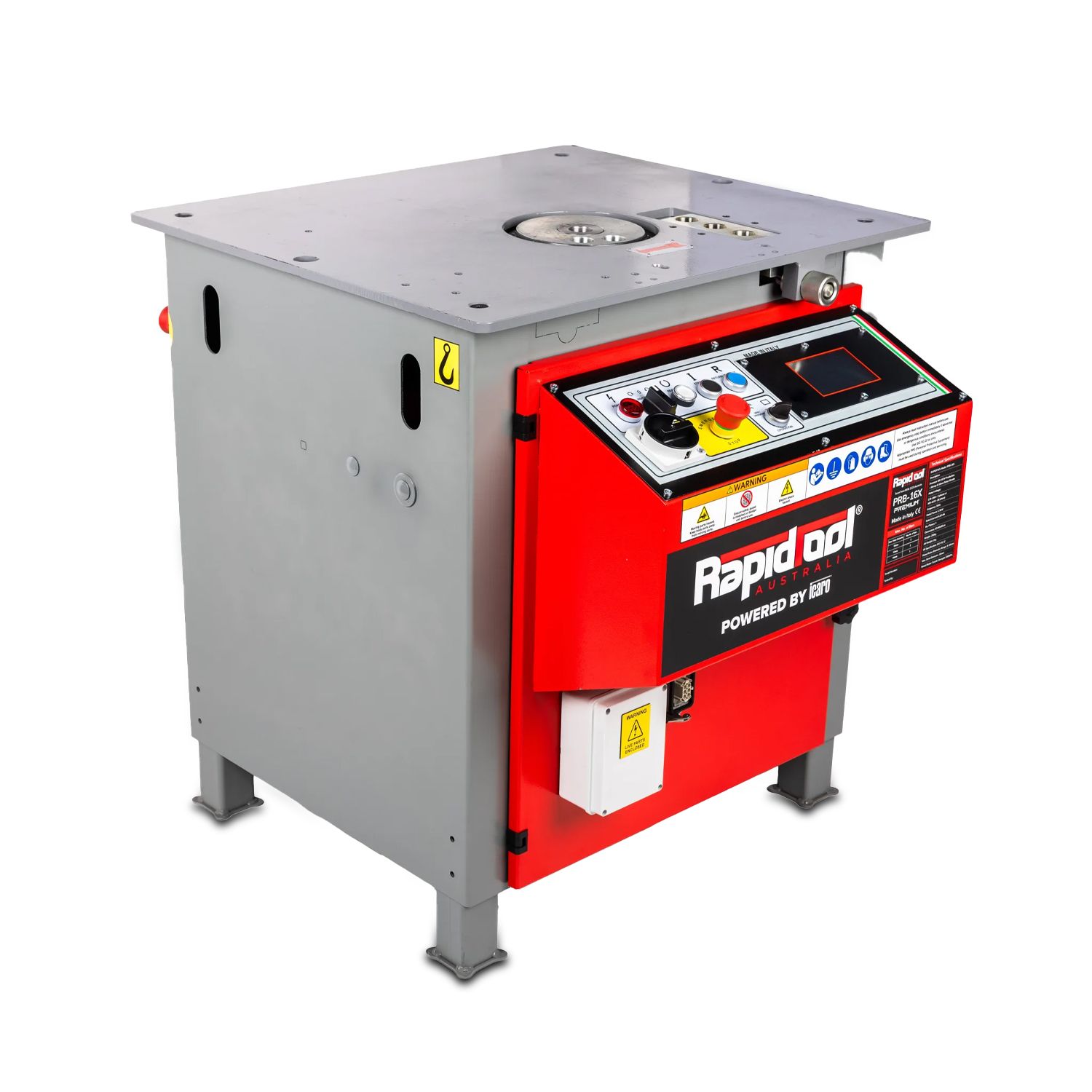

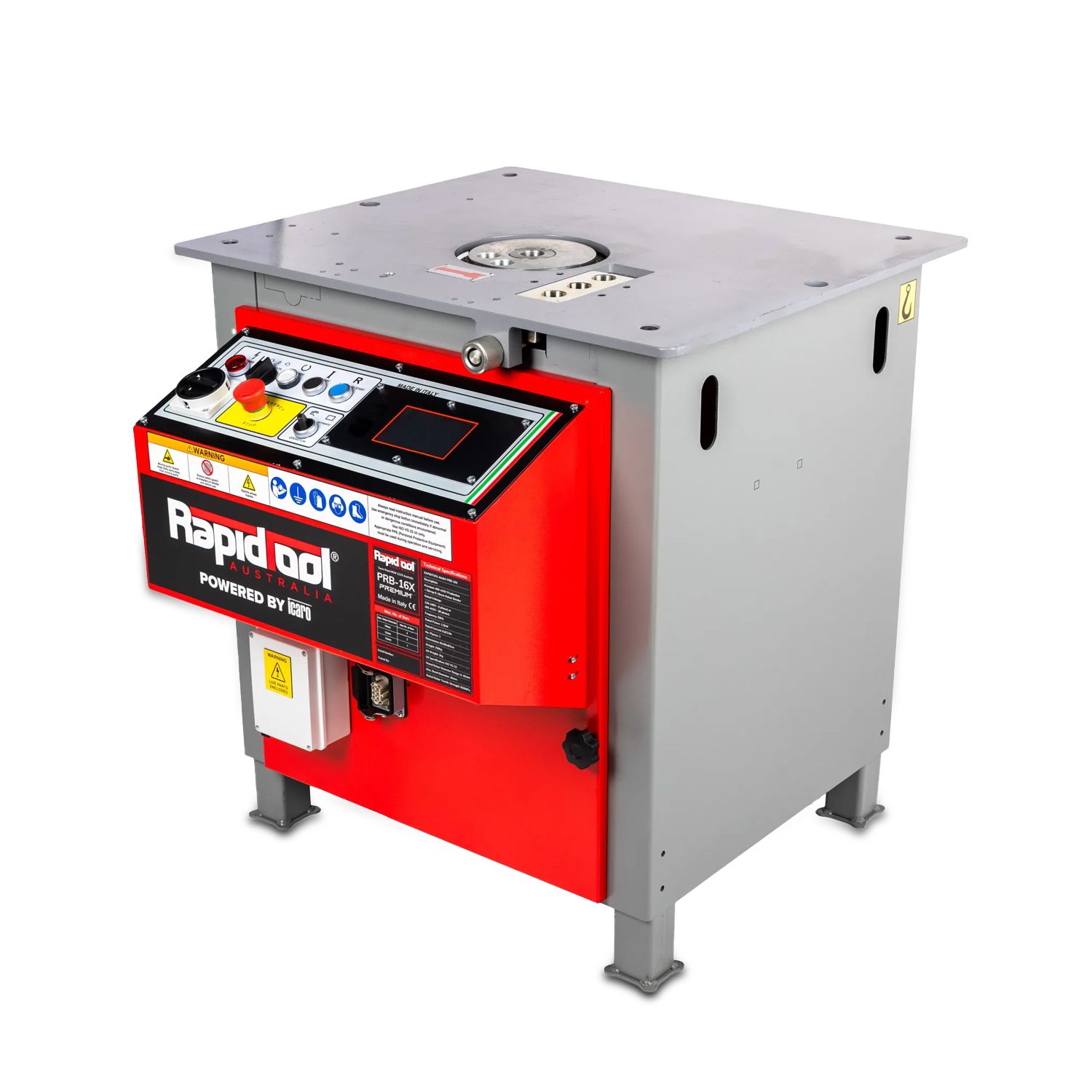

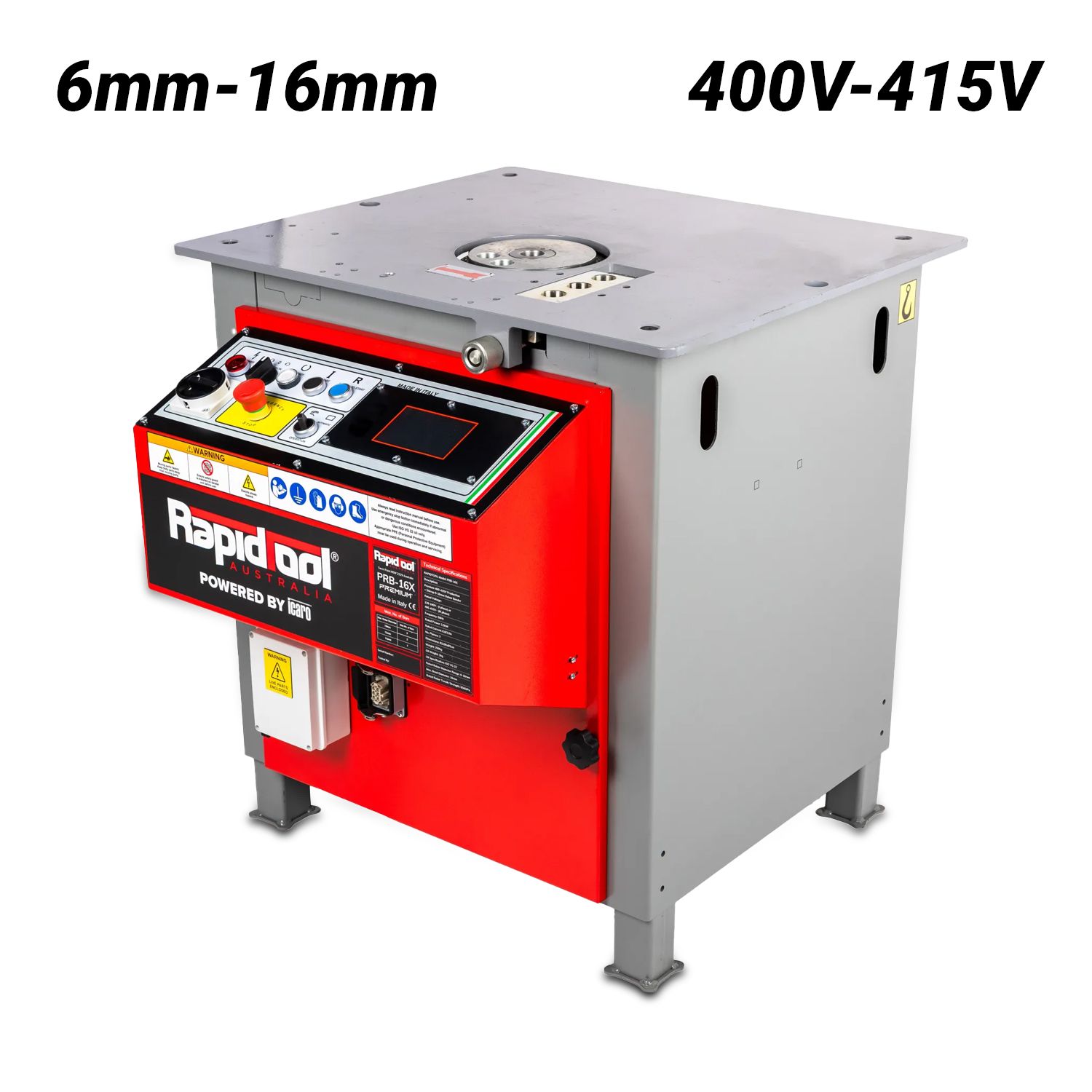

RAPIDTOOL PRB-16X Premium 400-415V Heavy Duty 6-16mm + Stirrup Rebar Bender

RAPIDTOOL PRB-16X Premium 400-415V Heavy Duty 6-16mm + Stirrup Rebar Bender

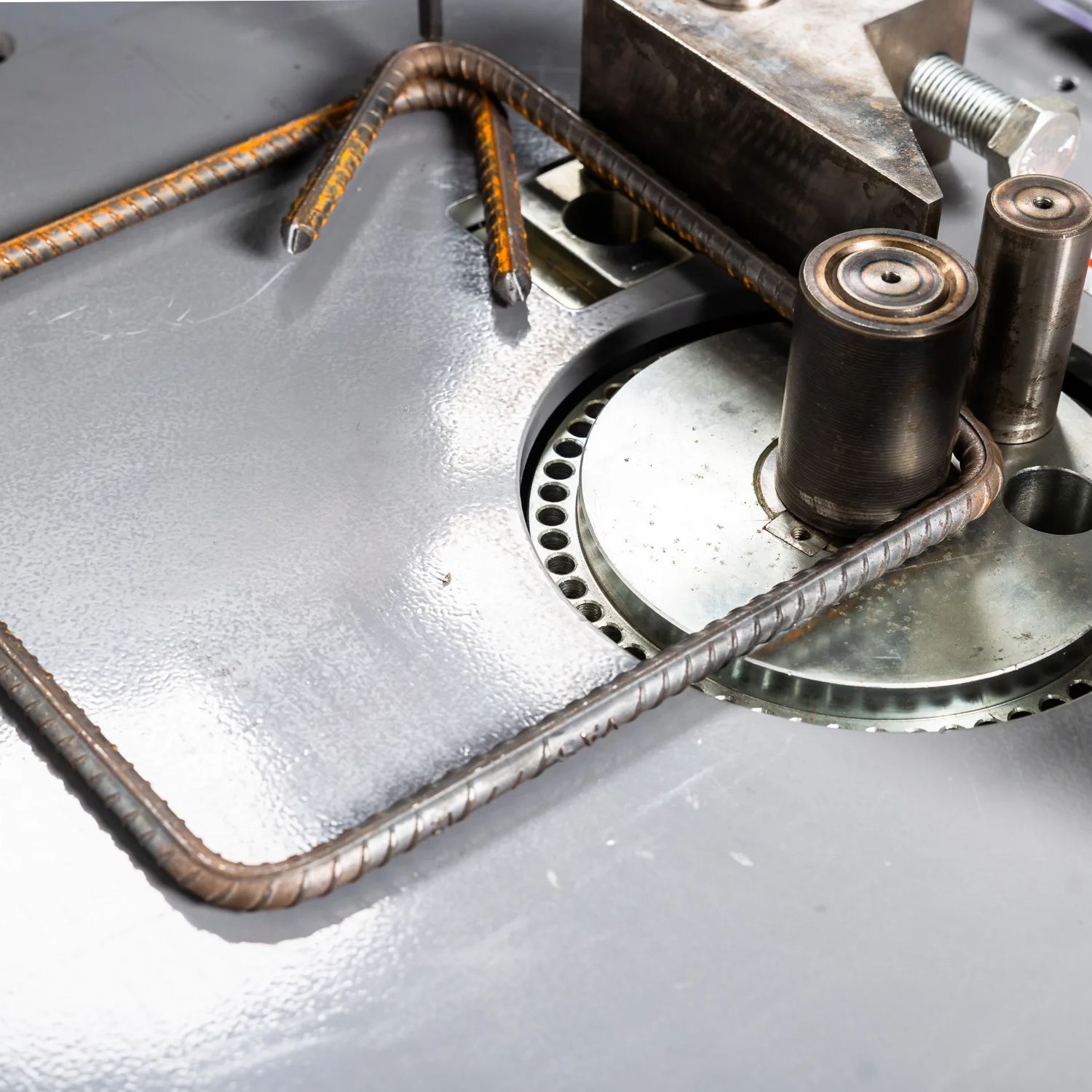

The RAPIDTOOL PRB-16X is a high-performance, heavy-duty rebar and stirrup bender designed for demanding construction and fabrication environments. Engineered for reliability, precision, and efficiency, this premium machine delivers consistent bending performance for bar diameters ranging from 6 mm to 16 mm. Ideal for reinforcing steel work, onsite fabrication, and workshop applications, the PRB-16X is built to withstand continuous operation while ensuring operator safety and ease of use.

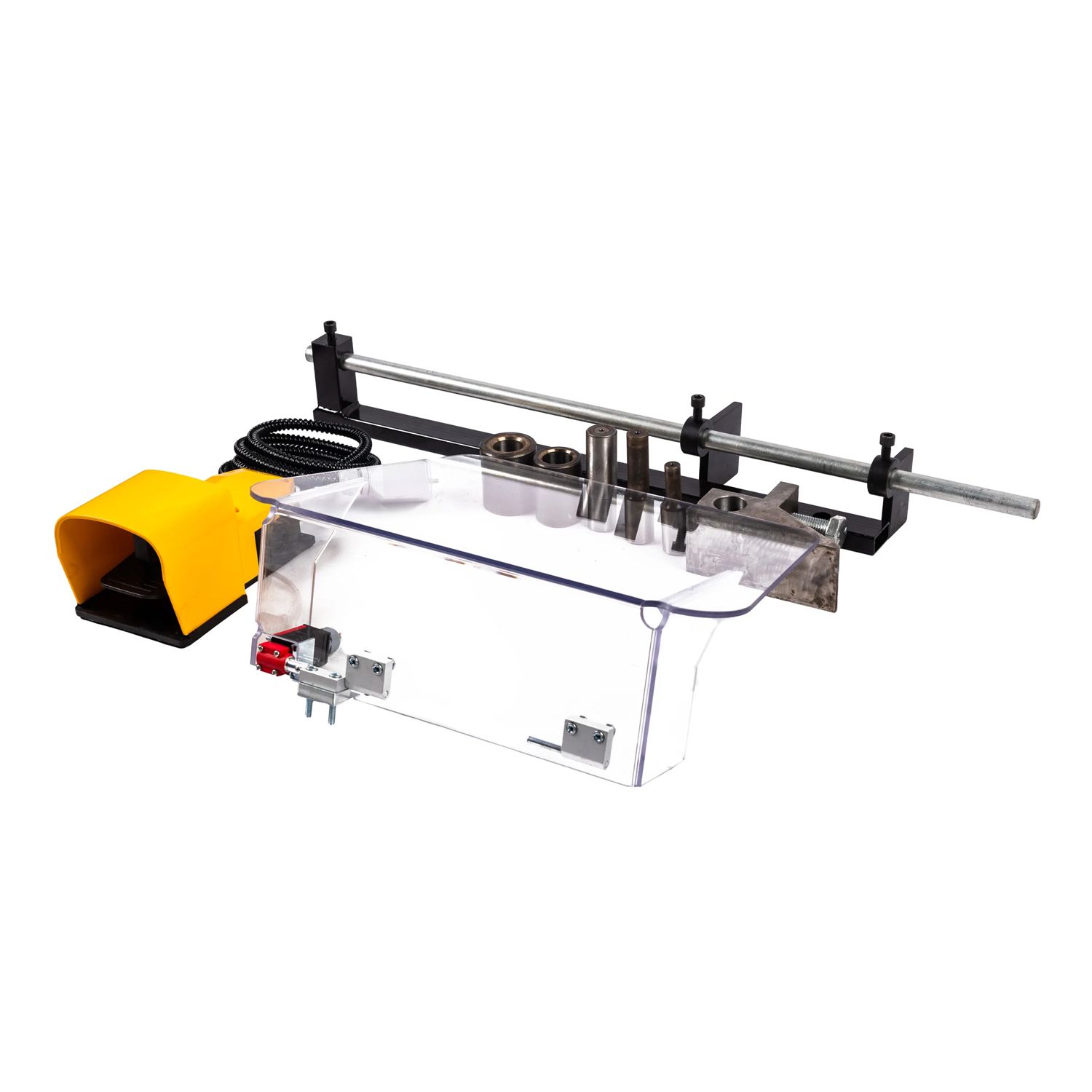

Includes:

• 1 x Squaring Arm Set
• 1 x Large Diameter Arm*
• 1 x Foot Pedal
• 1 x Safety Guard
• Pins
• Bushings

Features:

• Fast, Clean Bends: Ideal for high-volume production

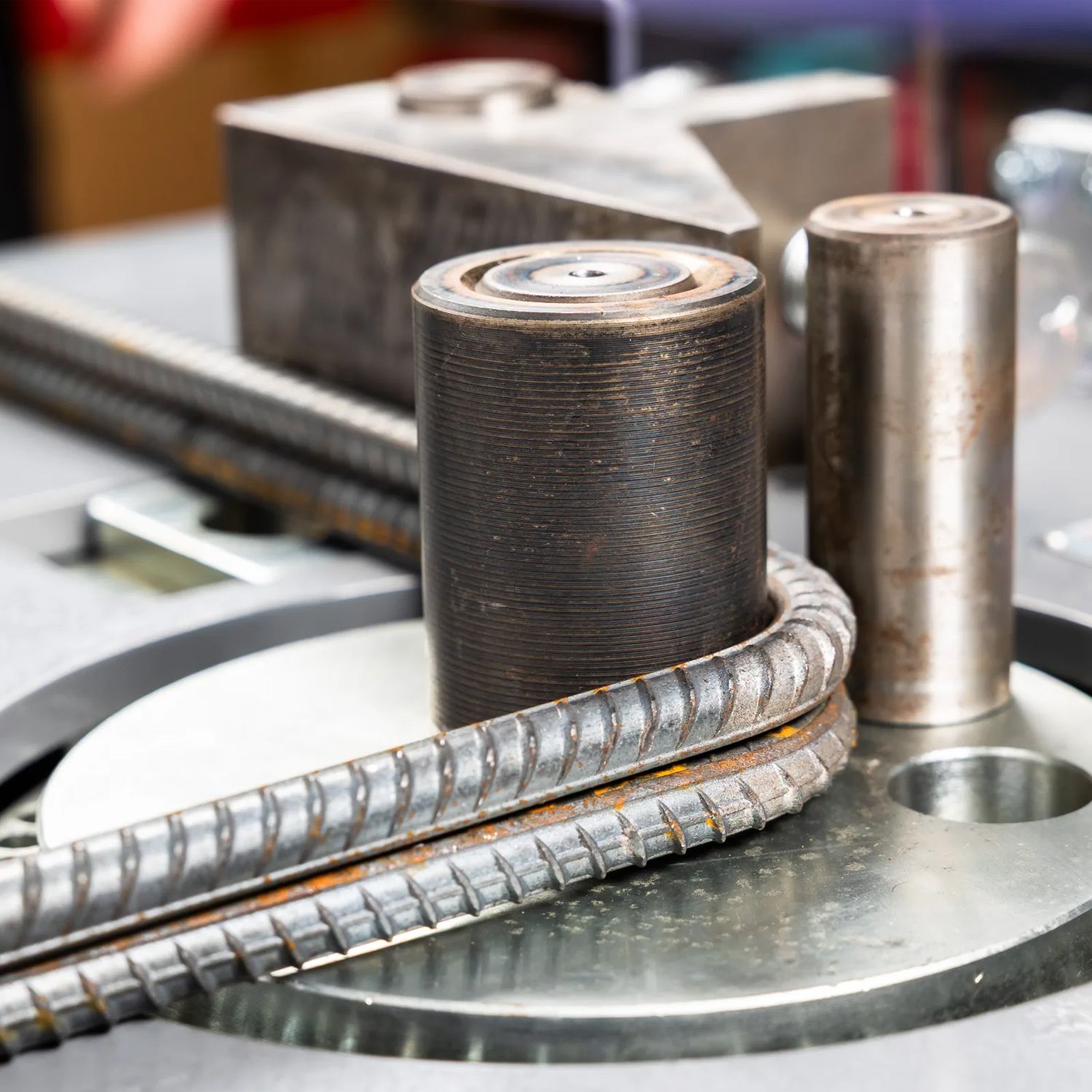

• Multi-Bar Processing: High-efficiency bending
• Bending Capacity: 6-16mm rebar (D500N)

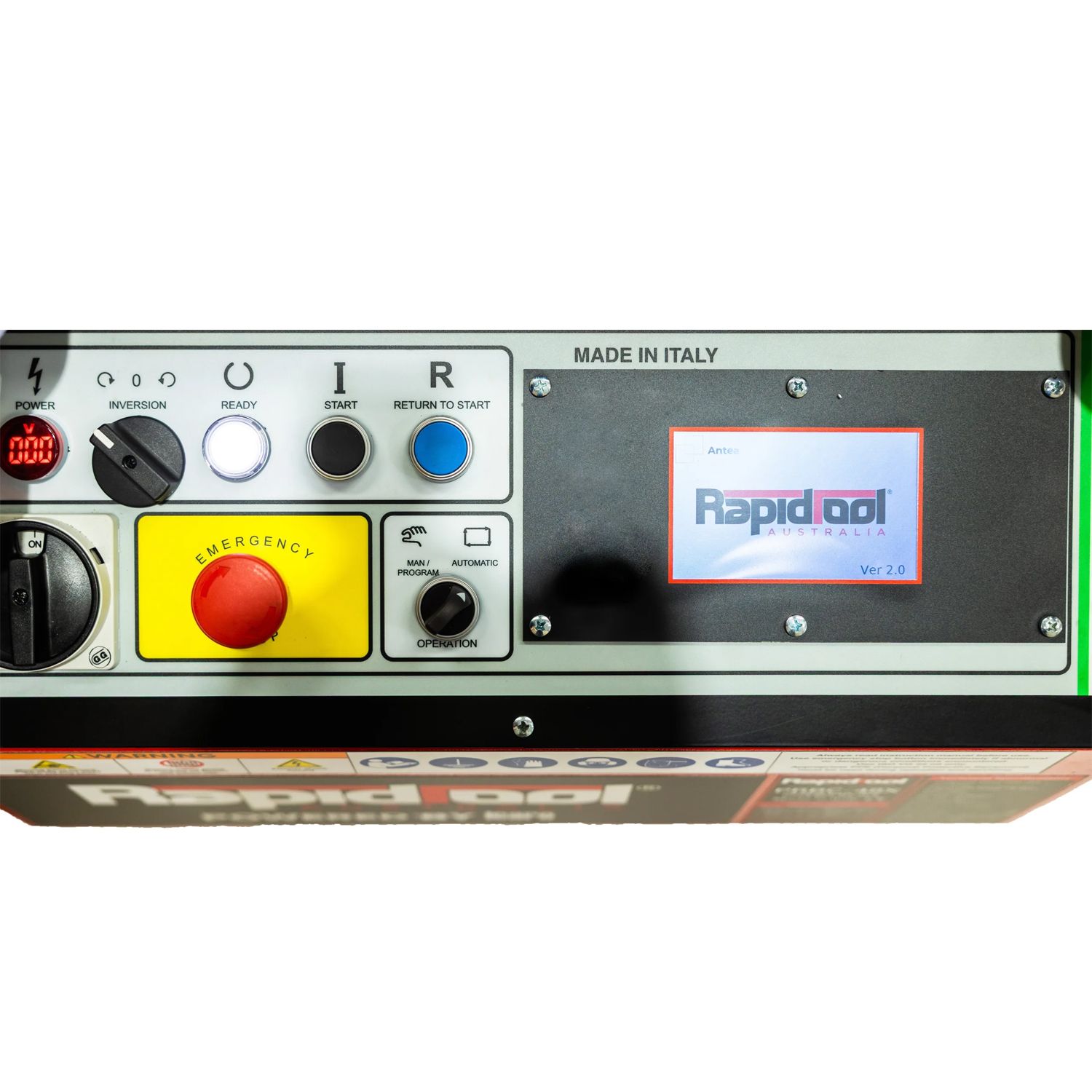

• Advanced Digital Controls: Digitally preset multiple bend angles + built-in bend counter
• Heavy-Duty Three-Phase Motor: Built for continuous, high-output performance
• Foot Pedal Control: Flexible, ergonomic, and operator-safe

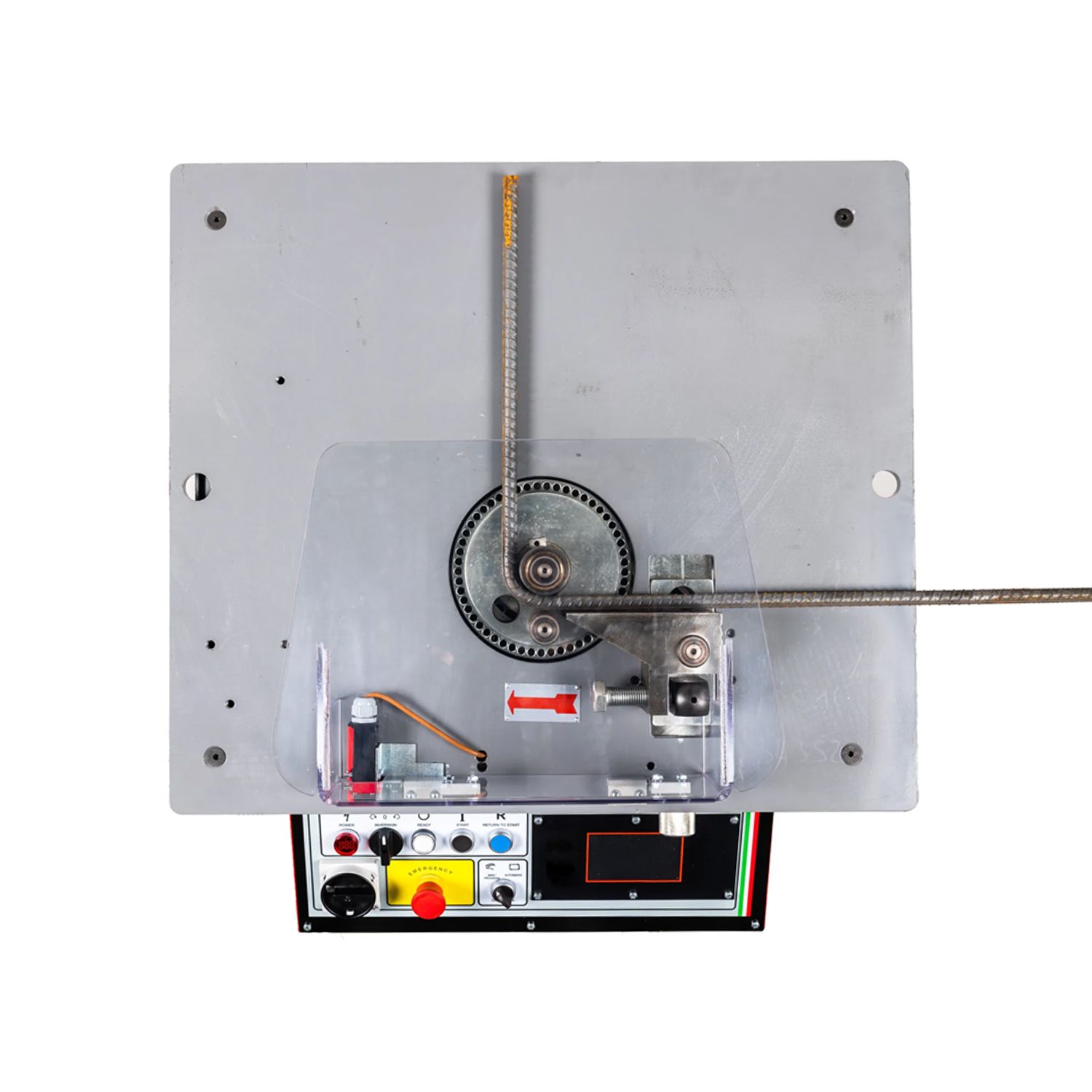

• Safety-First Design: Interlocked guards and door sensors
• Industrial Frame: Maximum durability and long service life
• Precision and Speed: Production-grade performance
• European Engineering, Local Support: Built for Australia with parts and full servicing in Australia

Specifications:

• Poles: 4
• Rated Voltage: 400–415V 3~
• Rated Frequency: 50Hz
• Rated Power: 1.5 kW
• Rated Current: 3.9A
• Number of Phases: 3
• Full Load Motor Speed: 1415 RPM
• Average Bend Cycle Speed: 20 RPM
• Rated Bending Diameter Range: 6–16mm (650 MPa)
• Max Diameter of Bar & No. of Bars:
• 16mm – 1 bar
• 12mm – 2 bars
• 10mm – 3 bars
• Dimensions (L x W x H): 900mm x 800mm x 850mm
• Weight: 250 kg
