Ramset SBR9 100-Pack 14mm x 20mm Washered Drive Pins For Fixing Thin Steel To Steel

Ramset SBR9 100-Pack 14mm x 20mm Washered Drive Pins For Fixing Thin Steel To Steel

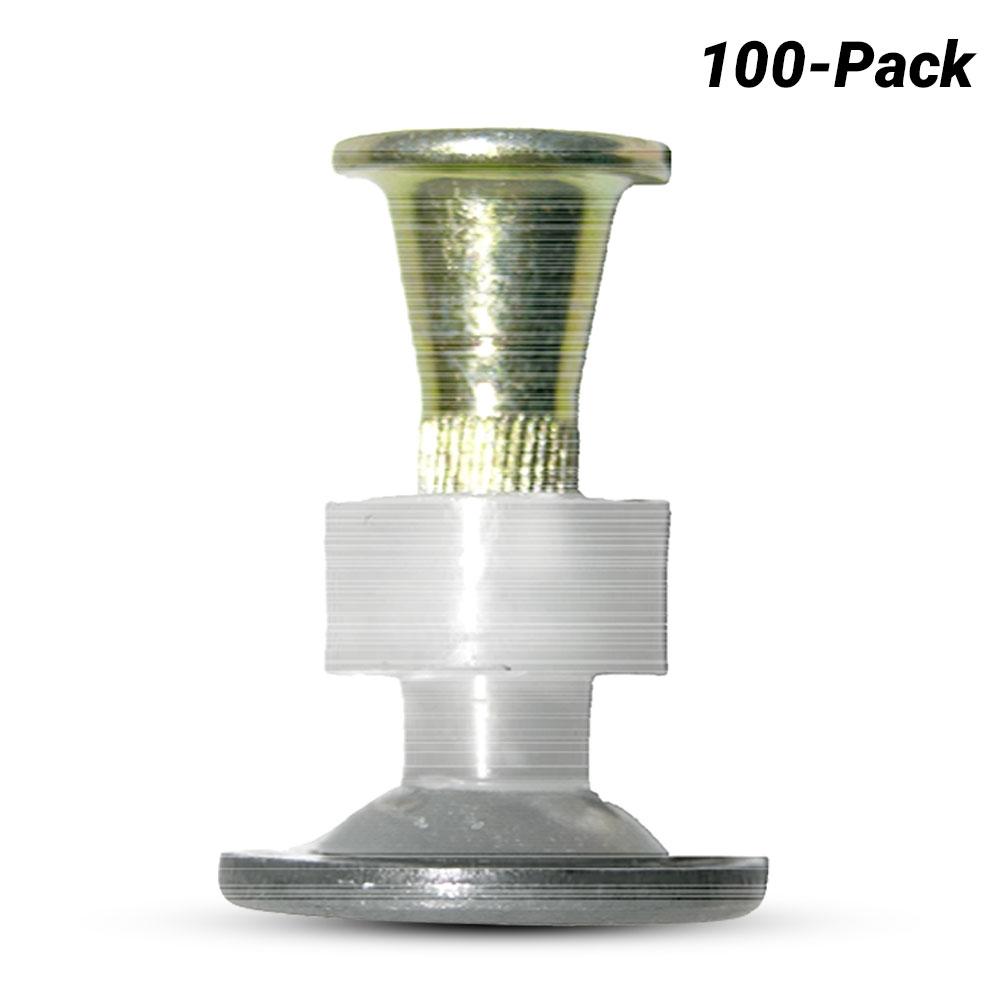

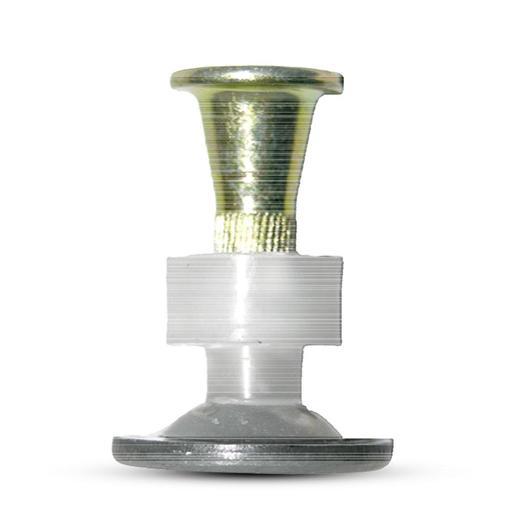

Drive Pin designed for fixing thin steel to structural steel sections. This drive pin provides excellent clamping with a special 14mm diameter washer that interacts with a tapered section on the shank of the drive pin.

Features:

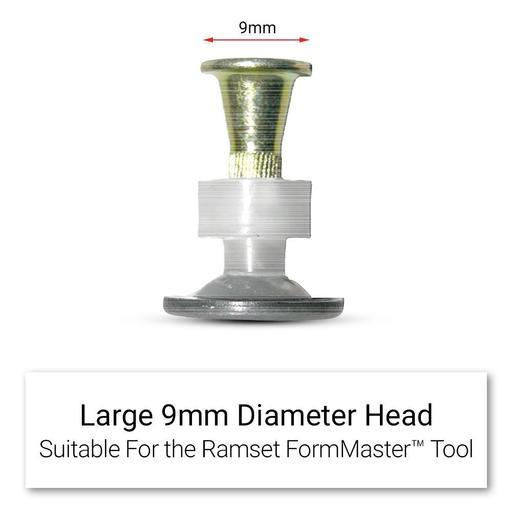

• Large 9mm diameter head
• Knurled shank for maximum tensile capacity in steel
• Tapered shank ensures that the washer is held firmly in position over a wide range of materials and penetration depths

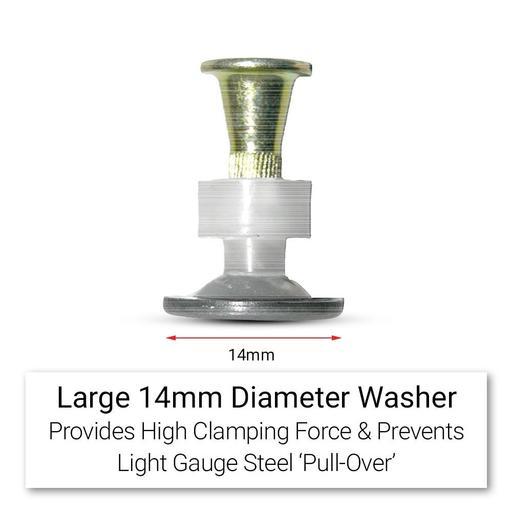

• Large 14mm diameter washer provides high clamping force and prevents light gauge steel 'pull-over'
• Ballistic pin point for maximum performance and penetration in steel

Suitable For:

• Fastening light gauge steel to structural steel instantly
• Designed for use with Ramset FormMastery
• Compatible with all sacrificial formwork systems: Bondek® , KingFlor® , Condeck® and more

Specifications:

• Raw material: Carbon Steel
• Corrosion Protection: Zinc Electroplated (Min coating 7µm)
• Nominal Head Diameter 8.8mm
• Nominal Shank Diameter 4.0mm
• Drive Pin Length: 20mm
• Washer driameter: 14mm
• Shear Strength 1240N/mm²
• Tensile Strength 2000N/mm²
• Hardness: 54-58HRC
