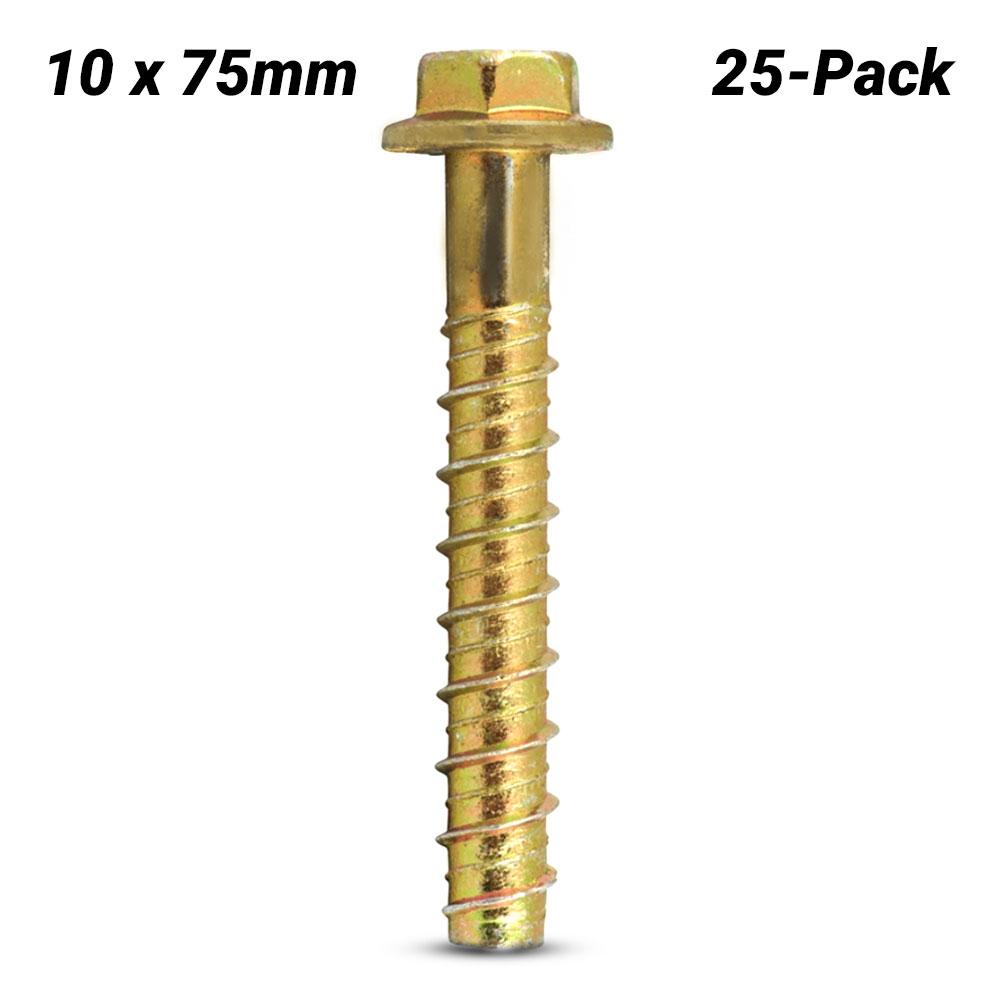

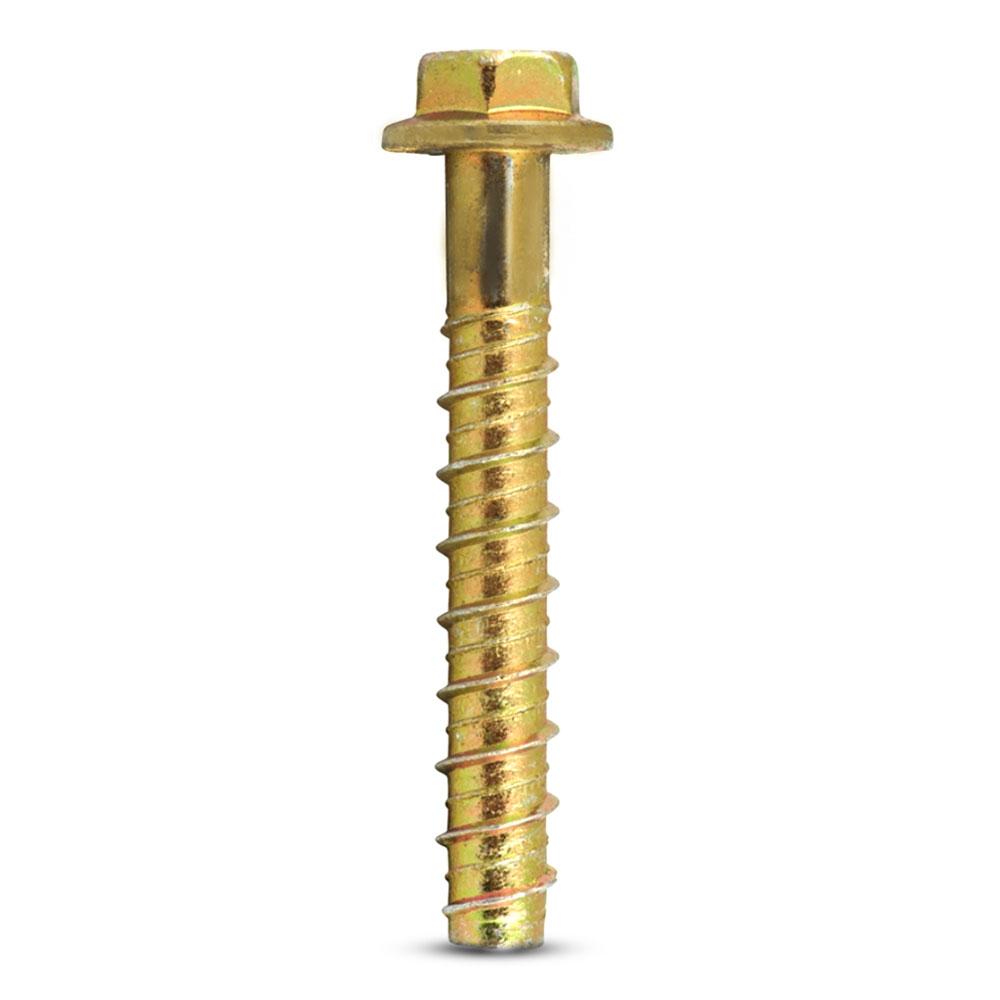

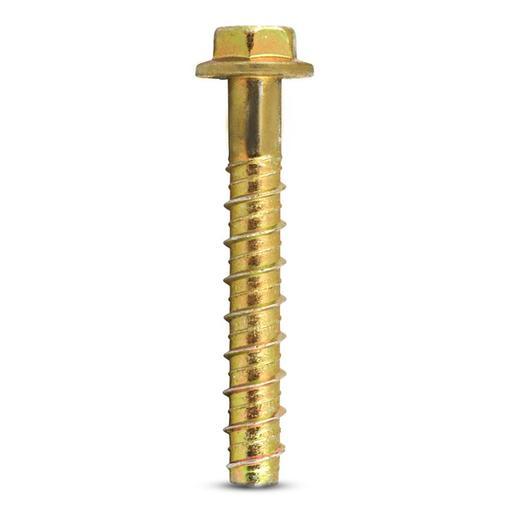

Ramset AS10075W 25-Pack 10 x 75mm Zinc Plated WERC AnkaScrew Screw-In Anchor

Ramset AS10075W 25-Pack 10 x 75mm Zinc Plated WERC AnkaScrew Screw-In Anchor

The WERCS AnkaScrew™ Screw-In Anchor is a totally removable, medium duty, rotation setting, thread forming anchor, ideal for either temporary or permanent anchoring into substrates such as concrete, brick, hollow brick or block. The WERCS AnkaScrew™ is particularly well suited to close-to-edge or close-to-anchor fixing as it does not expand and burst the surrounding substrate.

Features:

• High thread engagement increases clamp force and holding capacity over a wide range of loading
• The WERCS AnkaScrew™ is ideal for close-to-edge and close-to-anchor installation as its self-tapping, rotation setting method of installation is subject to low expansion pressure, therefore does not burst the substrate
• For concrete, brick & block (solid & hollow)
• The WERCS AnkaScrew™ thread design provides clearance for rapid removal of material and reduces jamming
• The WERCS AnkaScrew™ is 100% removable
• The WERCS AnkaScrew™ is both fast and easy to install as it simply screws into a pre-drilled hole
• The WERCS AnkaScrew™ is even faster and easier to remove. It simply screws out leaving an empty hole with no protruding metal parts to grind off
• Available in galvanised for exterior applications
• Suitable for installation with impact wrenches

Specifications:

• Material: High Carbon Steel
• Corrosion Protection: Zinc Plated
• Head Styles: Flanged Hex 10mm
• Fixing Method: Through Fixture
• Setting Method: Rotation
• Anchoring Method: Thread Forming
• Drilled Hole Diameters: 10mm
• Anchor Lengths: 75mm
• Maximum Fixture Thickness: 25mm
• Indicative Working Loads in 32MPa Concrete: Max Tensile 4.1kN -14.4kN | Max Shear 4.5kN - 16.7kN
• Substrates: Concrete, Solid Brick, Solid Block, Hollow Block, Hollow Slab, Hollow Brick
