Radiodetection 10/TRACE50-GB FlexiTrace 50m (164') Tx-Energised Pushrod

Radiodetection 10/TRACE50-GB FlexiTrace 50m (164') Tx-Energised Pushrod

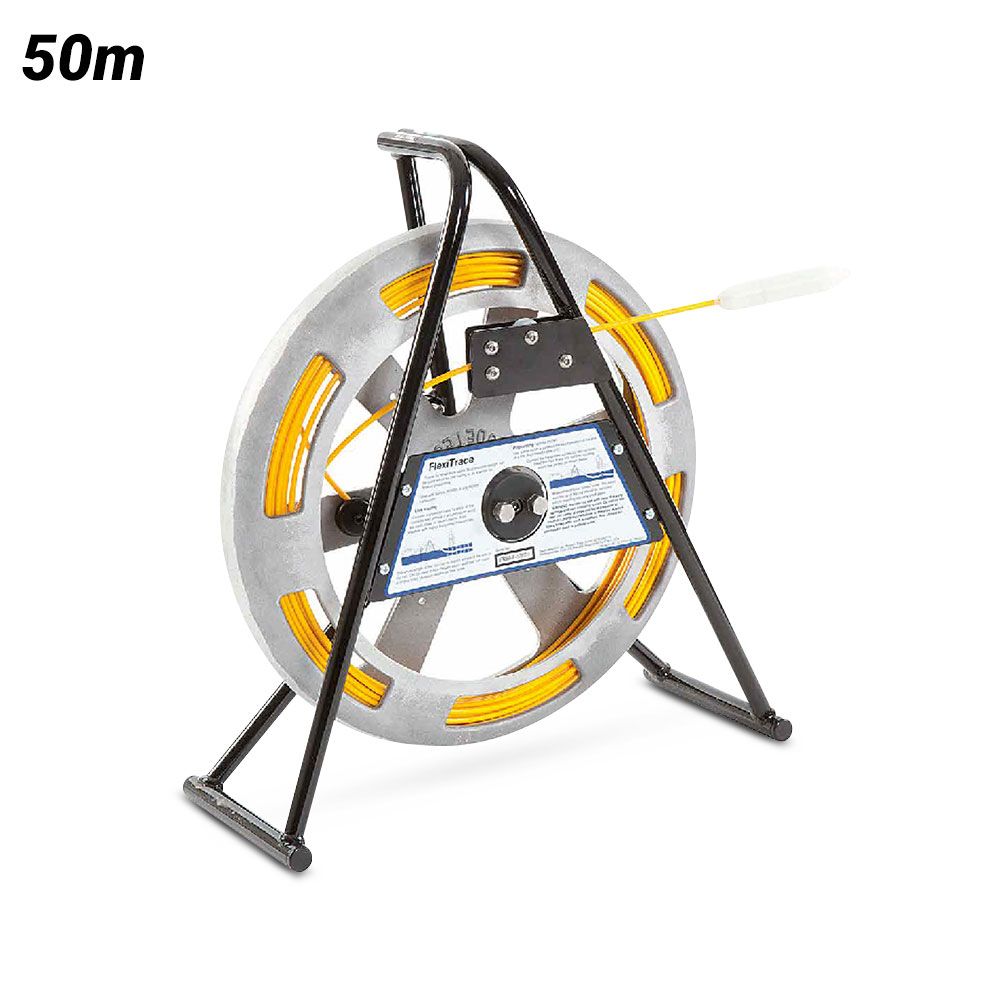

Radiodetection’s FlexiTrace is a flexible rod containing conducting wires running the full length of the rod, with a transmitting sonde at the end and inserted into pipes and ducts where size restricts the use of larger diameter sondes or Flexrods. When used with a Radiodetection locator and transmitter, the FlexiTrace can be used to trace the line of the pipe or to locate blockages and collapses.

Available with a rod diameter of 5mm (0.2") and lengths of up to 80m (263') the FlexiTrace can be used to pinpoint the location of a blockage or used to trace the entire route of the pipe.

Features:

• Energizeable Rod - The rod can be energized by a Radiodetection transmitter or Genny, allowing for more accurate and efficient tracing and locating tasks
• Small Diameter, Big Performance - The FlexiTrace reel holds 50m of small diameter rod, making it ideal for use in pipes as small as 12mm without compromising on performance
• High-Quality Construction - The flexible rod contains conducting wires running the full length, with a transmitting sonde at the end, ensuring durability and long-lasting performance

Specifications:

• Rod Connection: Built in sonde
• Rod Length: 50m (164')
• Min. Bend Radius: 250mm (10")
• Dimensions (L x W x H): 850mm x 520mm x 940mm
• Weight: 6kg
