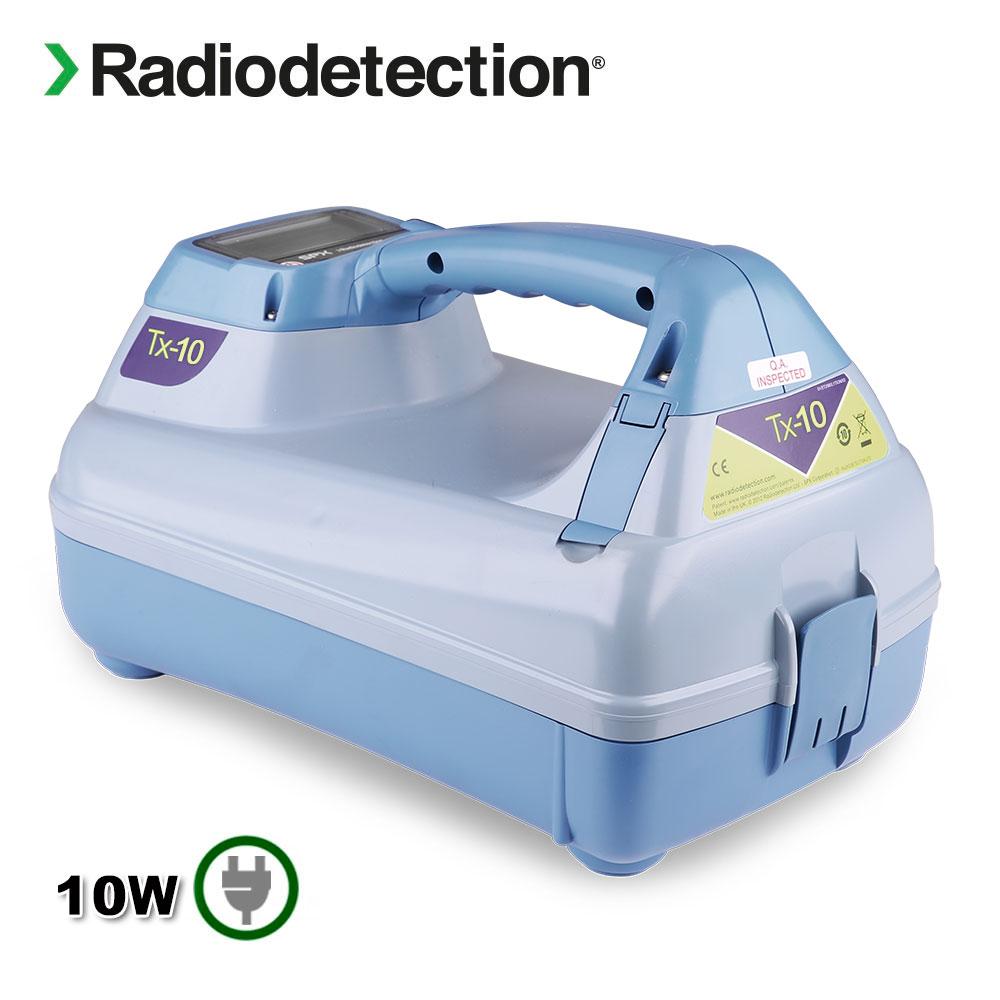

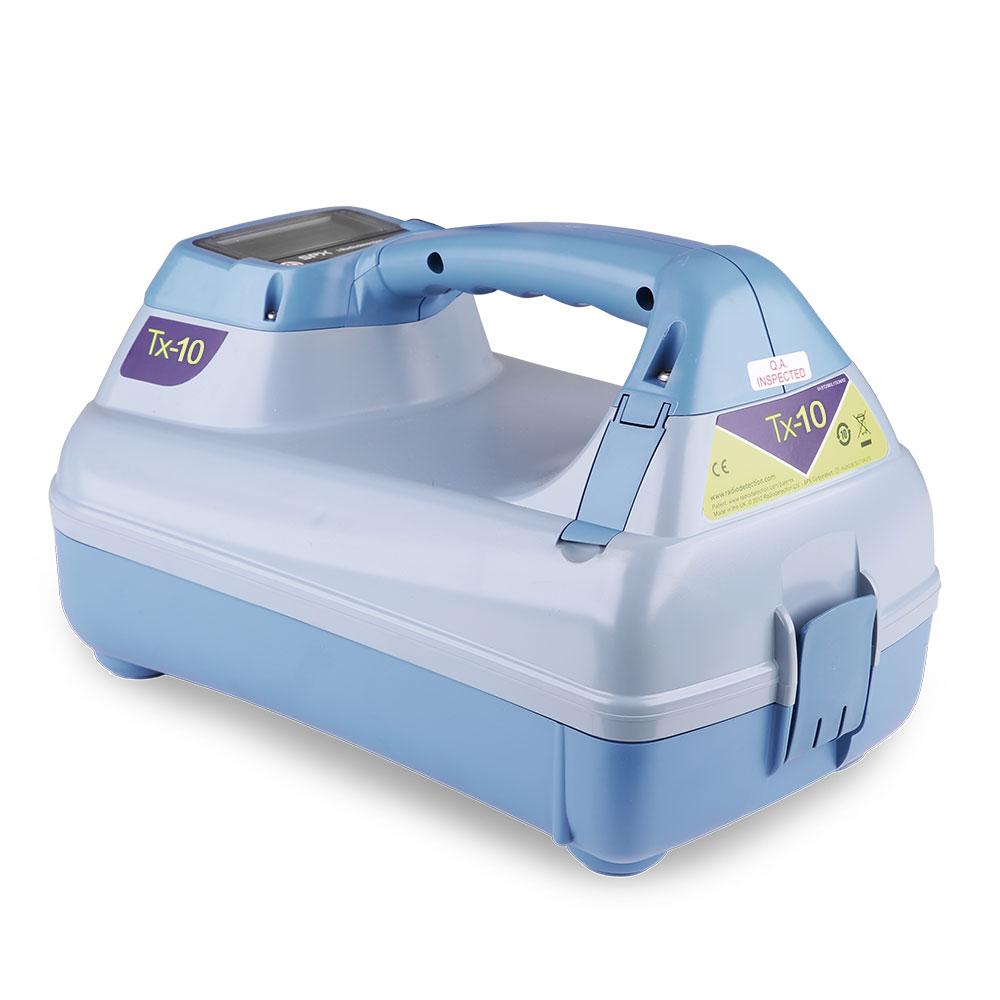

Radiodetection 10/RDTX10 10W Transmitter

Radiodetection 10/RDTX10 10W Transmitter

Based on a fully digital platform, the family of Radiodetection transmitters has been designed to support the range of Radiodetection RD7000+ and RD8000 cable, pipe and RF marker locators

The Tx-10 has a highest current and induction capability.

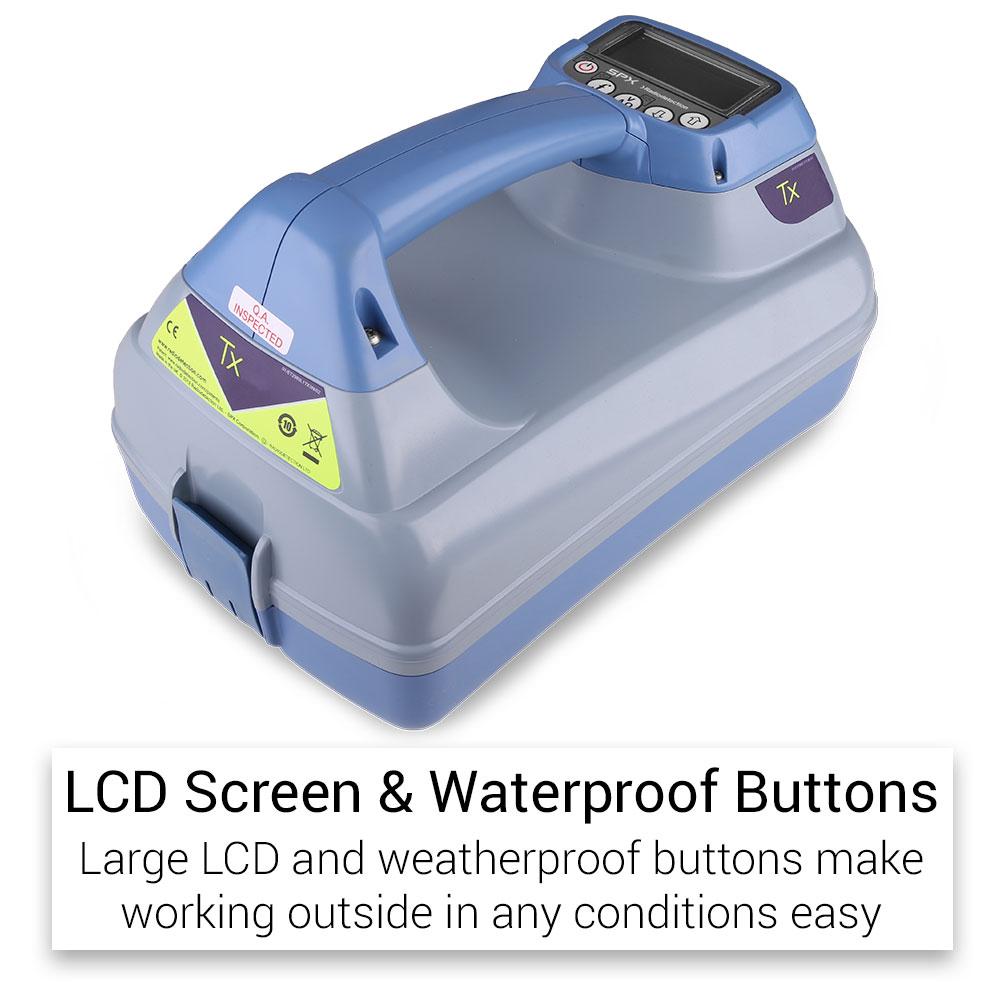

All models feature constant current across their entire bandwidth in either direct connect, clamp or inductive mode. The transmitters are light-weight (2.9kg), well-balanced and IP54 rated to cope with demanding environmental conditions. Each model has a removable accessory tray and a weatherproof battery compartment. A large, high contrast, backlit LCD screen provides the user with clear information.

90V output capability: All transmitters offer both 30V and 90V output options, resulting in higher signal current delivered on high impedance target lines than typical transmitters that only offer a 50V output. Higher signal levels are more locatable, and travel over longer distances.

SideStepauto™: allows the transmitter to calculate the optimum frequency based on ground impedance. The transmitter uses this information to optimize the active frequency. SideStep auto helps to improve locate accuracy and extends battery life.

To support the extended RD8000 iLOC feature set, the Tx-5B and Tx-10B can be ordered with integrated iLOC remote transmitter control.

The transmitter range features Direct Connect and induction frequencies compatible with locators across the RD8000 range, and can be easily customized to match your locator using the ‘model’ feature. The Tx-10B transmitter includes the additional ‘PTL’ model featuring the additional frequencies of the RD8000 PTLM locator.

A multimeter function enables quick measurements of output voltage, line voltage, current, impedance and power.

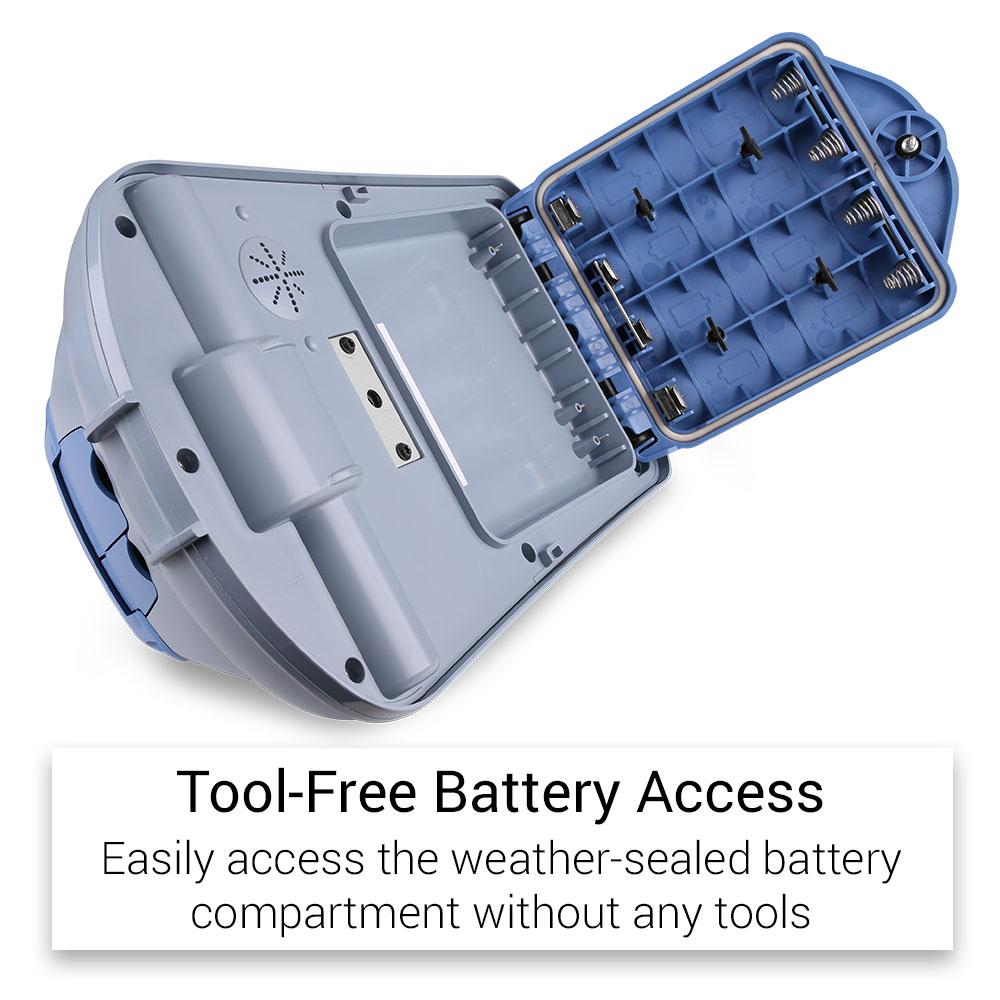

The transmitters are powered either by 8 standard D-cell batteries (rechargeable NiMH) or by the Lithium-Ion rechargeable battery pack (available as an option). Alternatively, the Tx range can be powered from a 12V vehicle source using a Radiodetection approved isolation transformer.

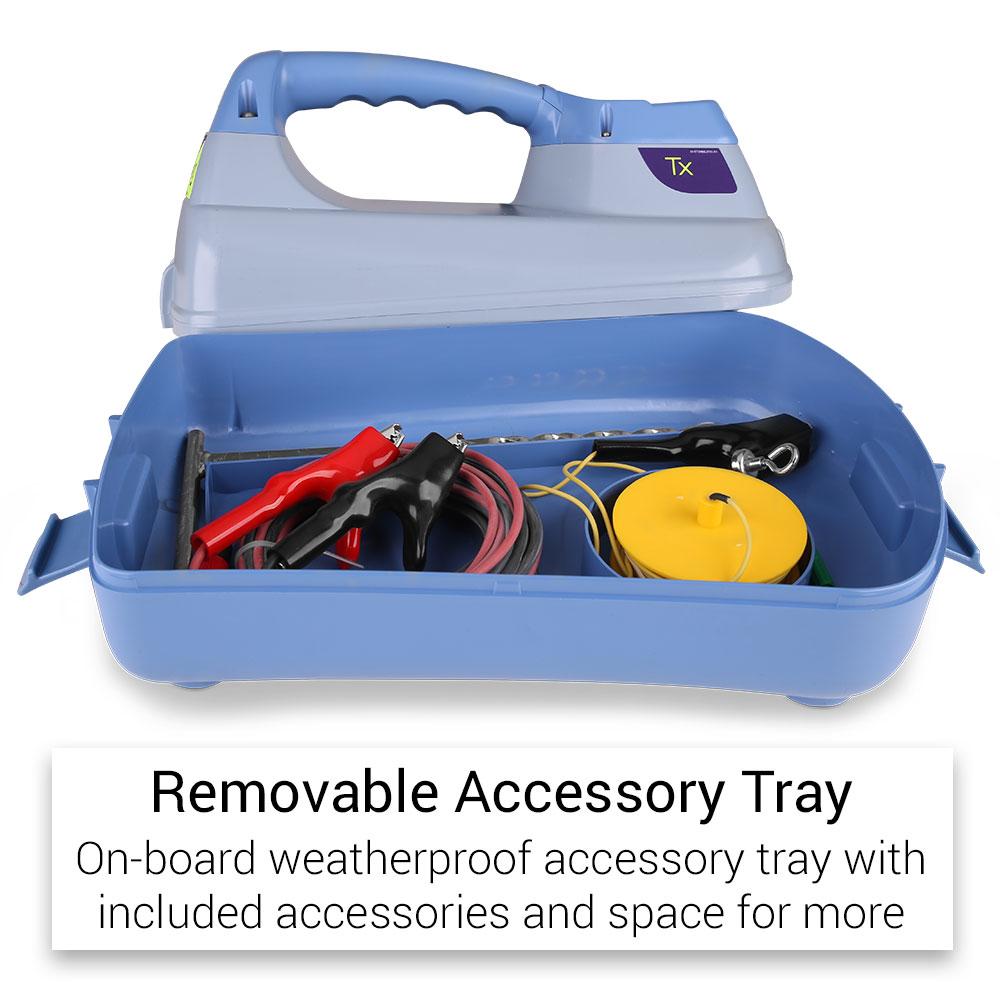

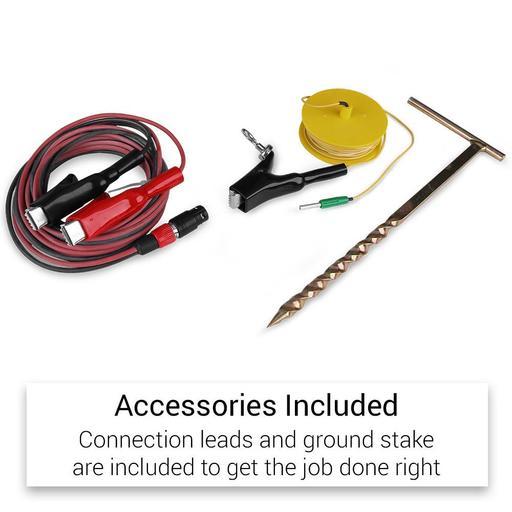

Note: The accessory tray includes a ground stake, direct connect leads and earth reel.
