Radiodetection 10/8200-TX10-100 (RD8200) Cable & Pipe Locator with 100mm Transmitter Signal Clamp Kit

Radiodetection 10/8200-TX10-100 (RD8200) Cable & Pipe Locator with 100mm Transmitter Signal Clamp Kit

The Radiodetection RD8200 (10/8200-TX10-100) is a high-performance cable and pipe locator system designed for professional utility locating, construction, and infrastructure maintenance crews. This advanced locator kit includes the powerful TX-10 transmitter and a 100mm signal clamp, providing a complete solution for detecting and tracing buried cables and pipes with exceptional precision.

Includes:

• RD8200 Receiver: Power (Filters), Radio, CPS, CATV, 21 Active Frequencies, 4 Sonde Frequencies, Current Direction and Fault Find
• Tx10 Transmitter: 10 Watt, 8 Inductive, 15 Active Frequencies, Current Direction (Contains Earth Reel, Earth Stake, Direct Connection Leads and Magnet)

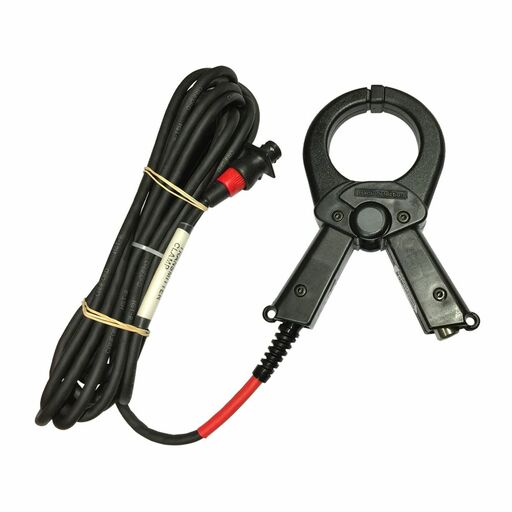

• 100mm Transmitter Signal Clamp

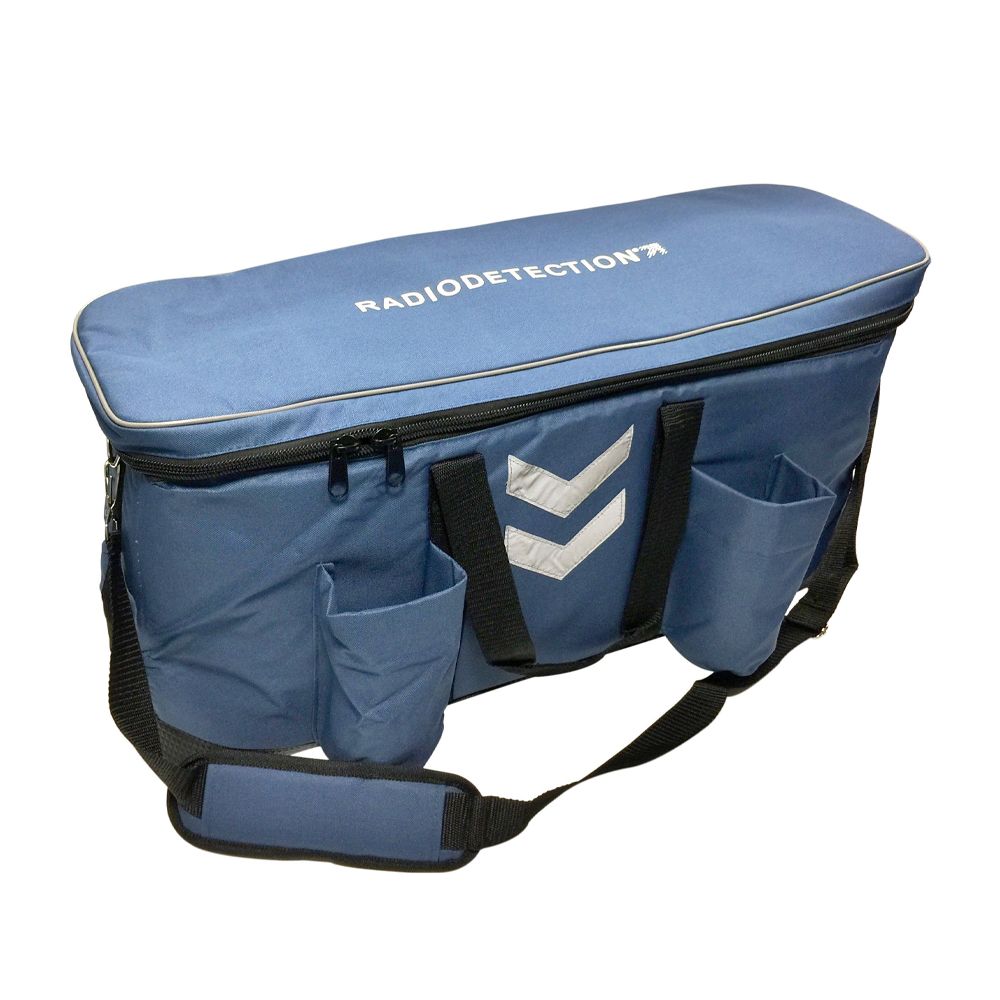

• Carry Bag: Soft

Features:

• High-Precision Locating: Detect and trace buried utilities using up to 35 active frequencies, including fault-finding and current direction (CD) modes
• TX-10 High-Powered Transmitter (10W): Offers superior signal strength for long-range or deep utility locating in congested environments
• 100mm Signal Clamp: Ideal for larger-diameter cables and pipes; safely applies signal to live conductors without needing direct contact
• Integrated GPS & Data Logging: Capture location data and usage logs for reporting, mapping, and compliance with utility standards
• Ergonomic & Rugged Build: Lightweight design with IP65-rated protection for demanding field use in all weather conditions
• Wireless Connectivity: Bluetooth® and USB interfaces support easy data transfer, software updates, and integration with Radiodetection tools

Specifications:

• Locator Frequencies: Up to 35 active frequencies (including custom)
• Depth Measurement Range: Up to 20 ft (6 m)
• Transmitter Power Output: Max 10W (selectable)
• Protection Rating: IP65
• Battery Life: Up to 27 hours (locator); up to 15 hours (transmitter)

Warranty:

• 36 Months Warranty as Covered by Radiodetection
