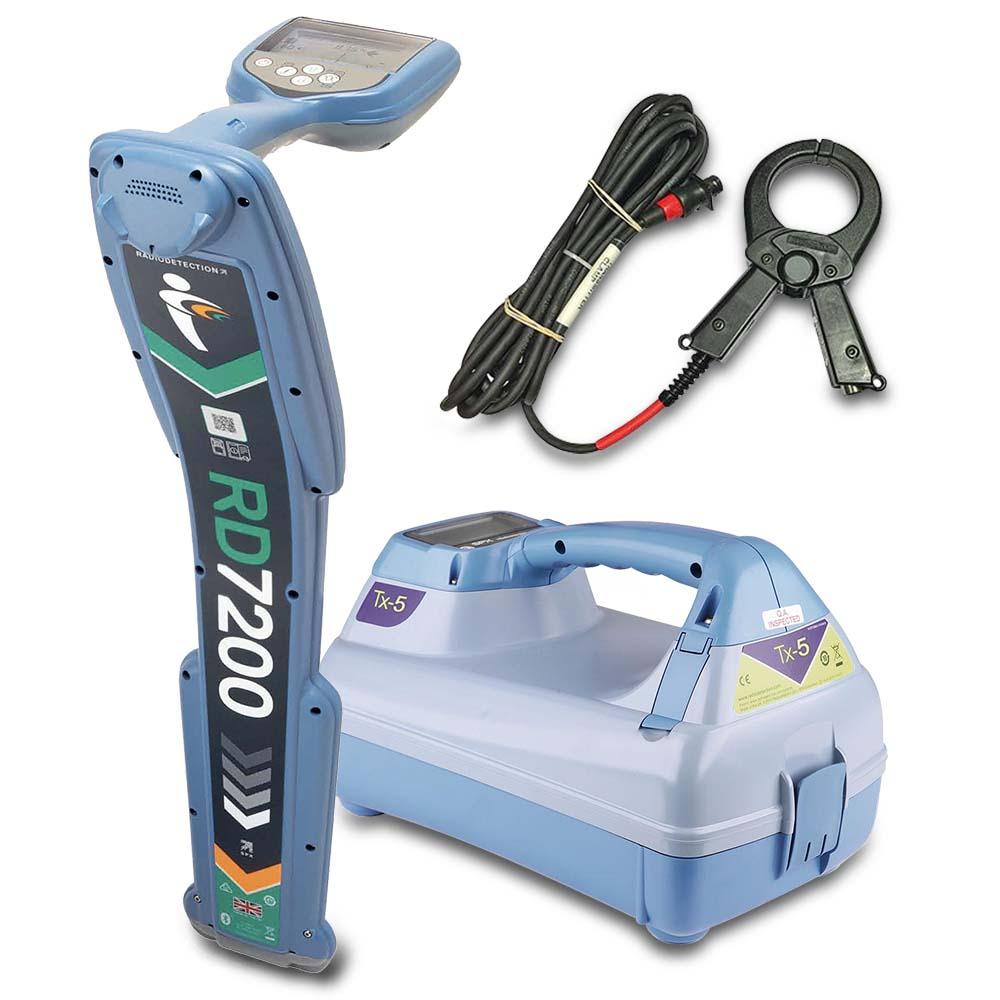

Radiodetection 10/7200-TX5-50 (RD700) Cable & Pipe Locator and Transmitter with 50mm Clamp

Radiodetection 10/7200-TX5-50 (RD700) Cable & Pipe Locator and Transmitter with 50mm Clamp

The new RD7200 is a no compromise all-industry locator, designed for accurate and effective every day use. RD7200 locators and transmitters use transflective low power LCD technology that uses ambient light to improve screen readability in direct sun light and extend battery life.

Radiodetection’s TruDepth displays precise depth and current measurements, only when the RD7200 is correctly oriented above the target. Measurement consistency gives high confidence that the correct line is being followed. The RD7200 waterproof speaker housing has been tuned to provide optimum resonance for your choice of high or low frequency tones. 5 power output audio levels and vibration alerts, assist technicians working in challenging situations.

Features:

• High contrast screen provides clarity even in bright sunlight
• Speaker and audio feedback - User facing speaker orientation, 5 levels of sound, choice of tone frequency. Designed to be heard in noisy environments
• Wide choice of utility specific locating frequencies
• Rapidly trace the path of a target utility using proportional arrows and a directional indicator
• Swing warning system alerts the operator of excessive swing
• Vibrating handle provides vibration alerts, leaving the operators to concentrate on their tasks
• High visibility reflective design helps protect operators and equipment
• Built for on-site use – IP65 Shock resistant, ingress protected casing protects against knocks, drops, water and dust
• A unique arrangement of five custom manufactured, precision ground antennas deliver locate accuracy and repeatability
• Lithium-Ion rechargeable battery packs (sold separately) for both locator and transmitter provide extended runtime with reduced running costs
• Sonde Mode - locate non-conductive pipes or cable ducts and conduits at depths of up to 50' (15m)
• 7 active and 4 sonde frequencies, 3 passive modes, power filters and other advanced features to provide efficient accuracy for locating and tracing burried utilities

Specifications:

• Sensitivity: 6E-15 Tesla 5μA at 1 meter (33kHz)
• Dynamic range: 140dB rms/√Hz
• Selectivity: 120dB/Hz
• Depth measurement precision: ± 3%
• Locate accuracy: ± 5% of depth
• Active locate filter bandwidth: ± 3Hz, 0 < 1kHz ± 10Hz, ≥ 1kHz
• Startup time: Less than 1 second
• Max depth readout:
  • Cable/pipe: 30m
  • Sonde: 19.5m
• Active locate frequencies: 512Hz, 640Hz, 8kHz, 33kHz, 65kHz, 83kHz, 131kHz and 200kHz
• Sonde frequencies: 512Hz, 640Hz, 8kHz and 33kHz
• Fault find: 8KFF
• Fault find accuracy: 100mm
• Protection: IP65
• Audio: Built-in waterproofed speaker, 3.5mm headphone socket
• Display: High contrast custom made monochrome LCD
• Operating temperature: -20 to 50°C
• Dimensions (L x W x H): 648mm × 286mm × 125mm
• Weight: 1.9kg

Warranty:

• 3 Years Warranty via Registration covered by Radiodetection Australia

Radiodetection TX5-50 5W Transmitter

Based on a fully digital platform, the family of Radiodetection transmitters has been designed to support the range of Radiodetection RD7000+ and RD8000 cable, pipe and RF marker locators

The Tx-5 has a 5W induction capability.

All models feature constant current across their entire bandwidth in either direct connect, clamp or inductive mode. The transmitters are light-weight (2.9kg), well-balanced and IP54 rated to cope with demanding environmental conditions. Each model has a removable accessory tray and a weatherproof battery compartment. A large, high contrast, backlit LCD screen provides the user with clear information.

90V output capability: All transmitters offer both 30V and 90V output options, resulting in higher signal current delivered on high impedance target lines than typical transmitters that only offer a 50V output. Higher signal levels are more locatable, and travel over longer distances.

SideStepauto™: allows the transmitter to calculate the optimum frequency based on ground impedance. The transmitter uses this information to optimise the active frequency. SideStep auto helps to improve locate accuracy and extends battery life.

The transmitter range features Direct Connect and induction frequencies compatible with locators across the RD8000 range, and can be easily customised to match your locator using the ‘model’ feature.

A multimeter function enables quick measurements of output voltage, line voltage, current, impedance and power.

The transmitters are powered either by 8 standard D-cell batteries (rechargeable NiMH) or by the Lithium-Ion rechargeable battery pack (available as an option). Alternatively, the Tx range can be powered from a 12V vehicle source using a Radiodetection approved isolation transformer.

Note: The accessory tray includes a ground stake, direct connect leads and earth reel.

Includes:

• 50mm Transmitter Clamp
