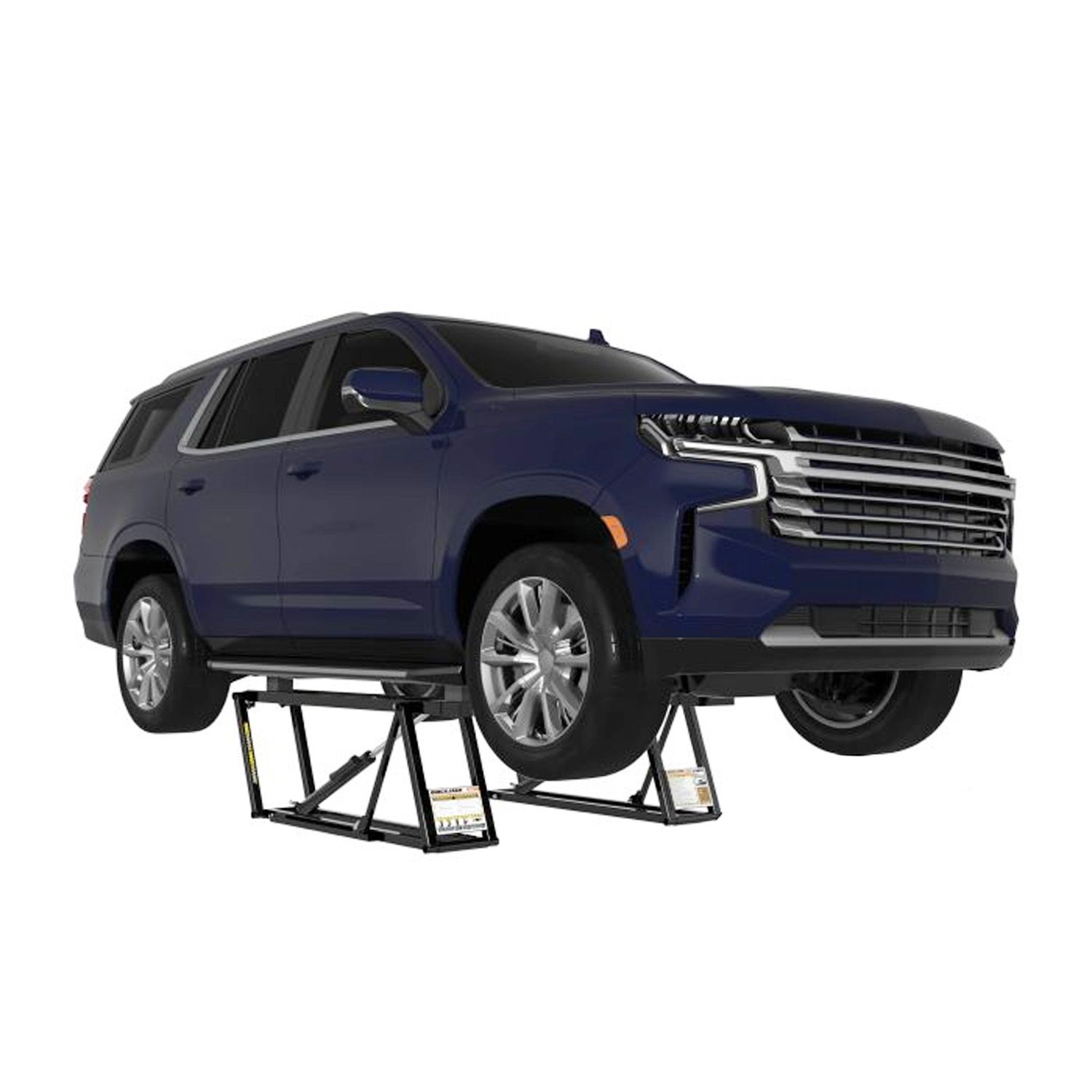

QuickJack 8000TL-208-240V (5175659) 240V 3629kg Ute & SUV Storable Lift

QuickJack 8000TL-208-240V (5175659) 240V 3629kg Ute & SUV Storable Lift

Dual-cab utes and 4WDs have outgrown a lot of the gear built to lift them. The QuickJack 8000TL raises 3,629 kg on standard-length frames, 907 kg more than the 6000TL and 454 kg more than the 7000TL it replaces, with heavier 318 mm frames and a 622 mm working height. Portable, and rated for the vehicles most Australians actually drive.

This is the strength option, not the reach option. Frame length and lift-point spread are the same as the 6000TL, what changes is what the structure will carry, which is where most portable hoists run out of rating on a modern ute.

Carrying 3,629 kg takes more steel, not a bigger pump, the power unit is common across the QuickJack range, and what changes on the 8000 series is the structure: 318 mm frame width, thicker cross members and revised weld geometry. Preassembled hydraulics, with a flow divider and per-cylinder shut-off solenoids to keep a heavy load level through the cycle. Fluid capacity is 2 L, ISO-32, ISO-46 or ISO-68 hydraulic fluid, or Dexron VI / Mercon V / Mercon LV automatic transmission fluid.

Includes:

• Left and right frame assemblies (not interchangeable)
• Hydraulic power unit with pendant control
• 4x medium rubber lift blocks (51 mm)
• 4x tall rubber lift blocks (76 mm)
• 2x short hydraulic hoses, 2x long hydraulic hoses
• 2x frame-positioning handles
• Fittings, thread tape and setup instructions

Features:

• Rated for a loaded dual-cab — 3,629 kg covers the kerb weight of nearly every ute and 4WD sold here, including the heavier turbo-diesel variants
• Wider, heavier frames — 318 mm across, up from 279 mm on the 6000 series, spreading the load through a stiffer structure
• Balanced hydraulics under heavy loads — the flow divider holds both frames in step and independent shut-off solenoids prevent imbalance if you stop part-way up
• Still fits underneath — 89 mm collapsed. Higher-riding vehicles are no trouble, and it will still slide beneath a sedan
• Adapter kit for high-clearance vehicles — the optional SUV and Light Truck Adapter Kit adds stackable contact pads for utes and 4WDs whose lift points sit well off the ground
• No slab, no anchors, no permanent install — a flat floor rated to 3.5 N/mm² is the requirement. Nothing gets bolted down

Specifications:

• Lifting Capacity: 3,629kg (8,000 lbs.)
• Working Heights:
  • Lowered Height (frame only): 89mm (3.5″)
  • Lifting Height (medium blocks): 533mm (21″)
  • Lifting Height (tall blocks): 552mm (21.75″)
  • Max Lifting Height (stacked blocks): 622mm (24.5″)
• Lift Time: 30 seconds
• Max Lift Point Spread: 1,524mm (60″)
• Min Lift Point Spread: 940mm (37″)
• Safety Lock Positions: 2 (Mid-Rise & Full-Rise)
• Power Supply: 208–240 V AC, 50/60 Hz, 1 Ph, 5 A min.
• Frame Length: 1,797mm (70.75″)
• Frame Width: 318mm (12.5″)
• Weight:
  • Frame (each): 45.5kg
  • Power Unit (dry): 12.3kg
