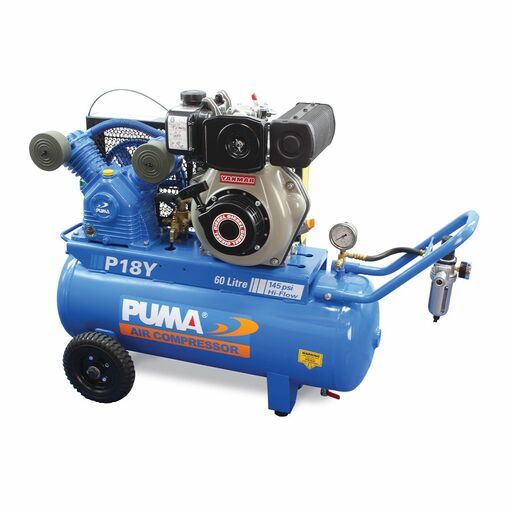

PUMA Air Compressor PU P18Y 4.7HP 350L/min Diesel Compressor

PUMA Air Compressor PU P18Y 4.7HP 350L/min Diesel Compressor

Puma air compressors are now available in Australia powered by genuine Yanmar L-N series diesel engines for use in critical safety environments. The Yanmar engines utilize direct fuel injection technology to deliver high power output with low fuel consumption - all in a compact design.

The innovative Puma long-stroke compressor pumps offer outstanding free-air-delivery and their full cast iron construction ensures durability. Each compressor model is available in a Mine Spec compliant version with the emergency stop button and fail-safe engine fuel shutoff control.

Features:

• Puma Hi-Flow Pump - Puma’s exclusive long-stroke pump design delivers very high flow-rates at low pump speeds. Its full cast iron construction is built tough for reliability and long service life.
• Yanmar Diesel Engine - Yanmar’s direct-injection technology achieves high power output with low fuel consumption. Auto-idle throttle control regulates the engine speed to match compressed air demand.
• Electric Start and E-Stop - Choose the convenience of an electric start model and avoid the strain of rope pull starting.
• Each one is fitted with a fail-safe emergency stop button for Mine Spec compliance.
• 12 Volt Battery Kit Option - Make your electric start compressor independent of its host service truck by specifying this option. The kit includes a maintenance-free battery, insulated leads and custom-engineered bracket.
• Filter Regulator - The 5-micron filter effectively removes dirt and water from the compressed air stream while the regulator provides accurate pressure control. A Nitto-style coupling is fitted to the air outlet port.
• Puncture Proof Tyres - You’ll never be let down by a puncture with these solid rubber tyres mounted on heavy-duty steel wheels. The wide tread profile and ball bearing hub also allow for easy all-terrain handling.

Specifications:

• Yanmar Engine Model: L48, 4.7hp
• Yanmar Engine Starter: Rope Pull
• Emergency Stop Fitted: No
• Pump Displacement: 430L/min (15.2cfm)
• Free Air Delivery: 350L/min (12.4cfm)
• Maximum Pressure: 1,000kPa (145 psi)
• Tank Volume: 60 Litres
• Pump Model: Puma PG31
• Pump: 1080 RPM
• Outlet Size: 1/4" BSP
• Noise Level: 83 db(A)
• Dimensions: 450mm x 840mm x 1130mm
• Weight: 100kg
