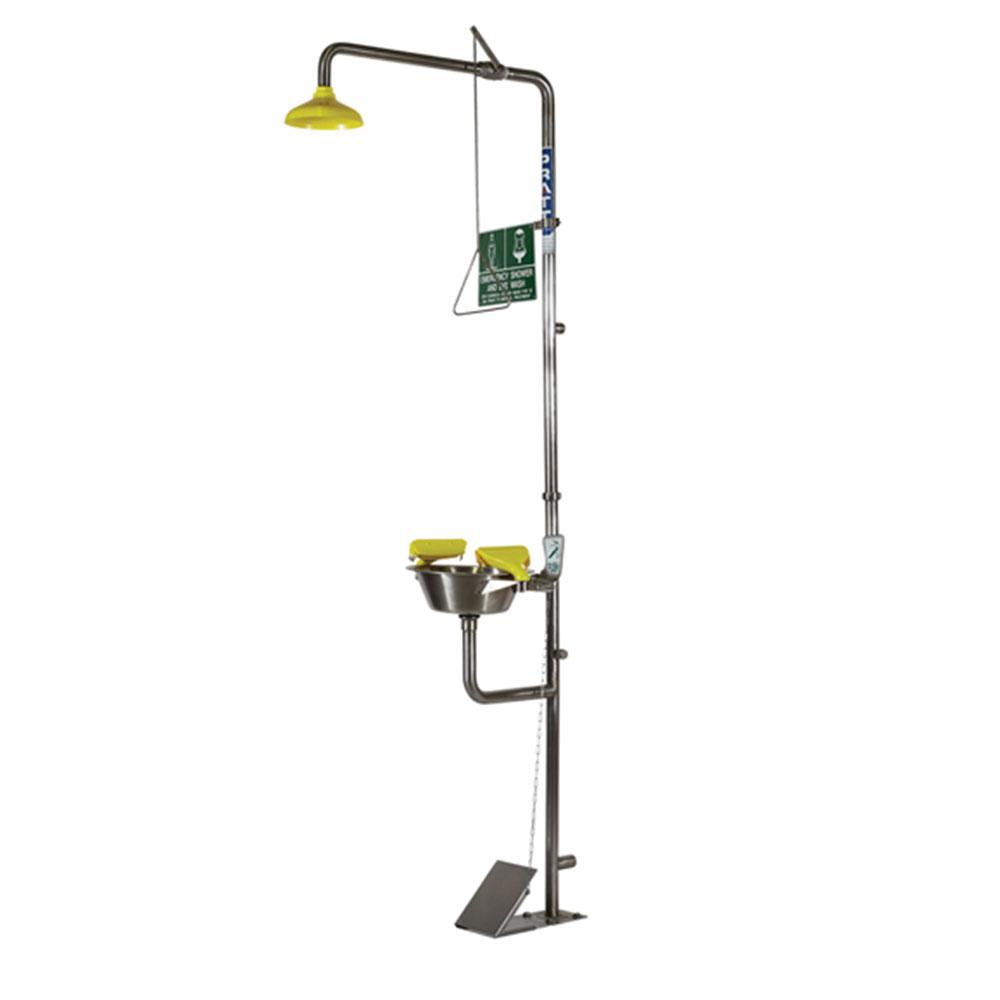

Pratt SE607T316 Combination Shower Triple Nozzle Eye & Face Wash with Bowl & Foot Treadle

Pratt SE607T316 Combination Shower Triple Nozzle Eye & Face Wash with Bowl & Foot Treadle

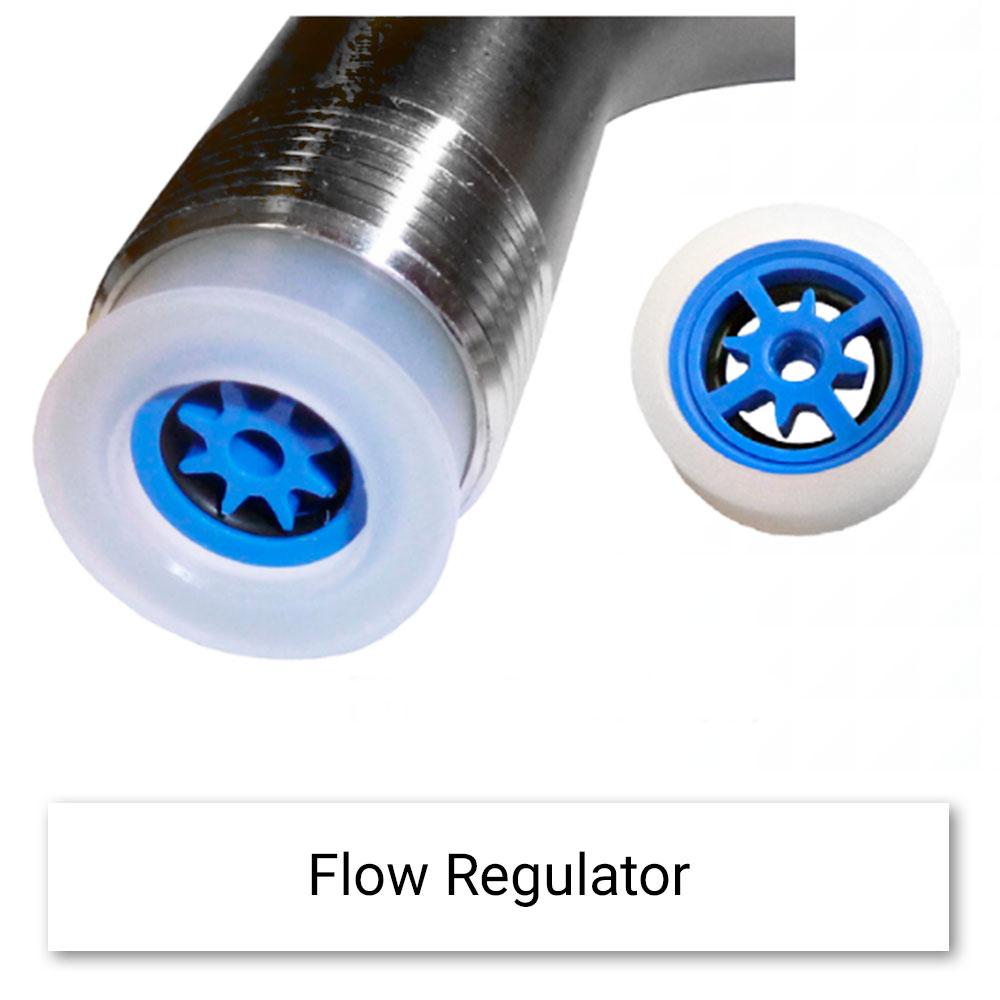

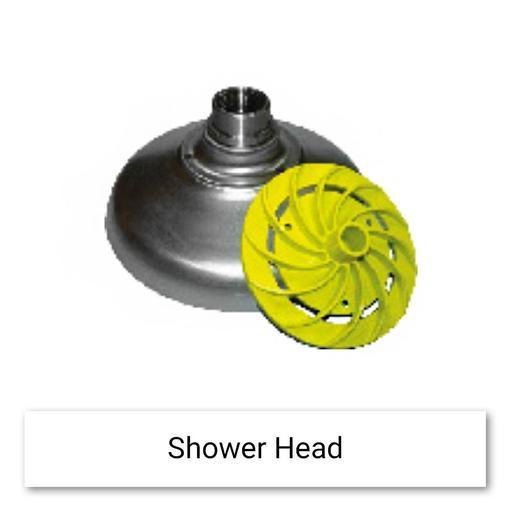

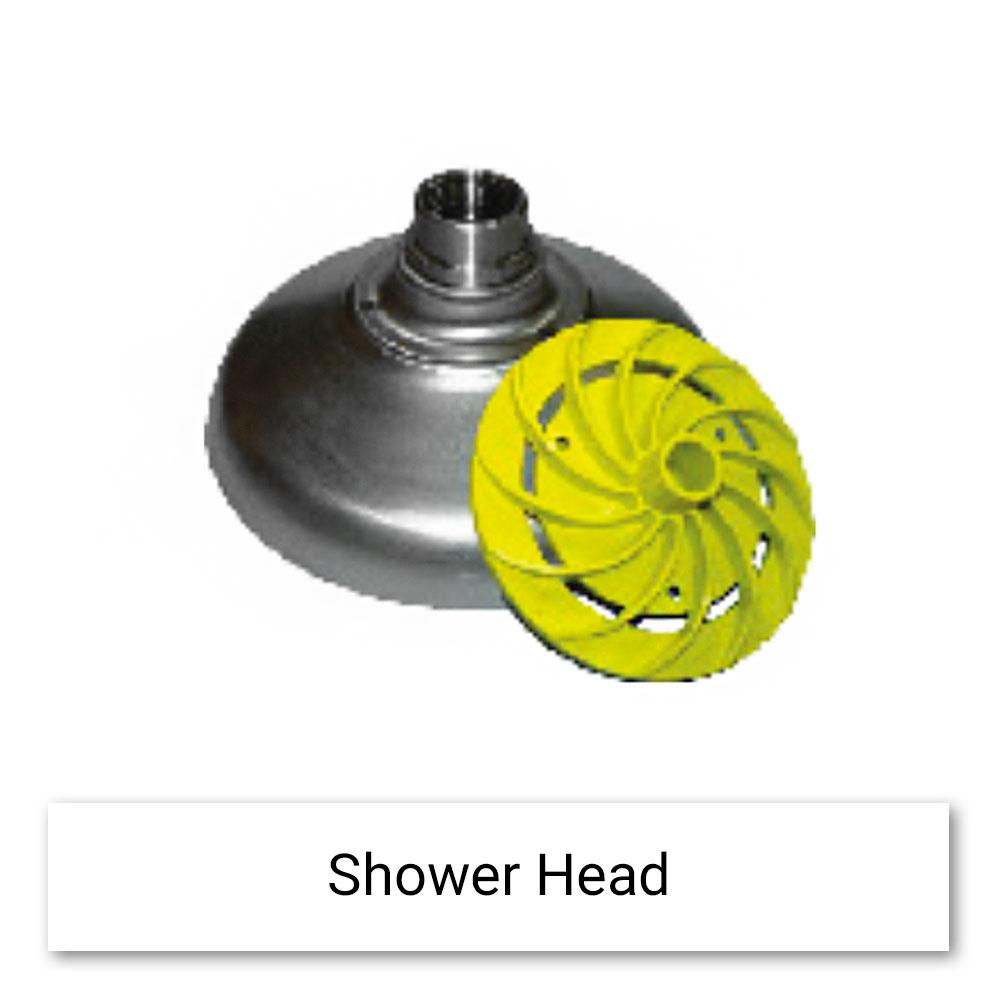

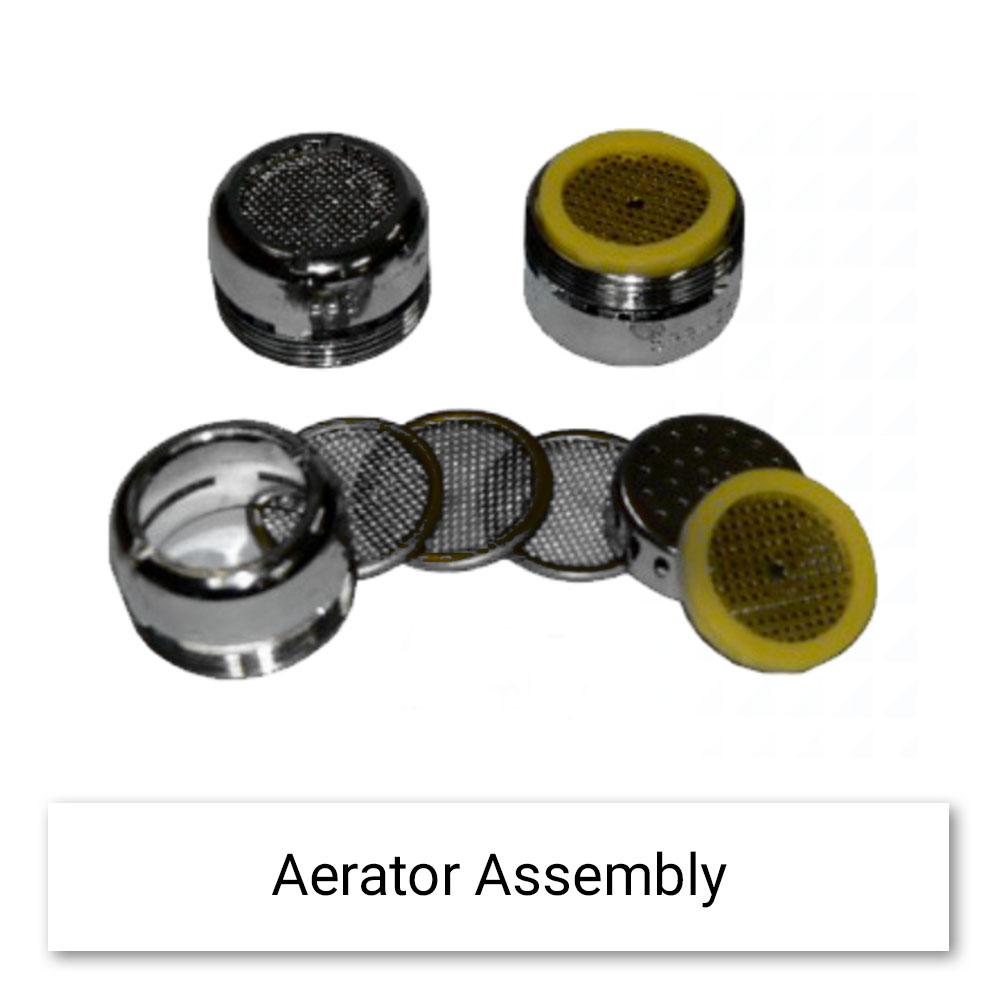

This combination shower model is constructed mainly of 316 stainless steel, including stanchion, ball valves, bowl assembly, foot treadle and shower head. AES plastic eye-face wash nozzles with triple aerators and self-closing dust cover. It is suitable for both indoor and outdoor applications where a higher grade of stainless steel is required for add corrosion resistance.The shower outlet also includes a 90LPM flow regulator, and the eye-face wash incorporates individual flow adjustment to provide a balanced flow output.

Features:

• Combination Shower and Eye/Face Wash station constructed in 316 stainless steel specifically for harsh Australian conditions. This high grade stainless steel model provides greater corrosion resistance and durability for marine and harsh chemical environments.
• All of the following components are made pf 316 stainless steel:
• Shower stanchion (including base plate, barrel union & threaded connections)

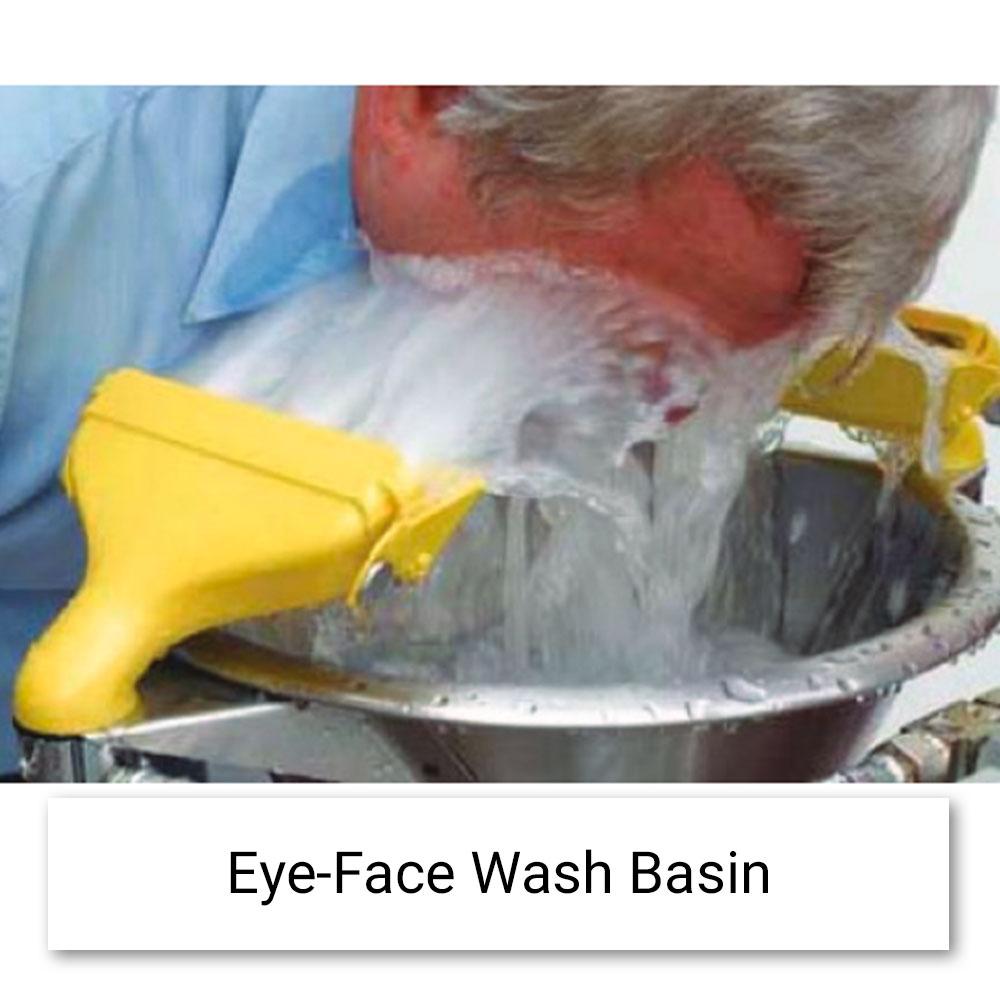

• Eyewash bowl assembly including mounting socket for spray head assembly
• Dual eye/face wash spray head assembly
• Shower arm & Manifold T-Junction
• Pull rod & Push Handle

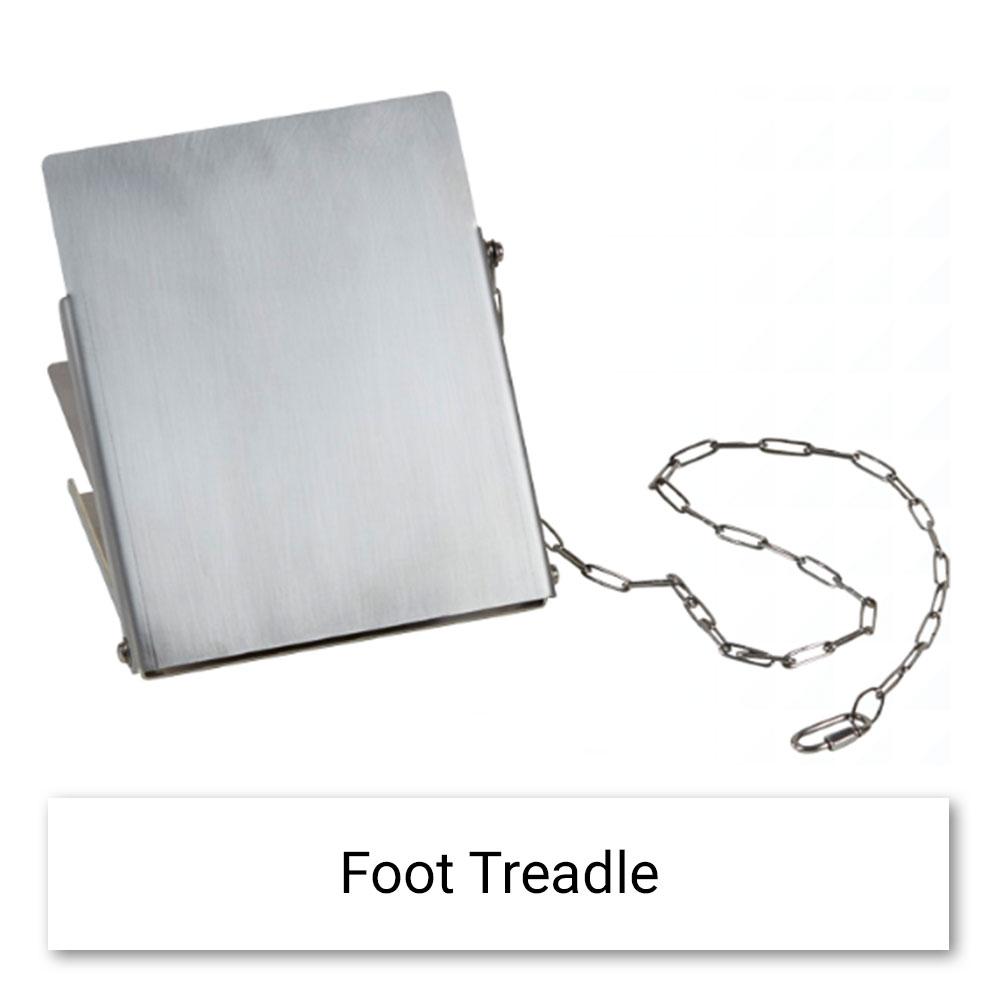

• Foot treadle assembly with chain.
• Eye/ Face Wash base assembly including flow control

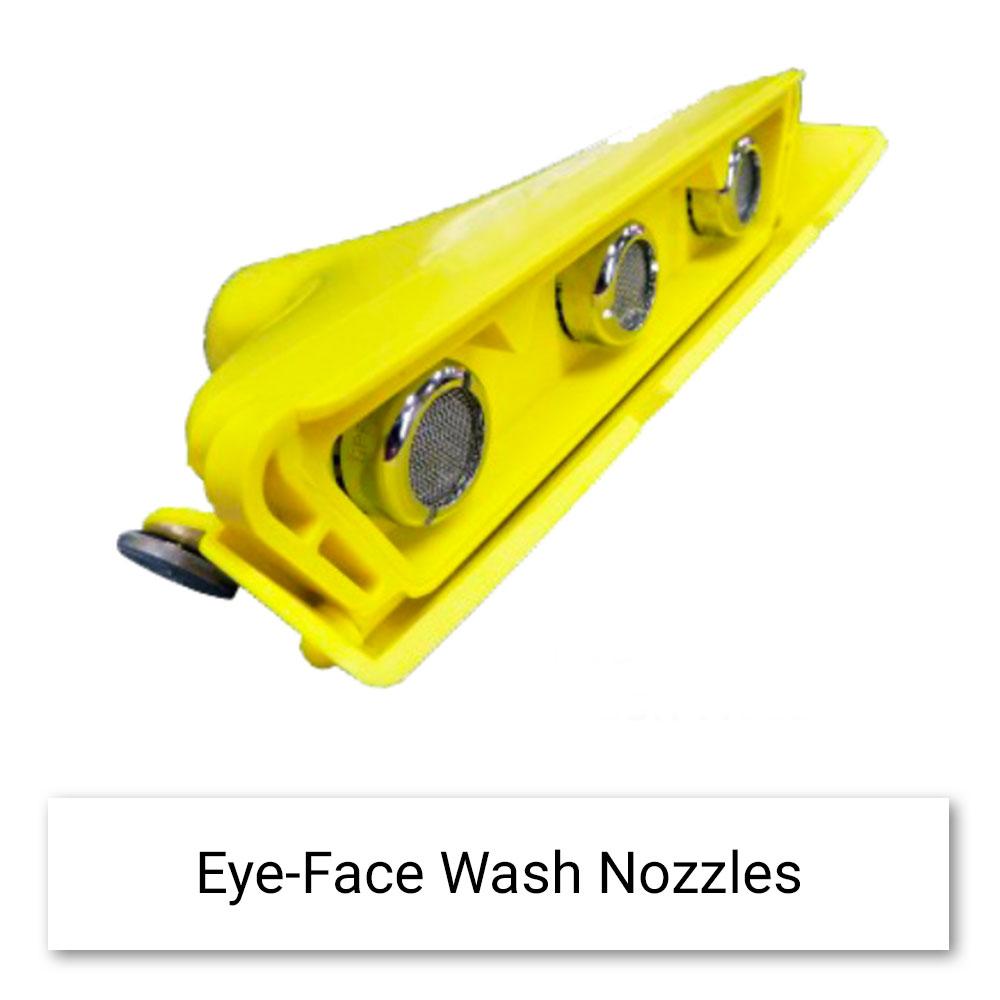

• The triple AEROSTREAM Eye/ Face Wash nozzles assembly retained in AES plastic. The braided connection hoses are made of 304 Stainless Steel.

Specifications:

• Operation: Shower by hand, Eyewash by hand or foot.
• Dimension (mm): 2450H x 470W x 883D mm
• Rec Min Connection: 25mm
• Rec Min Supply: 140-150 LPM
• Shower Flow Rate: 90 LPM
• Eye Wash Flow Rate: 30 LPM
• Minimum Pressure: 210Kpa
• Material of Construction: 316 Stainless Steel
• Australian Standard: AS4775
