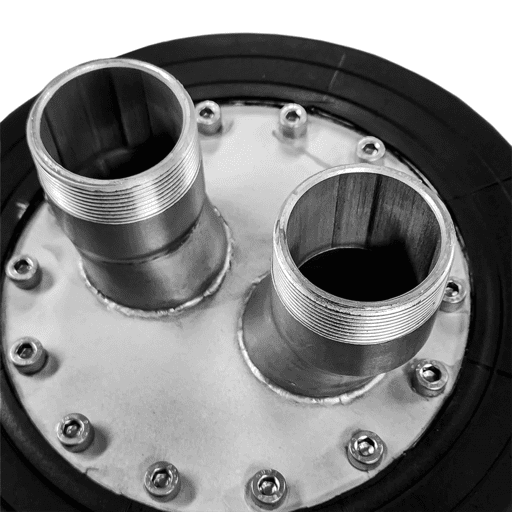

PlumBOSS PPPMB300-600 300mm-600mm Pneumatic Pipe Plug Multi Size Dual Bypass

PlumBOSS PPPMB300-600 300mm-600mm Pneumatic Pipe Plug Multi Size Dual Bypass

The pneumatic test plug is the most versatile pipe plug available. Because of their flexible sealing design, the same plug can cover a wide range of pipe sizes and overcome common problems such as out of round pipe. These plugs are available with a flowthrough or bypass for testing or simply as a blocking plug.

Features:

• Excellent mechanical properties.
• Low compression set and high resilience.
• Excellent dynamic and rebound properties.
• Temperature range: -40ºC to +80ºC.
• SBR sheeting is more resistant to ageing and temperature than Natural Rubber, with good performance up to 110ºC
• Resistance to chemicals; good resistance to acids, alkalis and salts. Its contact with oils and hydrocarbons is not advisable.

Specifications:

• Size Usage Range:
  • Minimum Diameter: 300mm
  • Maximum Diameter: 600mm
• Maximum Inflation Pressure: 2.5 Bar / 36 psi
• Deflated Plug Dimensions:
  • Diameter: 280mm
  • Rubber Length: 80mm
  • Overall Length: 1050mm
• Weight: 13kg
