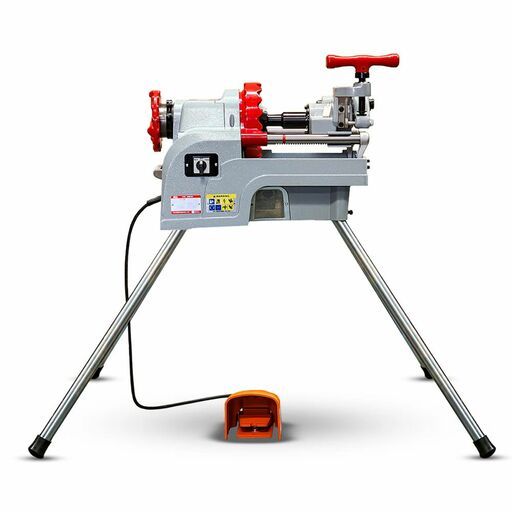

PlumBOSS FPG150M 230V 2"-6" Roll Groove Machine with Manual Groover

PlumBOSS FPG150M 230V 2"-6" Roll Groove Machine with Manual Groover

The FPG150M Powered Roll Groover delivers professional-grade performance for clean, efficient pipe preparation. Designed to groove standard and light wall steel, stainless steel, aluminium, PVC, copper, and copper nickel pipe, it forms precise grooves without removing metal, preserving joint strength and pressure capability. With a powerful 700W motor, hands-free roller system, and fine groove depth adjustment, the FPG150M offers reliable performance, repeatable accuracy, and superior safety for demanding installation environments.

Includes:

• 1 x Portable Groover RG-RH
• 1 x Connecting shaft
• 4 x Hexagonal socket head cap screw (M8×25)
• 4 x Spring washer
• 4 x Hexagonal keys (3, 4, 5, 6mm)
• 1 x Grease
• 1 x Tool box
• 1 x Mount base M-R1 for N/P/R/NP/NR50A)
• 1 x Carbon brushes (spare)
• 4 x Pipe stand & Leg cap

Features:

• Clean, fast roll grooving – no metal removal, no swarf, no cutting oils
• Unique roller design secures pipe for hands-free grooving (ideal for short lengths)
• Capable of grooving up to 900mm pipe lengths without pipe stands
• 700W single-phase motor with reliable long-term performance
• Easy-access motor design for simple servicing
• Finely adjustable groove depth for precise, repeatable results
• Superior power drive, suitable for stainless steel applications

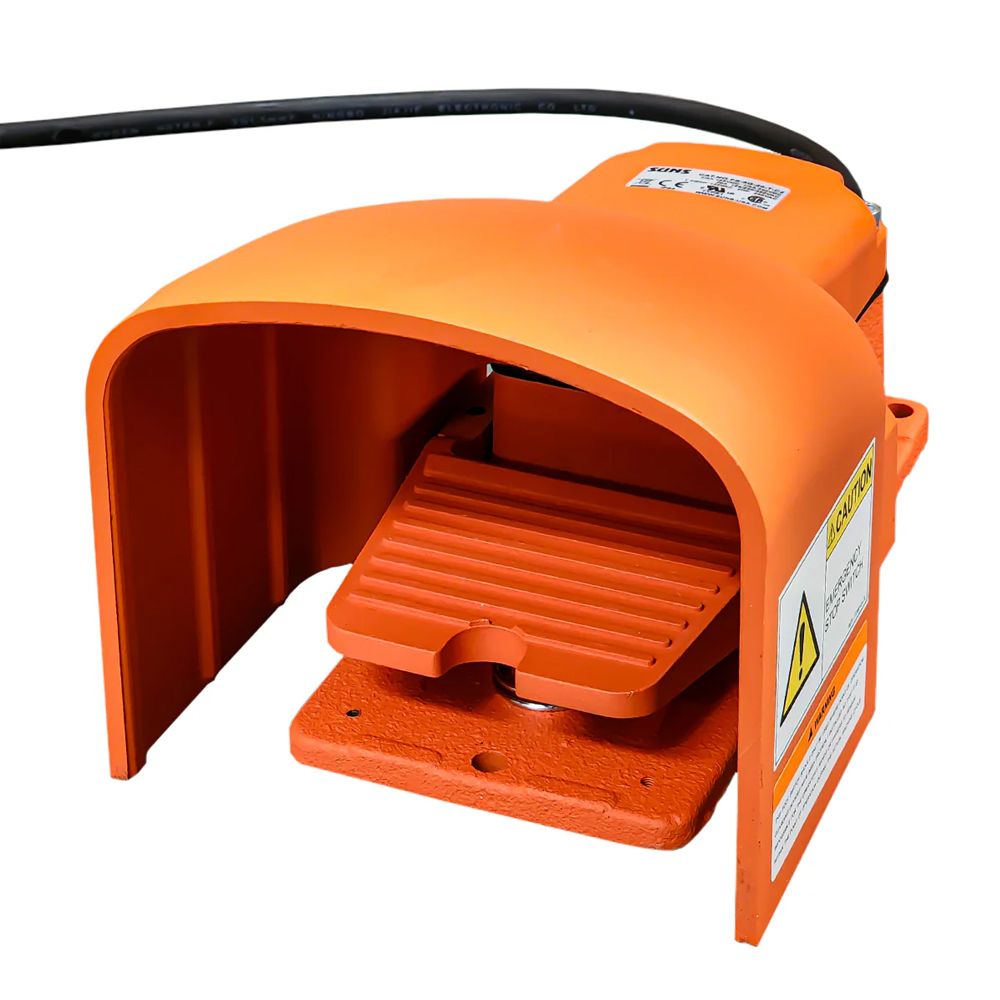

• Cam switch and foot pedal for enhanced operator safety
• Compliant with current Australian roll grooving standards
• Power drive compatible with 16" capacity attachment (sold separately)

Specifications:

• Working Capacity:
  • Schedule10 Steel pipe 1" - 6" (25A - 150A)
  • Schedule40 Steel pipe 1" - 3" (25A - 80A)
• Standard:
  • Schedule10 Steel pipe 2" - 6" (50A - 150A)
  • Schedule40 Steel pipe 2" - 3" (50A - 80A)
• Power Supply: 110 - 120V, 220 - 230V
• Motor: Single phase 700W series motor
• Chuck Type:
  • K-type chuck
  • S-type chuck jaw insert
• Rotation Speed: 39 r.p.m. (unloaded)
• Dimensions (L x W x H): 610mm x 344mm x 372mm
• Net weight: 38kg
