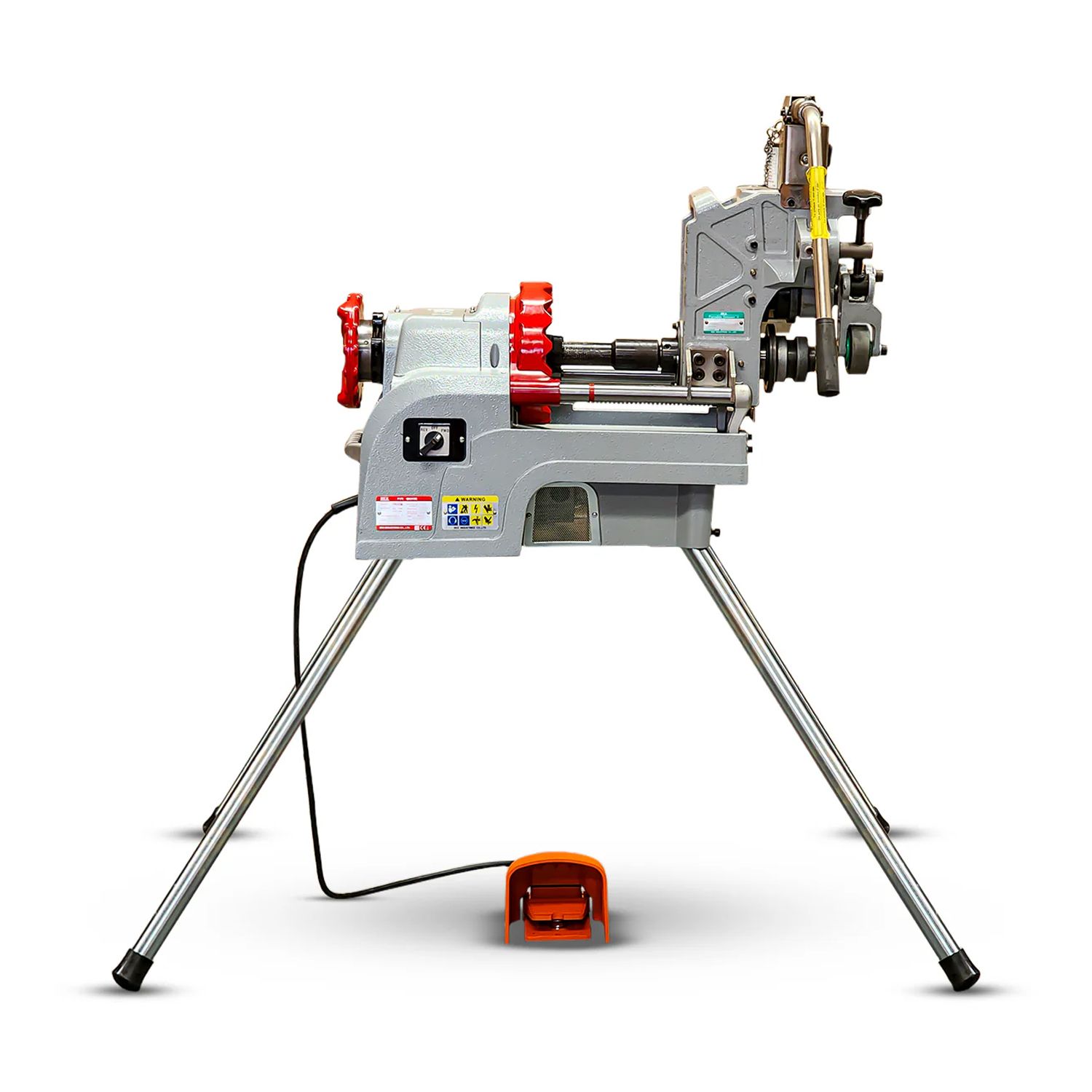

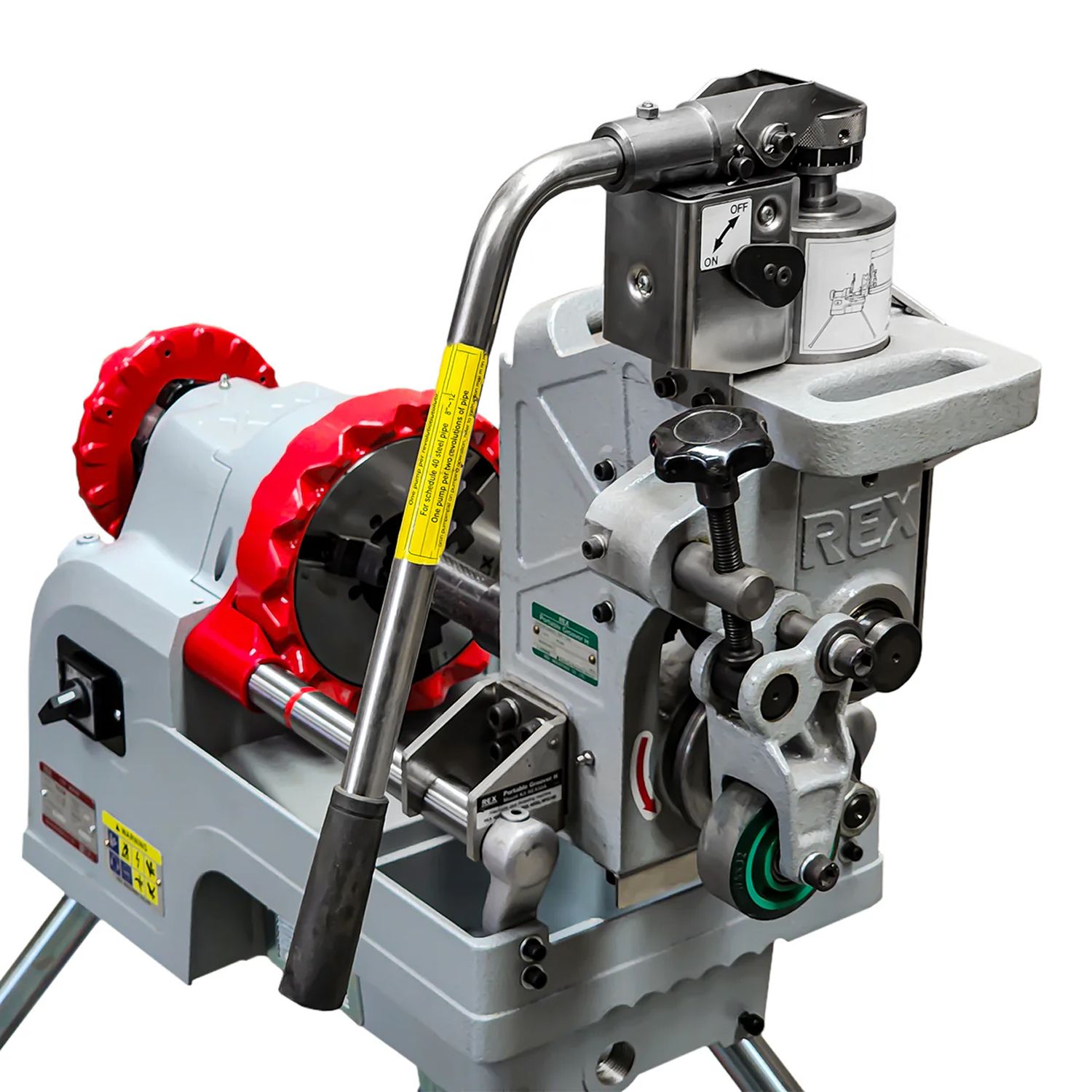

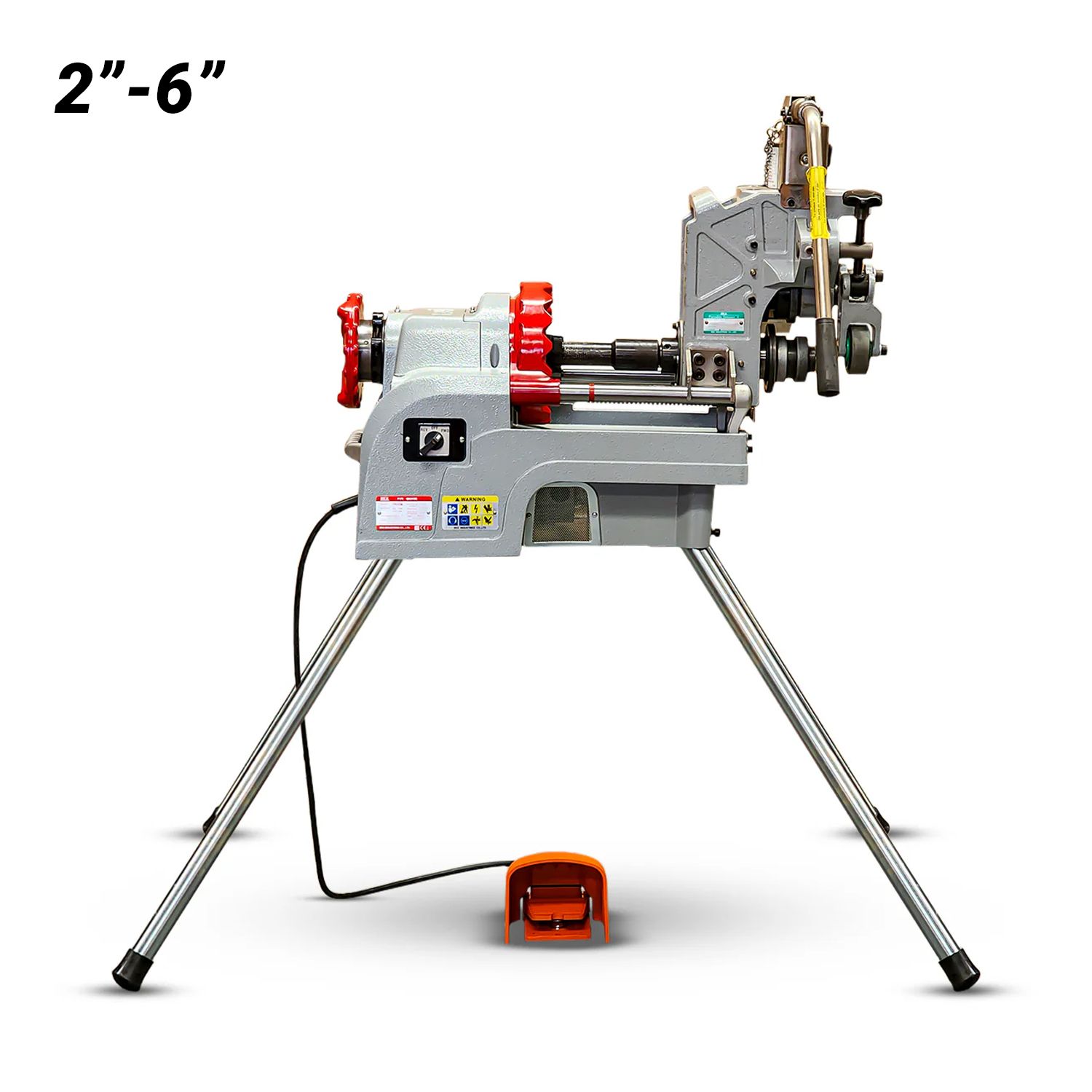

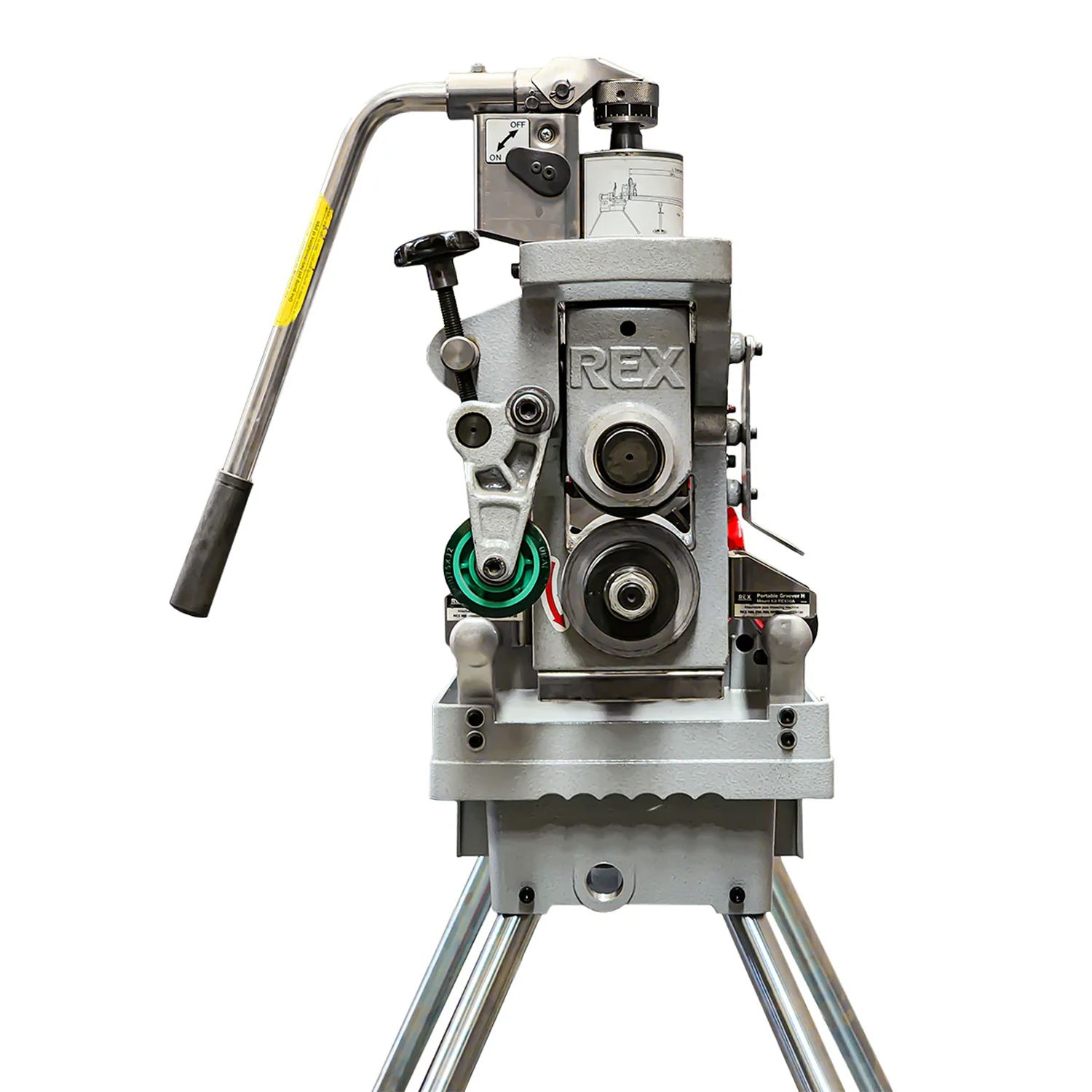

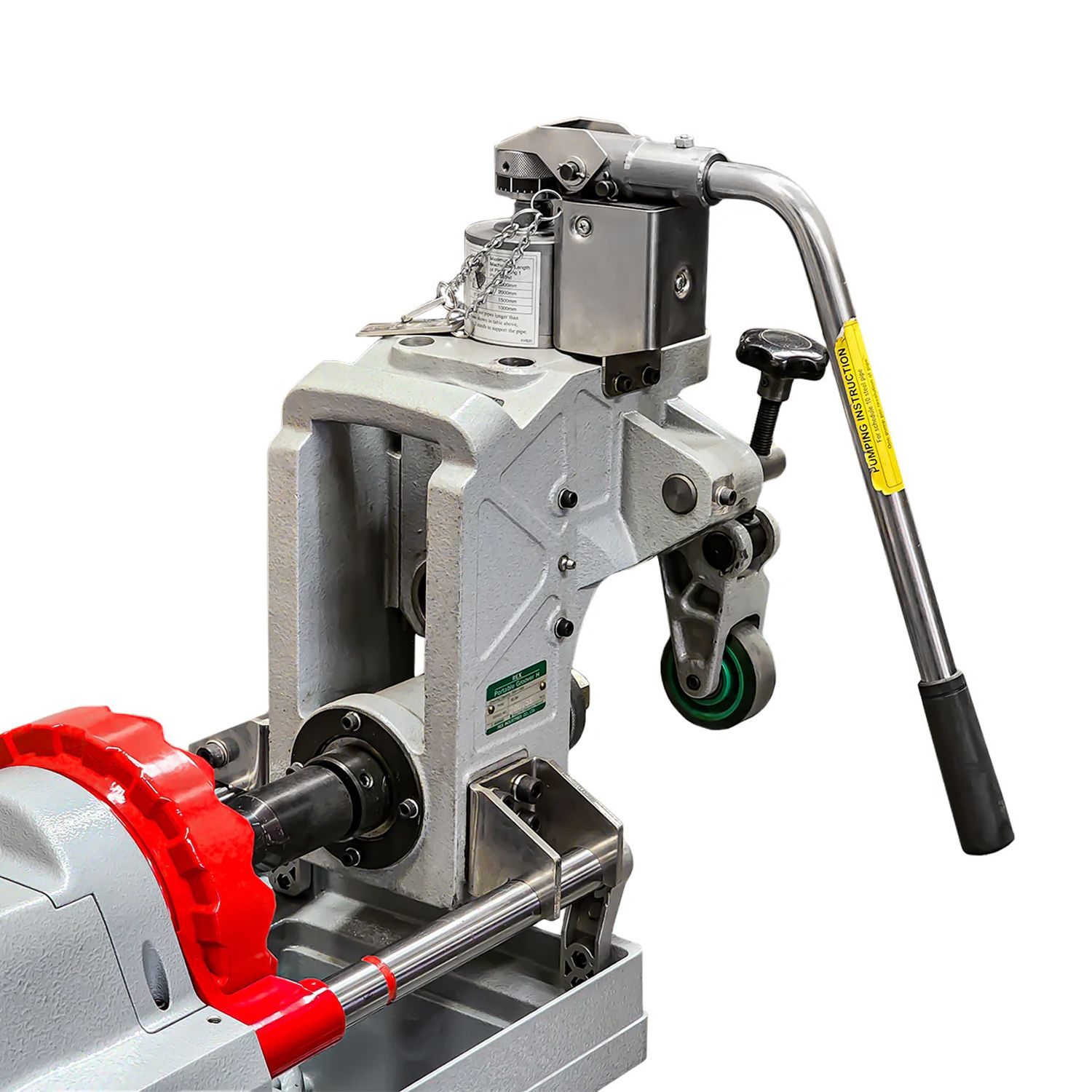

PlumBOSS FPG150H 2"-6" Hydraulic Roll Groove Machine

PlumBOSS FPG150H 2"-6" Hydraulic Roll Groove Machine

The PlumBOSS FPG150H 2"–6" Hydraulic Roll Groove Machine is a professional-grade pipe grooving tool designed for fast, accurate, and consistent roll grooving of steel pipes. Ideal for plumbing, fire protection, and mechanical installations, this machine is engineered to produce precise grooves required for mechanical pipe joining systems. Powered by a hydraulic feed system, the FPG150H ensures smooth operation with minimal operator effort, delivering consistent groove depth and high productivity. Built with a robust steel frame and heavy-duty components, it is suitable for demanding on-site or workshop use.

Features:

• Hydraulic feed system for smooth, controlled grooving
• Suitable for 2" to 6" pipe sizes
• Produces accurate grooves for mechanical coupling systems
• Heavy-duty steel construction for durability and reliability
• Designed for fast, efficient, and repeatable operation
• Ideal for plumbing, fire protection, and HVAC installations

Specifications:

• Working Capacity
  • Schedule 10 Steel Pipe: 1" – 6" (25A – 150A)
  • Schedule 40 Steel Pipe: 1" – 3" (25A – 80A)
• Standard Capacity
  • Schedule 10 Steel Pipe: 2" – 6" (50A – 150A)
  • Schedule 40 Steel Pipe: 2" – 3" (50A – 80A)
• Voltage: 110–120V / 220–230V
• Motor & Performance
• Motor: Single-phase 700W
• Rotation Speed: 39 RPM (unloaded)
• Chuck Type

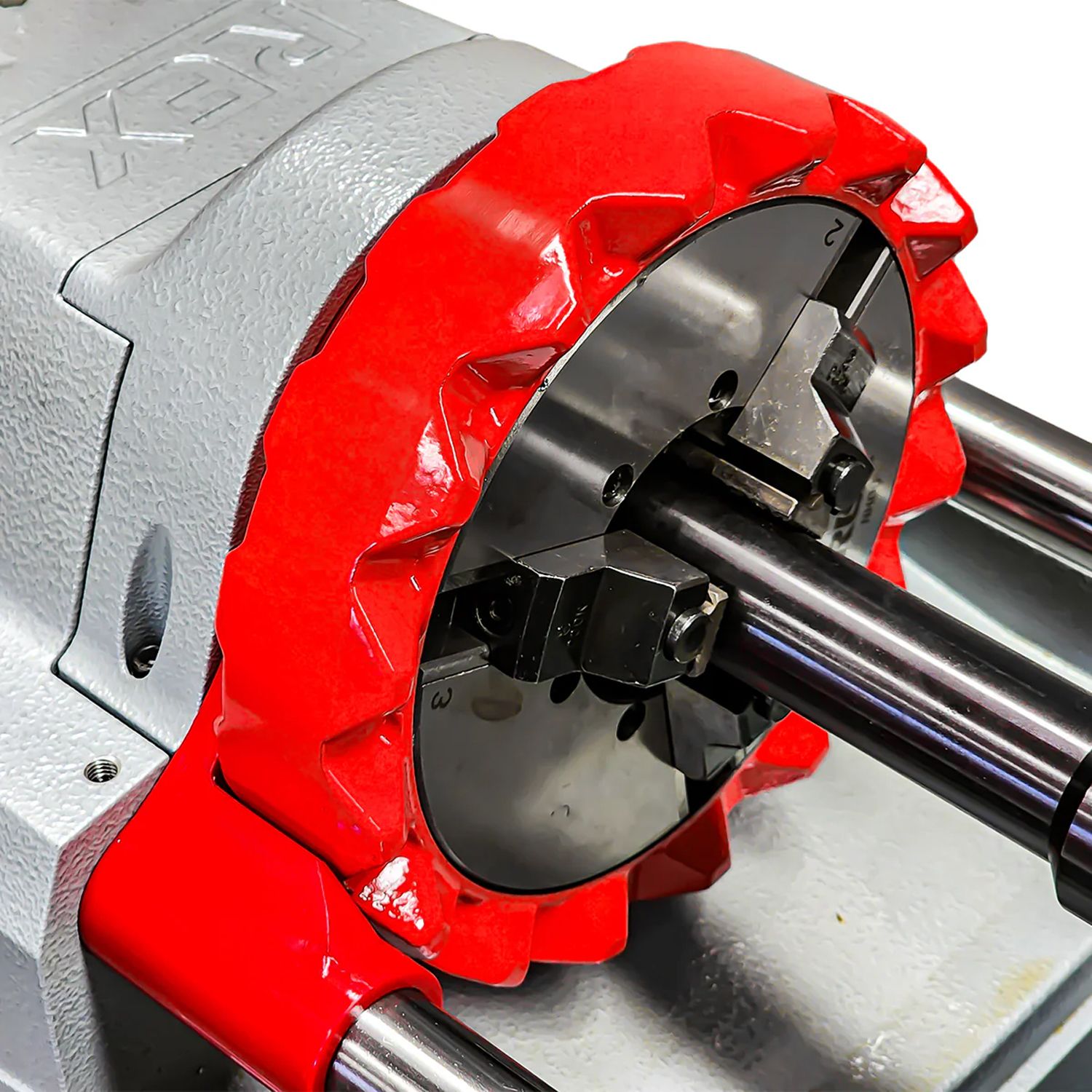

  • K-type chuck
  • S-type chuck jaw insert
• Dimensions (L x W x H): 610mm x 375mm x 500mm
• Weight: 80kg
