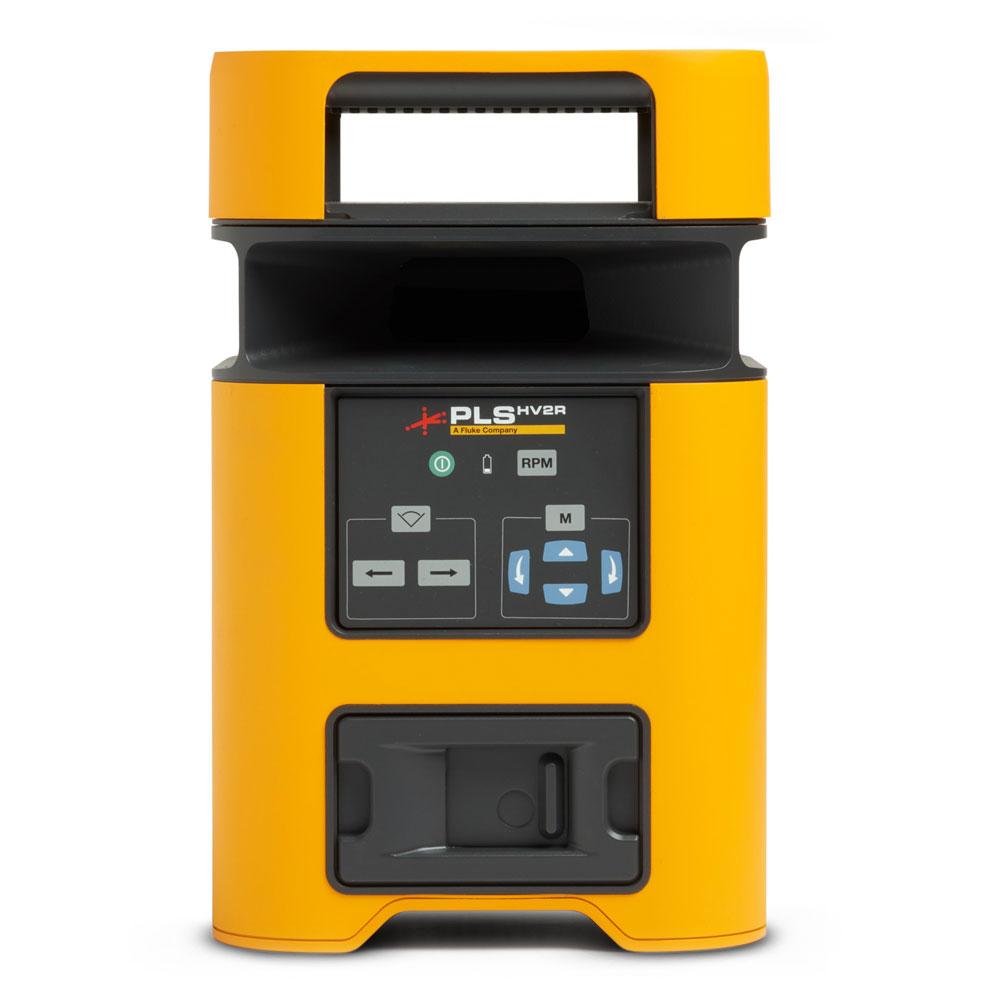

PLS PLS-HV2R-Z (5022501) Manual Slope Red Rotary Laser

PLS PLS-HV2R-Z (5022501) Manual Slope Red Rotary Laser

The PLS HV2R red rotary lasers are designed for the construction job site, offering a rugged ergonomic design and simplified controls. The HV2R model red rotary laser emits a laser line in the horizontal or vertical plane. The HV2R rotary lasers also emit a point from the top when placed in the vertical position. The HV2R lasers are ideal for use by general contractors, electricians, plumbers, and landscapers in both interior and exterior applications.

Features:

• Easy-to-use and fully self-leveling, designed for interior and exterior layout projects.
• HV2R comes with metal ceiling and wall bracket to help with large suspended ceiling layout and installation

Specifications:

• Laser axis: Horizontal and Vertical
• Accuracy: ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
• Auto-leveling range: ± 5-degrees
• Manual slope range: ± 5-degrees
• Working range:
• Without XLD laser detector ≤ 30 m (100 ft)
• With XLD laser detector ≤ 300 m (1000 ft)
• Drop test: 1m
• IP rating: IP67
• Operating temperature: -20 °C to 50 °C (-4 °F to 122 °F)
• Battery: 4 x D Alkaline or NiMH rechargeable
• Battery life: > 60 hours
• Laser: IEC/EN 60825-1:2014 Class 2
• Light source: Semiconductor laser diode
• Max output power: < 1 mW
• Wavelength: 635 nm ±10nm
• Weight: 3.0 kg

Warranty:

• 3 Years Warranty Covered By PLS Australia
