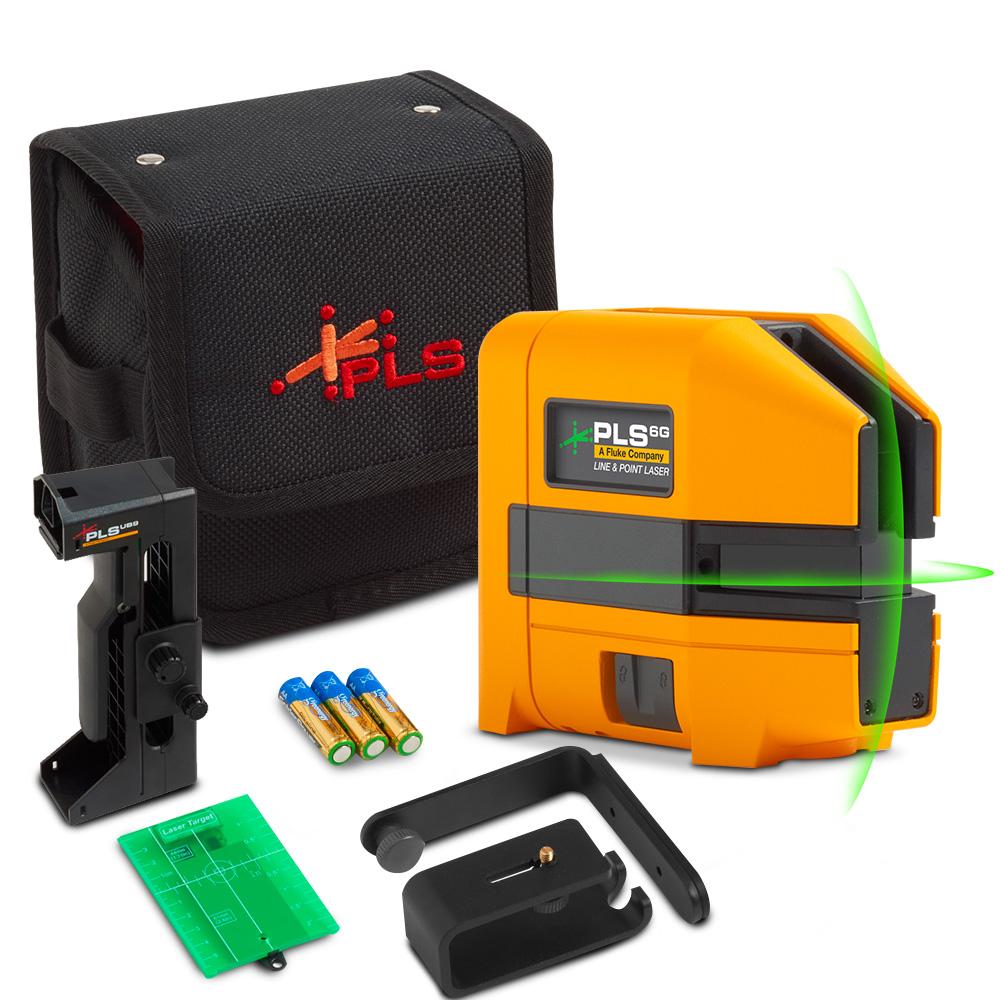

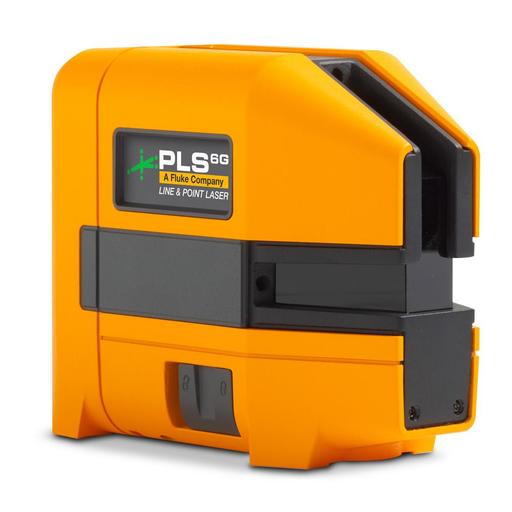

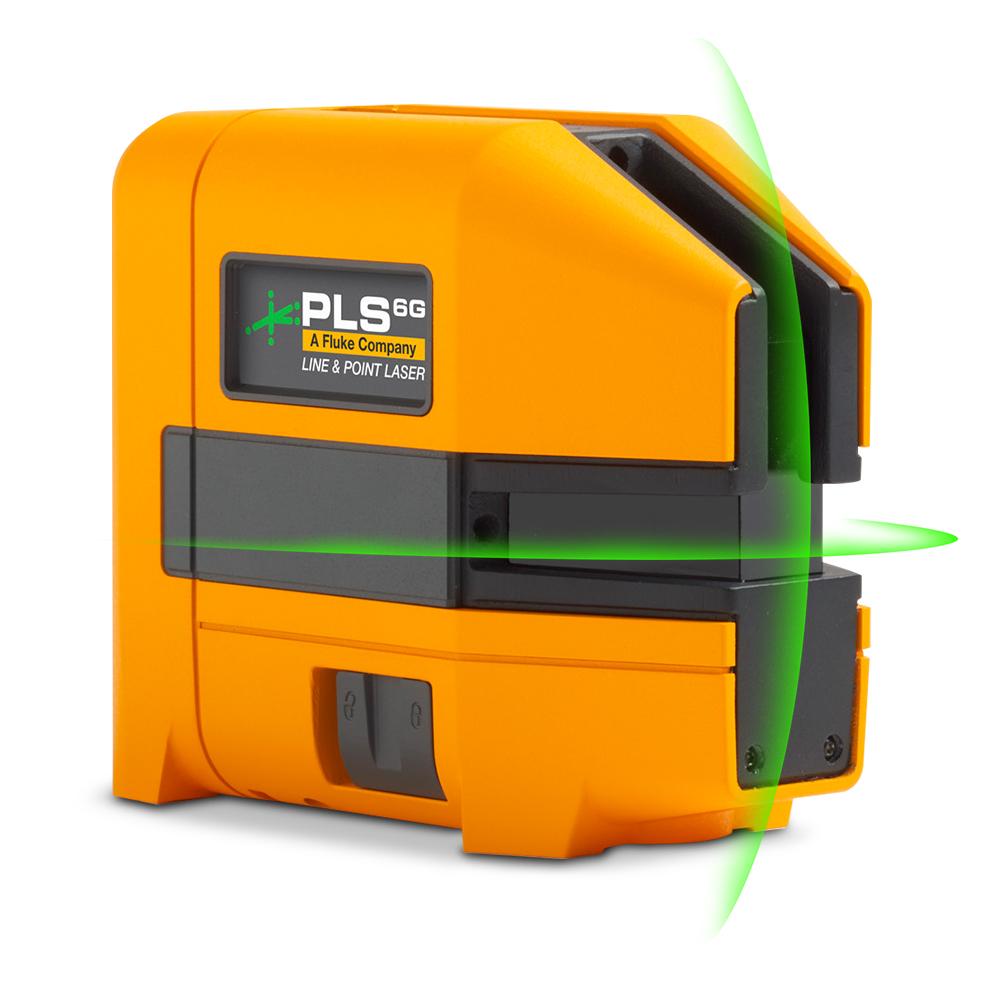

PLS PLS-6G-KIT (5009489) Cross Line Green Laser with 4-Point Lasers Kit

PLS PLS-6G-KIT (5009489) Cross Line Green Laser with 4-Point Lasers Kit

Plumb, level, and square with one tool. This professional self-leveling green combination point and cross line laser level includes vertical and horizontal modes with lines and points combined. Great for metal or wood stud installation, general layout, square alignment, or finish carpentry.

Includes:

• 3 x AA Alkaline IEC LR6

Features:

• SLD laser line detector for use in bright lighting, long distances, or outdoors
• Pendulum Lock, for added durability and projecting a line on a slope

Specifications:

• Battery Life, Continuous Use:
• Red: ≥ 8 hours
• Green: ≥ 3 hours
• Point Laser Direction: 90° up, down, left, right, forward
• Line Fan Angle:
• Horizontal: ≥ 180°
• Vertical: ≥ 130°
• Working Range:
• Point Laser (6 only): ≤ 30m (100 ft.)
• Line Laser Without SLD: ≥ 15m
• Line Laser With SLD: 6m to 60m
• Accuracy: ≤ 3mm @ 10m
• Laser Leveling:
• System: Automatic, Pendulum
• Range: 4°
• Line Laser Width: ≥ 2mm at 5m
• Temperature:
• Operating: -10°C to 50°C
• Storage:
• With Batteries: -18 °C to 50 °C (-0.4 °F to 122 °F)
• Without Batteries: -20 °C to 70 °C (-13 °F to 158 °F)
• Relative Humidity:
• 0 % to 90 % (0 °C to 35 °C)
• 0 % to 75 % (35 °C to 40 °C)
• 0 % to 45 % (40 °C to 50 °C)
• Safety: IEC 61010-1: Pollution Degree 2
• Laser: IEC 60825-1:2014 Class 2
• Light Source: Semiconductor laser diode
• Max Output Power: < 1 mW
• Wave length:
• Red: 635 nm ± 5 nm
• Green: 525 nm ± 5 nm
• Dimensions (H x W X L): 116 mm x 64 mm x 104 mm
• Weight: 0.6kg
