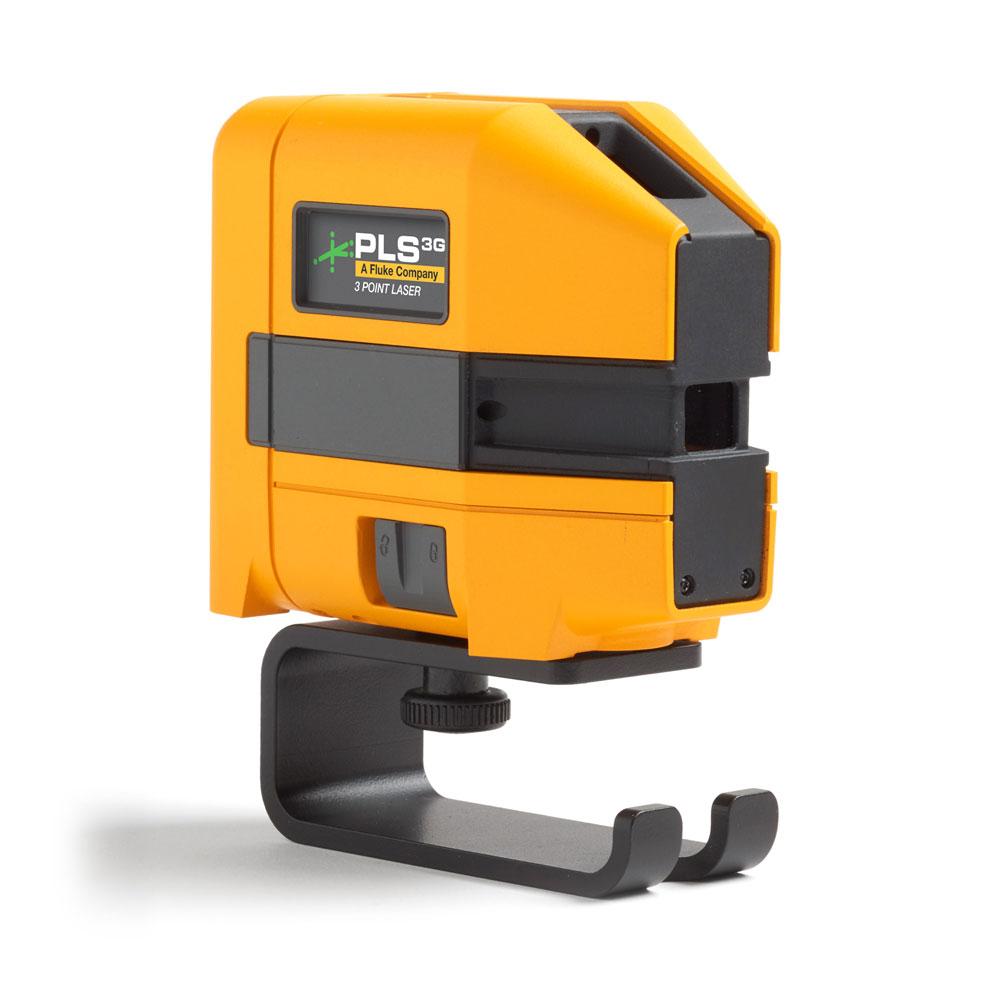

PLS PLS-3G-KIT (5009378) 3-Point Green Laser Level Kit

PLS PLS-3G-KIT (5009378) 3-Point Green Laser Level Kit

This professional self-leveling three point green laser level allows for fast, accurate layout of reference points and is excellent for steel stud framing, HVAC installation, electrical and residential construction.

Features:

• The PLS 3 G green beam laser is up to three times brighter than the PLS 3R red beam, making it ideal for projects over longer distances or with lower lighting.
• Layout right the first time, every time with accuracy to ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
• Equipped with a pendulum lock, ensuring safe transport and the ability to lock the laser level in tilt mode.
• IP 54 rating to limit dust and water entry for years of operation on the job site.
• Kit includes floor stand and L-bracket for fast, easy overhang and centerline measurements.

Specifications:

• Battery: 3 x AA Alkaline IEC LR6
• Battery Life: ≥ 16 hours
• Point Laser Direction: 90° up, down, forward
• Working Range: ≤ 30 m (100 ft.)
• Accuracy ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)
• Laser Leveling:
• System: Automatic
• Pendulum Range: 4°
• Point Laser Diameter: ≤ 4 mm at 5m
• Temperature:
• Operating: -10 °C to 50 °C (14 °F to 122 °F)
• With Batteries -18 °C to 50 °C (-0.4 °F to 122 °F)
• Without Batteries -20 °C to 70 °C (-13 °F to 158 °F)
• Relative Humidity:
• 0 % to 90 % (0 °C to 35 °C)
• 0 % to 75 % (35 °C to 40 °C)
• 0 % to 45 % (40 °C to 50 °C)
• Safety: IEC 61010-1: Pollution Degree 2
• Laser: IEC 60825-1:2014 Class 2
• Light Source: Semiconductor laser diode
• Max Output Power < 1 mW
• Wavelength: 525 nm ± 5 nm
• Dimensions (L x W x H): 116mm x 64mm x 104mm
• Weight: 0.6kg

Warranty:

• 3 Years Warranty Covered By PLS Australia
