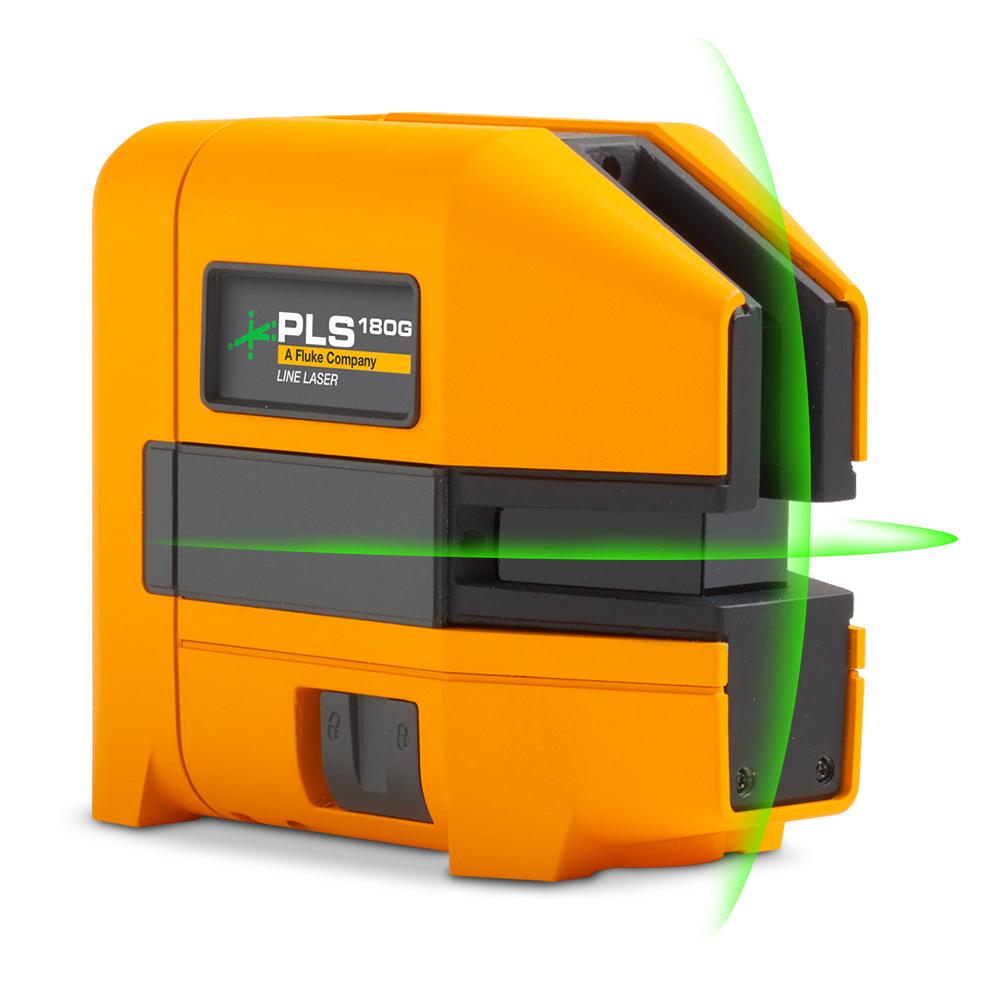

PLS PLS 180G KIT RBP (5116087) Cross Line Green Laser Kit With RBP5 Rechargeable Battery Pack

PLS PLS 180G KIT RBP (5116087) Cross Line Green Laser Kit With RBP5 Rechargeable Battery Pack

The professional self-leveling red cross line laser level is equipped for multiple applications including, wall construction, acoustic ceiling installation, tile installation, residential and commercial construction. The kit includes a rechargeable battery pack, magnetic L-bracket for fast, easy overhang and centerline measurements, and the universal wall/ceiling bracket for fine vertical adjustment and ceiling installation.

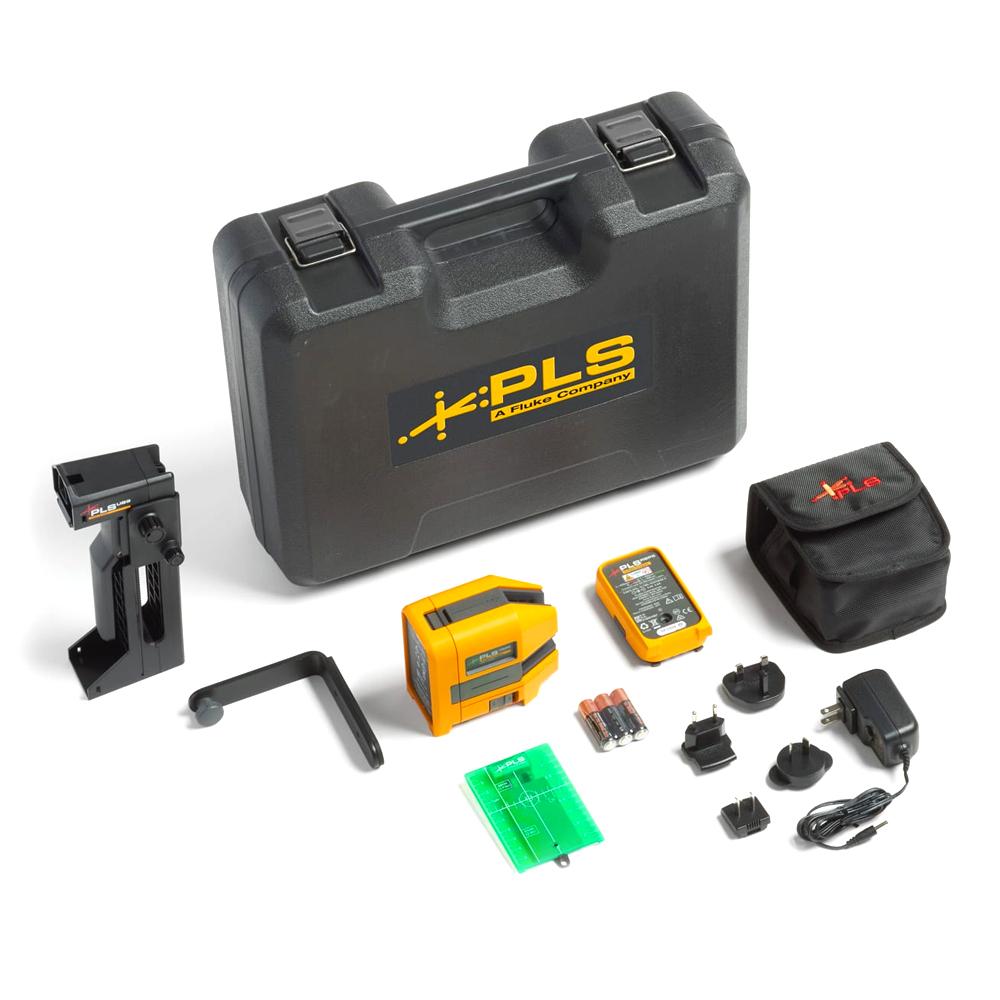

Includes:

• 1 x Pouch
• 1 x Rechargeable battery pack
• 1 x Alkaline battery pack
• 1 x Ceiling and wall bracket
• 1 x Magnetic L-bracket
• 1 x Green reflective target
• 1 x Safety sheet
• 1 x QRG

Features:

• Accuracy: ≤⅛" at 30' (≤3 mm at 10 m)
• Durable pendulum lock: equipped with a pendulum lock, ensuring safe transport and the ability to lock the laser level in tilt mode
• Horizontal fan angle: 180°
• Vertical fan angle: 130°
• IP 54 rating to limit dust and water entry for years of operation on the job site
• Lithium-ion battery

Specifications:

• Battery: 3 x AA Alkaline IEC LR6
• Battery Life: ≥ 3 hours
• (RBP5) Li-Ion battery life, continuous use: >=12 hours
• Point Laser Direction (6 only): 90° up, down, left, right
• Line Fan Angle:
• Horizontal: ≥ 180°
• Vertical: ≥ 130°
• Working Range:
• Point Laser (6 only): ≤30 m (100 ft.)
• Line Laser Without SLD: ≤15 m (50 ft.)
• Line Laser With SLD: 6 m to 60 m (20 ft. to 200 ft.)
• Accuracy: ≤3 mm @ 10 m (≤1/8 in at 30 ft.)
• Laser Leveling
• System: Automatic, Pendulum
• Range: 4°
• Line Laser Width: ≤2 mm at 5 m
• Temperature:
• Operating: -10 °C to 50 °C (14 °F to 122 °F)
• With Batteries: -18 °C to 50 °C (-0.4 °F to 122 °F)
• Without Batteries: -20 °C to 70 °C (-13 °F to 158 °F)
• Relative Humidity:
• 0 % to 90 % (0 °C to 35 °C)
• 0 % to 75 % (35 °C to 40 °C)
• 0 % to 45 % (40 °C to 50 °C)
• Safety: IEC 61010-1: Pollution Degree 2
• Laser: IEC 60825-1:2014 Class 2
• Light Source: Semiconductor laser diode
• Max Output Power: < 1 mW
• Wavelength: 525 nm ± 5 nm
• Dimensions (L x W x H): 116mm x 64mm x 104mm
• Weight: 0.6kg

Warranty:

• 3 Years Warranty Covered By PLS Australia
