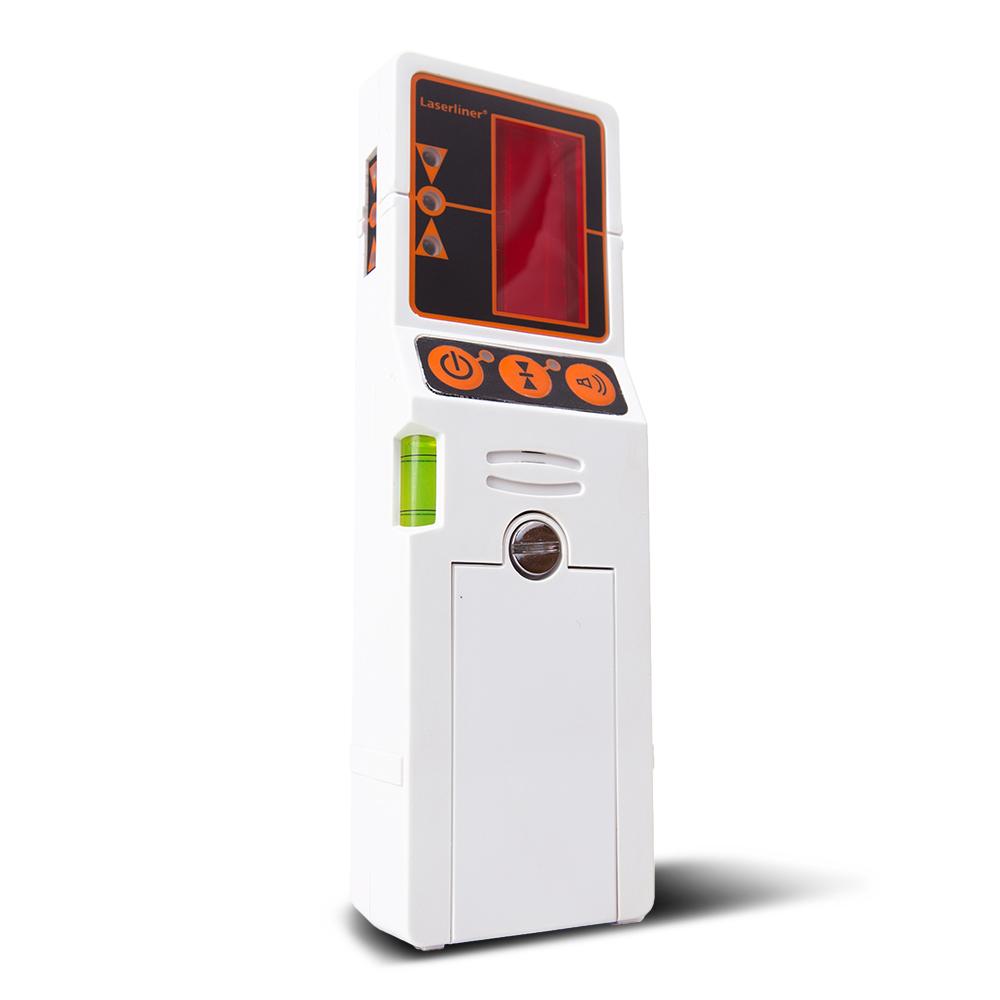

PLS FD8 Generic Laser Line Receiver

PLS FD8 Generic Laser Line Receiver

Includes:

• Receiver
• Strap
• 1 x 9V Battery Included



Features:

• For use with most red beam "pulse output" lasers or Echo-777 multi-line lasers
• Used to detect the line while outdoors or in bright conditions when you can't see the (indoor visible) lines
• Compact laser line detector
• Allows laser line tools to be used outdoors up to 50 metres
• Audible indication of line level
• Visual LED indication of line level
• Waterproof to IP54



Specifications:

• Sensitivity setting: fine 1.5mm / coarse 2.5mm
•
Frequency: 10kHz
•
Laser reception window: 20x40mm

• Auto power off: 10 minutes

• Power voltage: 9V DC
•
Power supply: 1 x 9V alkaline battery
• Continuous operating time: 15 hrs
• Waterproof: Yes to IP54

• Operating temperature range: -10 to +40 deg C

• Storage temperature range: -10 to +50 deg C

• Dimentions (L x W x H): 165mm x 51mm x 27mm

• Weight: 160g (With battery)
