Pinpoint PDM600 600V Digital Multimeter

Pinpoint PDM600 600V Digital Multimeter

The Pinpoint PDM600 is a handheld and battery operated digital multimeter. This instrument can be used to measure DC Voltage, AC Voltage, DC Current, Resistance, Diode Test, Connectivity Test & Continuity. It provides large LCD screen with backlight can help the user see the data clearly even in the dark. It comes low battery indicator on the display. This unit is used to diagnose, assemble, and repair circuitry and wiring. It has been designed according to IEC - 1010 (CATIII).

Includes:

• 1 x PDM600 Digital multimeter
• 1 x User manual

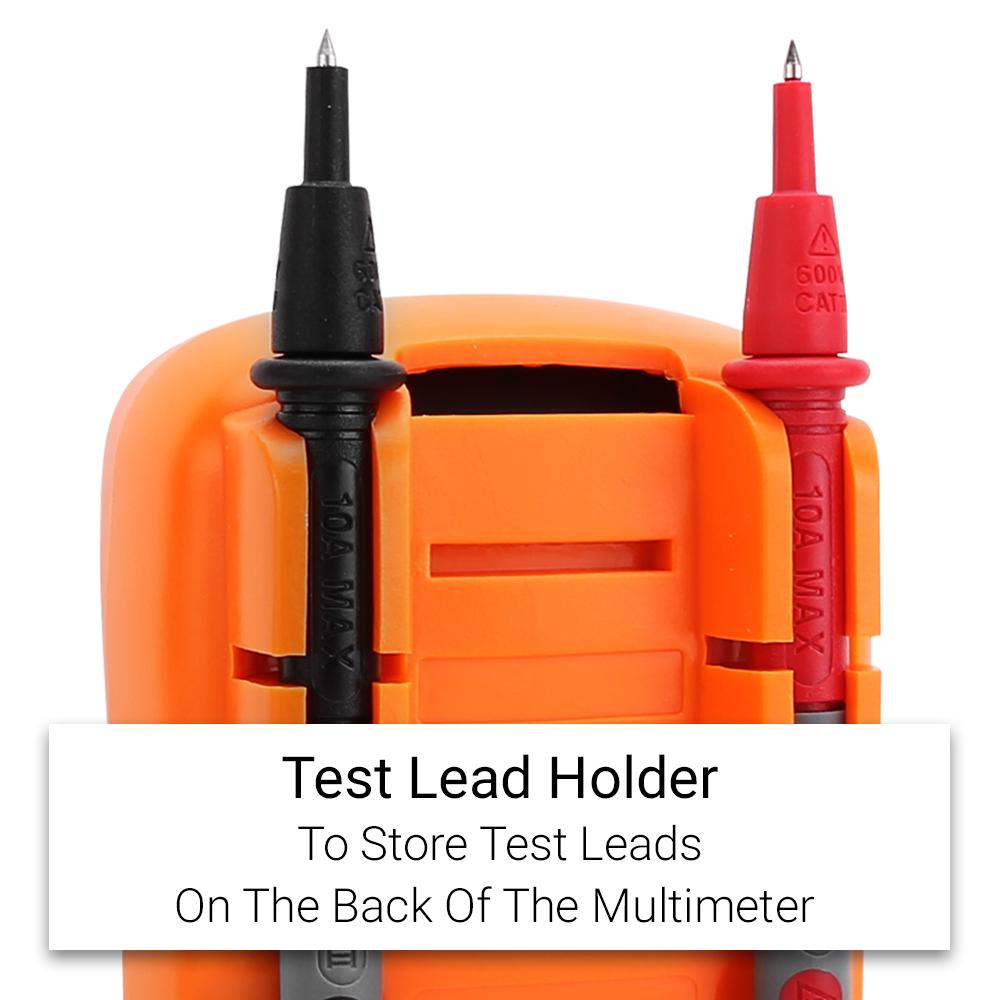

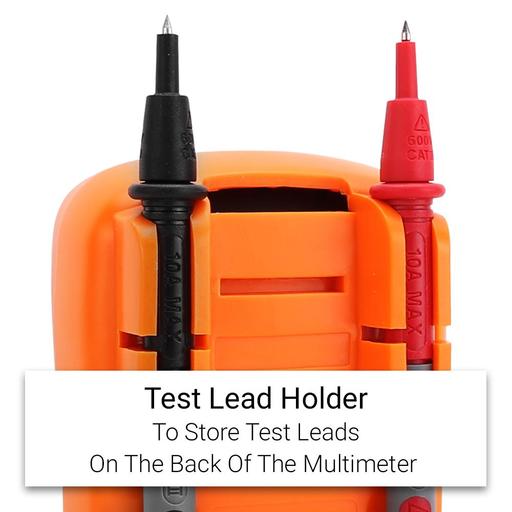

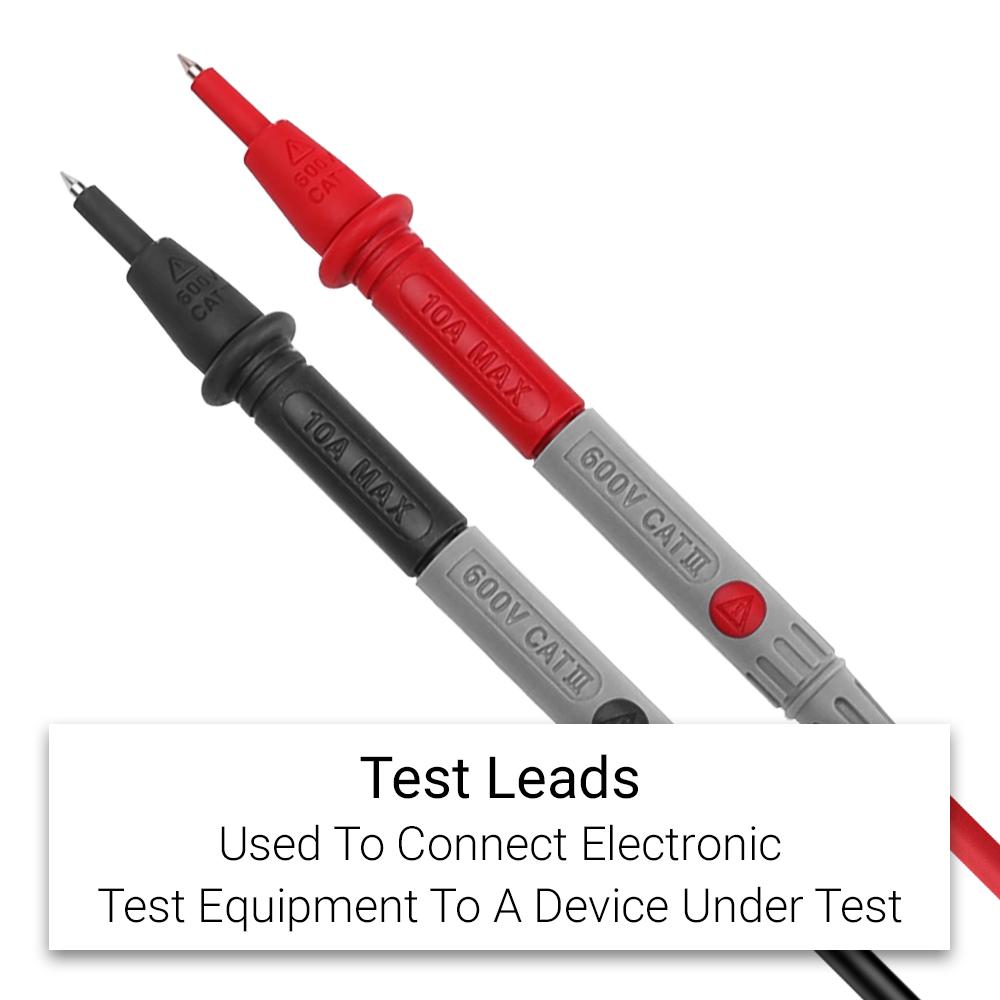

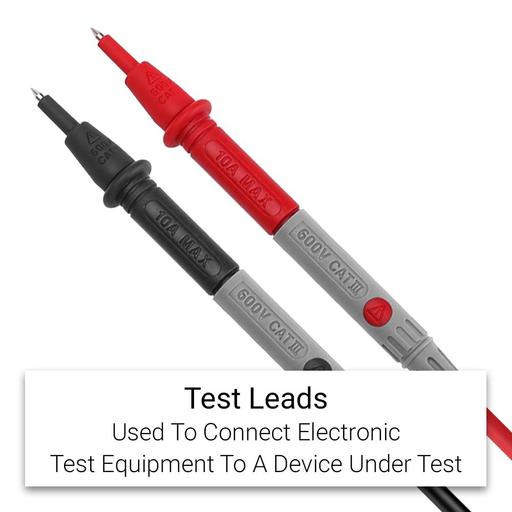

• 1 x Test leads

Features:

• Displays 2000 counts
• Overload protection
• Data hold
• Diode test
• Resistance test
• Continuity test
• LCD screen with back light display

Specifications:

• DC voltage: 200mV/2V/20V/200V ±(0.5%+2), 600V ±(0.8%+2), 60V ±(0.8%+2)
• AC voltage: 200V/600V ±(1.2%+10), 20V ±(1.0%+10), 200V ±(1.0%+10)
• Resistance: 200Ω ±(0.8%+5), 2kΩ/20Ω/200Ω ±(0.8%+2), 2MΩ ±(1.0%+5), 6MΩ ±(1.2%+2), 60MΩ ±(2.0%+5)
• DC current: 20μA/200μA/2mA ±(1.0%+3), 20mA ±(1.0%+5), 200mA ±(1.5%+5), 10A ±(3.0%+10)
• Display: 2000 counts
• Battery: 1 x 9V6F22 (Not included)
• Dimensions (L x W x H): 69mm x 31mm x 138mm
• Weight: 0.17kg
