Pinpoint P500 Self Levelling Rotary Red Beam Laser

Pinpoint P500 Self Levelling Rotary Red Beam Laser

The Pinpoint P500 Self-Levelling Rotary Laser is a 360 Degree laser level. Projecting a perfectly straight and level 360° horizon plane up to 500m diameter. Fine placement can be achieved with the vertical laser line ensuring accurate and repeatable measurements. An auto or manual mode as well as direction scanning for tailored applications.



Includes:

• Pinpoint P500 Self-Levelling Rotary Laser

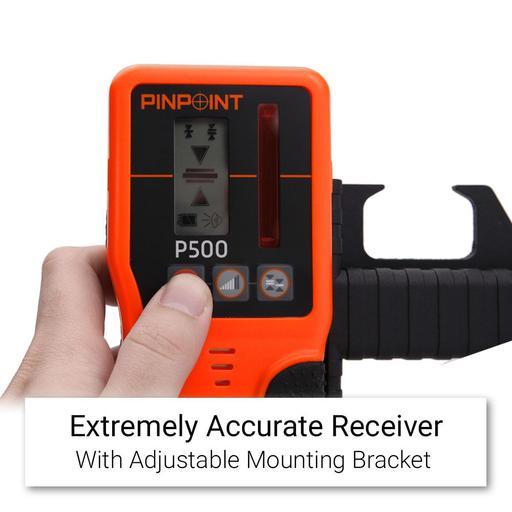

• Receiver
• Receiver Bracket
• Laser Marker
• Protective Glasses
• BMC Carry Case
• 4x Batteries

Features:

• Dual-Grade Functionality
• User-Friendly Operation
• Out of Levelling Sensor

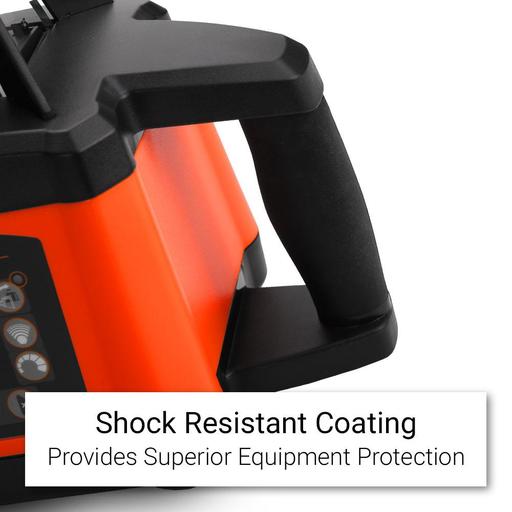

• Shock Resistance Coating
• Indoor & Outdoor Mode
• Directional Scanning
• Speed Adjustable
• IP54 Splashproof

Suits:

• Carpentry
• Ceilings
• Plumbing
• Electrical
• Concrete

Specifications:

• Leveling Accuracy:
• Vertical ±20
• Horizontal ±20 (±3mm at 30m)
• Measuring Range: 500m (Diameter)
• Directional Scanning: 0°, 10°, 45°, 90°, 180°
• Light Source: Laser Diode
• Working Temperature: 0° - 40°C
• Continuous Working Time: Approx. 20 Hours
• Splash Proof: IP54
• Dimensions: 250 x 162 x 207mm
• Weight: 5.5kg
• Leveling Range: ±5°
• Spinning Speed: 0, 60, 120, 300, 600 rpm
• Slope Adjust Range: ±5 (Dual Axis)
• Wavelength: 635nm
• Power Supply: 4 x C4 Alkaline Batteries
