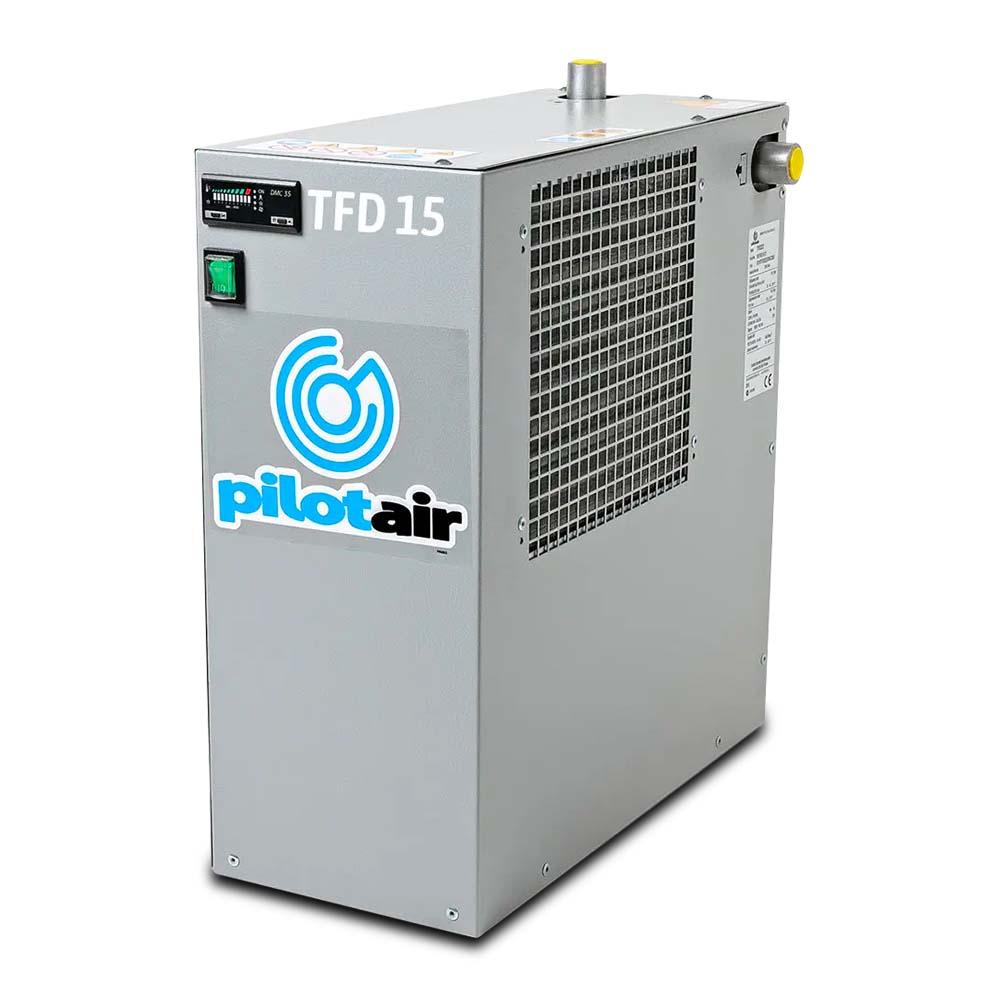

Pilot Air TFD15 240V 25L/sec Refrigerated Compressed Air Dryer

Pilot Air TFD15 240V 25L/sec Refrigerated Compressed Air Dryer

Pilot Air’s TFD Range of Refrigerated Air Dryers is compact, cost effective and is rated for Australian conditions with flow rates based on an ambient temperature of 35°c.

Features:

Upgraded electronic control panel
Hot gas by-pass valve
Timed Condensate drain
Generous sizing of the condenser ensures maximum performance of the refrigerant circuit
Running costs are reduced thanks to the efficient ALU-DRY heat exchanger, high efficiency compressors

Specifications:

Flow Rate 25 L/Sec (53 CFM)
Voltage: 240V
Port Size: 3/4" BSP F
Working Pressure: 16 Bar
Dimensions: 507mm x 226mm x 532mm
Weight: 48kg
