Piher GP-19100 Table Piston Clamp

Piher GP-19100 Table Piston Clamp

The Piher GP-19100 Table Piston Clamp is a professional-grade clamping tool designed for welding, assembly, and workbenches with grid hole systems. It features a straight-advance piston mechanism that ensures powerful and precise clamping without rotation. Compatible with tables with 16 mm to 22 mm diameter holes, it delivers robust performance and flexibility for horizontal or vertical applications.

Features:

• Straight-Advance Piston System: Non-rotating mechanism provides direct and stable clamping force
• 360° Swivel Head: Allows flexible positioning for clamping from multiple angles
• Double Thread Mechanism: Delivers smoother, faster clamping action with reduced effort
• Zinc-Plated Steel Construction: Ensures long-term durability and corrosion resistance
• Ergonomic Folding Handle: Fiberglass-reinforced PA handle folds for compact storage and improved handling

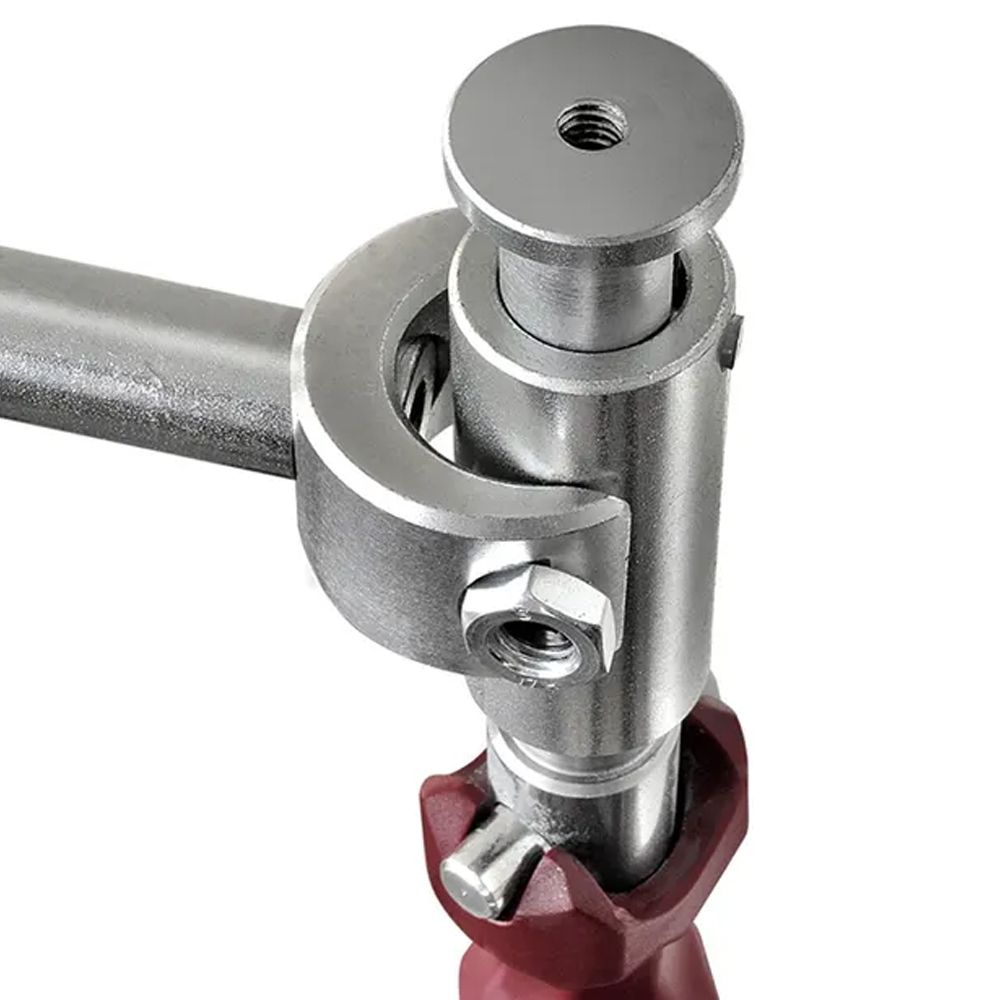

• M6 Threaded Piston Head: Enables accessory attachments like pressure caps or pads
• Drop-in Design: Fits standard grid tables with Ø16 mm to Ø22 mm holes

Specifications:

• Clamping Capacity: 160 mm
• Maximum Clamping Force: 350 kg
• Mounting Hole Compatibility: 16 mm to 22 mm table holes
• Clamp Type: Table piston clamp (straight advance)
• Handle Type: Foldable PA + fiberglass ergonomic grip
• Material: Carbon steel with zinc plating

Warranty:

• 12 Months Warranty Covered by Piher
