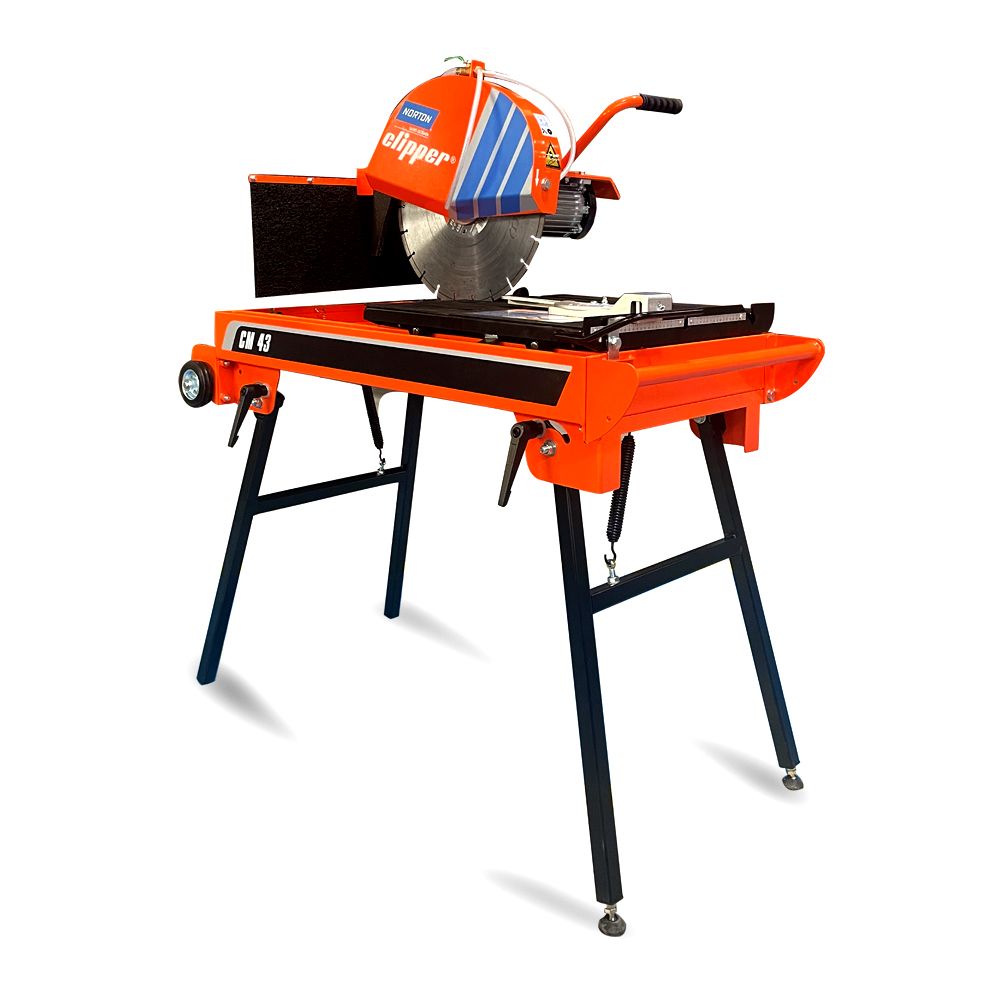

Norton CM43 (70184631438) 2.2kW 400mm (16") Clipper Compact Brick Saw

Norton CM43 (70184631438) 2.2kW 400mm (16") Clipper Compact Brick Saw

The Norton Clipper CM43 is a lightweight and portable masonry saw. Wider and longer than most equivalent machines on the market, CM43 can cut a 60x60cm slab in 2 halves of 30cm. Featuring a strong frame, folding feet and conveyor cart which improves stability, ensures easier use with the adjustable tilting head (90°-45°).

Features:

• Titling head allows bevel cuts up to 45°
• Wide conveyor cart and long reinforced frame allows the operator to cut a 60 x 60cm slab in two 30cm halves
• Wide conveyor cart with tilted wheels, anti-pivoting and locking system provides great stability and durability
• Highly accurate cutting guide with per-degree angular setting, facilitates quick, precise and easy cutting without additional accessories
• Plug & Play water pump allows quick and easy maintenance of the machine without waste of time

Specifications:

• Supply Voltage / Power: 230V 1- / 2.2kW(3hp)
• Fuse Generator: 16A / 6kVA
• Blade x Bore: Ø 400 x 25.4mm
• Total Speed: 2800 min-1
• Max Cutting Depth at 90º / 45º: 135/90mm
• Max Cutting Length: 670mm
• Max Material Height: 200mm
• Table Size: 500mm x 540mm
• Hand Arm Vibrations: <2,5 m/s2
• Sound Power: 92dB(A)
• Pressure Level: 80dB(A)
• Dimensions (L x W x H): 1187mm x 620mm x 1360mm
• Weight: 90kg
