Nakaya NK-230 180mm (7")-230mm (9") Dust Extraction Shroud with Guide Bar

Nakaya NK-230 180mm (7")-230mm (9") Dust Extraction Shroud with Guide Bar

Dust generated on the construction site is a serious problem because of the damage caused to both the operatives health and to the environment. The NK-230 is the FIRST product that controls the dust even when "plunge-cutting", and when fitted to a range of popular angle grinders.

Features:

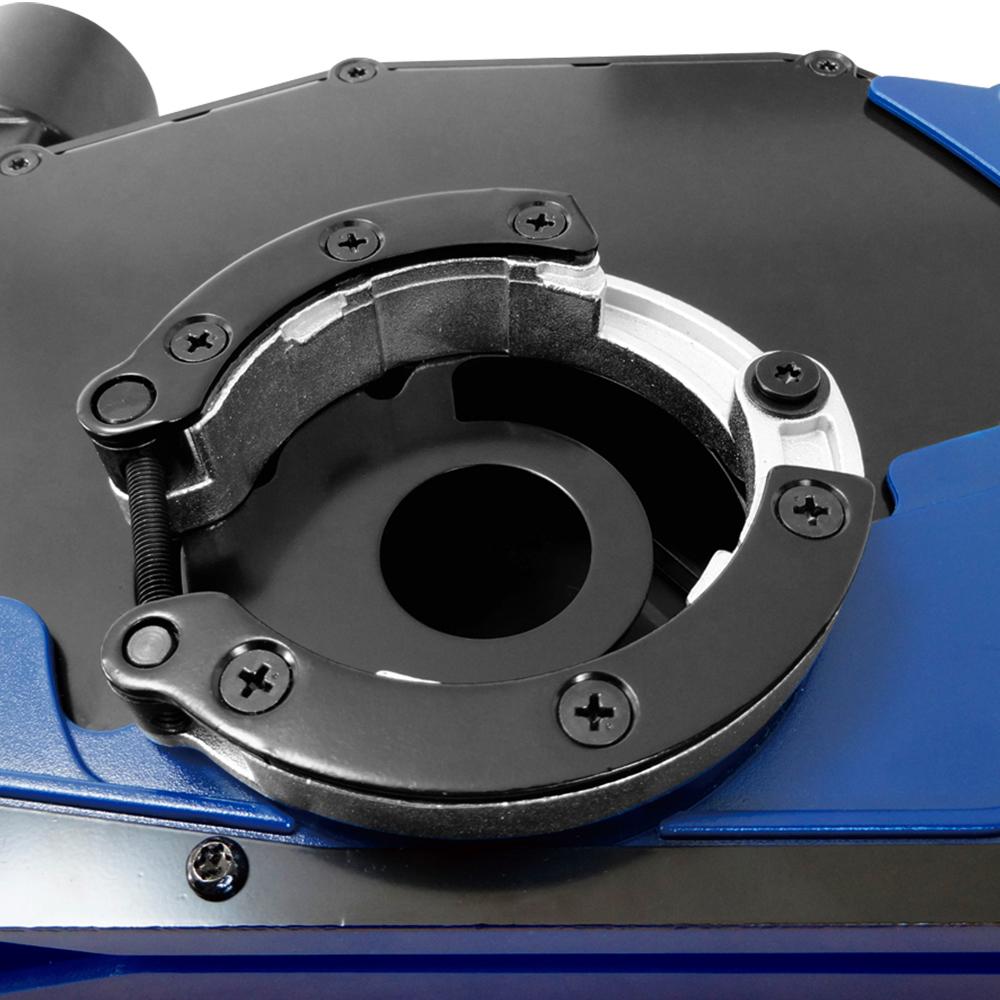

• Our revolutionary Multi Adapting System enables the NK-230 to be fitted onto a wide range of popular 230mm Angle Grinders.
• When plunge cutting, the cutting guide is automatically stored, the Front Brush of the NK-230 then contains the dust being blown forward. Max. cutting depth 40mm for effective dust extraction.

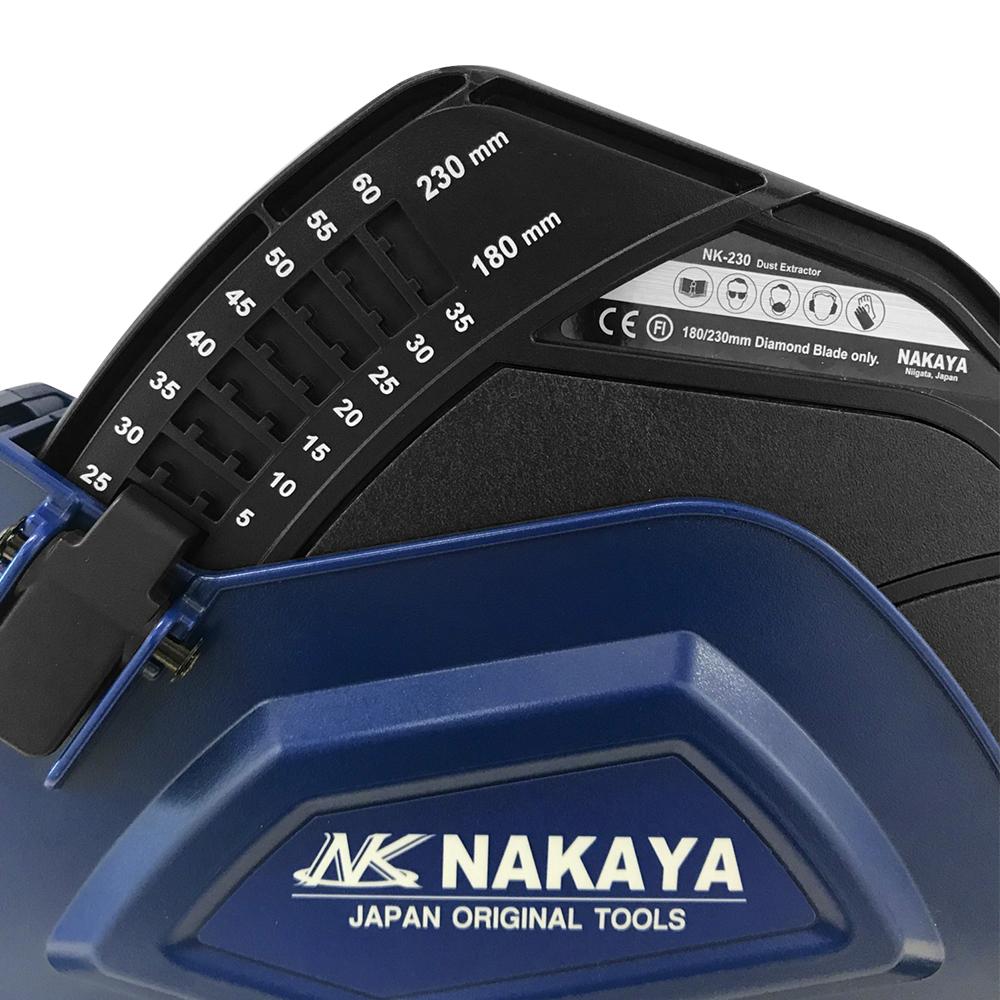

• Quick depth change, the cutting depth of the NK-230 can be set in any length from 5mm up to 60mm(5mm step)
• Front / Rear support bars stabilize the whole system, the 6-Rollers of the NK-230 cancel any friction against the work surface for a smooth cut.

Specifications:

• Suitable Blade: 180mm-230mm (T2-3mm) Diamond Blade
• Cut Depth:
  • 180mm Blade: 5mm-35mm
  • 230mm Blade: 5mm-60mm
• Suitable For Use On: Concrete, Block, Tile
• Weight(Main Unit + Adaptor): 2.2kg

Suitable For Models:

• BOSCH: GWS 20-230H, GWS 22-230H, GWS 22-230JH, GWS 22-230LV, GWS 24-230JH, GWS 24-230BV, GWS 24-230LVI, GWS 24-230JVX, GWS 26-230JBV, GWS 26-230LVI
• DeWALT: DWE494, DWE490, DWE492, D-28490, D-28492, D-28498, DWE4759, DWE4599
• FLEX: L21-6 230, L24-6 230, L26-6 230
• HiKOKI: G23MRU, G23UBY, G23SEY, G23SCY, G23SC3, G23SR, G23SRU, G23SW2, G23SWU, G23UC, G23UCY, G23UDY
• Makita: GA9020, GA9030, GA9040
• Metabo: WE24-230MVT, W22-230MVT, WE22-230MVT, W24-230MVT, W26-230MVT, WE26-230MVT, WX22-230, W24-230
• Milwaukee: AG22-230, AG22-230E
