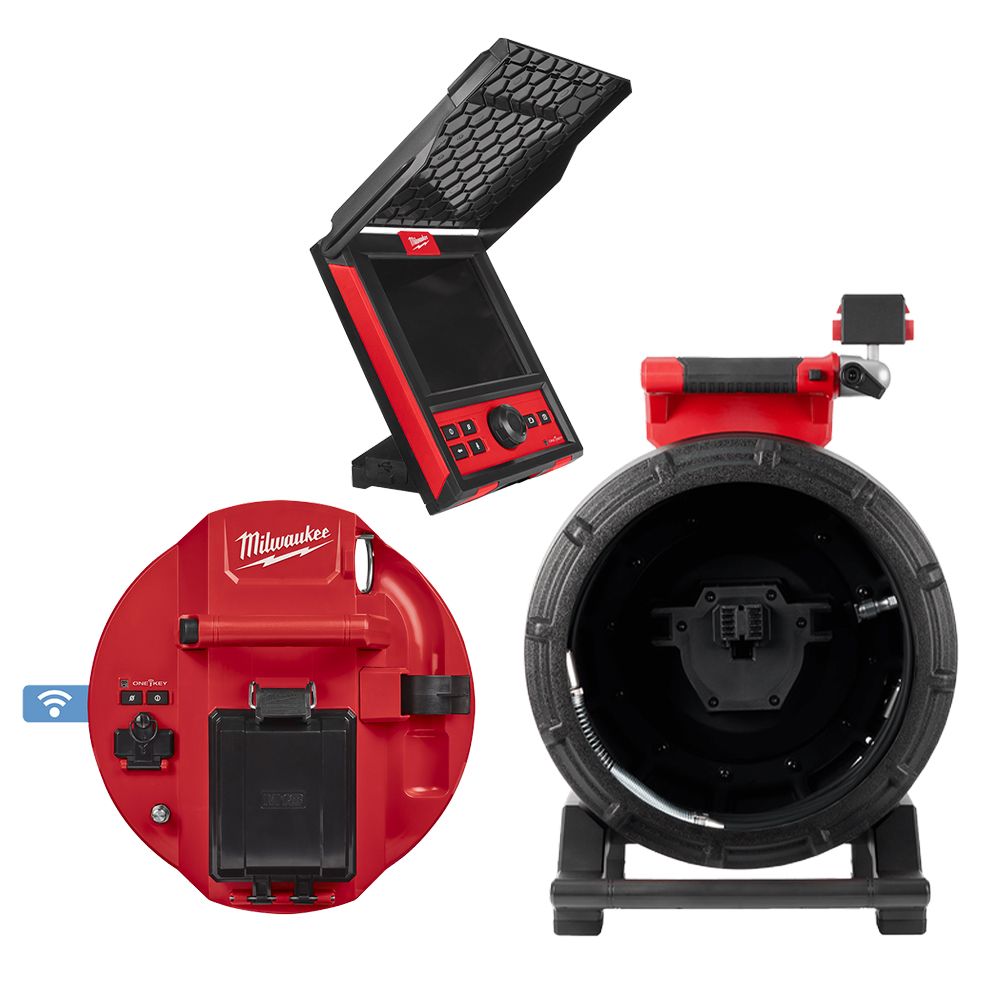

Milwaukee M18SIM0+M18SISH0+M18SIC3080 18V Li-ion Cordless 30m Pipeline Camera Inspection Kit - Skin Only

The Milwaukee 18V Pipeline Inspection Wireless Monitor delivers clear images and enables easy inspections when inspecting sewer drain lines. The 203mm (8") 800 x 600 resolution daylight readable screen provides a clear, sharp image whether you’re outdoors, on a roof or in a dimly lit environment. Zoom up to 4X for better focus on the point of interest inside the pipe. Provide instant feedback to your customers by easily replaying saved videos, or by trimming video length and adding labels or audio to points of interest directly on the monitor. A wireless range of 60m (200’) from the camera reel makes it easy to show findings in real time. The M18™ Pipeline Inspection Wireless Monitor is water resistant and protects from the elements found on the job. This monitor comes equipped with ONE-KEY™ Technology, providing the ability to track the tool's location, manage it in inventory, and lock the tool out to help protect the users investment.

Features:

• Up to 4x digital zoom, for better clarity
• Water resistant display provides protection against water and debris
• Up to 9 hours of runtime with an 18V REDLITHIUM-ION 5.0Ah Battery
• Rubber over mold and screen cover for increased durability
• On screen battery gauge and wireless signal strength
• 800 x 600 daylight readable screen for better visibility in direct sunlight
• Backlit buttons for increased visibility

Specifications:

• Voltage: 18V
• Runtime: Up to 9hours (M18B5 battery)
• Sun Shield: Yes
• Wired Connection: USB-C port to the M18 500GB Control Hub
• Audio: Integrated microphone and speaker
• Over Mold: Rubber
• Screen Size: 203mm (8")
• Display: Water Resistant
• Weight: 1.8kg

Warranty:

• 5 Years Warranty Covered by Milwaukee

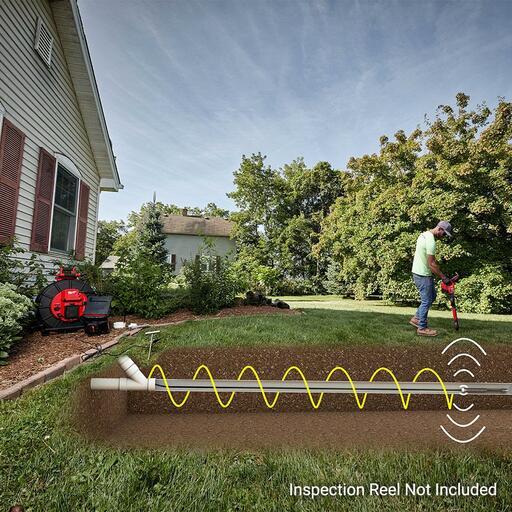

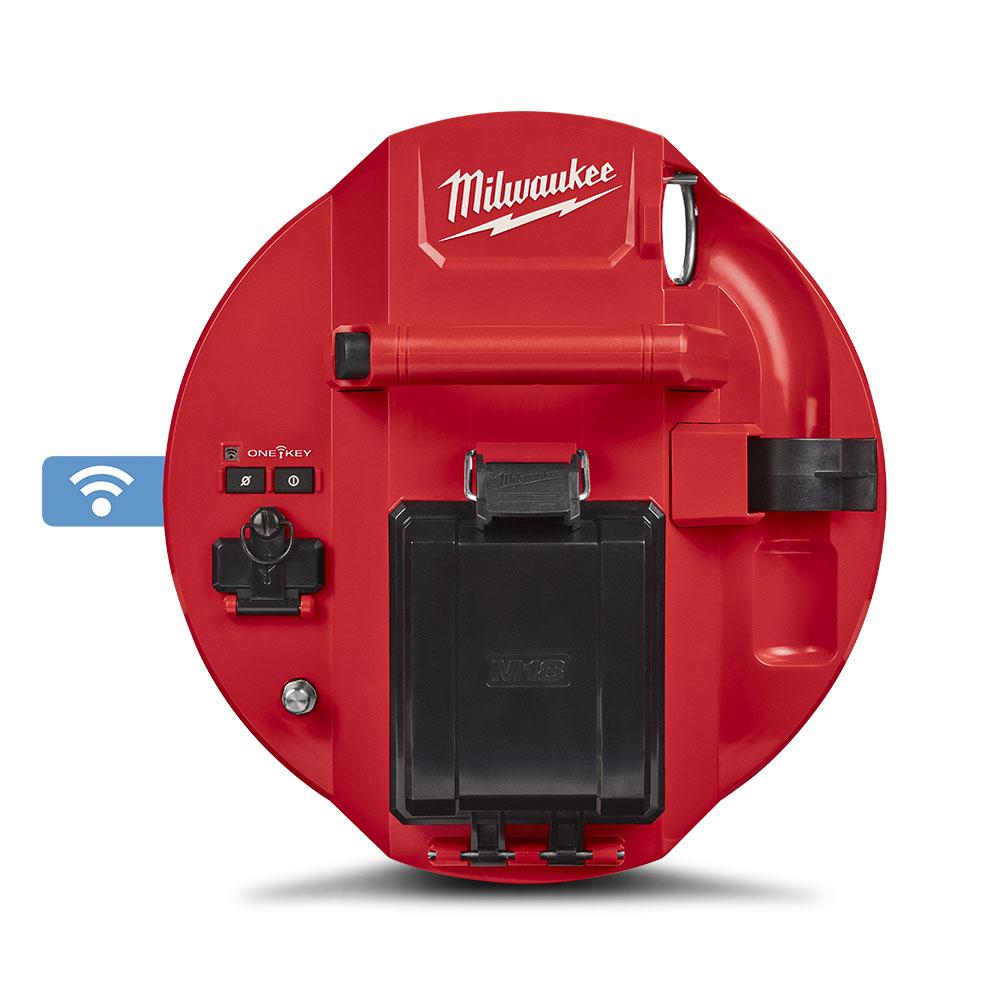

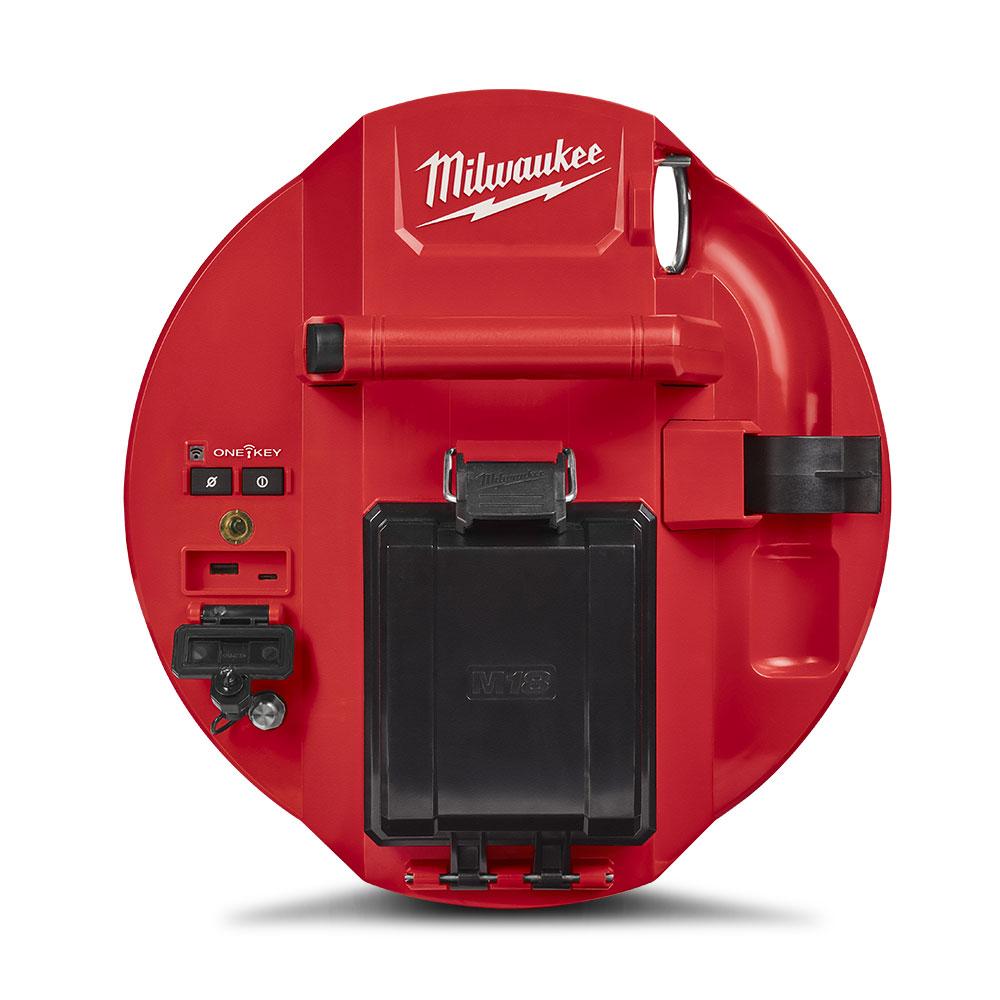

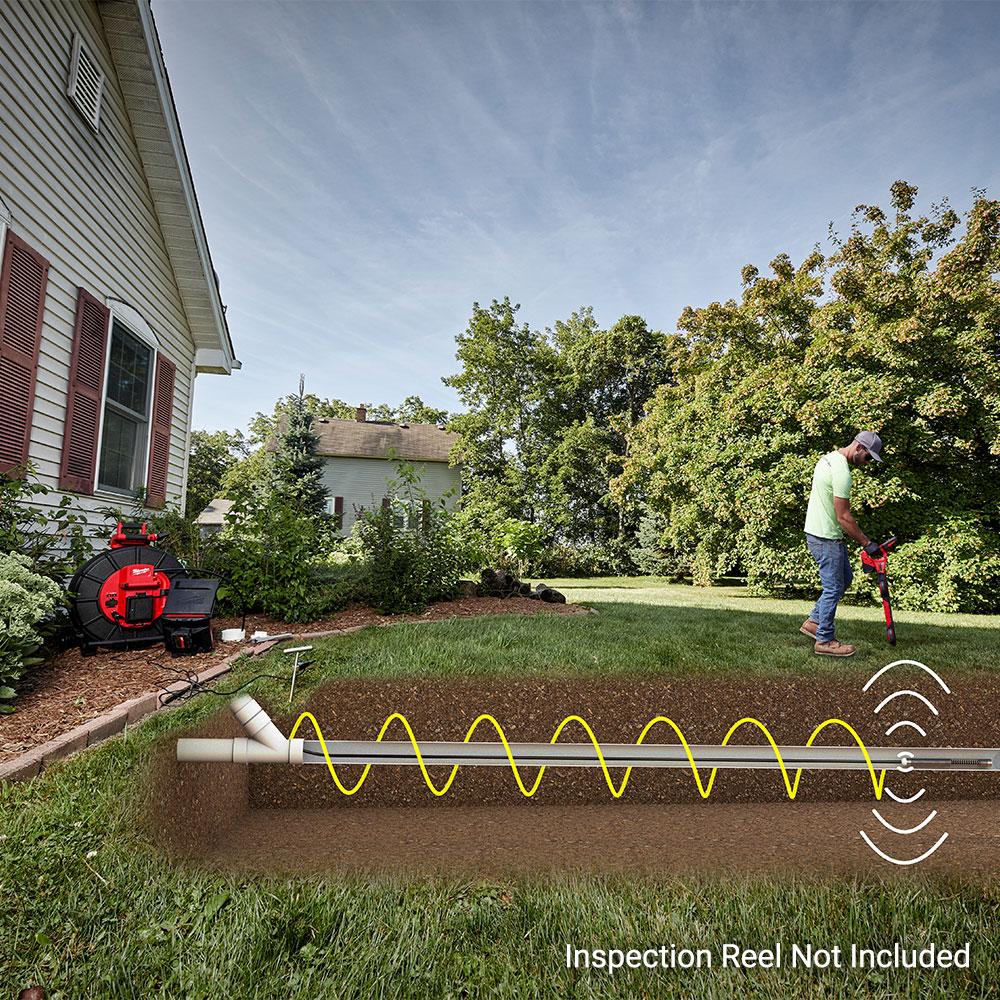

The Milwaukee 18V 500GB Control Hub w/ ONE-KEY provides a versatile pipeline inspection system. The M18 500GB control hub is compatible with all M18 Modular Pipeline Inspection reels, is easily swapped between reel sizes, and wirelessly connects to the M18 Pipeline Inspection Wireless Monitor or a mobile device for viewing. Equipped with 500GB of internal memory, the user can store and organize recordings on board, and seamlessly share wirelessly to a mobile device or directly to a USB drive. The M18 500GB Control Hub features a built-in transmitter that energizes the push cable for line trace capability, making it easier to locate the camera head when in a sewer line. The M18 500GB control hub is compatible with ONE-KEY Technology, giving users the ability to track the tool's location, manage it in inventory, and lock the tool out to help protect users investment.

Features:

• Up to 60m of wireless connectivity
• One-Key technology allows for tracking, tool security and inventory management
• Up to 9 hours of runtime with an 18V REDLITHIUM-ION 5.0Ah Battery
• Wired connection backup to the M18 Wireless Monitor Via USB-C port
• Onboard USB port allows for saving findings on memory stick
• Water tight battery door protects against water and debris

Specifications:

• Voltage: 18V
• Line Type: Main Lines/Sewer Lines
• Video Display: M18 Wireless Monitor or Milwaukee Pipeline Inspection App
• Wireless Range: 60m (200')
• Runtime: Up to 9 hours (M18B5 Battery)
• Photo Format: JPEG
• Video Format: MPEG4
• Internal Storage: 500GB
• Line Trace Frequency: 33kHz, 83kHz
• Weight: 3.5kg

Warranty:

• 5 Year Warranty Covered by Milwaukee

The 18V 30m (100ft) Flexible Pipeline Inspection Reel comes equipped with a flexible push cable providing the ability to navigate tight bends and traps of 38mm – 101mm (1.5"- 4”) lines up to 30m (100’). The inspection reel is powered by the M18 500GB Control Hub w/ ONE-KEY and part of the 18V Modular Pipeline Inspection System. Featuring a 25 mm 1080p self-leveling HD camera head, and the ability to digitally zoom up to 4X and optimize light output inside of pipes, plumbers can now see more in drain lines than ever before. This system features a lightweight, compact design making this Milwaukee's most portable inspection camera. A carrying strap is included and camera skids are included.

Includes:

• 1 x Carrying Strap
• 2 x Star Skids

Features:

• 1080p camera resolution providing the industry's clearest image inside of drain lines
• 30m (100ft) 9.5mm push cable provides stiffness to push maximum distance
• Telescoping handle and wide wheelbase provides maximum stability
• 25mm self-leveling HD camera head with sapphire lens
• Onboard monitor mount for viewing and transportations
• Swap batteries without system shutdown

Specifications:

• Voltage: 18V
• Line Type: Sewer Lines
• Cable Length: 30m (100ft)
• Line Capacity: 38mm - 101mm (1.5" - 4")
• Push Cable Diameter: 9.5mm
• Camera Resolution: 1080p
• Camera Head Ingress Protection: IP67
• Sonde Frequency: 512kHz, 640Hz, 33kHz
• Line Trace Frequency: 33kHz, 85kHz
• Video Display: M18 Wireless Monitor or Milwaukee Pipeline Inspection App
• Weight: 12.6kg

Warranty:

• 5 Year Tool Warranty Covered By Milwaukee
• 12 Months Camera Head Warranty Covered by Milwaukee
• 3 Months Cable Warranty Covered by Milwaukee
