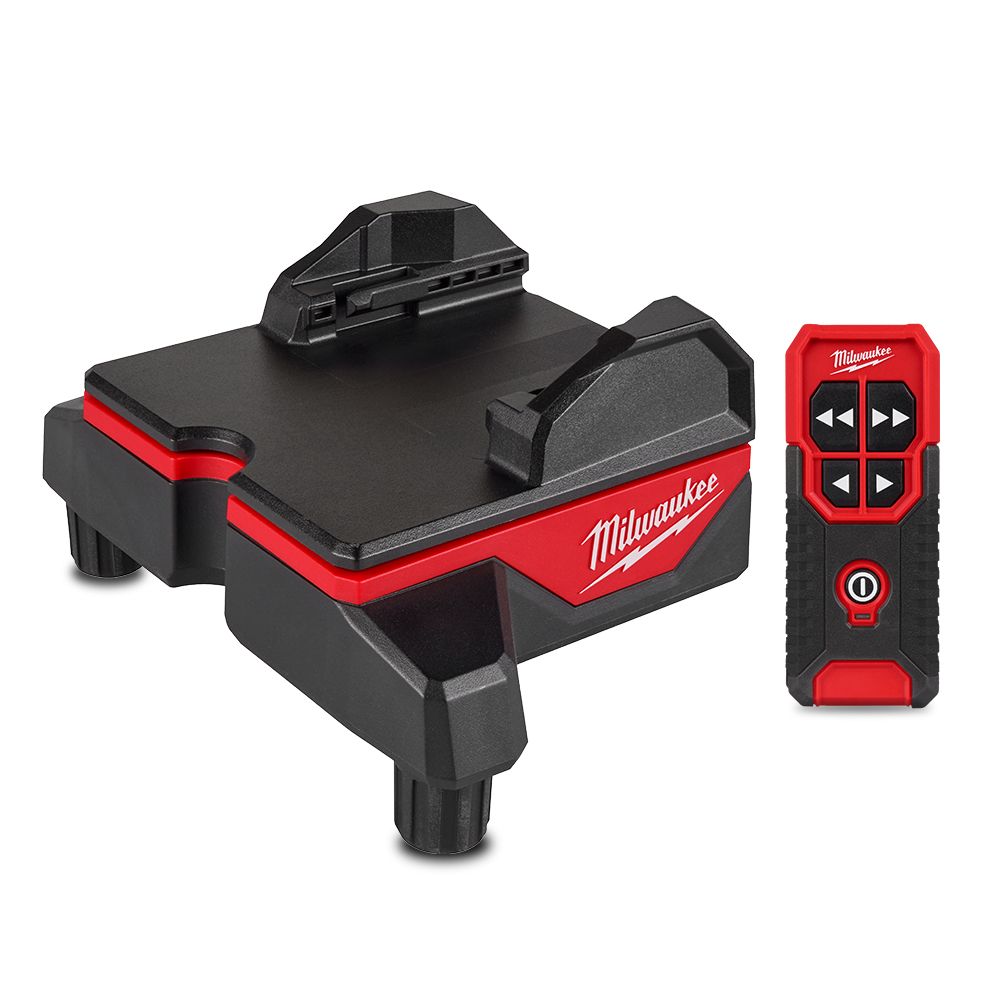

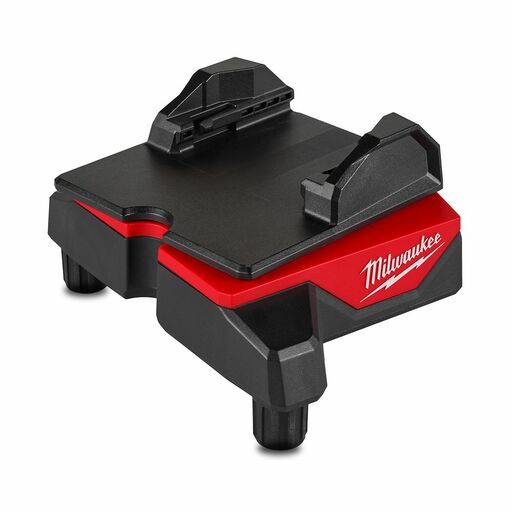

Milwaukee 48351314 Wireless Laser Alignment Base with Remote

Milwaukee 48351314 Wireless Laser Alignment Base with Remote

The Wireless Laser Alignment Base w/ Remote provides users with an efficient and precise laser alignment for theirlayout tasks. This cutting-edge laser accessory streamlines alignment application, transforming what was once a two-person job into a seamless one-person operation saving time and labour on the jobsite. Equipped with a remote that features a range of up to 38m. The Wireless Laser Alignment Base features precision adjustments, offering step accuracy down to 2.38mm at 30m, enabling accurate alignment over long-range distances, and pivots smoothly on the plumb point for easy and fast alignment. With its adjustable legs, it accommodates slightly uneven
surfaces to complete applications over ground-level materials without any hassle. The Wireless Laser Alignment Base is compatible with M12 Lasers, REDLITHIUM USB Lasers, Alkaline Lasers and 1/4” - 20” Tripods.

Features:

• Compatible with M12 Lasers, REDLITHIUM USB™ Lasers, Alkaline Lasers and 1/4” - 20” Tripods
• One-person layout: remote alignment
• Precise adjustments of 2.38mm at 30m
• Pivots on points
• Adjustable legs for additional leveling range
• Adjustable horizontal range – up to to 12m at 38m
• Remote control communication range up to 38m
• 1/4” – 20 thread mount for tripod

Specifications:

• Movement Per Click (Precision Adjustment): 2.4mm at 30m
• Adjustable Horizontal Range: Up to 12m at 38m
• Remote Communication Range: 38m
• Laser Base Maximum Clearance with Adjustable Feet: 38mm (1-1/2")
• Total Movement: 18º Left to Right
• IP Rating: IP54
• Drop Rating: 0.9m
• Mounting Thread: 1/4" - 20
• Laser Base Dimensions: 155mm x 176mm x 90mm
• Weight: 0.5kg

Warranty:

• 2 Years Warranty Covered by Milwaukee
