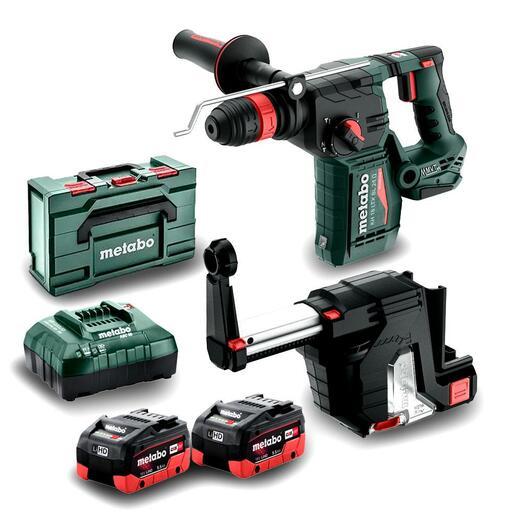

Metabo AU60171400 18V Li-ion Cordless Brushless SDS-Plus Hammer Drill 2pce Combo Kit

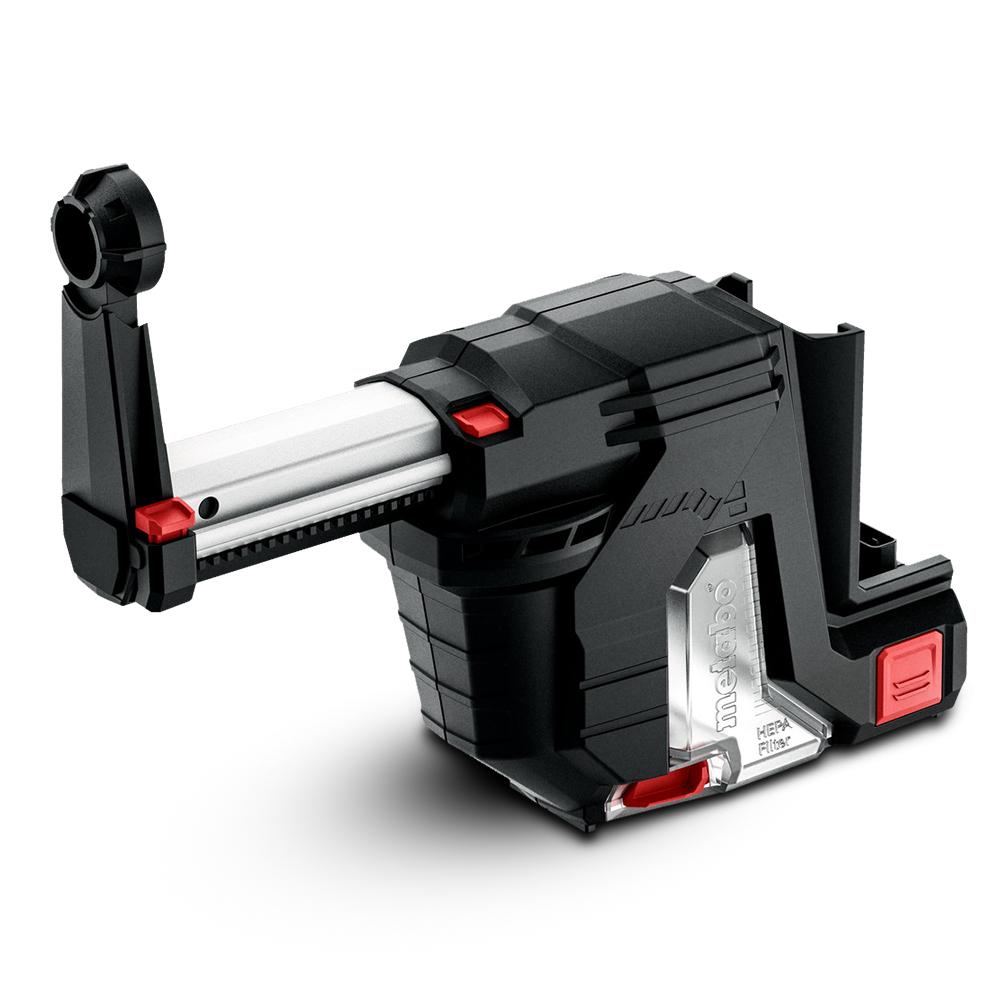

The Metabo Dust Extraction Attachment offers an ultra-lightweight and compact solution for dust-free drilling in concrete, stone, and masonry. Designed for effortless, tool-free installation on the KH 18 LTX BL 24 Q cordless hammer drill, it’s ideal for overhead work or in dust-sensitive environments. A built-in HEPA filter captures fine particles, promoting healthier working conditions, while features like adjustable depth settings, a transparent and easy-to-empty dust container, and a 3-second post-drill suction delay enhance efficiency. With its own motor-driven system, it ensures 100% drilling performance without compromise, supporting drill diameters from 5mm to 16mm and lengths up to 160mm.

Features:

• Extremely light and compact dust extraction for dust-free drilling in concrete, stone and masonry
• Simple, tool-free installation to the cordless hammer KH 18 LTX BL 24 Q
• Ideal for working overhead or in areas sensible to dust
• Health-friendly working with HEPA filter for smallest dust particles
• Precise setting for different drilling depths and drill bit lengths
• Tool-free replaceable suction head with low-wear brushes
• 3 Second delay to extract the remaining dust from the drill hole
• Transparent collection container can be emptied easily, e.g. for 160 bores Ø 6 / 40 mm 100%
• Drilling performance with active dust extraction thanks to being driven by own motor

Suitable For:

• Metabo KH 18 LTX BL 24 Q (601714850) 18V Li-ion Cordless Brushless SDS-Plus Hammer Drill - Skin Only

Specifications:

• Drill Diameter: 5mm - 16mm (3/16" - 5/8")
• Maximum Drill Length: 160mm (6-5/16")
• Rated Input Power: 65W
• Weight(Skin): 1.1kg

Features:

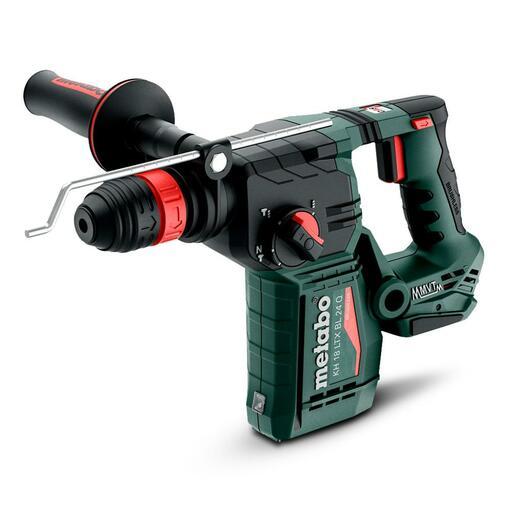

• Very lightweight, compact cordless hammer with brushless motor for low-fatigue drilling in any working position
• Maximum drill performance, efficiency and service life thanks to brushless technology and high-performance hammer action
• Dust-free drilling with compact dust extraction ISA 24 (accessory sold separately)
• Combination hammer with 3 functions: hammer drilling, drilling and chiselling
• Metabo VibraTech (MVT): working, also continuously, in a low-fatigue manner whilst protecting the user's health
• Metabo Quick: fast, tool-free chuck for working with SDS-plus and straight shank drill bits
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Electronic soft start for precise spot-drilling
• Double safety when the drill bit jams: No kick-back thanks to the mechanic decoupling plus ultra-fast sensor-controlled shutdown
• LED work light for optimum view of the drilling site

Specifications:

• Voltage: 18V
• Maximum Single Blow Energy: 2.2j
• Maximum Impact Rate: 4750bpm
• Drill Diameter Capacity:
  • Concrete with Hammer Bits: 24mm
  • Masonry with Core Bits: 82mm
  • Steel: 13mm
  • Soft Wood: 30mm
• No-Load Speed: 0-1280rpm
• Bit Retainer: SDS-Plus
• Vibration:
  • Concrete Drilling: 13.4m/s²
  • Chiseling: 9.1m/s²
• Sound Pressure Level: 90dB(A)
• Sound Power Level: 101dB(A)
• Dimensions(L x W x H): 357mm x 96mm x 230mm
• Weight(Skin): 3kg

Warranty:

• 6 Years Extended Warranty via Registration through Metabo within 4 weeks of purchase

The Metabo ASC 55 (627047000) 12V–36V Air-Cooled Battery Charger is a high-performance charging solution designed for all Metabo Li-Ion and LiHD slide-on battery packs. Featuring intelligent, microcontroller-monitored charging and battery diagnosis, it ensures optimal performance and longevity of your batteries. With an approximate charge time of 30 minutes for a 1.5Ah battery, it also incorporates Metabo’s patented AIR COOLED technology, which gently cools batteries during charging to maintain ideal temperatures, extending battery life and reducing charge time by up to 30%. The charger automatically switches to a compensation charge mode to preserve battery capacity over time. Operating on 230–240V, 50–60Hz, this durable charger comes with a 3-year Metabo warranty upon registration.

Features:

• Monitored charging with micro controller
• Battery diagnosis
• Charge time approximately 30 minutes at 1.5 Ah
• For charging all Li-Ion and LiHD slide-on battery packs (12 V - 36 V) with adapted battery pack charging current
• Charger switches to compensation charge: to conserve the capacity, the battery pack is charged for 1 second every 45 seconds with 2.5 ampere.
• "AIR COOLED" function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.

Specifications:

• Mains voltage: 230 - 240V
• Mains frequency: 50 - 60Hz

Warranty:

• 3 Years Warranty Covered By Metabo via registration

A high-performance 18V Li-ion battery designed to deliver maximum power, extended runtime and long service life for demanding job site applications. The Metabo 5.5 LiHD features advanced high-density cell technology that provides superior energy storage and sustained performance under heavy loads — ideal for powering brushless tools, big-torque drills, grinders, saws and more. Built to withstand tough working conditions with robust construction, smart cell management and excellent temperature tolerance, this battery keeps your tools running longer so you can work with confidence. Compatible with Metabo’s 18V Li-ion system, it’s the perfect upgrade for professionals and serious DIYers who need dependable power and runtime. Premium performance where it matters most.

Features:

• LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation
• Ultra M technology: Intelligent battery management for long-lasting battery packs
• Patented “AIR COOLED“ charging technology
• Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life
• Processor-controlled charge and discharge management
• Capacity display with almost no self-discharge

Specifications:

• Battery pack voltage: 18V
• Battery pack capacity: 5.5Ah

Warranty:

• 3 Years Warranty Covered By Metabo via registration
